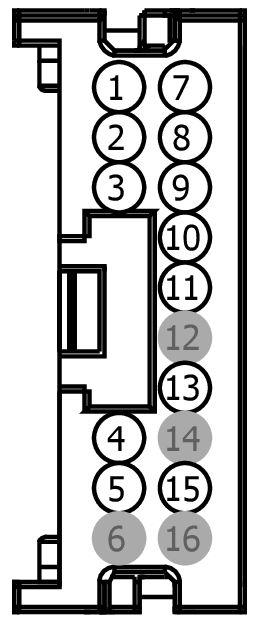

Connector End View (C226D) - STEERING COLUMN CONTROL MODULE (SCCM)
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C226D |
STEERING COLUMN CONTROL MODULE (SCCM) |
BK |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* (*) |
* |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
paddle shift |
NA |
| 2 |
* (*) |
* |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
paddle shift |
NA |
| 3 |
* (*) |
* |
SWITCH - TRANSMISSION SELECT SHIFT # RETURN (SST) |
paddle shift |
NA |
| 4 |
* (*) |
* |
CTRL. MOD. - HORN/ILLUMINATION GROUND |
NA |
| 5 |
* (*) |
* |
CTRL MOD. - SWITCH HORN |
NA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL LEFT |
NA |
| 8 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1 |
cruise control |
NA |
| 9 |
* (*) |
* |
SWITCH # RETURN LEFT (SW GND LEFT) |
NA |
| 10 |
* (*) |
* |
SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2 |
cruise control |
NA |
| 11 |
* (*) |
* |
SWITCH - REDUNDANT AUDIO + |
NA |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* (*) |
* |
SWITCH # RETURN RIGHT (SW GND RIGHT) |
NA |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* (*) |
* |
CTRL MOD. - IP/SWITCH ILLUMINATION + |
without cruise control |
NA |
| 16 |
* |
* |
Not Used |
N/A |
