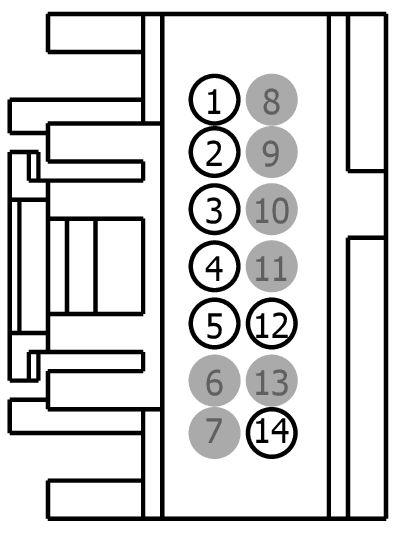

Connector End View (C226B) - STEERING COLUMN CONTROL MODULE (SCCM)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226B	STEERING COLUMN CONTROL MODULE (SCCM)	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-RA	DU2Z-14474-BA	0.64
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP22 (GY-RD)	22	FUSE - 22 OR CIRCUIT BREAKER	3F2T-14474-SA
2	VX107 (YE-GY)	22	CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1	3F2T-14474-SA
3	CRW15 (BN-WH)	22	CTRL MOD. - FRONT WIPER HIGH	3F2T-14474-SA
4	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	3F2T-14474-SA
5	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	3F2T-14474-SA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	3F2T-14474-SA
13	*	*	Not Used	N/A
14	GD265 (BK)	20	GROUND - STEERING COLUMN BRACKET	3F2T-14474-RA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1583

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JEC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Overhead Console
Module - Power Steering
Module - Seat Memory
Radio
Radio - Amplifier
Switch - Moon Roof/Sun Roof

Pigtail Kit Part Number WPT-974

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JEB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Overhead Console
Module - Seat Memory
Radio
Radio - Amplifier
Switch - Moon Roof/Sun Roof
