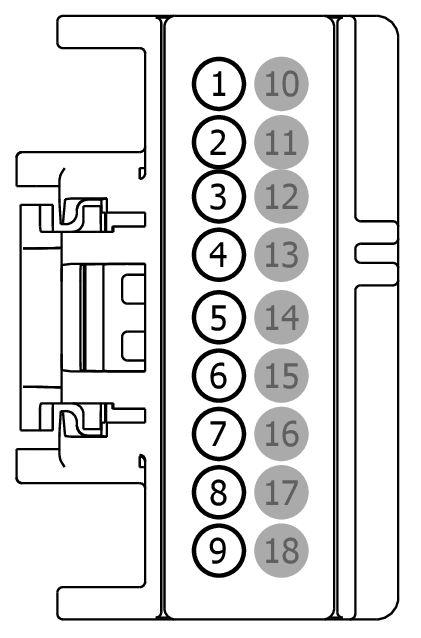

Connector End View (C226A) - STEERING COLUMN CONTROL MODULE (SCCM)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226A	STEERING COLUMN CONTROL MODULE (SCCM)	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64
3F2T-14474-RA	DU2Z-14474-BA	0.64
1L2T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+	1L2T-14474-CA
2	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	1L2T-14474-CA
3	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +	1L2T-14474-CA
4	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -	1L2T-14474-CA
5	CET43 (WH-GN)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	paddle shift	3F2T-14474-SA
6	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	paddle shift	3F2T-14474-SA
7	RET42 (WH-BN)	22	SWITCH - TRANSMISSION SELECT SHIFT (SNS GND)	paddle shift	3F2T-14474-SA
8	GD285 (BK-WH)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 5TH POINT	3F2T-14474-RA
9	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	3F2T-14474-SA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1148

Courtesy of FORD MOTOR COMPANY
