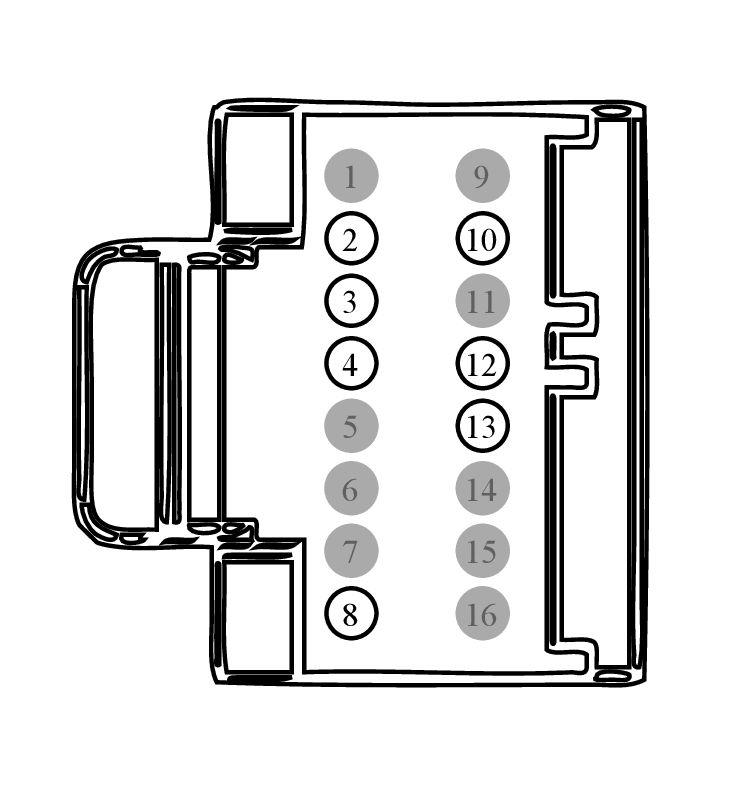

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC) MODULE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C220 | INSTRUMENT PANEL CLUSTER (IPC) MODULE | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| FU5T-14474-LB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | RMC32 (GN-BU) | 22 | CTRL MOD. - SENSOR FUEL LEVEL | FU5T-14474-LB | ||||
| 3 | GD265 (BK) | 22 | GROUND - STEERING COLUMN BRACKET | FU5T-14474-LB | ||||
| 4 | CET52 (GN) | 22 | SWITCH - TRANSMISSION PARK DETECT | FU5T-14474-LB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | CBP22 (GY-RD) | 22 | FUSE - 22 OR CIRCUIT BREAKER | FU5T-14474-LB | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | VMC11 (YE-VT) | 22 | SENSOR - FUEL LEVEL (FLI) | FU5T-14474-LB | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | VDB29 (GN-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | FU5T-14474-LB | ||||
| 13 | VDB30 (WH-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | FU5T-14474-LB | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1560
Service Part Number:
JU2Z-14S411-APA
Gauge:
20
Pin material:
Tin
Cavities:
16
Vehicle Uses:
- Instrument Cluster
- Module - Seat Memory
- Module - Upfitter Interface
- Radio - Amplifier
