Connector End View (C219) - INLINE

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
Inline: Description Color Harness Base Part # Service Pigtail
C219 INLINE 1440112A581 Not Available
Terminal Part Number  Service Part Number  Size
8V5T-14421-ABA Not Available
8V5T-14421-AFA Not Available
93BG-14474-YAA Not Available
FU5T-14421-FA Not Available
93BG-14421-YAA Not Available
8V5T-14474-NA Not Available
97BG-14421-BAA EU2Z-14421-EA 2.8
97BG-14421-BCA EU2Z-14421-EA 2.8
97BG-14421-BBA EU2Z-14421-EA 2.8
3F2T-14474-SA DU2Z-14474-BA 0.64
97BG-14474-BAA DU2Z-14474-EA 2.8
97BG-14474-BCA DU2Z-14474-EA 2.8
97BG-14474-CCA JU2Z-14474-AB 6.3
97BG-14474-BBA DU2Z-14474-EA 2.8
3F2T-14474-RA DU2Z-14474-BA 0.64
97BG-14421-CCA KU2Z-14421-AA 6.3

MALE

Harness

14401

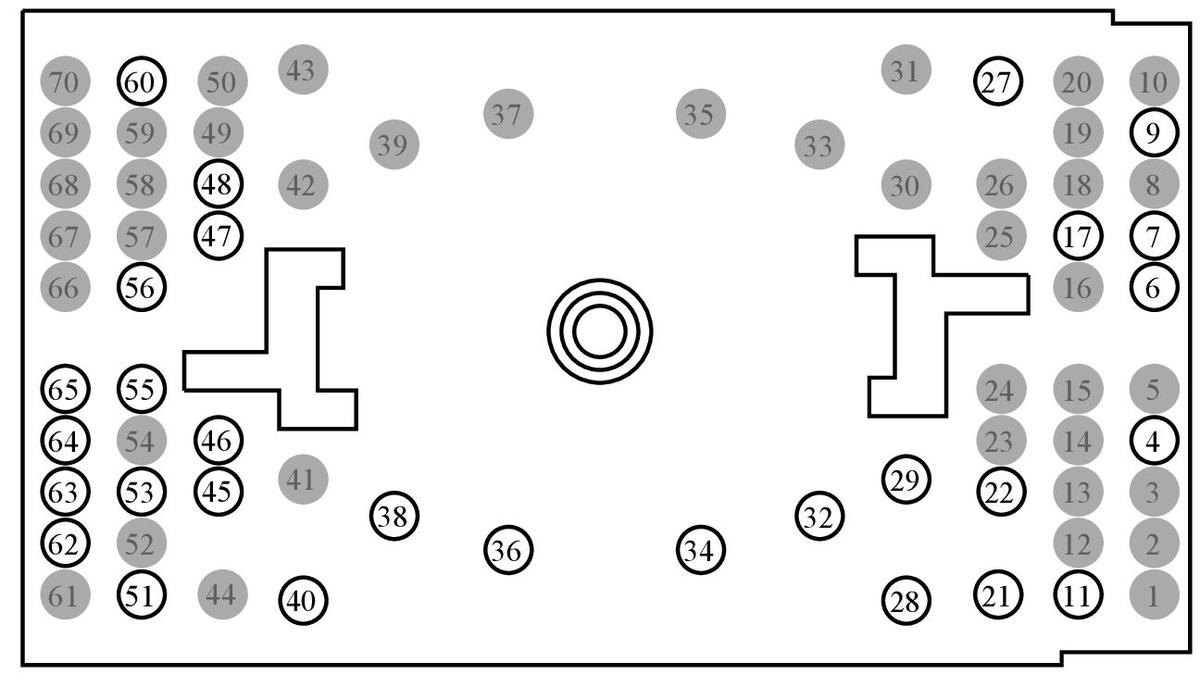

GFDWR26566Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 * * N/A
2 * * N/A
3 * * N/A
4 CRD02 (BU-GY) 22 8V5T-14421-ABA
5 * * N/A
6 VDB25 (GN-OG) 22 8V5T-14421-ABA
7 VDB26 (GY-BU) 22 8V5T-14421-ABA
8 * * N/A
9 CH310 (GN) 22 PTC heater 8V5T-14421-ABA
10 * * N/A
11 CBB56 (BU-GN) 22 8V5T-14421-ABA
12 * * N/A
13 * * N/A
14 * * N/A
15 * * N/A
16 * * N/A
17 CCA10 (WH-BN) 22 8V5T-14421-ABA
18 * * N/A
19 * * N/A
20 * * N/A
21 CDC35 (BU-WH) 22 with push button start without remote keyless entry 97BG-14421-BAA
21 CPK34 (BU-WH) 22 with push button start with remote keyless entry 97BG-14421-BAA
22 CH123 (VT-GN) 22 8V5T-14421-ABA
23 * * N/A
24 * * N/A
25 * * N/A
26 * * N/A
27 SBB17 (RD) 12 97BG-14421-BCA
28 CBB30 (YE-BU) 18 97BG-14421-BBA
29 CBB26 (BU-WH) 18 97BG-14421-BBA
30 * * N/A
31 * * N/A
32 SBF02 (YE-RD) 8 FU5T-14421-FA
33 * * N/A
34 CH402 (YE-GN) 10 97BG-14421-CCA
35 * * N/A
36 CHP02 (WH-OG) 10 PTC heater 97BG-14421-CCA
37 * * N/A
38 CHP06 (VT-GN) 8 PTC heater 93BG-14421-YAA
39 * * N/A
40 SBB40 (VT-RD) 20 heated seats 8V5T-14421-AFA
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 VX107 (YE-GY) 22 8V5T-14421-ABA
46 CET43 (WH-GN) 22 8V5T-14421-ABA
47 RET42 (WH-BN) 22 8V5T-14421-ABA
48 CET42 (GN-VT) 22 8V5T-14421-ABA
49 * * N/A
50 * * N/A
51 CH311 (VT-GN) 22 PTC heater 8V5T-14421-ABA
52 * * N/A
53 CRD21 (WH-BN) 22 8V5T-14421-ABA
54 * * N/A
55 CRW15 (BN-WH) 22 8V5T-14421-ABA
56 CCB08 (VT-WH) 20 8V5T-14421-AFA
57 * * N/A
58 * * N/A
59 * * N/A
60 CBB55 (BN-BU) 20 8V5T-14421-AFA
61 * * N/A
62 VR213 (VT-GN) 20 8V5T-14421-AFA
63 RR129 (YE-GY) 20 8V5T-14421-AFA
64 VR214 (WH-BU) 20 8V5T-14421-AFA
65 RR130 (GN-BU) 20 8V5T-14421-AFA
66 * * N/A
67 * * N/A
68 * * N/A
69 * * N/A
70 * * N/A

FEMALE

Harness

12A581

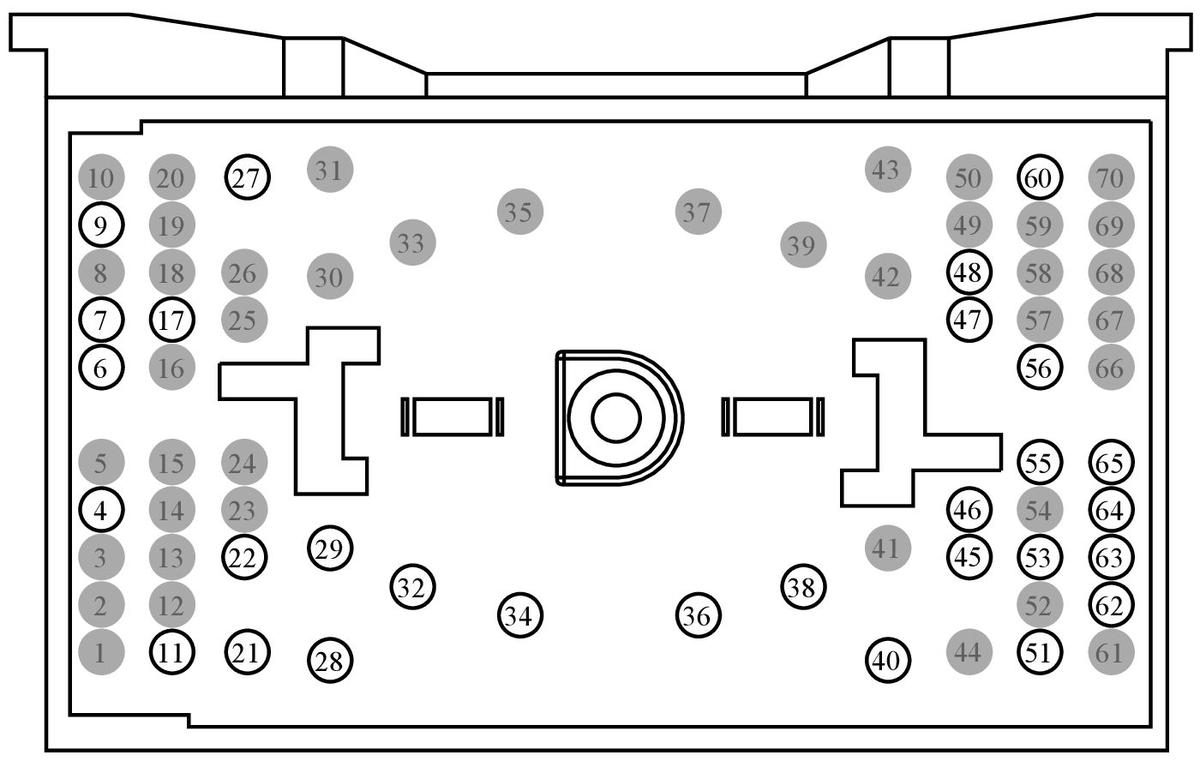

GFDWR26567Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 * * N/A
2 * * N/A
3 * * N/A
4 CRD02 (BU-GY) 22 3F2T-14474-SA
5 * * N/A
6 VDB25 (GN-OG) 22 3F2T-14474-SA
7 VDB26 (GY-BU) 22 3F2T-14474-SA
8 * * N/A
9 CH310 (GN) 22 PTC heater 3F2T-14474-SA
10 * * N/A
11 CBB56 (BU-GN) 22 3F2T-14474-SA
12 * * N/A
13 * * N/A
14 * * N/A
15 * * N/A
16 * * N/A
17 CCA10 (WH-BN) 22 3F2T-14474-SA
18 * * N/A
19 * * N/A
20 * * N/A
21 CDC35 (BU-WH) 22 with push button start 97BG-14474-BAA
22 CH123 (VT-GN) 22 3F2T-14474-SA
23 * * N/A
24 * * N/A
25 * * N/A
26 * * N/A
27 SBB17 (RD) 12 97BG-14474-BCA
28 CBB30 (YE-BU) 18 97BG-14474-BBA
29 CBB26 (BU-WH) 16 97BG-14474-BBA
30 * * N/A
31 * * N/A
32 SBF02 (YE-RD) 8 8V5T-14474-NA
33 * * N/A
34 CH402 (YE-GN) 12 97BG-14474-CCA
35 * * N/A
36 CHP02 (WH-OG) 12 PTC heater 97BG-14474-CCA
37 * * N/A
38 CHP06 (VT-GN) 10 PTC heater 93BG-14474-YAA
39 * * N/A
40 SBB40 (VT-RD) 16 heated seats 97BG-14474-BBA
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 VX107 (YE-GY) 22 3F2T-14474-SA
46 CET43 (GY) 22 3F2T-14474-SA
47 RET42 (WH-BN) 22 3F2T-14474-SA
48 CET42 (GN-VT) 22 3F2T-14474-SA
49 * * N/A
50 * * N/A
51 CH311 (VT-GN) 20 PTC heater 3F2T-14474-RA
52 * * N/A
53 CRD21 (WH-BN) 22 3F2T-14474-SA
54 * * N/A
55 CRW15 (BN-WH) 20 3F2T-14474-RA
56 CCB08 (VT-WH) 20 3F2T-14474-RA
57 * * N/A
58 * * N/A
59 * * N/A
60 CBB55 (BN-BU) 20 3F2T-14474-RA
61 * * N/A
62 VR213 (VT-GN) 20 3F2T-14474-RA
63 RR129 (YE-GY) 20 3F2T-14474-RA
64 VR214 (WH-BU) 20 3F2T-14474-RA
65 RR130 (GN-BU) 20 3F2T-14474-RA
66 * * N/A
67 * * N/A
68 * * N/A
69 * * N/A
70 * * N/A
