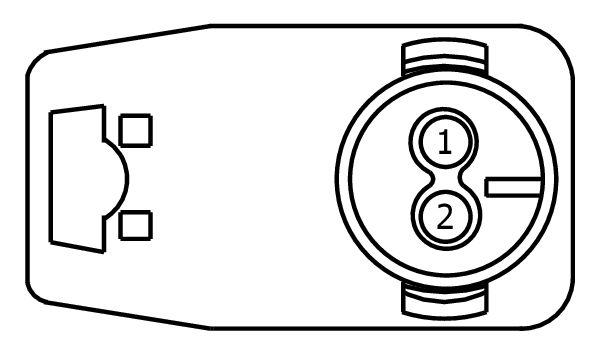

Connector End View (C216A) - DRIVER AIRBAG
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C216A | DRIVER AIRBAG | PIA | part# N/A | See Below | ||
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR101 (YE-GN) | 20 | CTRL MOD. - AIR BAG DRIVER 1+ | NA | ||||
| 2 | RR101 (VT-BN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 - | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1225
Service Part Number:
BU2Z-14S411-BHA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Airbag - Side Curtain
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Sensor - Side Impact
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
