Connector End View (C210) - INLINE

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
Inline: Description Color Harness Base Part # Service Pigtail
C210 INLINE 14A00512A581 Not Available
Terminal Part Number  Service Part Number  Size
8V5T-14421-ABA Not Available
8V5T-14421-AFA Not Available
93BG-14474-YAA Not Available
96FG-14421-YAA Not Available
8V5T-14421-ABA|8V5T-14421-AFA Not Available
96FG-14474-YAA Not Available
3F2T-14474-SA DU2Z-14474-BA 0.64
3F2T-14474-RA DU2Z-14474-BA 0.64
97BG-14421-BBA EU2Z-14421-EA 2.8
97BG-14421-BCA EU2Z-14421-EA 2.8
97BG-14421-CBA KU2Z-14421-AA 6.3
97BG-14474-BBA DU2Z-14474-EA 2.8
97BG-14474-BCA DU2Z-14474-EA 2.8
97BG-14474-BAA DU2Z-14474-EA 2.8
97BG-14474-CCA JU2Z-14474-AB 6.3

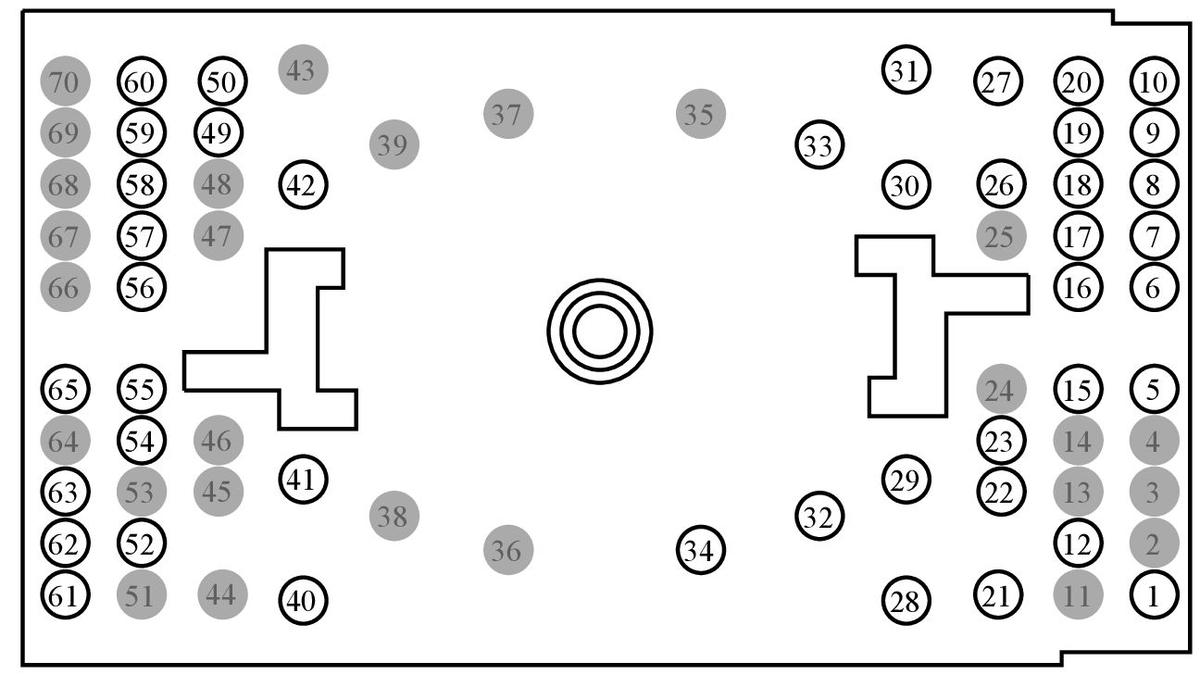

MALE

Harness

14A005

GFDWR26558Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 VCF34 (WH) 22 AWD 8V5T-14421-ABA
2 * * N/A
3 * * N/A
4 * * N/A
5 VE761 (YE-VT) 22 2.0L 8V5T-14421-ABA
6 CBB22 (YE-VT) 20 8V5T-14421-AFA
7 CE114 (GN-BU) 18 8V5T-14421-AFA
8 CBB21 (BN-WH) 18 8V5T-14421-AFA
9 CE420 (GY-VT) 18 8V5T-14421-AFA
10 VCA04 (BU-OG) 20 8V5T-14421-AFA
11 * * N/A
12 RE230 (WH-VT) 20 2.0L 8V5T-14421-ABA|8V5T-14421-AFA
12 RE230 (WH-VT) 22 1.0L 8V5T-14421-ABA|8V5T-14421-AFA
13 * * N/A
14 * * N/A
15 CBB58 (WH-OG) 22 8V5T-14421-ABA
16 VDB04 (WH-BU) 22 8V5T-14421-ABA
17 VDB05 (WH) 22 8V5T-14421-ABA
18 VE225 (YE-OG) 20 8V5T-14421-AFA
19 VE518 (BN-WH) 20 8V5T-14421-AFA
20 VE922 (VT-GN) 20 8V5T-14421-AFA
21 SBB08 (BU-RD) 16 97BG-14421-BBA
22 LE230 (BN-BU) 20 2.0L 8V5T-14421-ABA|8V5T-14421-AFA
22 LE230 (BN-BU) 22 1.0L 8V5T-14421-ABA|8V5T-14421-AFA
23 CRW02 (GY-BU) 22 8V5T-14421-ABA
24 * * N/A
25 * * N/A
26 VCF35 (GN) 22 AWD 8V5T-14421-ABA
27 SBB18 (YE-RD) 12 97BG-14421-BCA
28 SBB48 (GN-RD) 12 97BG-14421-BCA
29 SBB46 (GN-RD) 12 97BG-14421-BCA
30 CBB14 (VT-OG) 20 97BG-14421-BBA
31 CE608 (VT-GN) 18 97BG-14421-BBA
32 SBB34 (YE-RD) 12 96FG-14421-YAA
33 SBB03 (YE-RD) 12 96FG-14421-YAA
34 CRD06 (BN-YE) 12 97BG-14421-CBA
35 * * N/A
36 * * N/A
37 * * N/A
38 * * N/A
39 * * N/A
40 CE608 (VT-GN) 12 97BG-14421-BCA
41 SBB05 (GY-RD) 14 97BG-14421-BCA
42 SBB26 (YE-RD) 14 97BG-14421-BCA
43 * * N/A
44 * * N/A
45 * * N/A
46 * * N/A
47 * * N/A
48 * * N/A
49 CRT34 (VT-OG) 20 8V5T-14421-AFA
50 GD356 (BK-VT) 16 97BG-14421-BBA
51 * * N/A
52 CBB16 (BU-GN) 20 8V5T-14421-AFA
53 * * N/A
54 VX107 (YE-GY) 22 automatic wipers 8V5T-14421-ABA
55 SBB25 (YE-RD) 18 8V5T-14421-AFA
56 CLS21 (BU-GN) 20 8V5T-14421-AFA
57 VDB25 (GN-OG) 22 8V5T-14421-ABA
58 VDB26 (GY-BU) 22 8V5T-14421-ABA
59 CLS25 (YE-VT) 20 8V5T-14421-AFA
60 CBB15 (BN-BU) 22 8V5T-14421-ABA
61 RCA18 (BN-GN) 20 8V5T-14421-AFA
62 VCA06 (BU-OG) 20 8V5T-14421-AFA
63 RCA20 (BN) 20 8V5T-14421-AFA
64 * * N/A
65 SBB41 (RD) 18 8V5T-14421-AFA
66 * * N/A
67 * * N/A
68 * * N/A
69 * * N/A
70 * * N/A

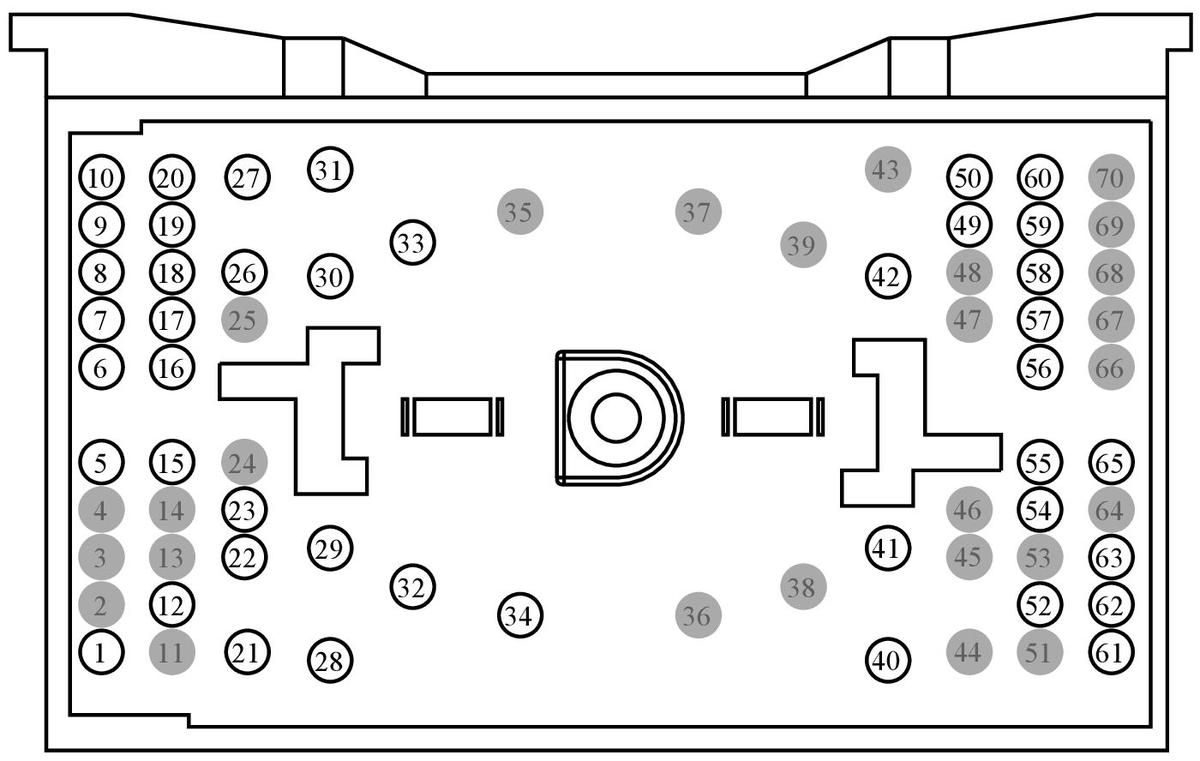

FEMALE

Harness

12A581

GFDWR26559Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 VCF34 (WH) 22 AWD 3F2T-14474-SA
2 * * N/A
3 * * N/A
4 * * N/A
5 VE761 (YE-VT) 22 2.0L 3F2T-14474-SA
6 CBB22 (YE-VT) 20 3F2T-14474-RA
7 CE114 (GN-BU) 18 3F2T-14474-RA
8 CBB21 (BN-WH) 18 3F2T-14474-RA
9 CE420 (GY-VT) 18 3F2T-14474-RA
10 VCA04 (BU-OG) 20 3F2T-14474-RA
11 * * N/A
12 RE230 (WH-VT) 20 3F2T-14474-RA
13 * * N/A
14 * * N/A
15 CBB58 (WH-OG) 22 3F2T-14474-SA
16 VDB04 (WH-BU) 22 3F2T-14474-SA
17 VDB05 (WH) 22 3F2T-14474-SA
18 VE225 (YE-OG) 20 3F2T-14474-RA
19 VE518 (BN-WH) 20 3F2T-14474-RA
20 VE922 (VT-GN) 20 3F2T-14474-RA
21 SBB08 (BU-RD) 16 97BG-14474-BBA
22 LE230 (BN-BU) 20 3F2T-14474-RA
23 CRW02 (GY-BU) 20 3F2T-14474-RA
24 * * N/A
25 * * N/A
26 VCF35 (GN) 22 AWD 3F2T-14474-SA
27 SBB18 (YE-RD) 12 97BG-14474-BCA
28 SBB48 (GN-RD) 12 97BG-14474-BCA
29 SBB46 (GN-RD) 12 97BG-14474-BCA
30 CBB14 (VT-OG) 20 97BG-14474-BAA
31 CE608 (VT-GN) 18 97BG-14474-BBA
32 SBB34 (YE-RD) 10 93BG-14474-YAA
33 SBB03 (YE-RD) 12 96FG-14474-YAA
34 CRD06 (BN-YE) 12 97BG-14474-CCA
35 * * N/A
36 * * N/A
37 * * N/A
38 * * N/A
39 * * N/A
40 CE608 (VT-GN) 12 97BG-14474-BCA
41 SBB05 (GY-RD) 12 97BG-14474-BCA
42 SBB26 (YE-RD) 14 97BG-14474-BCA
43 * * N/A
44 * * N/A
45 * * N/A
46 * * N/A
47 * * N/A
48 * * N/A
49 CRT34 (VT-OG) 20 3F2T-14474-RA
50 GD356 (BK-VT) 16 97BG-14474-BBA
51 * * N/A
52 CBB16 (BU-GN) 20 3F2T-14474-RA
53 * * N/A
54 VX107 (YE-GY) 20 automatic wipers 3F2T-14474-RA
55 SBB25 (YE-RD) 18 3F2T-14474-RA
56 CLS21 (BU-GN) 20 3F2T-14474-RA
57 VDB25 (GN-OG) 22 3F2T-14474-SA
58 VDB26 (GY-BU) 22 3F2T-14474-SA
59 CLS25 (YE-VT) 20 3F2T-14474-RA
60 CBB15 (BN-BU) 22 3F2T-14474-SA
61 RCA18 (BN-GN) 20 3F2T-14474-RA
62 VCA06 (BU-OG) 20 3F2T-14474-RA
63 RCA20 (BN) 20 3F2T-14474-RA
64 * * N/A
65 SBB41 (RD) 18 3F2T-14474-RA
66 * * N/A
67 * * N/A
68 * * N/A
69 * * N/A
70 * * N/A
