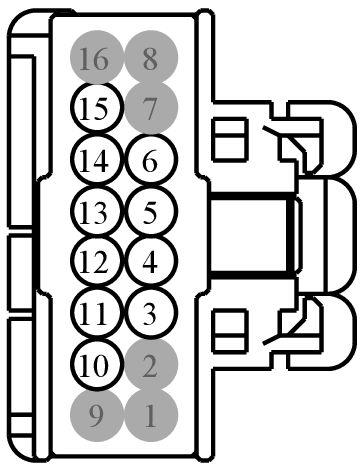

Connector End View (C205) - HEADLAMP SWITCH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C205 | HEADLAMP SWITCH | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CLN56 (BN-VT) | 22 | DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN | 8U5T-14474-BB | ||||
| 4 | GD215 (BK-GY) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | 8U5T-14474-BB | ||||
| 5 | GD215 (BK-GY) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | 8U5T-14474-BB | ||||
| 6 | CLN55 (YE-VT) | 22 | DIMMER - IP/SWITCH ILLUMINATION # DIM UP | 8U5T-14474-BB | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | CLF23 (WH-VT) | 22 | SWITCH - HEADLAMP OFF | 8U5T-14474-BB | ||||
| 11 | CLS34 (GY) | 22 | SWITCH - PARK LAMPS | 8U5T-14474-BB | ||||
| 12 | CLF24 (YE-BU) | 22 | SWITCH - HEADLAMP ON | 8U5T-14474-BB | ||||
| 13 | CLF19 (VT-GN) | 22 | SWITCH - AUTOLAMP (1) ON | 8U5T-14474-BB | ||||
| 14 | CLF21 (GY-VT) | 22 | SWITCH - FOG LAMPS FRONT | 8U5T-14474-BB | ||||
| 15 | CLN17 (BN) | 22 | SWITCH - IP/SWITCH ILLUMINATION | 8U5T-14474-BB | ||||
| 16 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1294
Service Part Number:
CU2Z-14S411-AJA
Gauge:
18
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Mirror - Rearview
- Mirror - Rearview (electrochromatic)
