Connector End View (C192) - INLINE

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C192	INLINE	DK GY	15A21112A581	See Below

Terminal Part Number	Service Part Number	Size
97BG-14421-BDA	EU2Z-14421-FA	2.8
97BG-14474-BDA	DU2Z-14474-FA	2.8

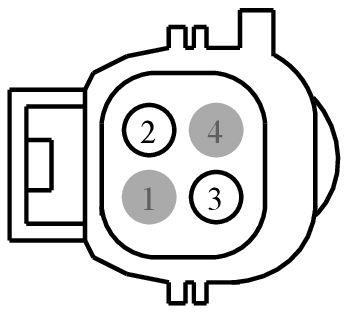

MALE

Harness

15A211

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	CLF34 (BU-BN)	20	97BG-14421-BDA
3	GD123 (BK-GY)	20	97BG-14421-BDA
	4	*	*	N/A

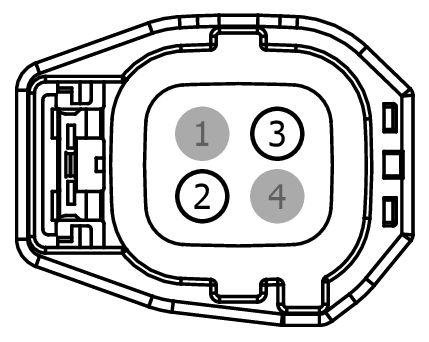

FEMALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	*	*	N/A
2	CLF34 (BU-BN)	20	97BG-14474-BDA
3	GD123 (BK-GY)	20	97BG-14474-BDA
	4	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1012

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-PA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Motor - Windshield Wiper
Radio - Amplifier
