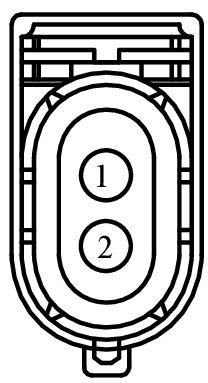

Connector End View (C152) - FRONT FOG LAMP LH
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C152 | FRONT FOG LAMP LH | 13A318 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BDA | DU2Z-14474-FA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD123 (BK-GY) | 20 | GROUND - SHOCK TOWER LEFT BRACKET #2 | 97BG-14474-BDA | ||||
| 2 | CLS29 (BN) | 20 | RELAY - FOG LAMP REAR | 97BG-14474-BDA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-904
Service Part Number:
8U2Z-14S411-GA
Gauge:
14
Pin material:
Tin
Cavities:
2
Vehicle Uses:
- Lamp - Ash Tray
- Lamp - Fog/Driving
