Connector End View (C146) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C146 | INLINE | 1429012A581 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| 2L1T-14421-BA | EU2Z-14421-CA | 1.5 |

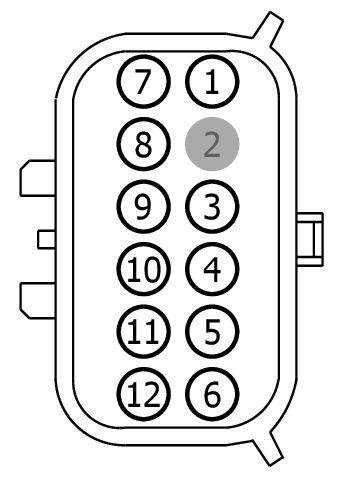

MALE
Harness
14290
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBB22 (YE-VT) | 20 | BU5T-14474-UA | |||
| 2 | * | * | N/A | |||
| 3 | VR213 (VT-GN) | 20 | BU5T-14474-UA | |||
| 4 | RR129 (YE-GY) | 20 | BU5T-14474-UA | |||
| 5 | VR214 (WH-BU) | 20 | BU5T-14474-UA | |||
| 6 | RR130 (GN-BU) | 20 | BU5T-14474-UA | |||
| 7 | VE181 (WH-GN) | 22 | BU5T-14474-UA | |||
| 8 | RH107 (GN-BU) | 20 | BU5T-14474-UA | |||
| 9 | VH407 (YE-GN) | 20 | BU5T-14474-UA | |||
| 10 | CPL25 (BU-OG) | 20 | BU5T-14474-UA | |||
| 11 | GD233 (BK) | 20 | BU5T-14474-UA | |||
| 12 | GD188 (BK-YE) | 22 | BU5T-14474-UA | |||

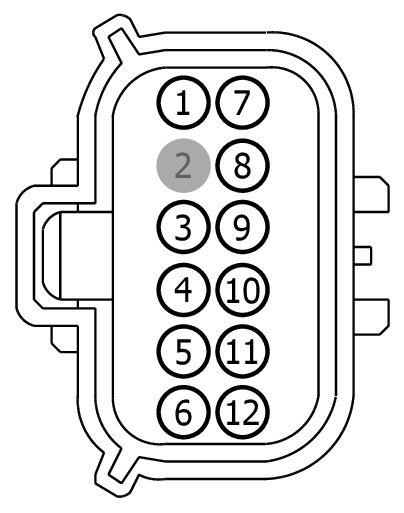

FEMALE
Harness
12A581
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBB22 (YE-VT) | 20 | 2L1T-14421-BA | |||
| 2 | * | * | N/A | |||
| 3 | VR213 (VT-GN) | 20 | 2L1T-14421-BA | |||
| 4 | RR129 (YE-GY) | 20 | 2L1T-14421-BA | |||
| 5 | VR214 (WH-BU) | 20 | 2L1T-14421-BA | |||
| 6 | RR130 (GN-BU) | 20 | 2L1T-14421-BA | |||
| 7 | VE181 (WH-GN) | 22 | 2L1T-14421-BA | |||
| 8 | RH107 (GN-BU) | 20 | 2L1T-14421-BA | |||
| 9 | VH407 (YE-GN) | 20 | 2L1T-14421-BA | |||
| 10 | CPL25 (BU-OG) | 20 | 2L1T-14421-BA | |||
| 11 | GD233 (BK) | 20 | 2L1T-14421-BA | |||
| 12 | GD188 (BK-YE | 20 | 2L1T-14421-BA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1601
Service Part Number:
HU2Z-14S411-CB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Module - Anti-Lock Brake System
- Module - Wigwag Lamps
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
