Connector End View (C144) - INLINE

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C144	INLINE	17A47712A581			See Below

Terminal Part Number	Service Part Number	Size
BU5T-14421-HA\|2L1T-14421-BA	Not Available
2L1T-14421-CA	EU2Z-14421-CA	1.5
2L1T-14421-BA	EU2Z-14421-CA	1.5
7C3T-14474-CA	DU2Z-14474-DA	1.5

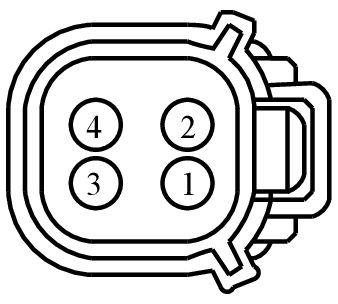

MALE

Harness

17A477

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD188 (BK-YE)	18	2L1T-14421-CA
2	CBB74 (VT-BN)	20	2L1T-14421-BA
3	VX107 (YE-GY)	20	BU5T-14421-HA\|2L1T-14421-BA
	4	CRW15 (BN-WH)	20	BU5T-14421-HA\|2L1T-14421-BA

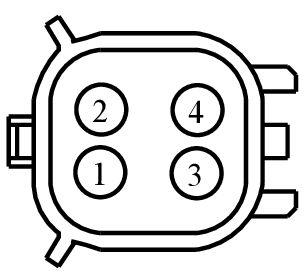

FEMALE

Harness

12A581

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD188 (BK-YE)	18	7C3T-14474-DA
2	CBB74 (VT-BN)	20	7C3T-14474-CA
3	VX107 (YE-GY)	20	7C3T-14474-CA
	4	CRW15 (BN-WH)	20	7C3T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1288

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ZA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Catalyst Monitor
Sensor - O2 (HEGO/ EGO)

Pigtail Kit Part Number WPT-1570

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ZB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Actuator - Door Lock - RH - Front
Connector - Inline
Lamp - Fog/Driving
Lamp - Liftgate Applique
Sensor - Catalyst Monitor
Sensor - O2 (HEGO/ EGO)
Speaker - Siren
Switch - Seat Belt Warning

Pigtail Kit Part Number WPT-1498

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-TB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - Headlamp - High/Low Beam
Lamp - Park/Turn/Stop
Lamp - Reverse
Sensor - Catalyst Monitor
Sensor - O2 (HEGO/ EGO)
Speaker - Siren
Speaker - Subwoofer
Switch - Heated Seat - LH - Rear
Switch - Heated Seat - RH - Rear
Valve - Active Exhaust Solenoid
