Connector End View (C140) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C140 | INLINE | DK GY | 13A31812A581 | See Below | ||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-BDA | EU2Z-14421-FA | 2.8 |
| 97BG-14421-BEA | EU2Z-14421-FA | 2.8 |
| 97BG-14474-BDA | DU2Z-14474-FA | 2.8 |
| 97BG-14474-BEA | DU2Z-14474-FA | 2.8 |

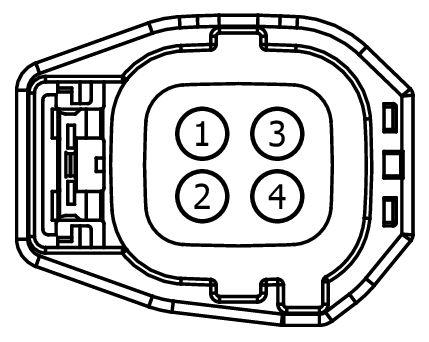

MALE
Harness
13A318
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS21 (BU-GN) | 20 | 97BG-14421-BDA | |||
| 2 | CLS29 (BN) | 20 | 97BG-14421-BDA | |||
| 3 | CLS06 (GN-OG) | 20 | 97BG-14421-BDA | |||
| 4 | GD123 (BK-GY) | 16 | fog lamps | 97BG-14421-BEA | ||
| 4 | GD123 (BK-GY) | 20 | without fog lamps | 97BG-14421-BDA | ||

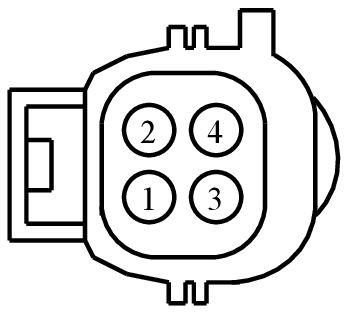

FEMALE
Harness
12A581
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CLS21 (BU-GN) | 20 | 97BG-14474-BDA | |||
| 2 | CLF29 (BN) | 20 | 97BG-14474-BDA | |||
| 3 | CLS06 (GN-OG) | 20 | 97BG-14474-BDA | |||
| 4 | GD123 (BK-GY) | 16 | 97BG-14474-BEA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1012
Service Part Number:
9U2Z-14S411-PA
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Motor - Windshield Wiper
- Radio - Amplifier
