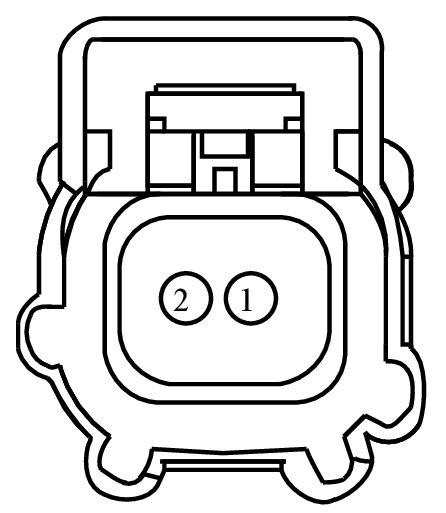

Connector End View (C137) - WASHER PUMP MOTOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C137 | WASHER PUMP MOTOR | 12A581 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-AEA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CRW23 (VT-GN) | 18 | RELAY - REAR WASHER | 97BG-14474-AEA | ||||
| 2 | CRW14 (BU-WH) | 18 | CTRL MOD. - FRONT WASHER | 97BG-14474-AEA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-948
Service Part Number:
3U2Z-14S411-EKB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Motor - Windshield Washer Fluid Pump
- Sensor - Side Impact
Pigtail Kit Part Number WPT-1566
Service Part Number:
3U2Z-14S411-EKC
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Reverse
- Lamp - Running Board
- Motor - Electronic Throttle Control (ETC)
- Motor - Windshield Washer Fluid Pump
- Sensor - Brake Fluid Level
- Sensor - Side Impact
- Solenoid - Air Suspension
- Solenoid - Variable Oil Pump Control
