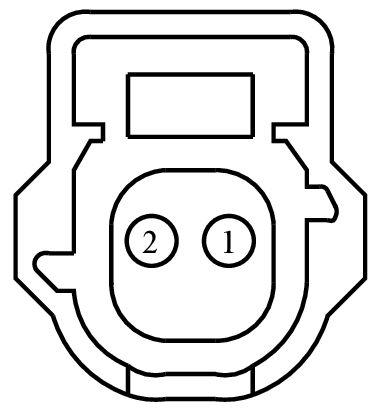

Connector End View (C132) - AMBIENT AIR TEMPERATURE (AAT) SENSOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C132 | AMBIENT AIR TEMPERATURE (AAT) SENSOR | 14290 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-RA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VH407 (YE-GN) | 20 | SENSOR - AMBIENT TEMP. | 3F2T-14474-RA | ||||
| 2 | RH107 (GN-BU) | 20 | CTRL MOD. - AMBIENT TEMP. SENSOR | 3F2T-14474-RA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1548
Service Part Number:
AU2Z-14S411-AGC
Gauge:
20
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Ambient Temp
- Sensor - Side Impact
Pigtail Kit Part Number WPT-1306
Service Part Number:
AU2Z-14S411-AGB
Gauge:
20
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Ambient Temp
- Sensor - Side Impact
