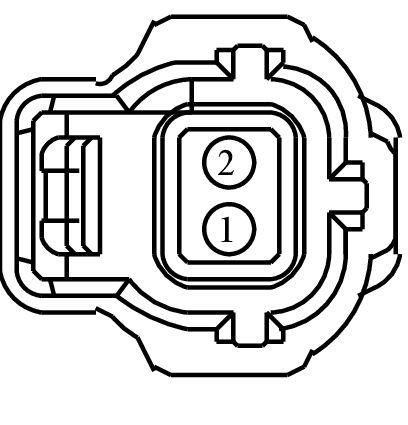

Connector End View (C1064) - ENGINE COOLANT TEMPERATURE (ECT) SENSOR
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1064 | ENGINE COOLANT TEMPERATURE (ECT) SENSOR | 12C508 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 96AG-14474-AA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VE716 (YE) | 20 | SENSOR - ENGINE COOLANT TEMPERATURE (ECT) | 96AG-14474-AA | ||||
| 2 | RE138 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR | 96AG-14474-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-989
Service Part Number:
3U2Z-14S411-HYB
Gauge:
14
Pin material:
Tin (greased)
Cavities:
2
Vehicle Uses:
- Sensor - Coolant Temperature
- Sensor - Cylinder Head Temperature
- Sensor - Transmission Oil Temperature
