Connector End View (C1046) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1046 | INLINE | 1429012A581 | See Below | |||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1C1T-14421-AA | Not Available | |
| 97BG-14421-CFA | Not Available | |
| 1C1T-14474-AA | KU2Z-14474-AA | 6.3 |
| 97BG-14474-CFA | KU2Z-14474-AA | 6.3 |

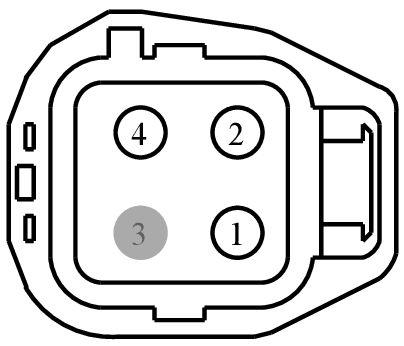

MALE
Harness
14290
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CEC07 (BN) | 10 | 1C1T-14421-AA | |||
| 2 | CEC08 (GN-BU) | 12 | 97BG-14421-CFA | |||
| 3 | * | * | N/A | |||
| 4 | GD187 (BK-GN) | 10 | 1C1T-14421-AA | |||

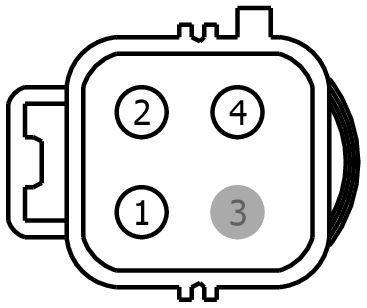

FEMALE
Harness
12A581
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CEC07 (BN) | 10 | 1C1T-14474-AA | |||
| 2 | CEC08 (GN-BU) | 12 | 97BG-14474-CFA | |||
| 3 | * | * | N/A | |||
| 4 | GD187 (BK-GN) | 10 | 1C1T-14474-AA | |||

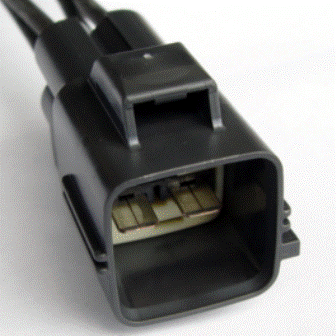

Available Pigtail Kits
Pigtail Kit Part Number WPT-750
Service Part Number:
3U2Z-14S411-EJAA
Gauge:
10
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-1343
- Motor - Engine Cooling Fan
Pigtail Kit Part Number WPT-1343
Service Part Number:
DU2Z-14S411-ABA
Gauge:
12
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Mating Connector WPT-750
- Motor - Engine Cooling Fan
