Connector End View (C1010) - INLINE
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1010 | INLINE | 12B63712C508 | See Below | |||||

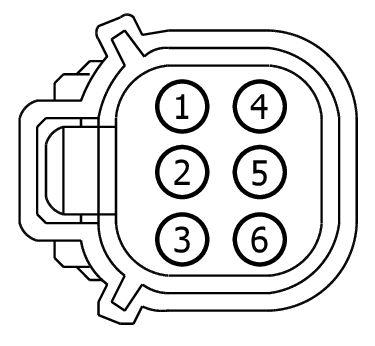

MALE
Harness
12B637
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | CE205 (GN-BU) | 16 | 12B637 | N/A |
| 2 | RE205 (YE-BU) | 16 | 12B637 | N/A |
| 3 | CE206 (GY-YE) | 16 | 12B637 | N/A |
| 4 | RE206 (BU-OG) | 16 | 12B637 | N/A |
| 5 | CE207 (VT-GY) | 16 | 12B637 | N/A |
| 6 | RE207 (GN-VT) | 16 | 12B637 | N/A |

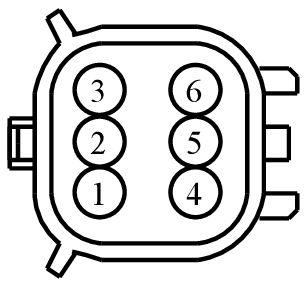

FEMALE
Harness
12C508
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CE205 (BN-BU) | 16 | 7C3T-14474-DA | |||
| 1 | CE205 (GN-BU) | 16 | 7C3T-14474-DA | |||
| 2 | RE205 (YE-BU) | 16 | 7C3T-14474-DA | |||
| 3 | CE206 (GY-YE) | 16 | 7C3T-14474-DA | |||
| 4 | RE206 (BU-OG) | 16 | 7C3T-14474-DA | |||
| 5 | CE207 (VT-GY) | 16 | 7C3T-14474-DA | |||
| 6 | RE207 (GN-VT) | 16 | 7C3T-14474-DA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1426
Service Part Number:
FU2Z-14S411-TA
Gauge:
16
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
- Lamp - Park/Turn/Stop
- Sensor - Coolant Temperature
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-971
Service Part Number:
3U2Z-14S411-FEAB
Gauge:
14
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Connector - Inline
- Lamp - Headlamp - High/Low Beam
- Lamp - Park/Turn/Stop
- Motor - Engine Cooling Fan
- Motor - Running Board
