Wipers And Washers

WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

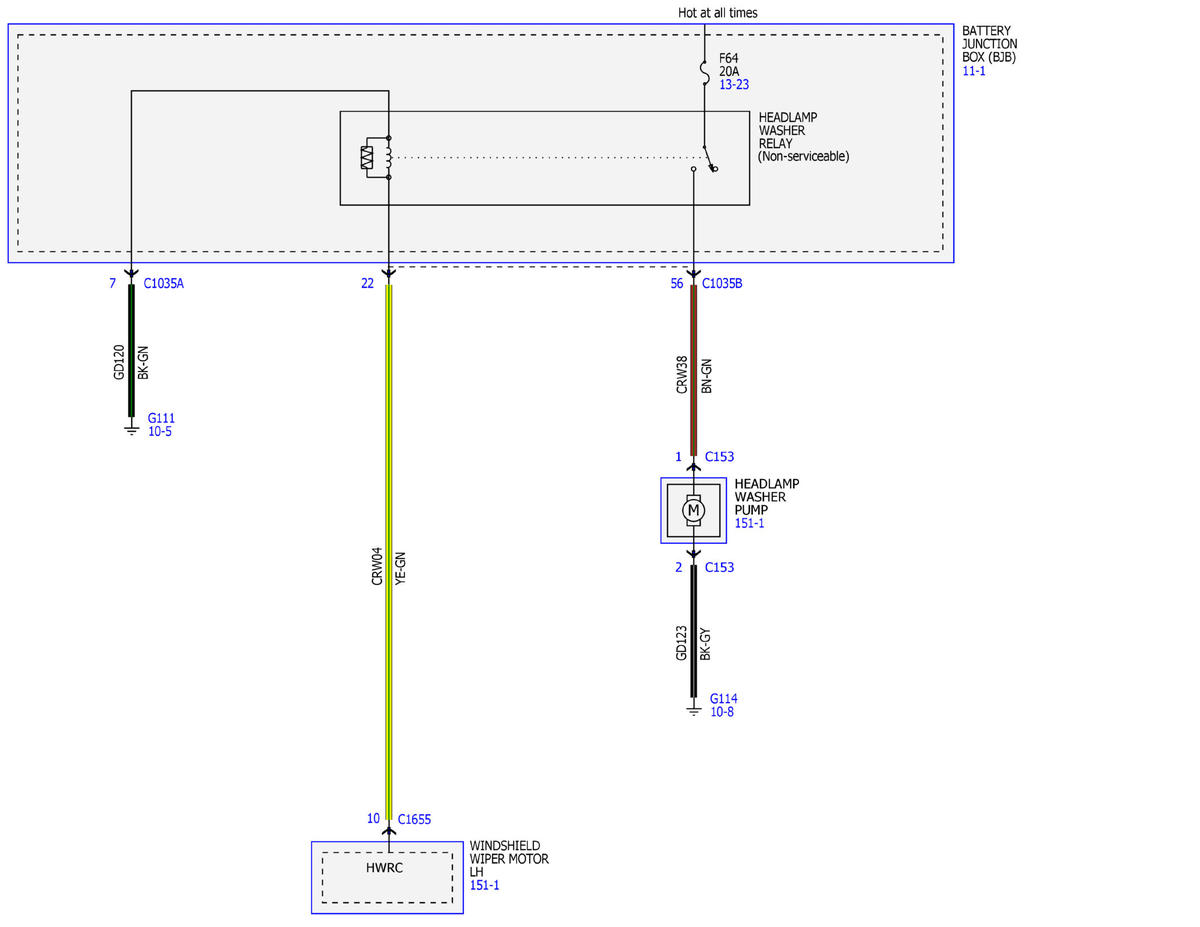

Fig 1: Wipers and Washers Wiring Diagram (1 of 4)

Courtesy of FORD MOTOR COMPANY

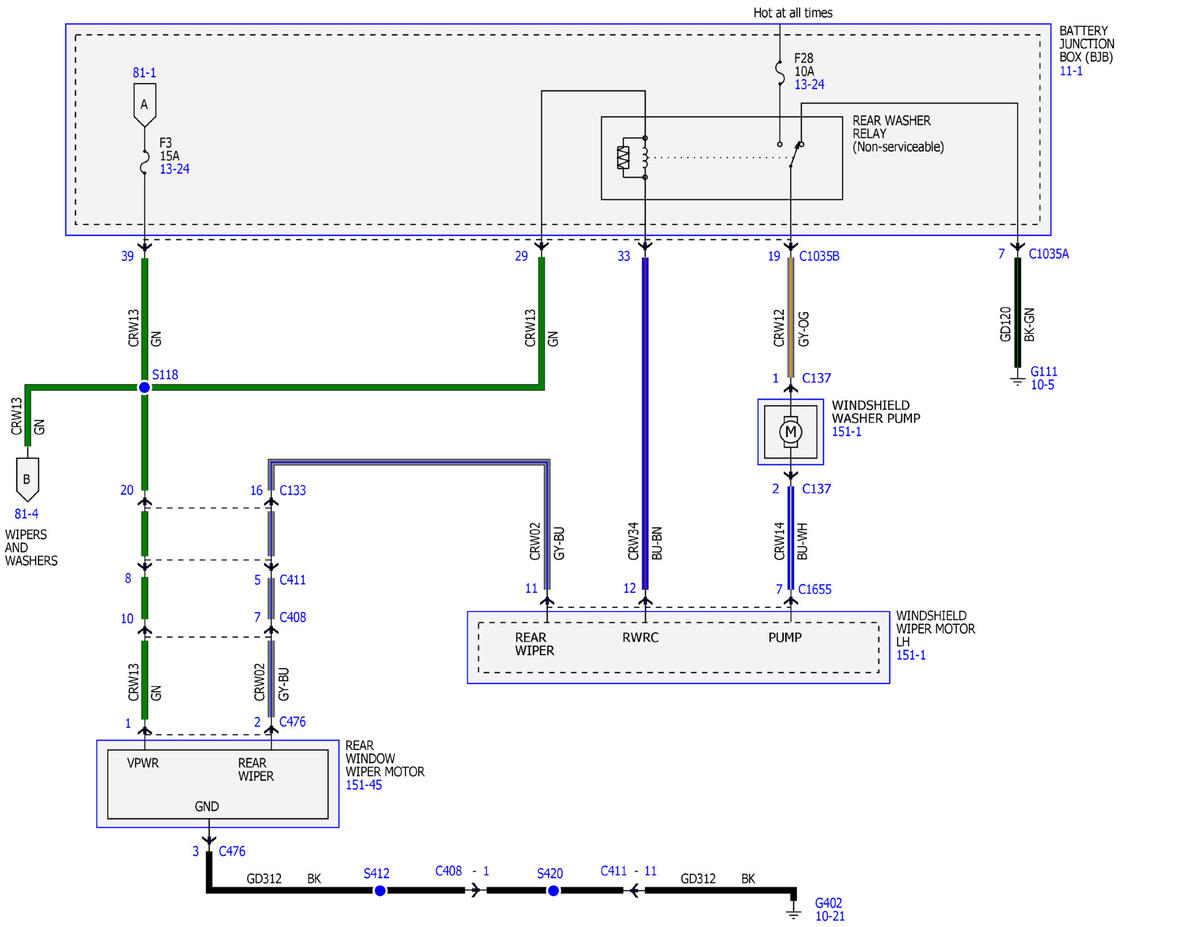

Fig 2: Wipers and Washers Wiring Diagram (2 of 4)

Courtesy of FORD MOTOR COMPANY

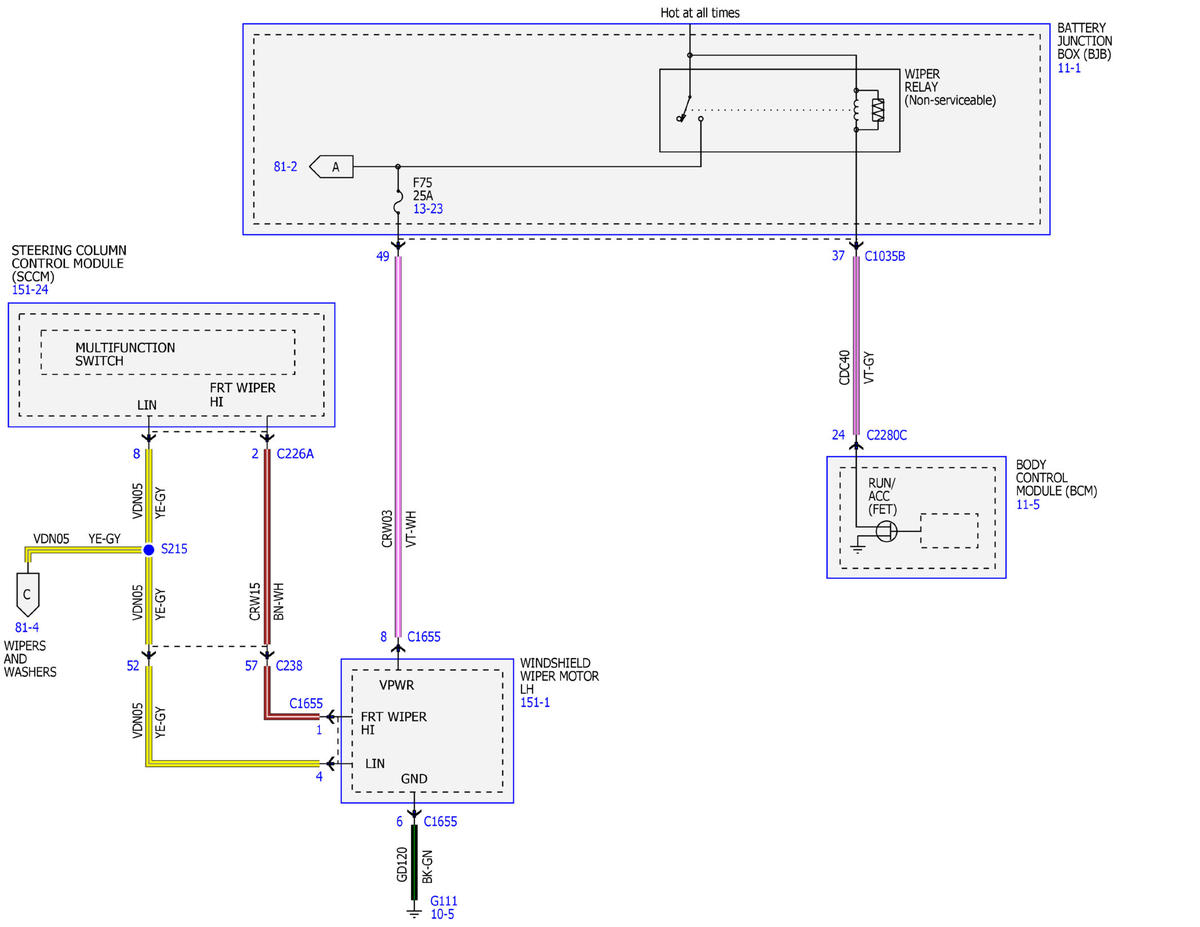

Fig 3: Wipers and Washers Wiring Diagram (3 of 4)

Courtesy of FORD MOTOR COMPANY

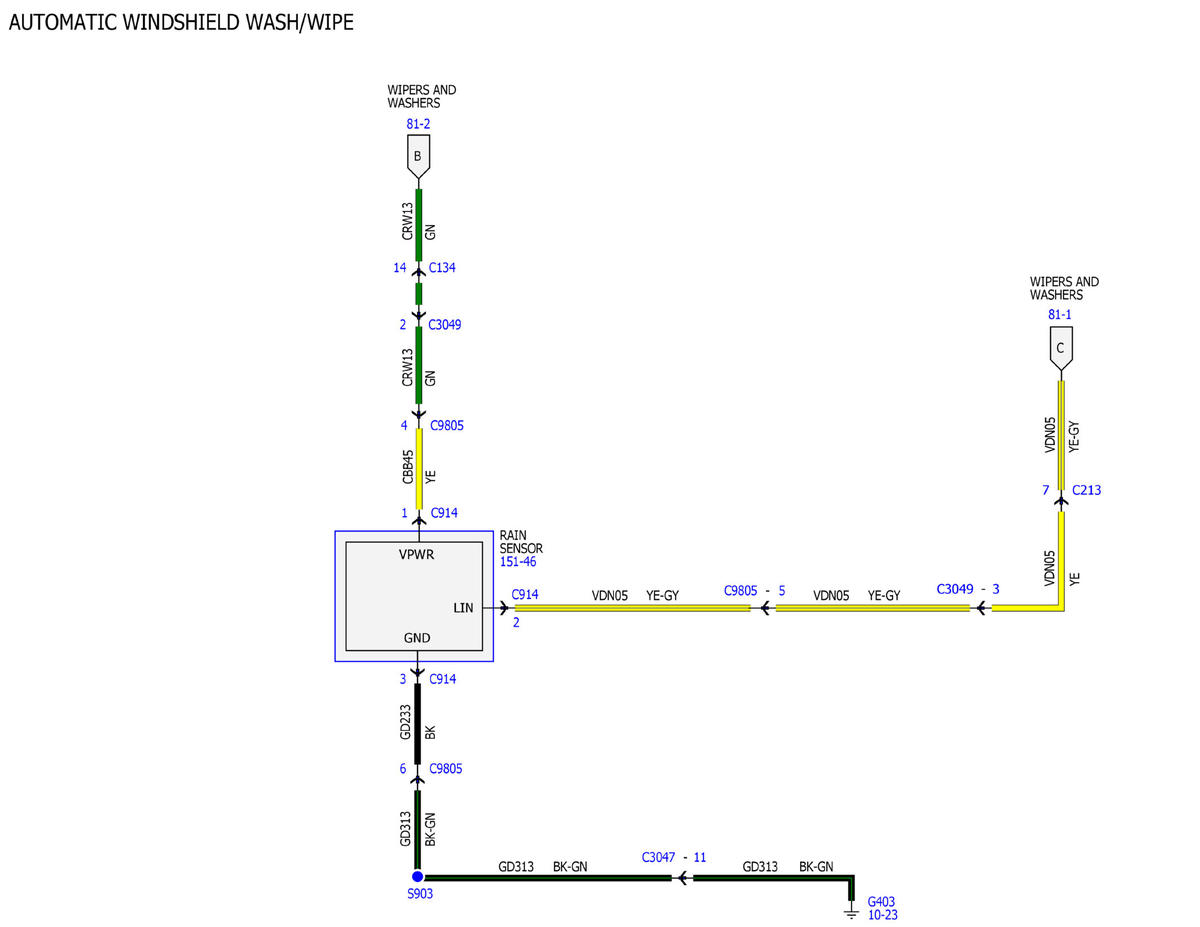

Fig 4: Wipers and Washers Wiring Diagram (4 of 4)

Courtesy of FORD MOTOR COMPANY
