Transmission Controls - 6F50/6F55

WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

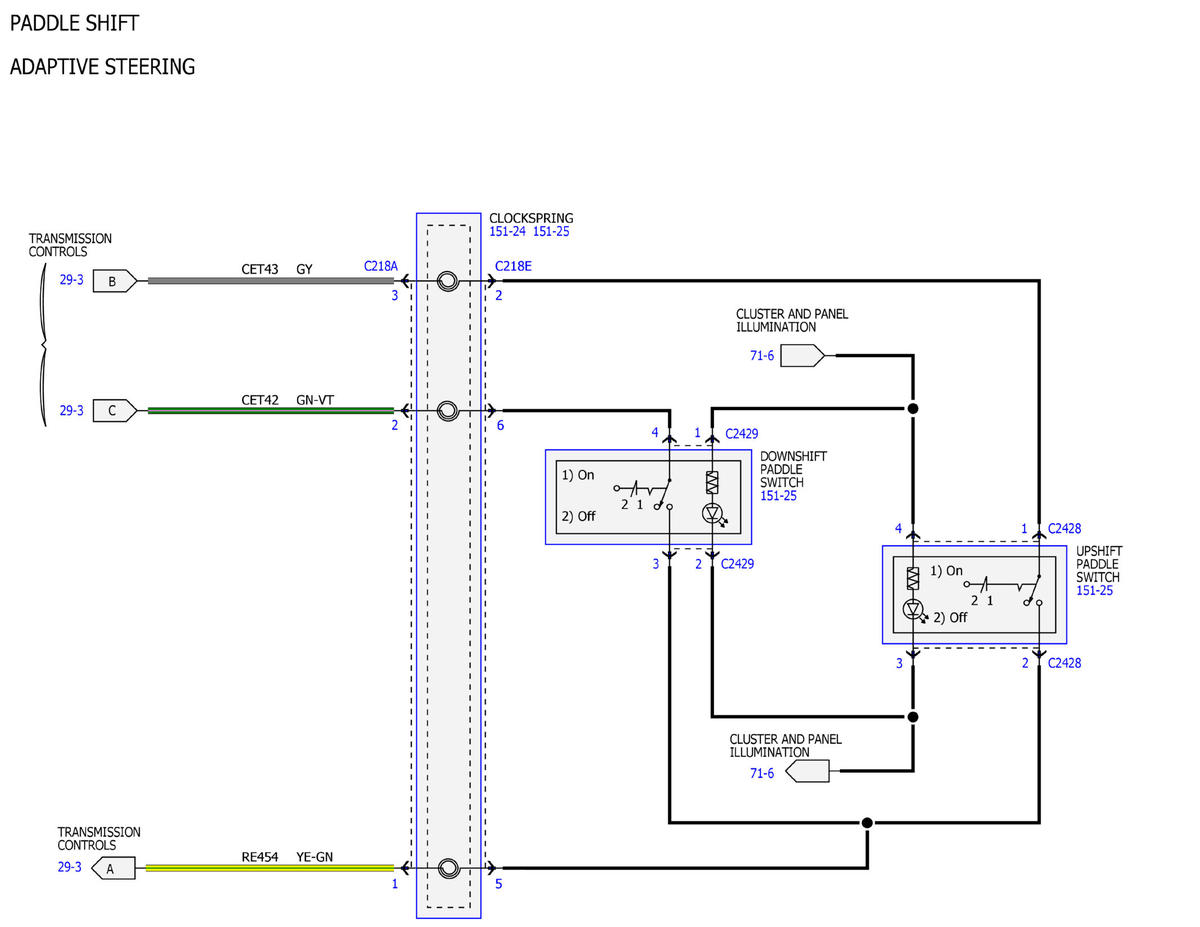

Fig 1: Transmission Controls - 6F50/6F55 Wiring Diagram (1 of 5)

Courtesy of FORD MOTOR COMPANY

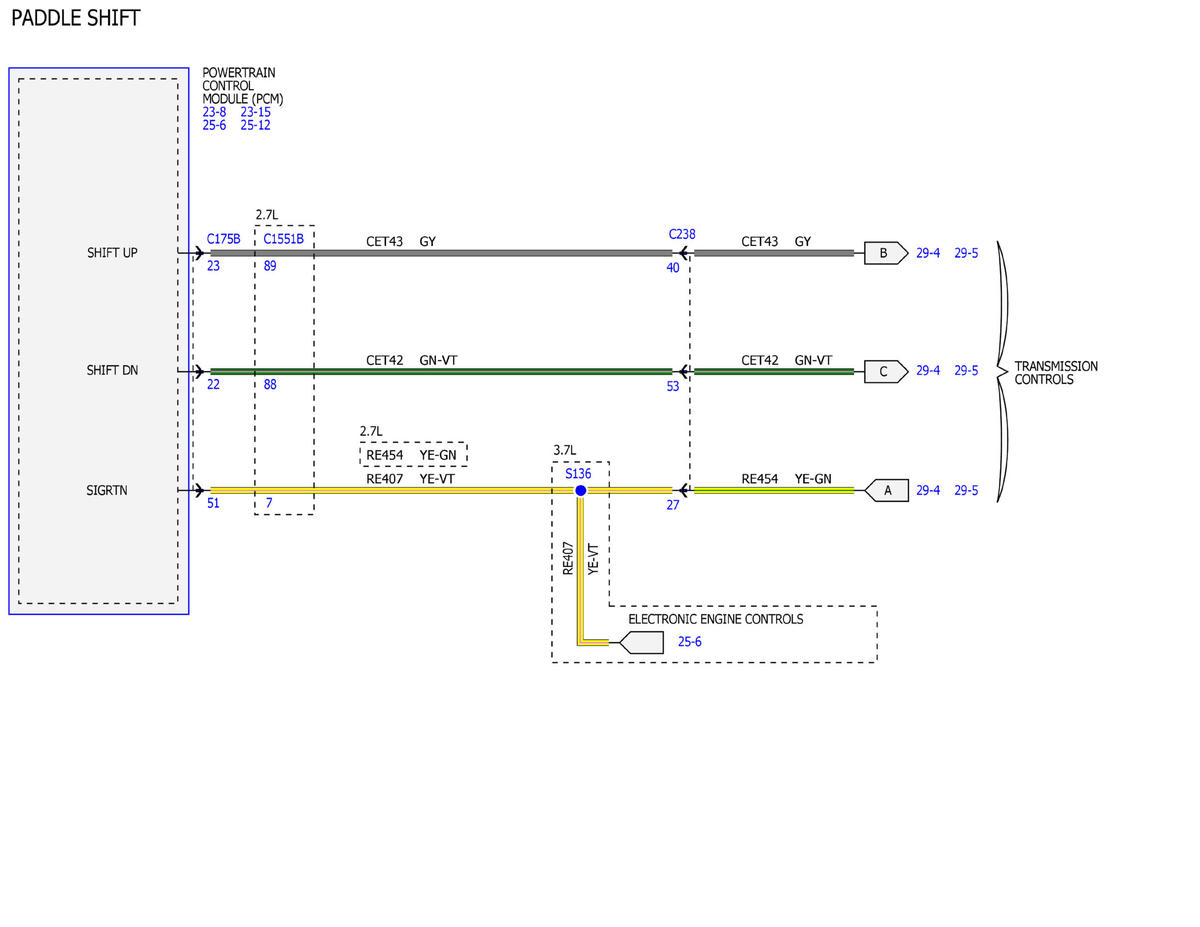

Fig 2: Transmission Controls - 6F50/6F55 Wiring Diagram (2 of 5)

Courtesy of FORD MOTOR COMPANY

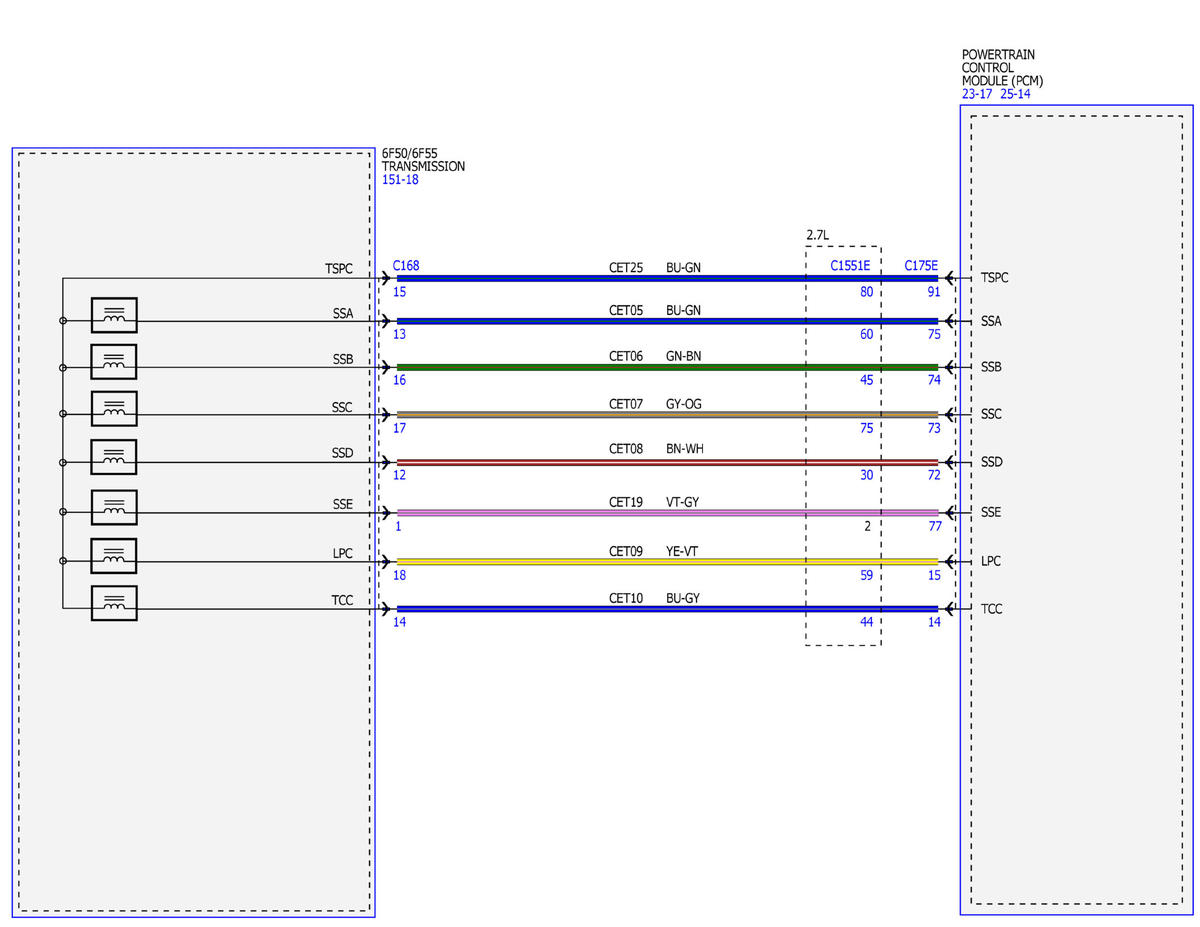

Fig 3: Transmission Controls - 6F50/6F55 Wiring Diagram (3 of 5)

Courtesy of FORD MOTOR COMPANY

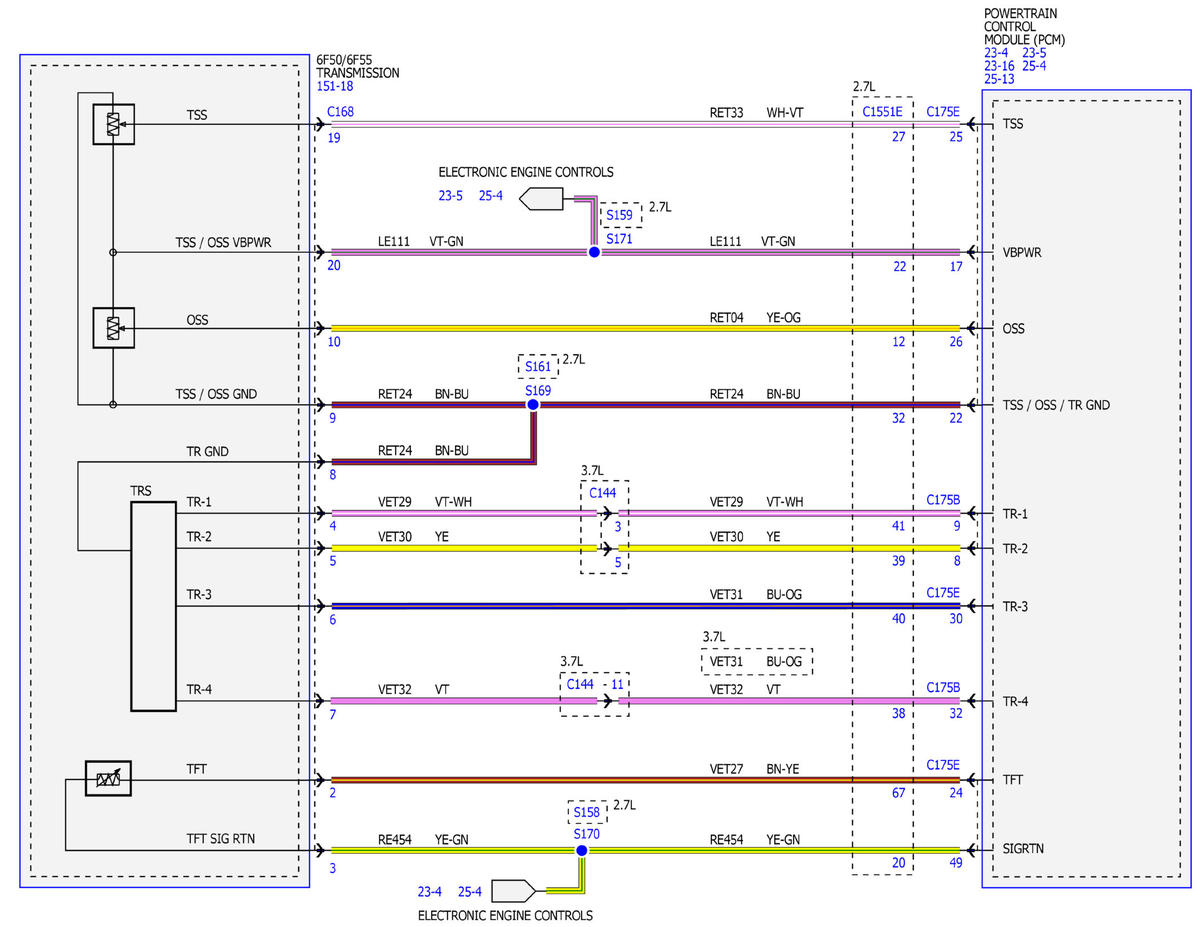

Fig 4: Transmission Controls - 6F50/6F55 Wiring Diagram (4 of 5)

Courtesy of FORD MOTOR COMPANY

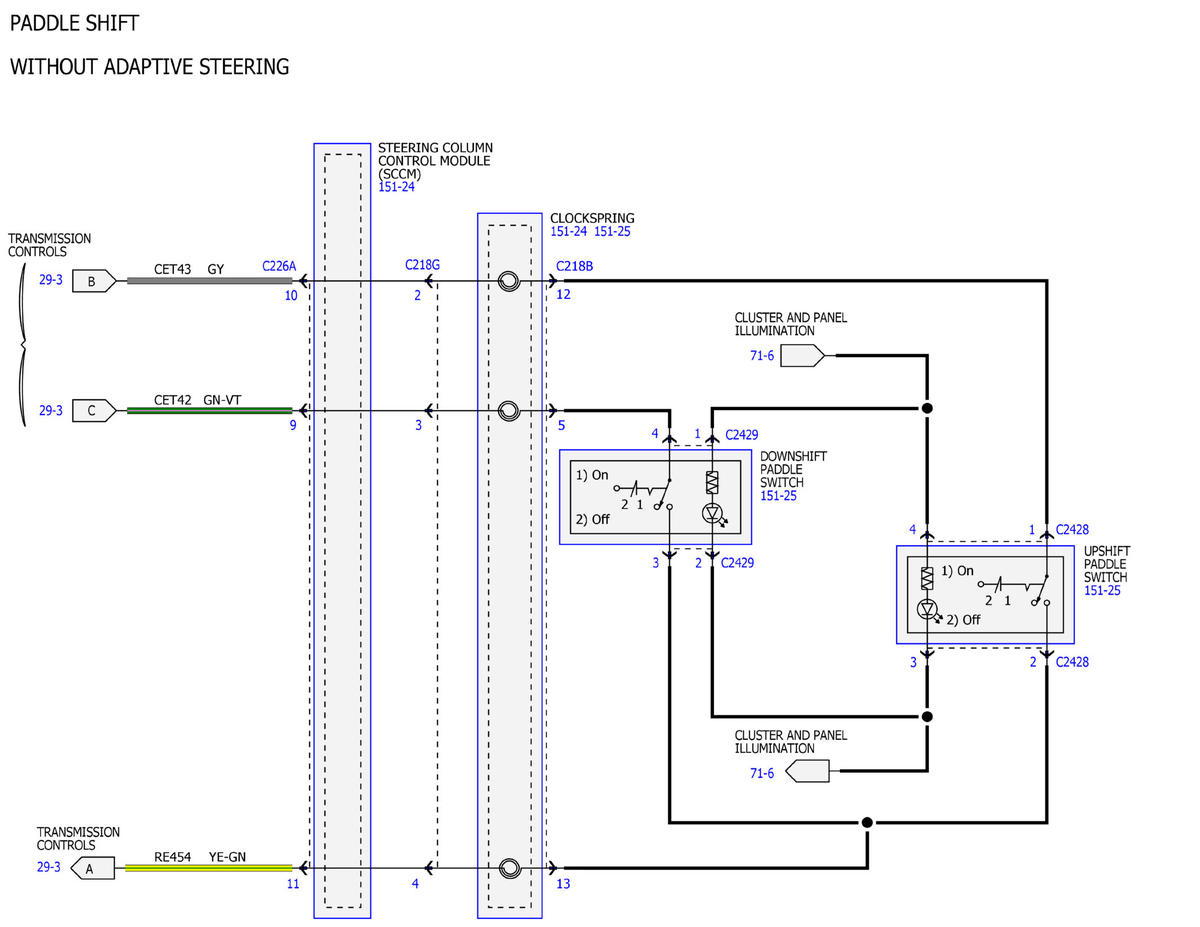

Fig 5: Transmission Controls - 6F50/6F55 Wiring Diagram (5 of 5)

Courtesy of FORD MOTOR COMPANY
