WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

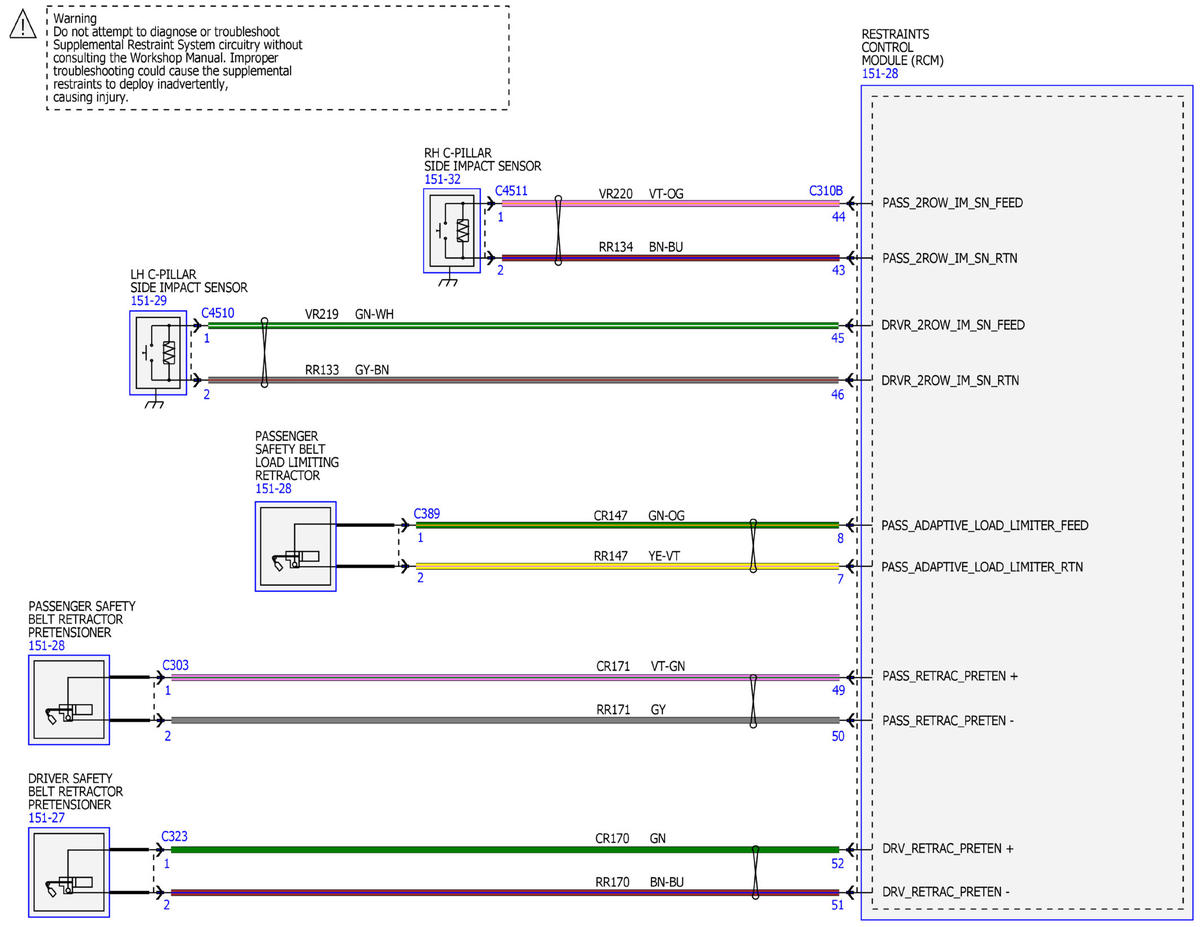

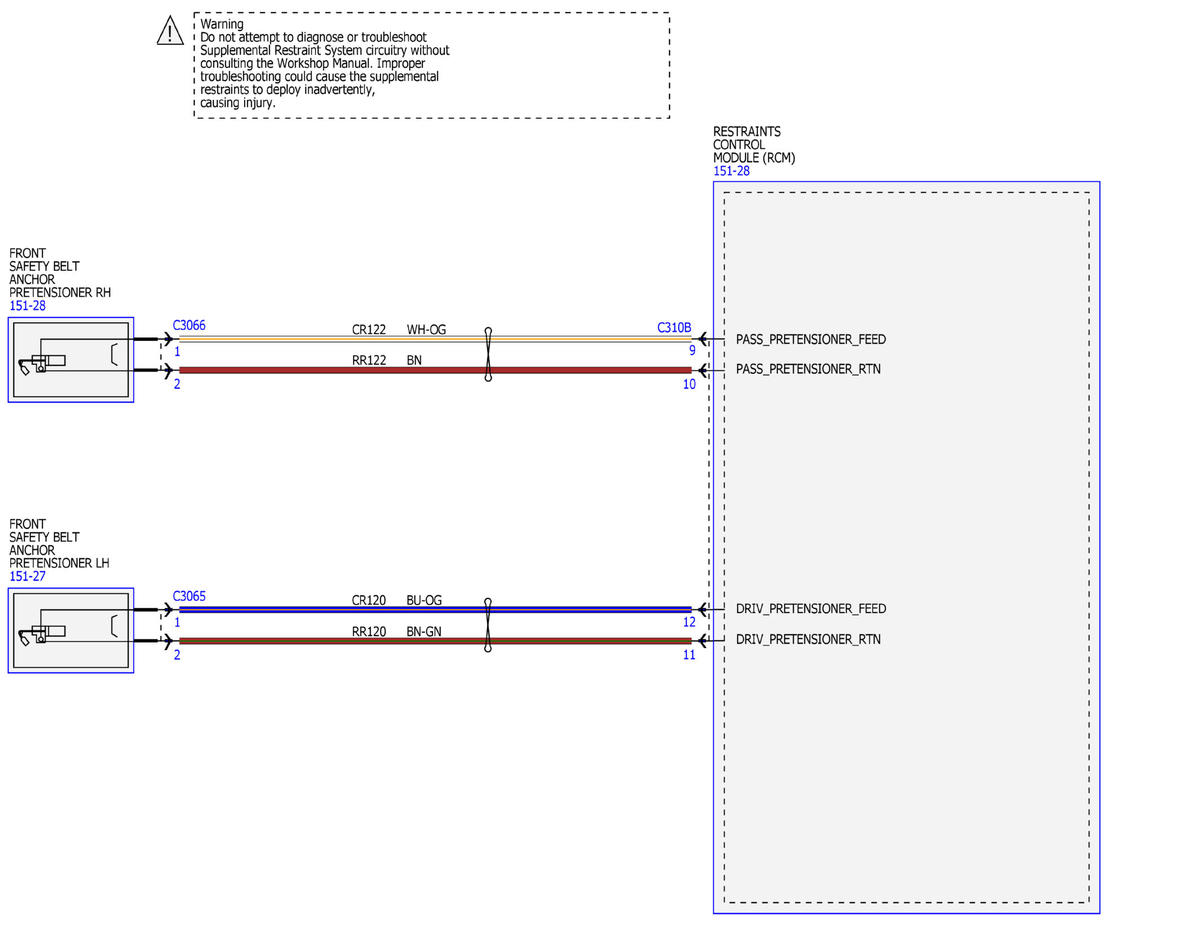

Fig 1: Supplemental Restraint System Wiring Diagram (1 of 9)
Courtesy of FORD MOTOR COMPANY

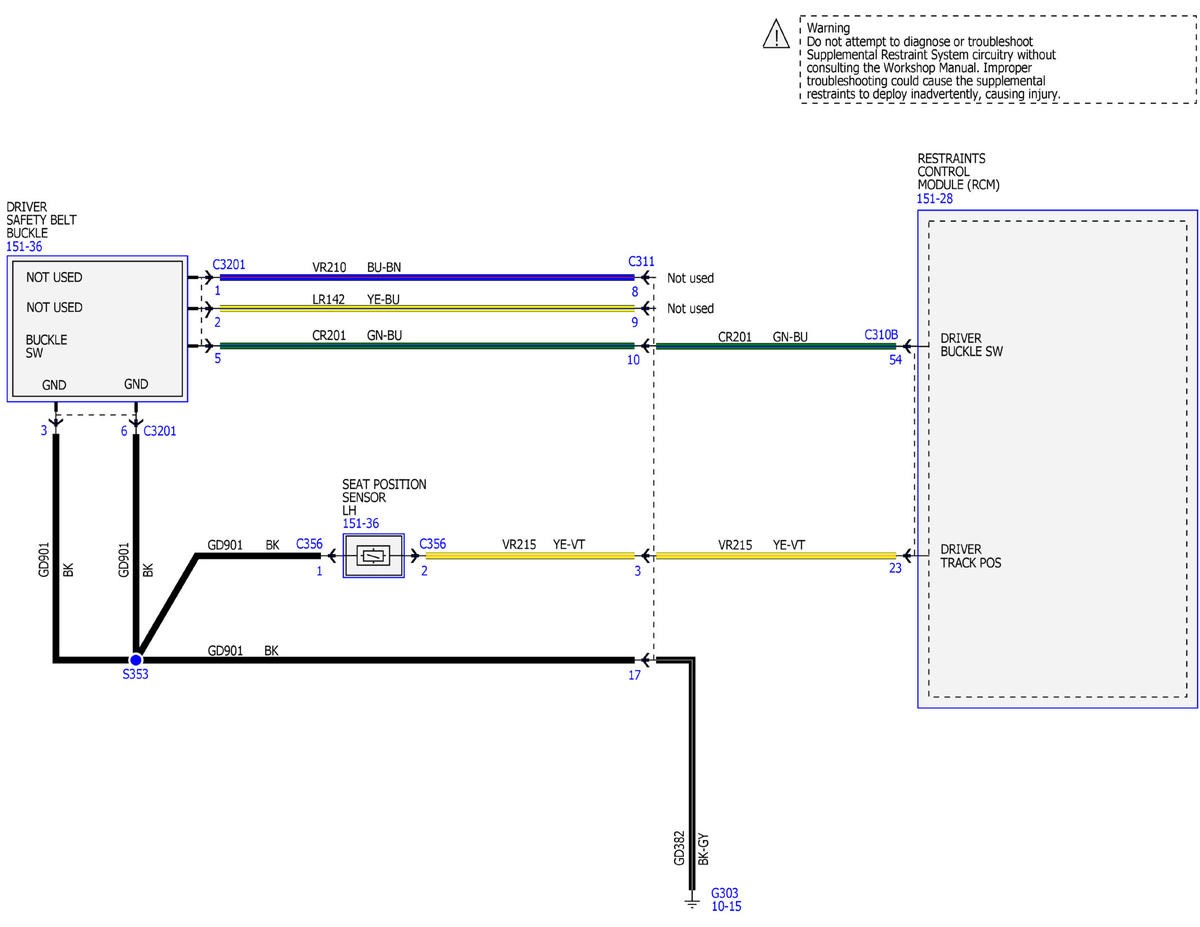

Fig 2: Supplemental Restraint System Wiring Diagram (2 of 9)
Courtesy of FORD MOTOR COMPANY

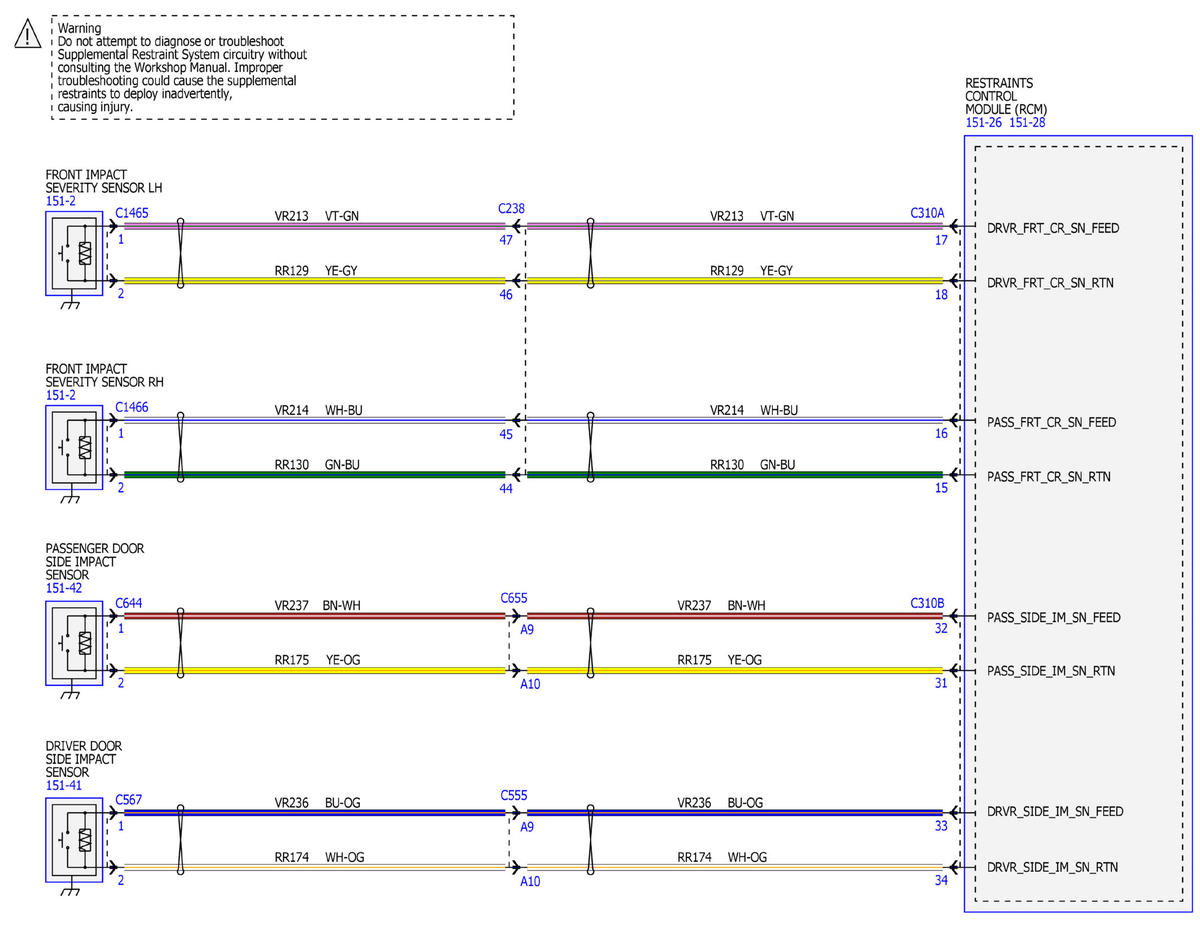

Fig 3: Supplemental Restraint System Wiring Diagram (3 of 9)
Courtesy of FORD MOTOR COMPANY

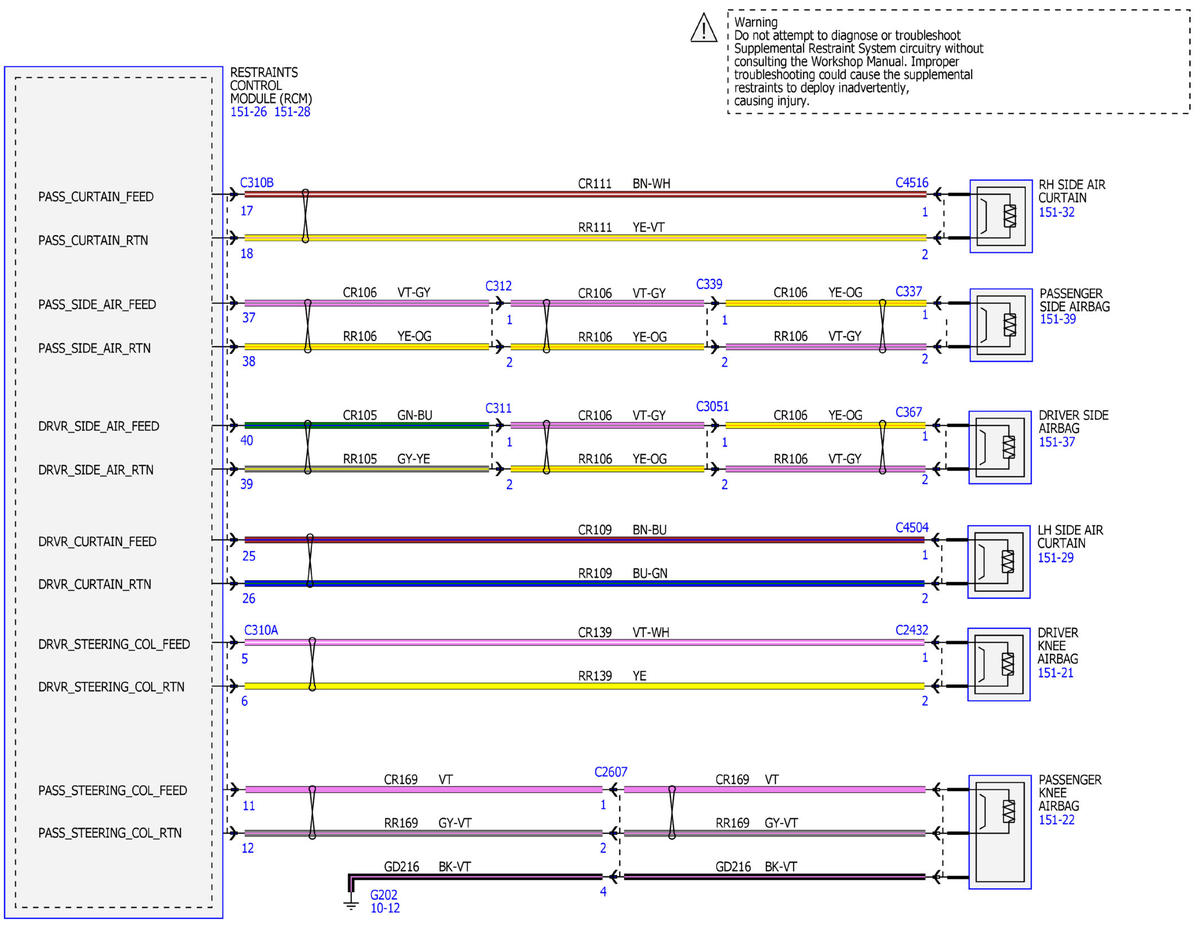

Fig 4: Supplemental Restraint System Wiring Diagram (4 of 9)
Courtesy of FORD MOTOR COMPANY

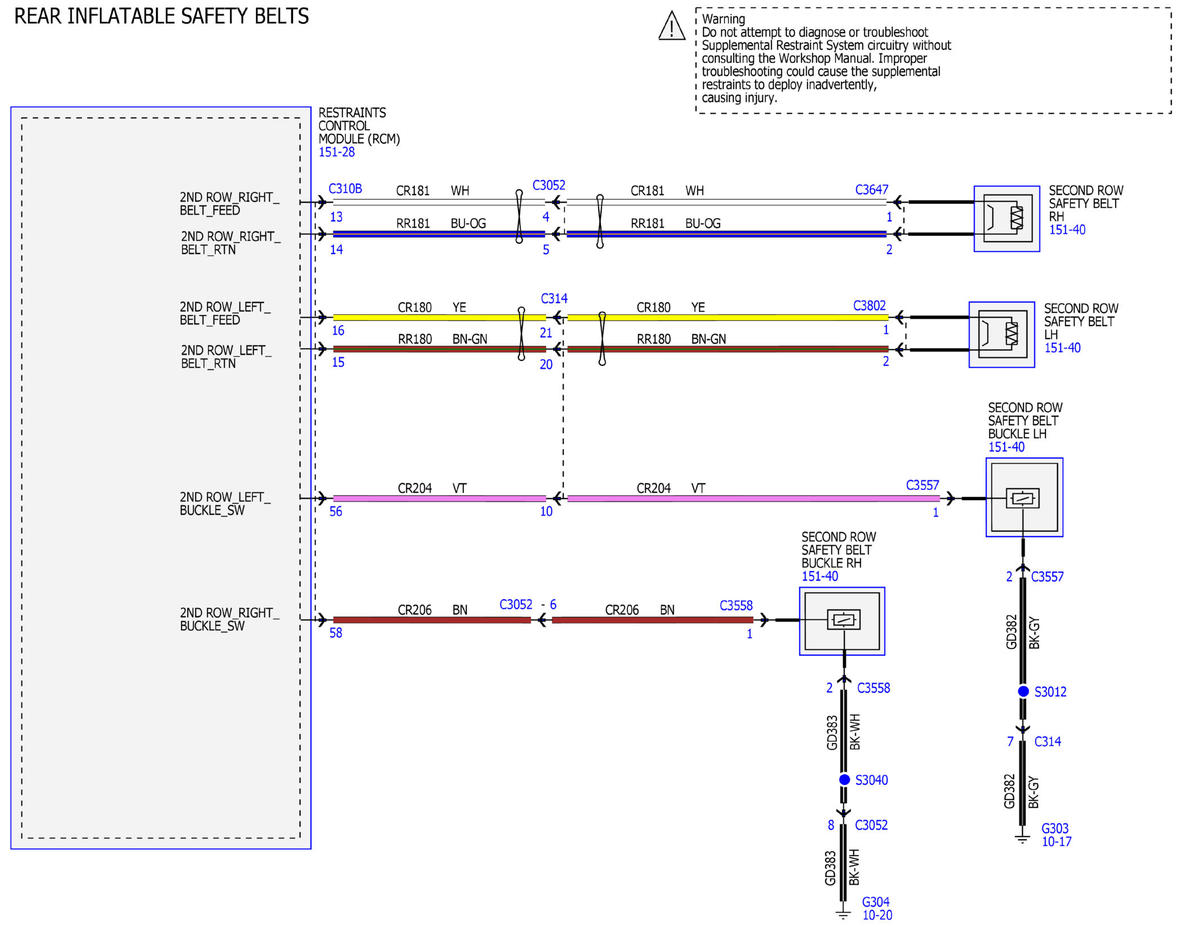

Fig 5: Supplemental Restraint System Wiring Diagram (5 of 9)
Courtesy of FORD MOTOR COMPANY

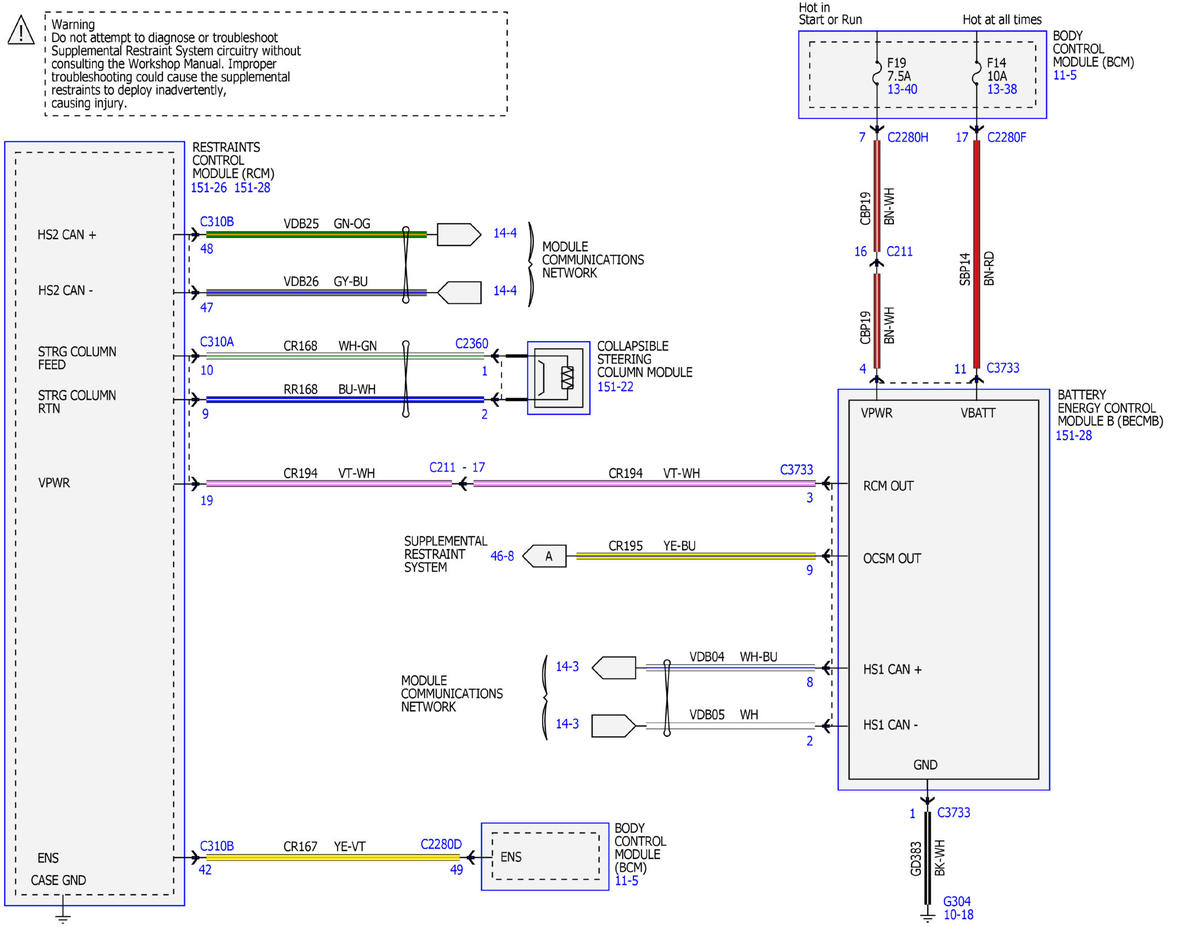

Fig 6: Supplemental Restraint System Wiring Diagram (6 of 9)
Courtesy of FORD MOTOR COMPANY

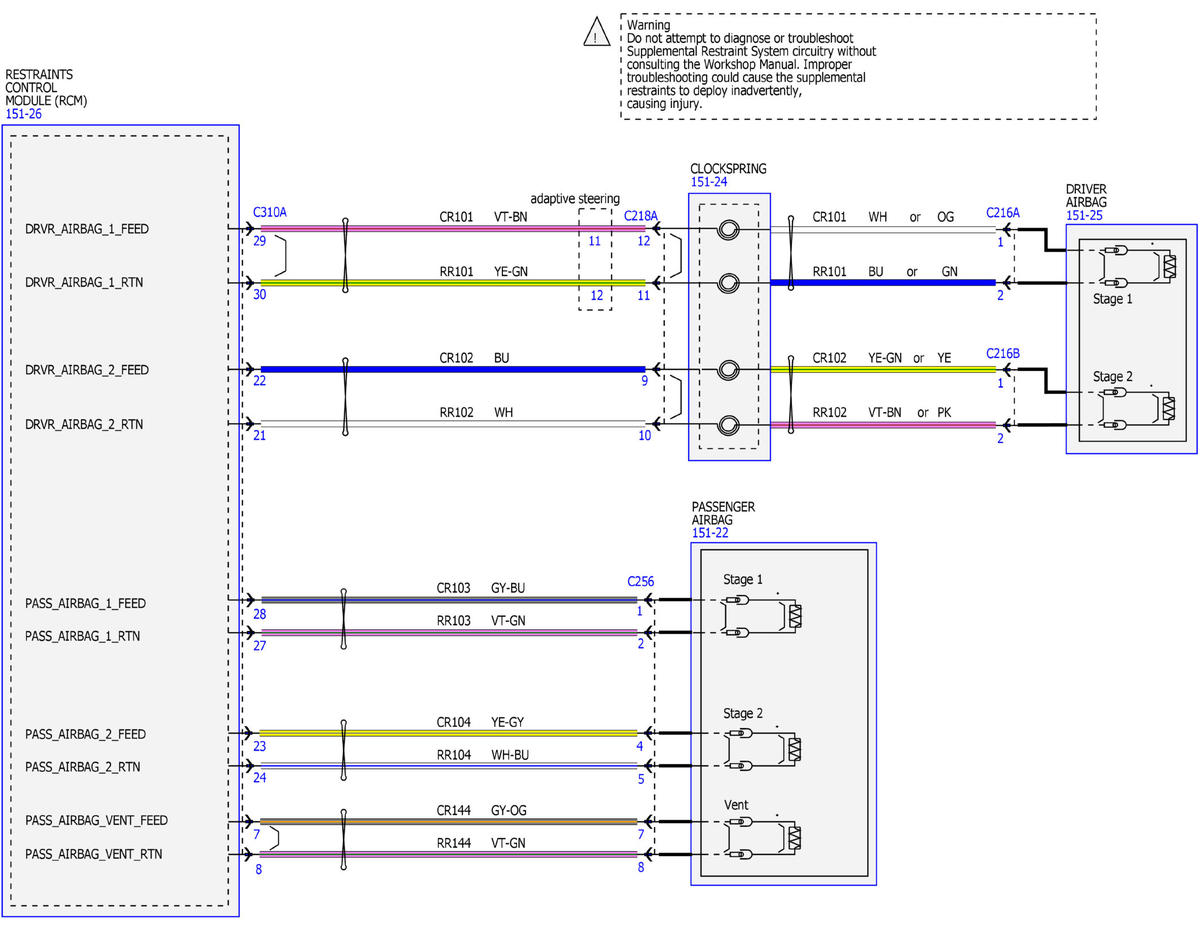

Fig 7: Supplemental Restraint System Wiring Diagram (7 of 9)
Courtesy of FORD MOTOR COMPANY

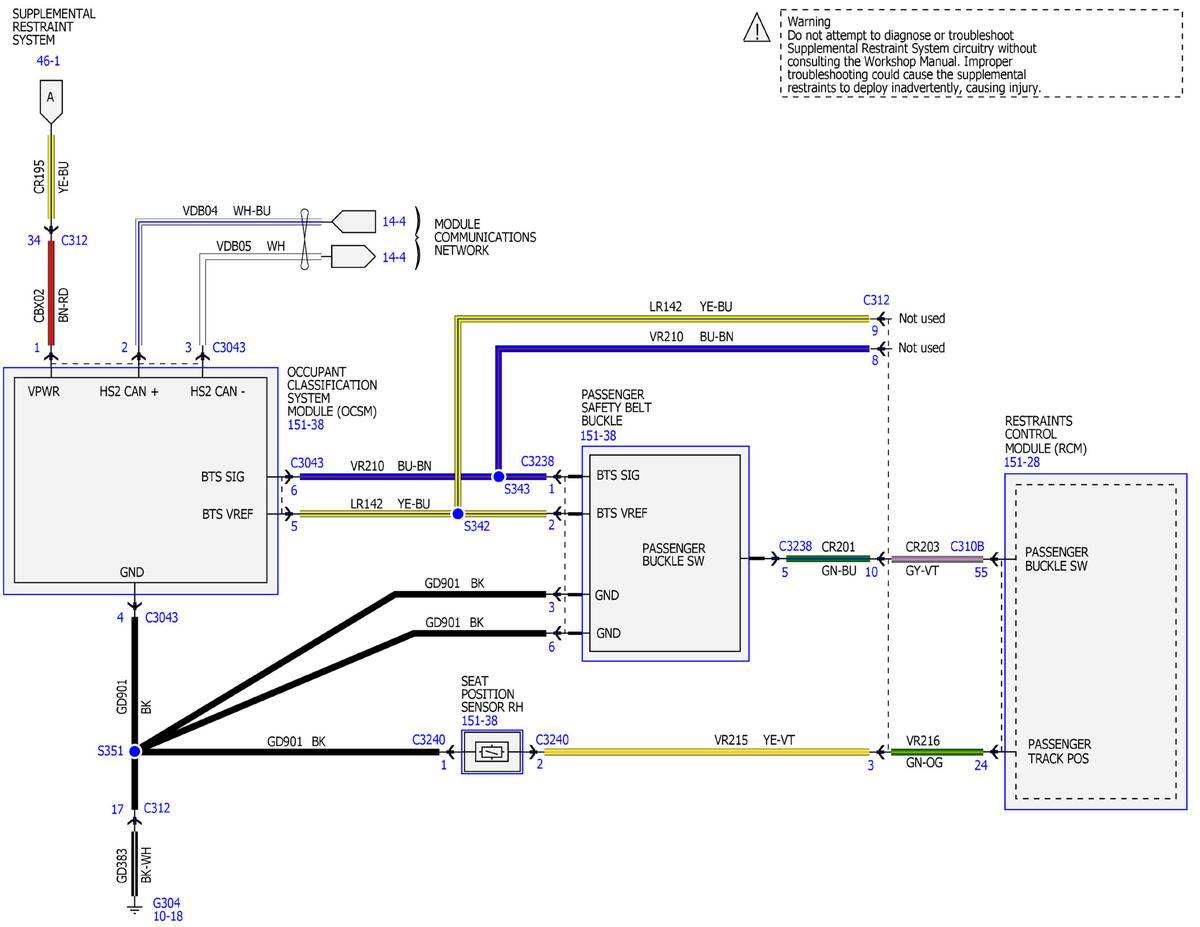

Fig 8: Supplemental Restraint System Wiring Diagram (8 of 9)
Courtesy of FORD MOTOR COMPANY
Fig 9: Supplemental Restraint System Wiring Diagram (9 of 9)
