WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

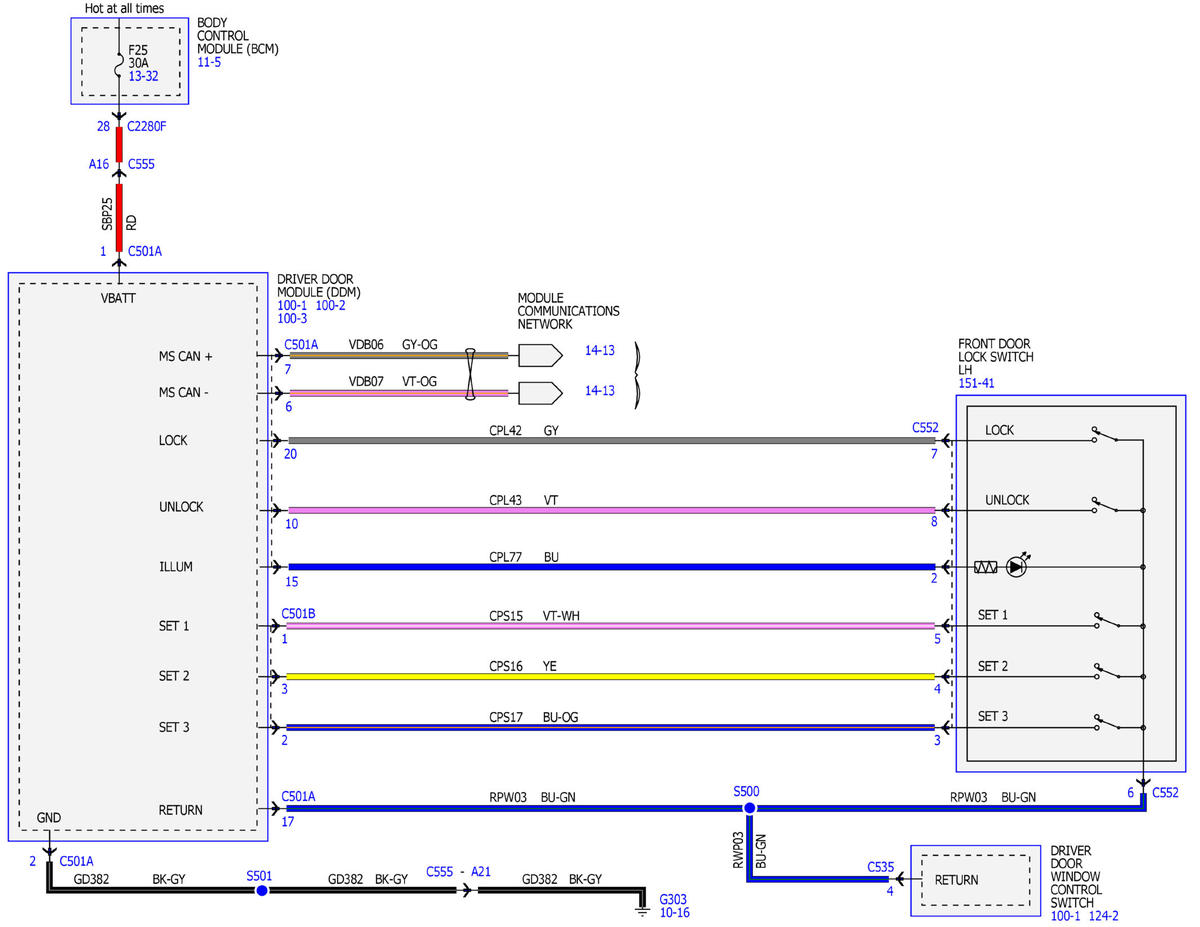

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 of 17)
Courtesy of FORD MOTOR COMPANY

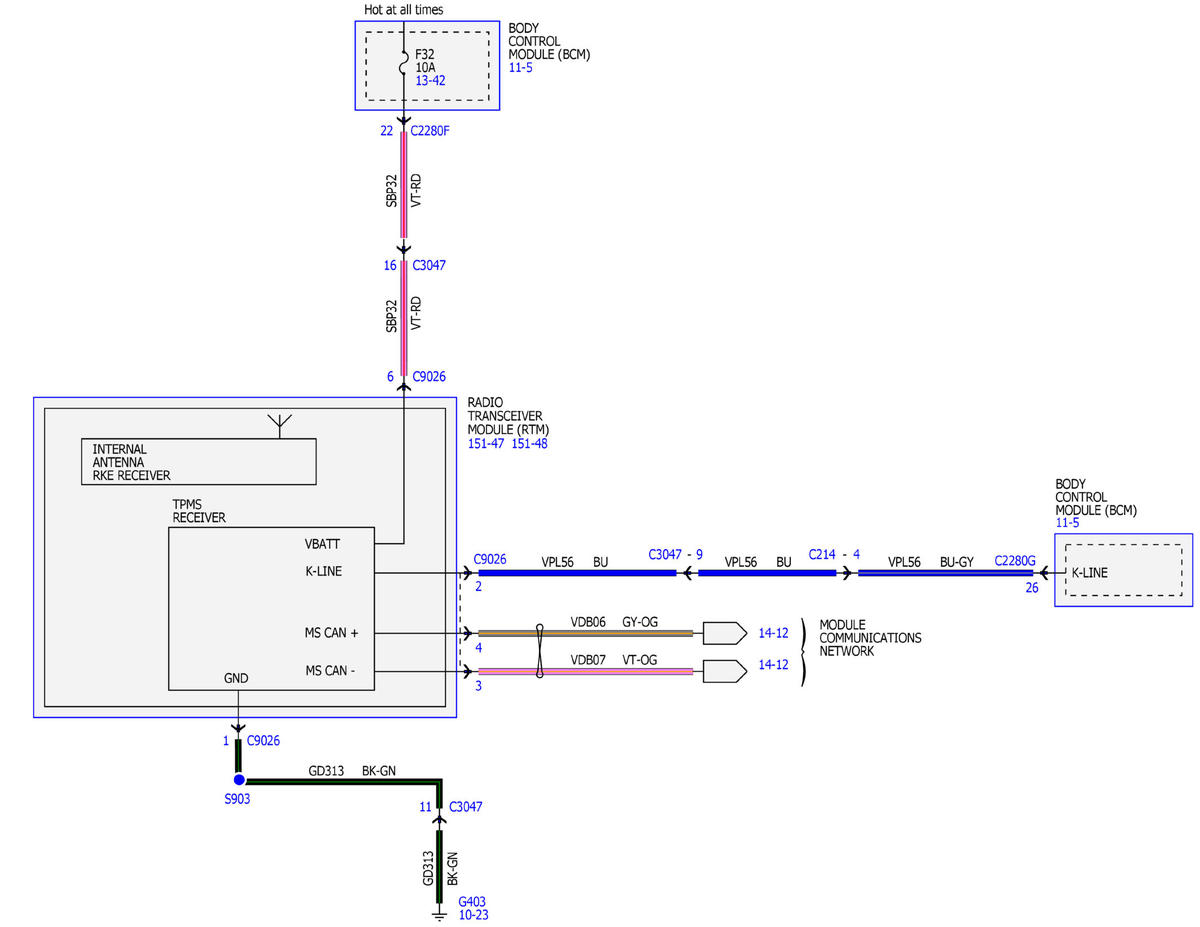

Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 of 17)
Courtesy of FORD MOTOR COMPANY

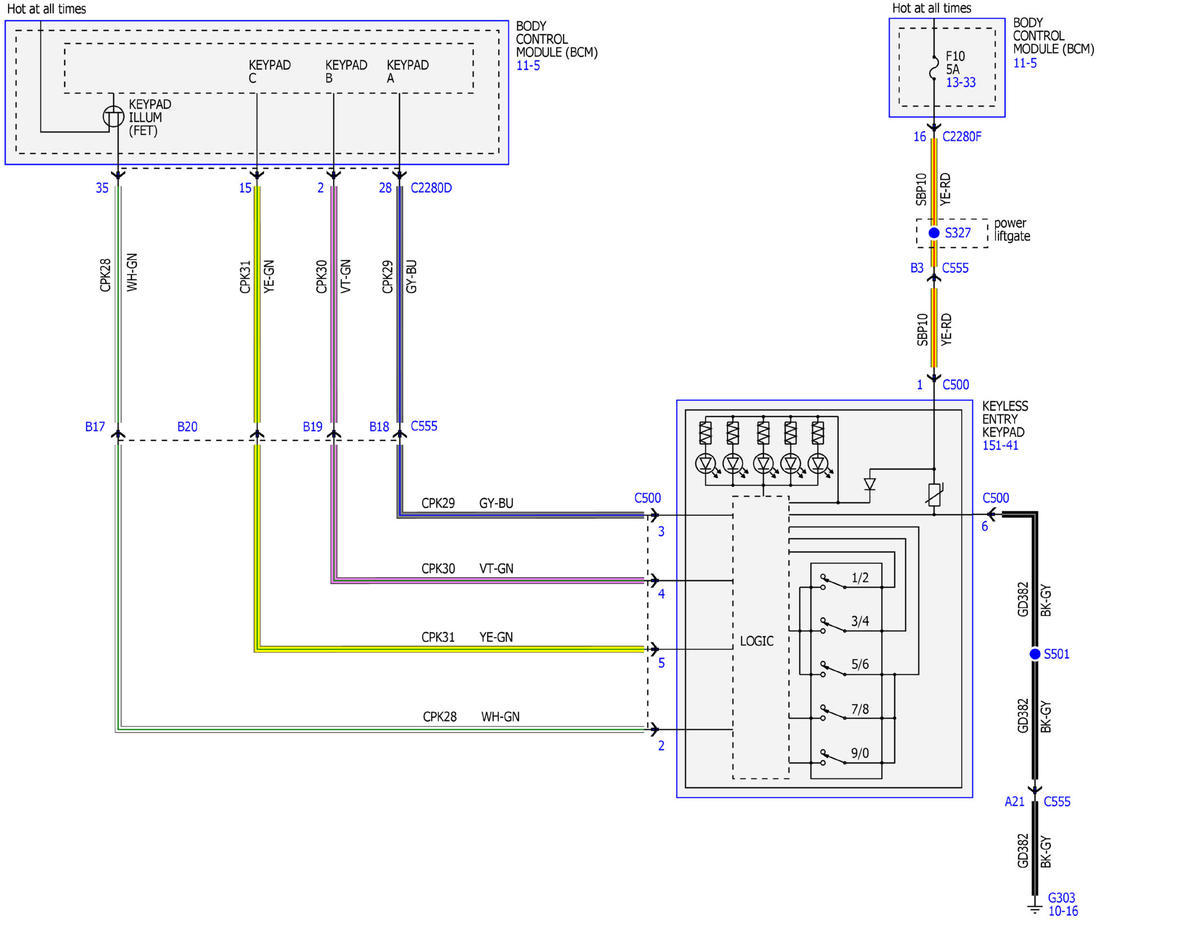

Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 of 17)
Courtesy of FORD MOTOR COMPANY

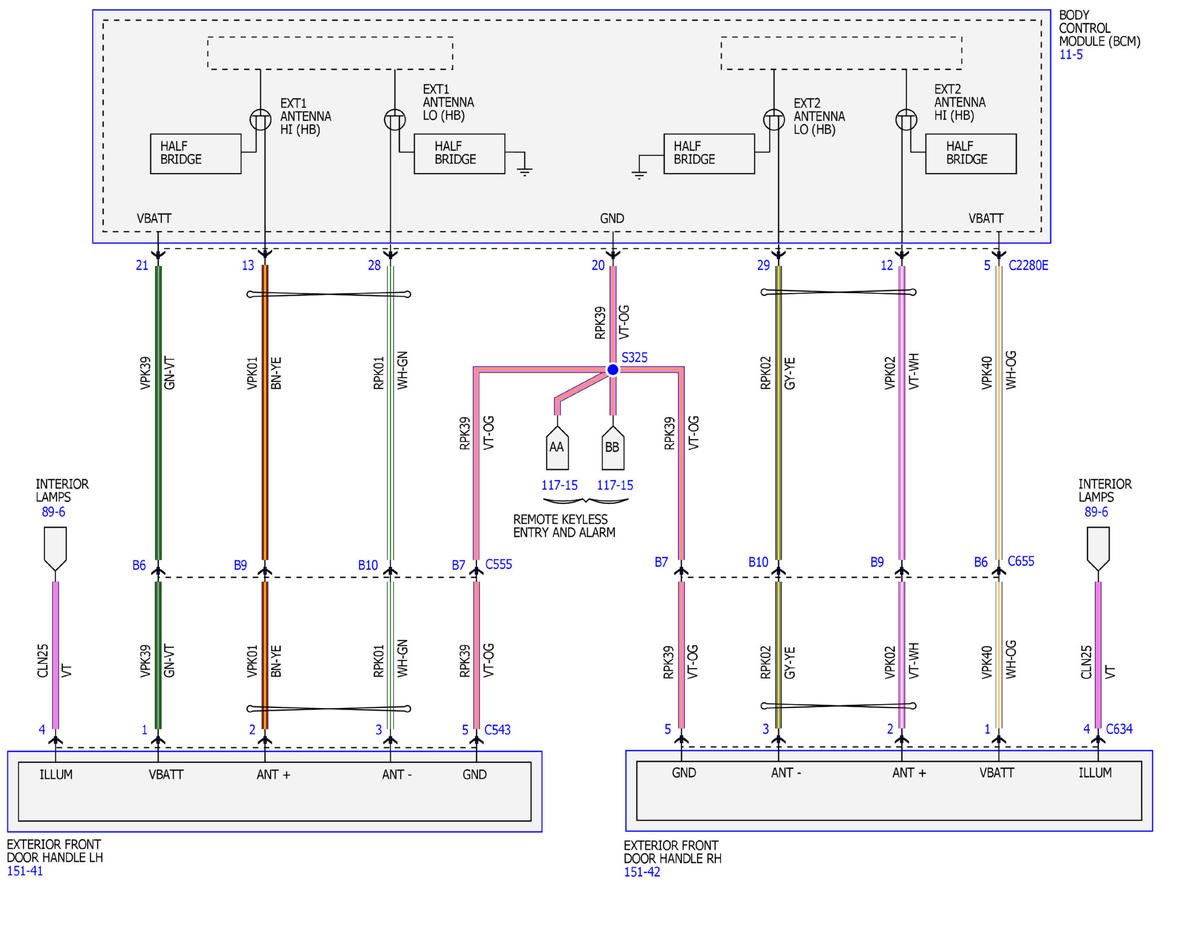

Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 of 17)
Courtesy of FORD MOTOR COMPANY

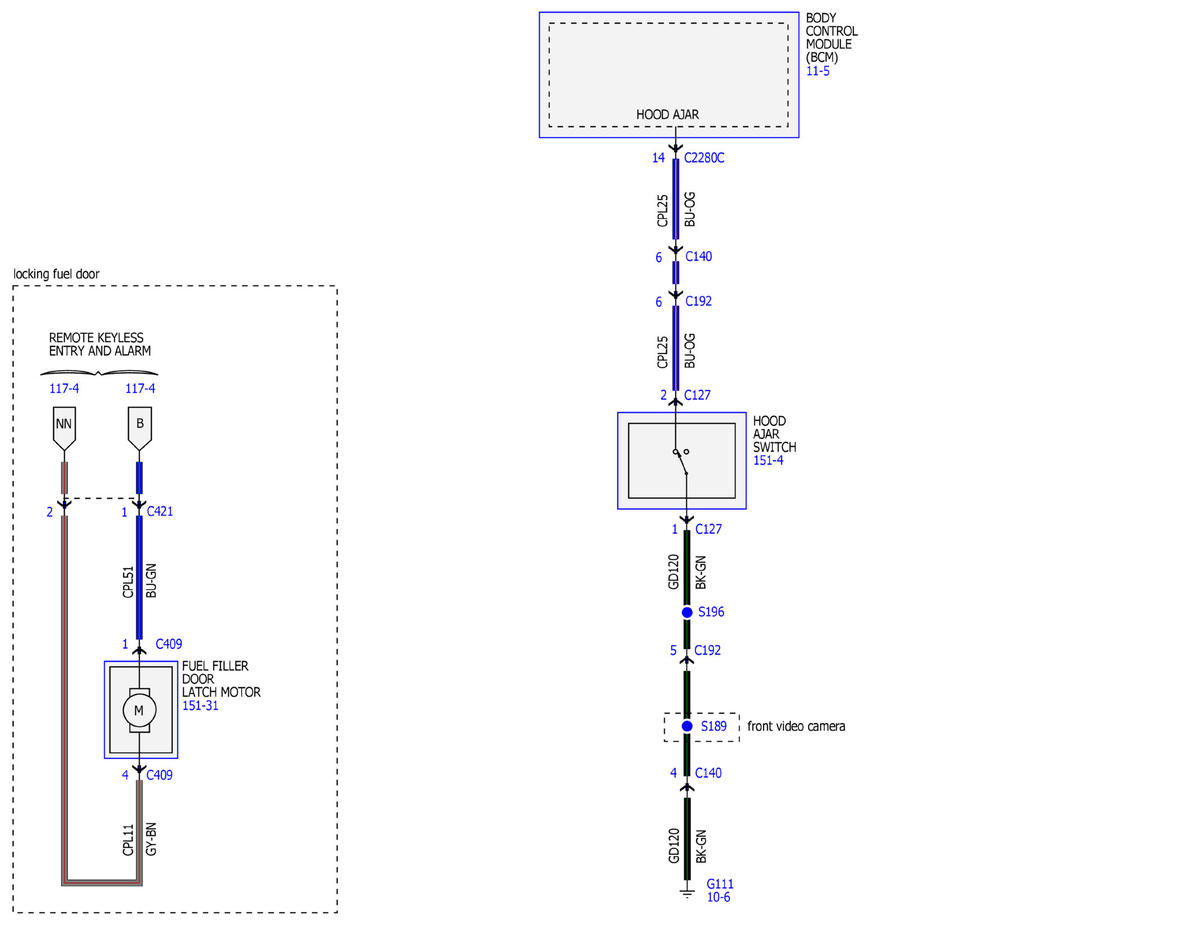

Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 of 17)
Courtesy of FORD MOTOR COMPANY

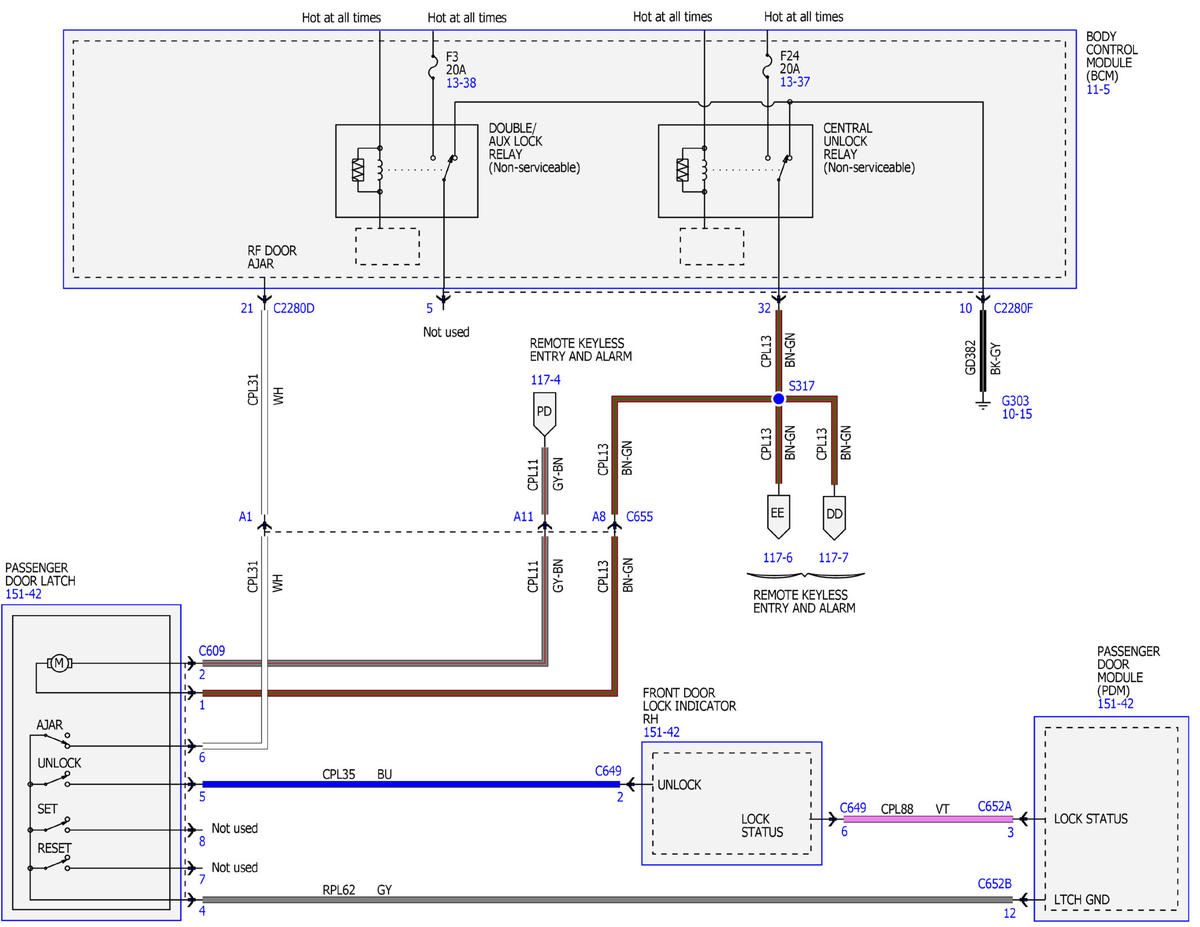

Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 of 17)
Courtesy of FORD MOTOR COMPANY

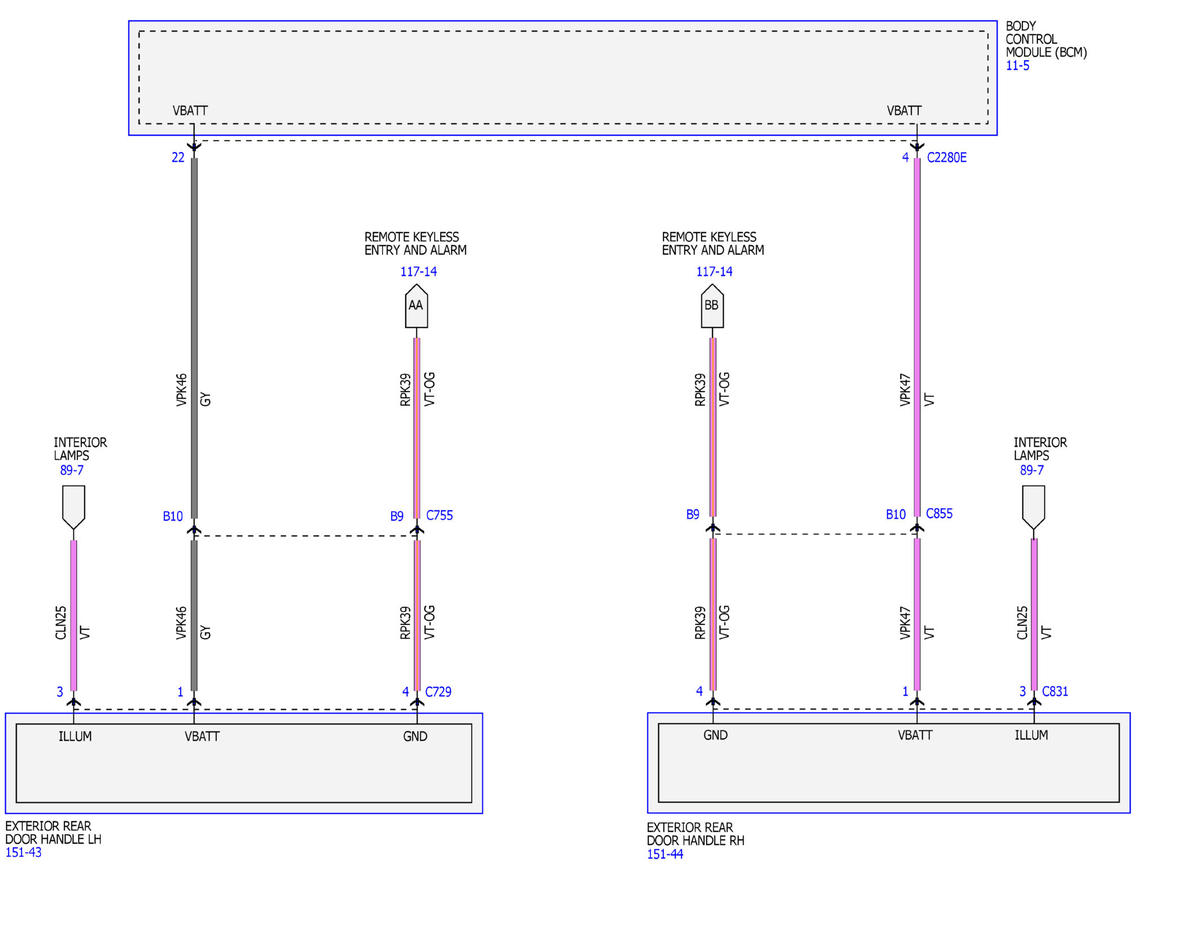

Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 of 17)
Courtesy of FORD MOTOR COMPANY

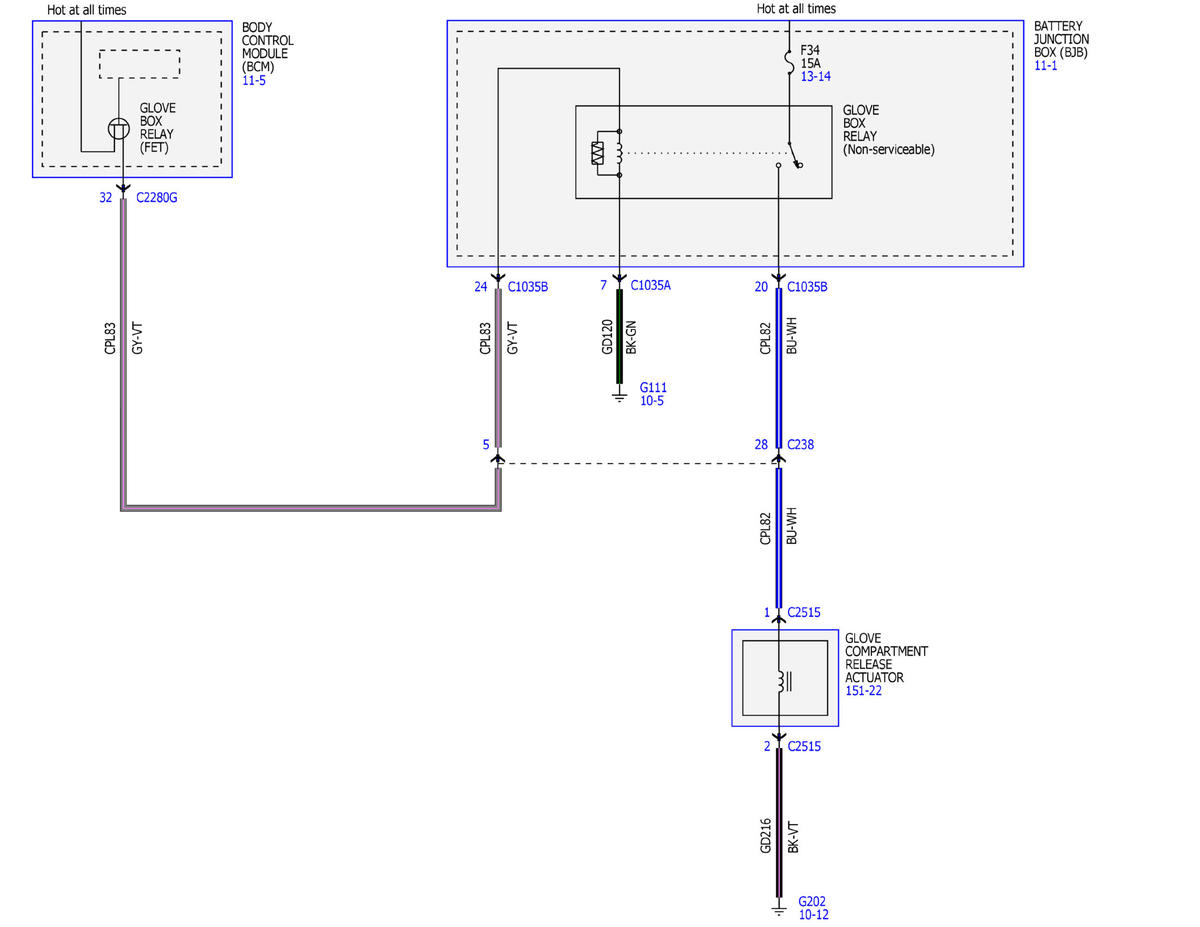

Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 10: Remote Keyless Entry and Alarm Wiring Diagram (10 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 11: Remote Keyless Entry and Alarm Wiring Diagram (11 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 12: Remote Keyless Entry and Alarm Wiring Diagram (12 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 13: Remote Keyless Entry and Alarm Wiring Diagram (13 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 14: Remote Keyless Entry and Alarm Wiring Diagram (14 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 15: Remote Keyless Entry and Alarm Wiring Diagram (15 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 16: Remote Keyless Entry and Alarm Wiring Diagram (16 of 17)
Courtesy of FORD MOTOR COMPANY
Fig 17: Remote Keyless Entry and Alarm Wiring Diagram (17 of 17)
