Power Liftgate

WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

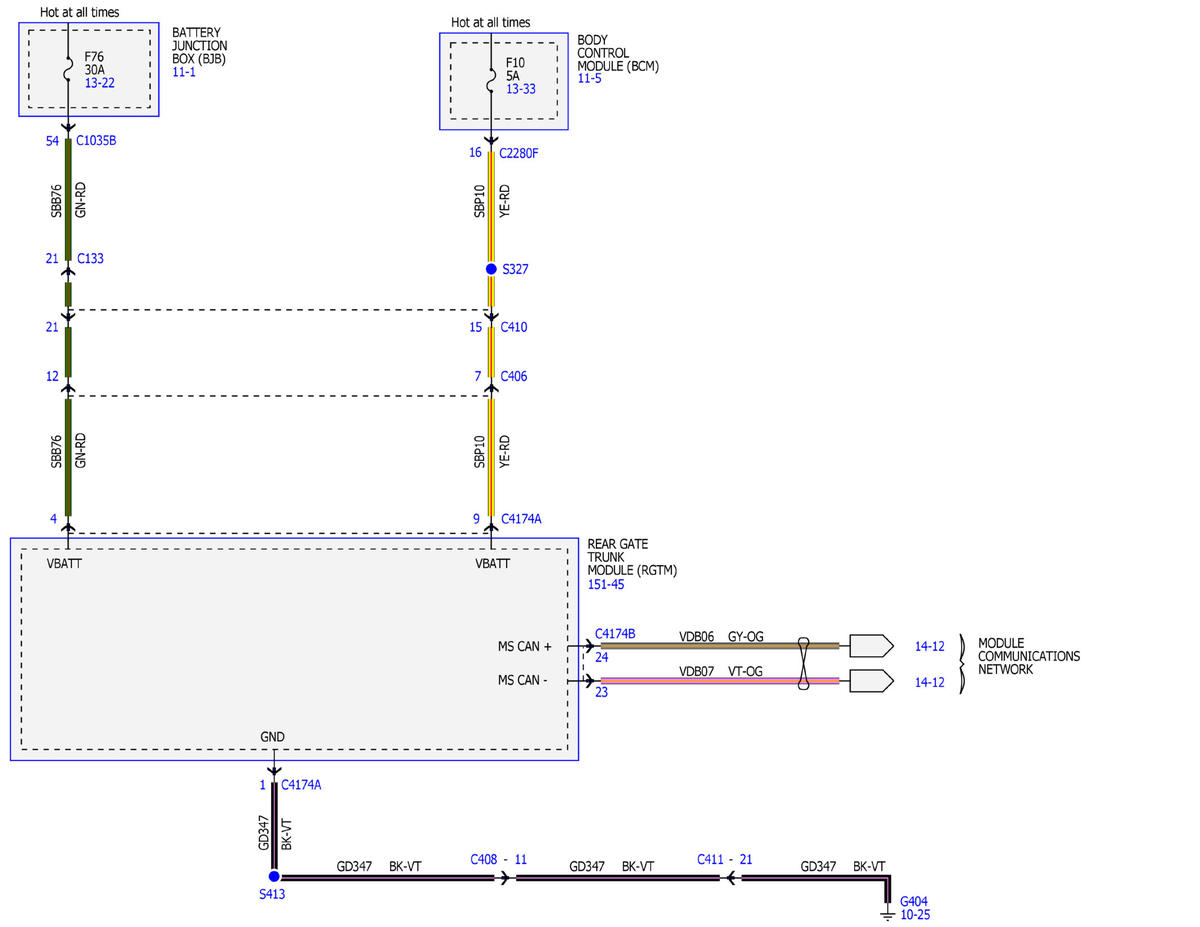

Fig 1: Power Liftgate Wiring Diagram (1 of 6)

Courtesy of FORD MOTOR COMPANY

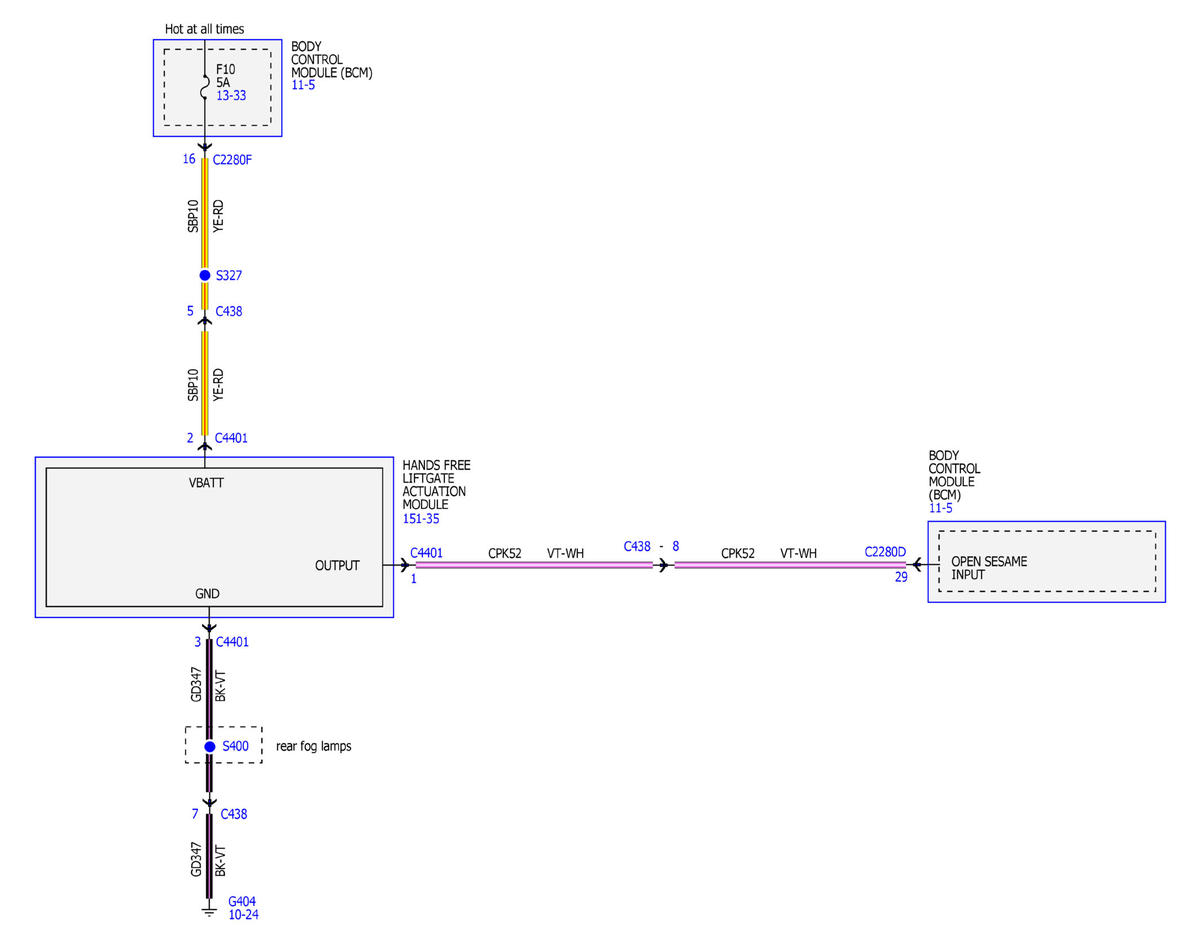

Fig 2: Power Liftgate Wiring Diagram (2 of 6)

Courtesy of FORD MOTOR COMPANY

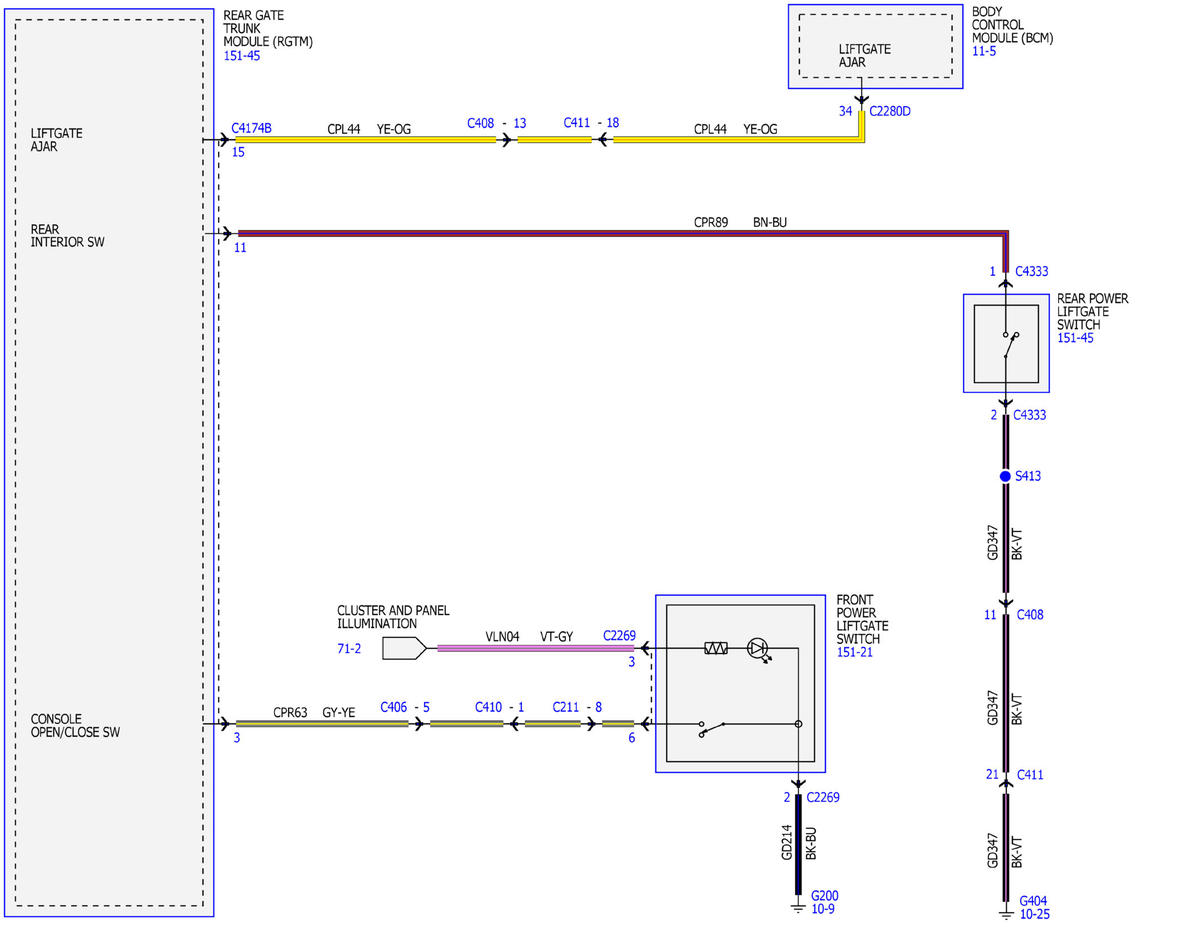

Fig 3: Power Liftgate Wiring Diagram (3 of 6)

Courtesy of FORD MOTOR COMPANY

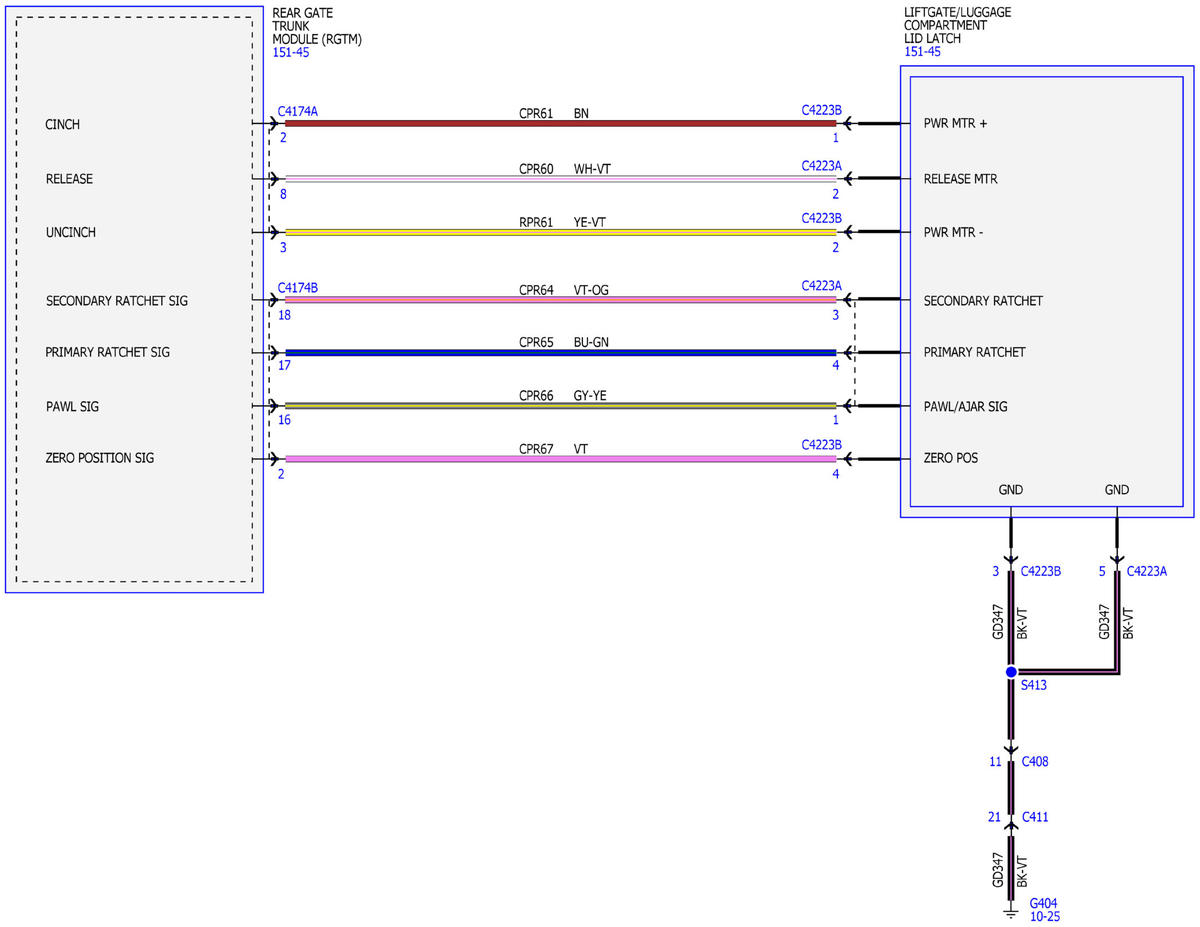

Fig 4: Power Liftgate Wiring Diagram (4 of 6)

Courtesy of FORD MOTOR COMPANY

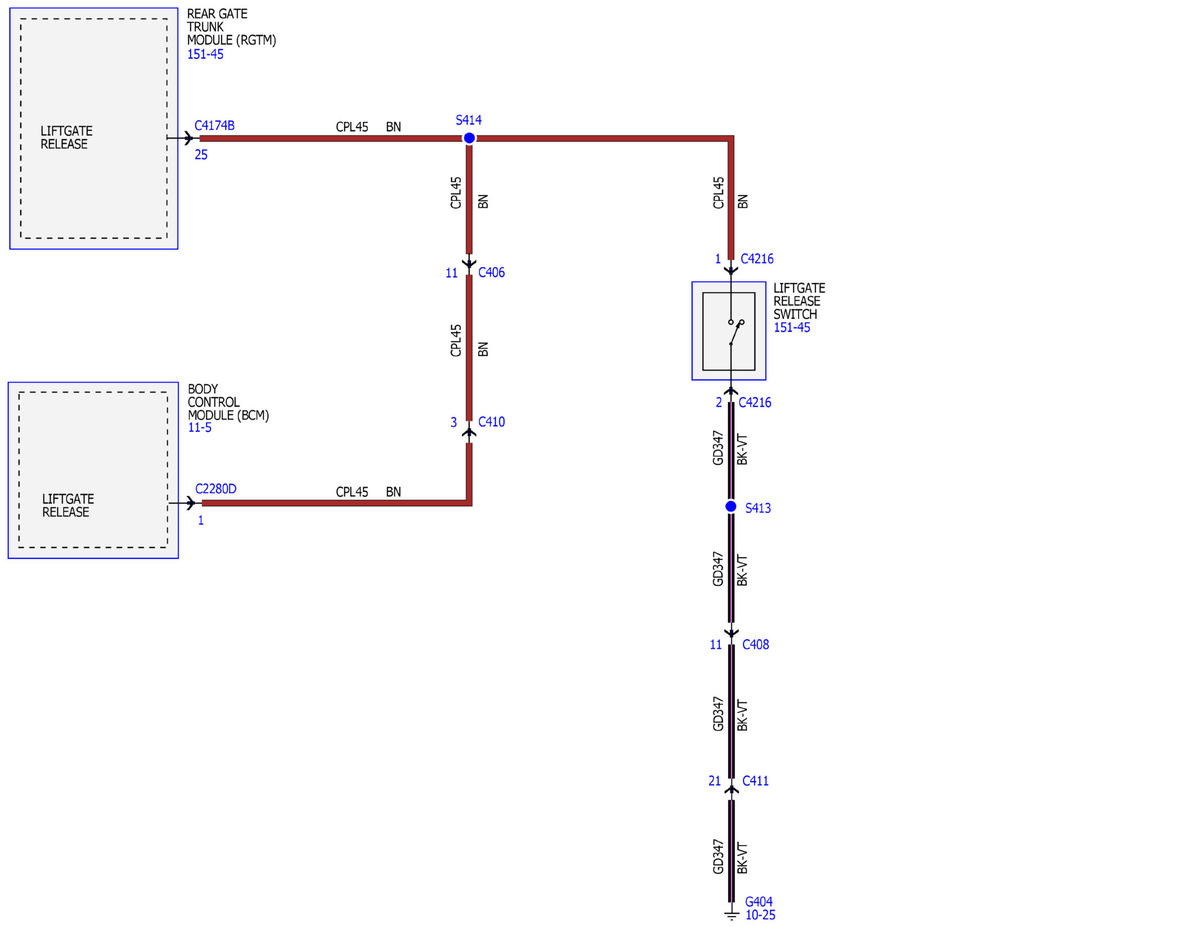

Fig 5: Power Liftgate Wiring Diagram (5 of 6)

Courtesy of FORD MOTOR COMPANY

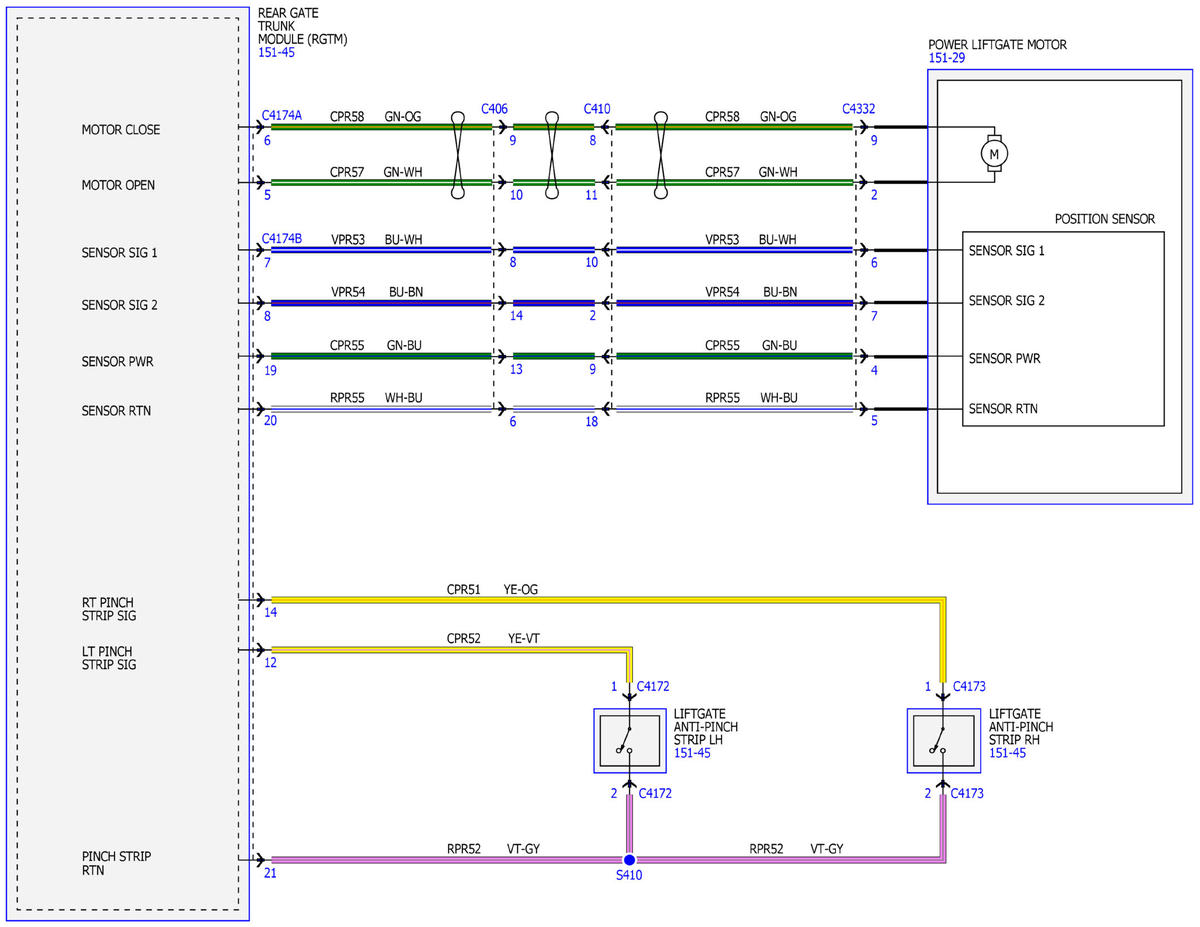

Fig 6: Power Liftgate Wiring Diagram (6 of 6)

Courtesy of FORD MOTOR COMPANY
