Parking Aid

WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

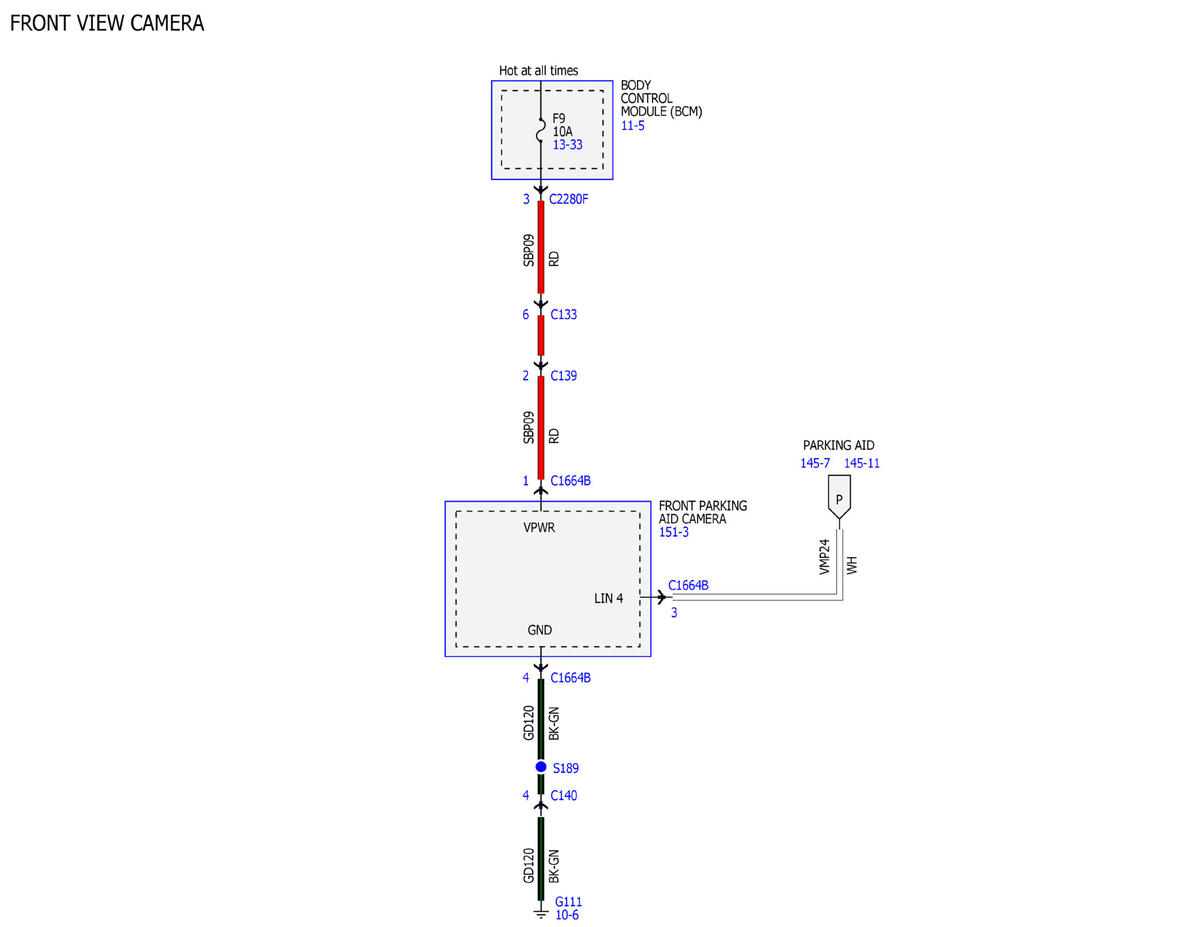

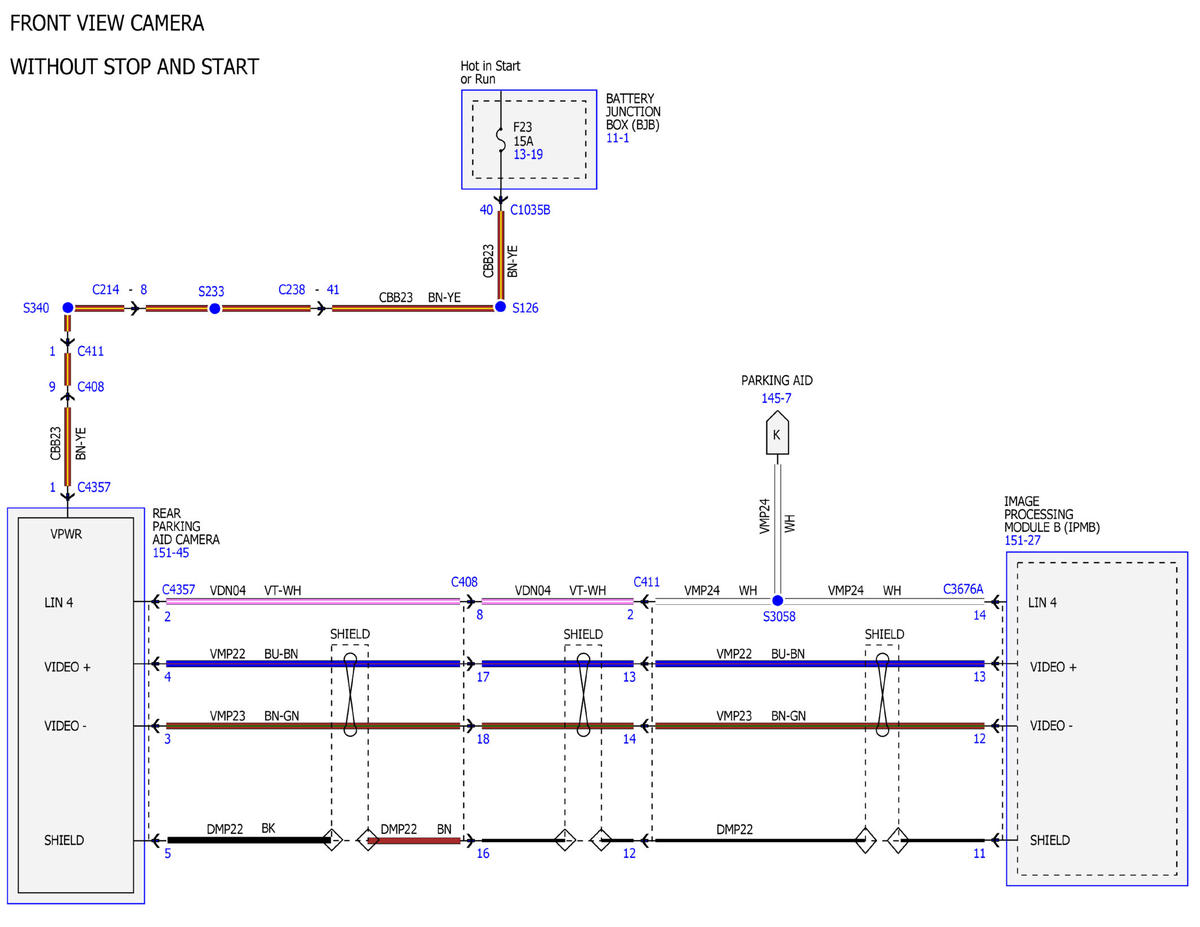

Fig 1: Parking Aid Wiring Diagram (1 of 13)

Courtesy of FORD MOTOR COMPANY

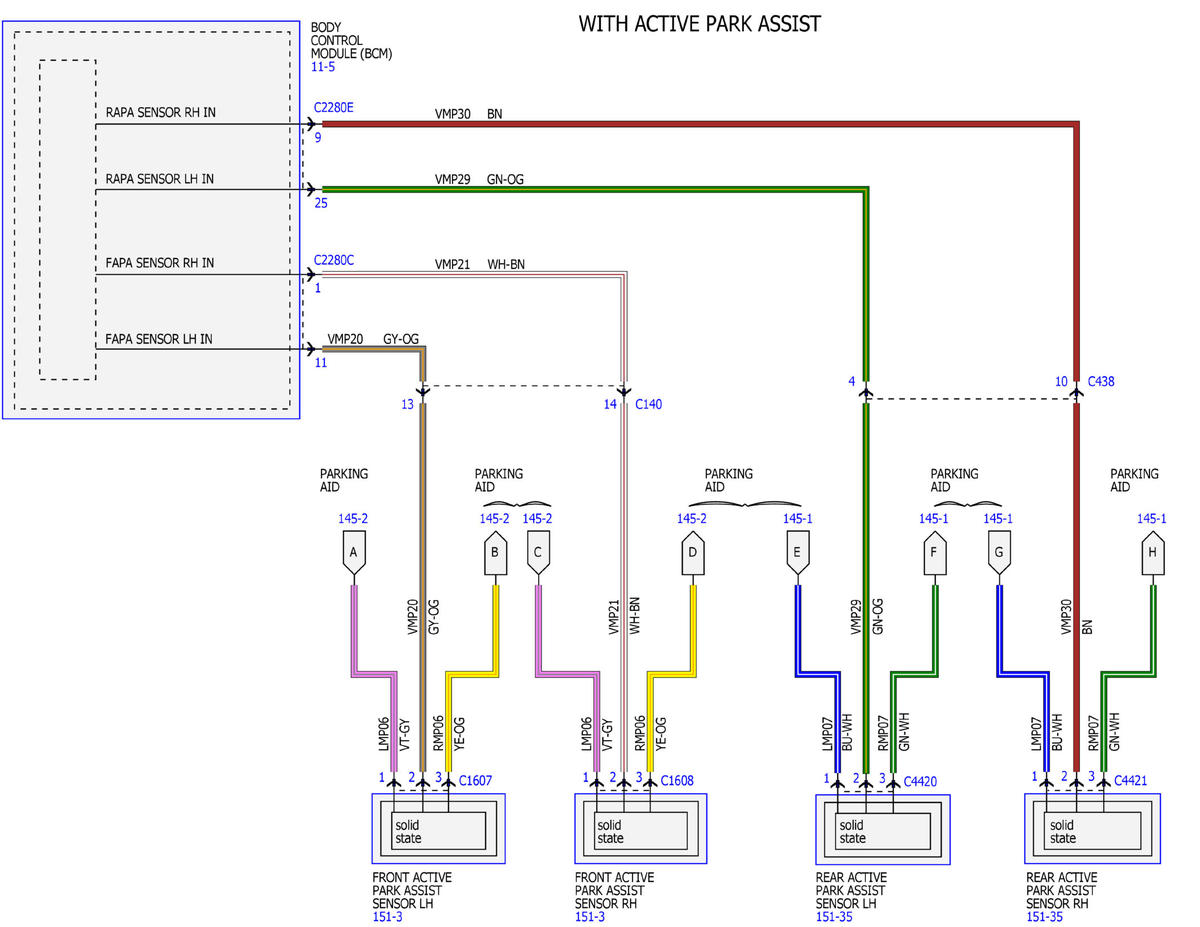

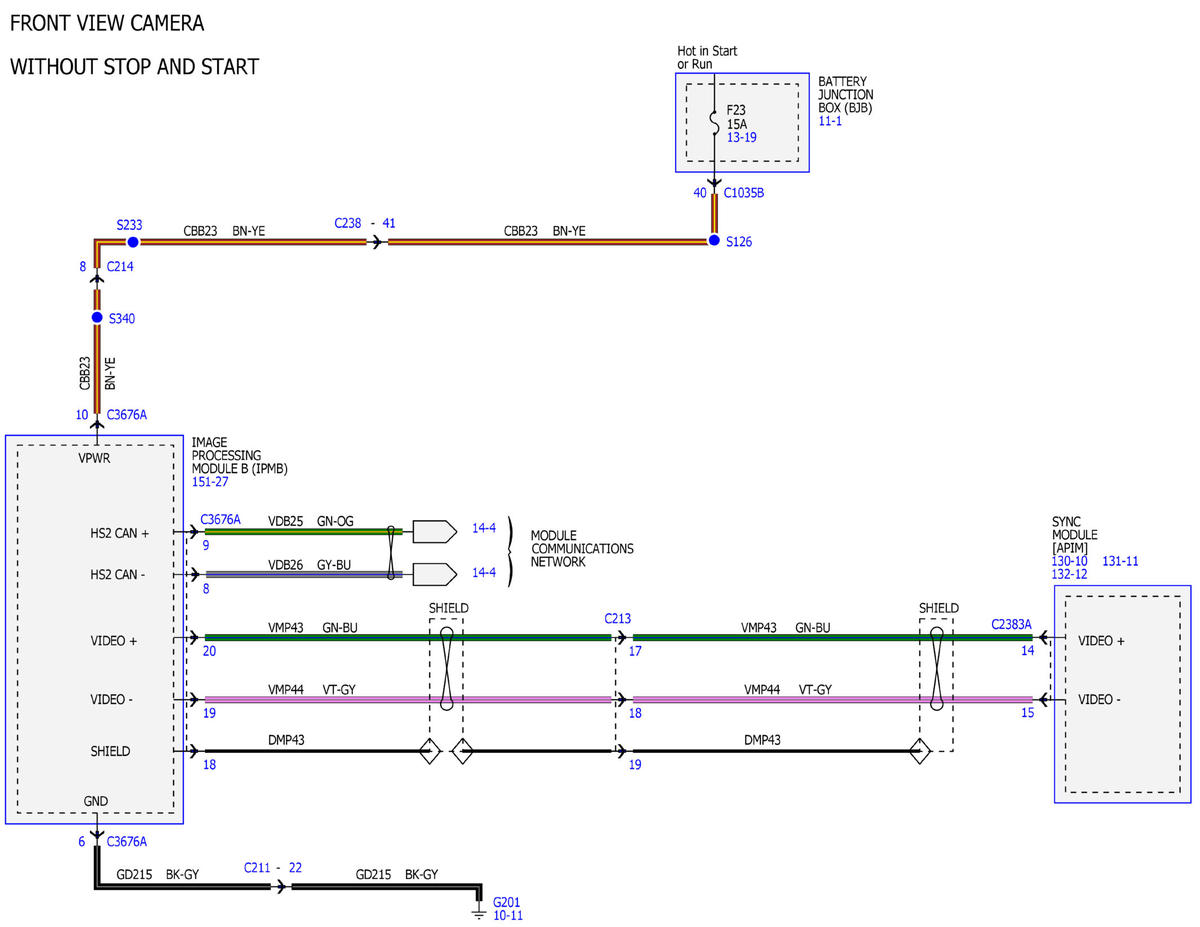

Fig 2: Parking Aid Wiring Diagram (2 of 13)

Courtesy of FORD MOTOR COMPANY

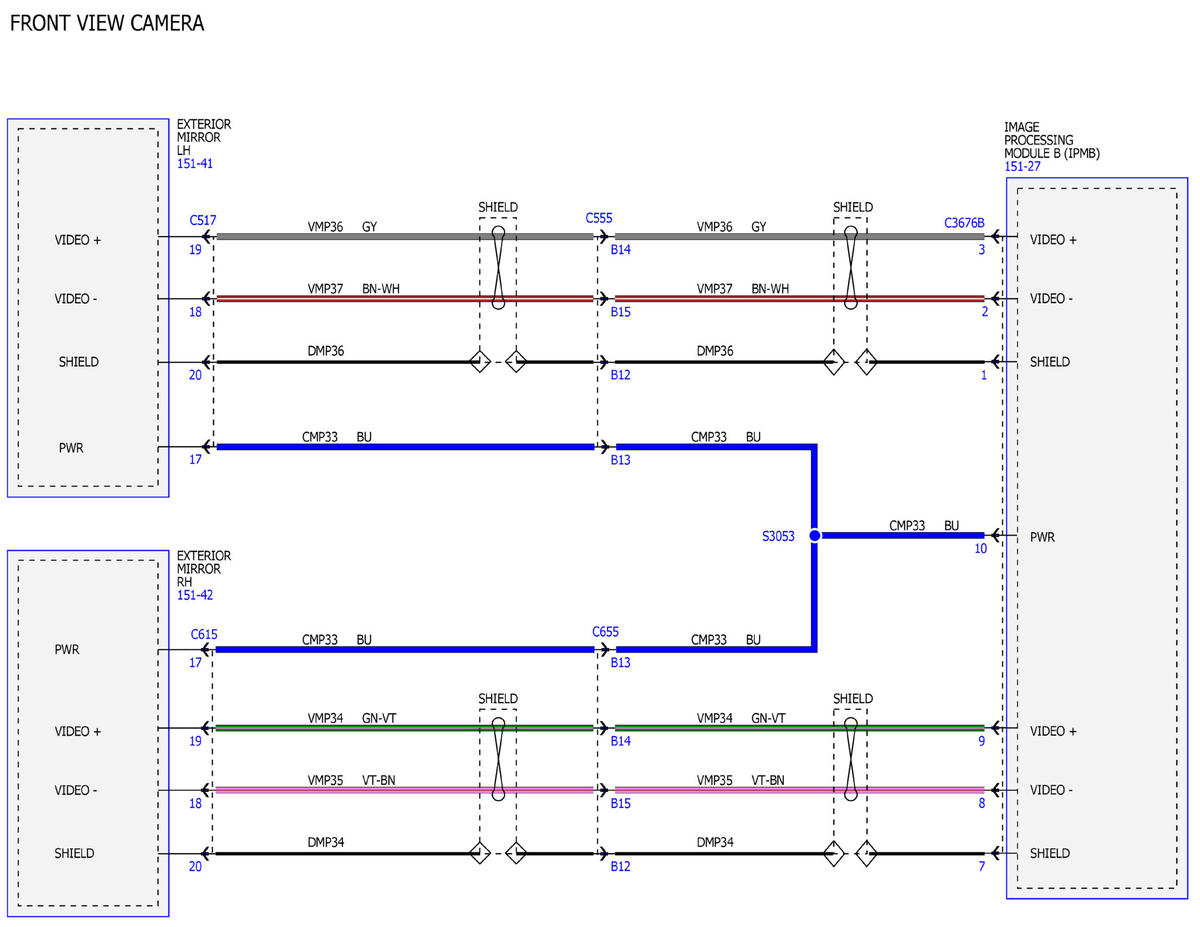

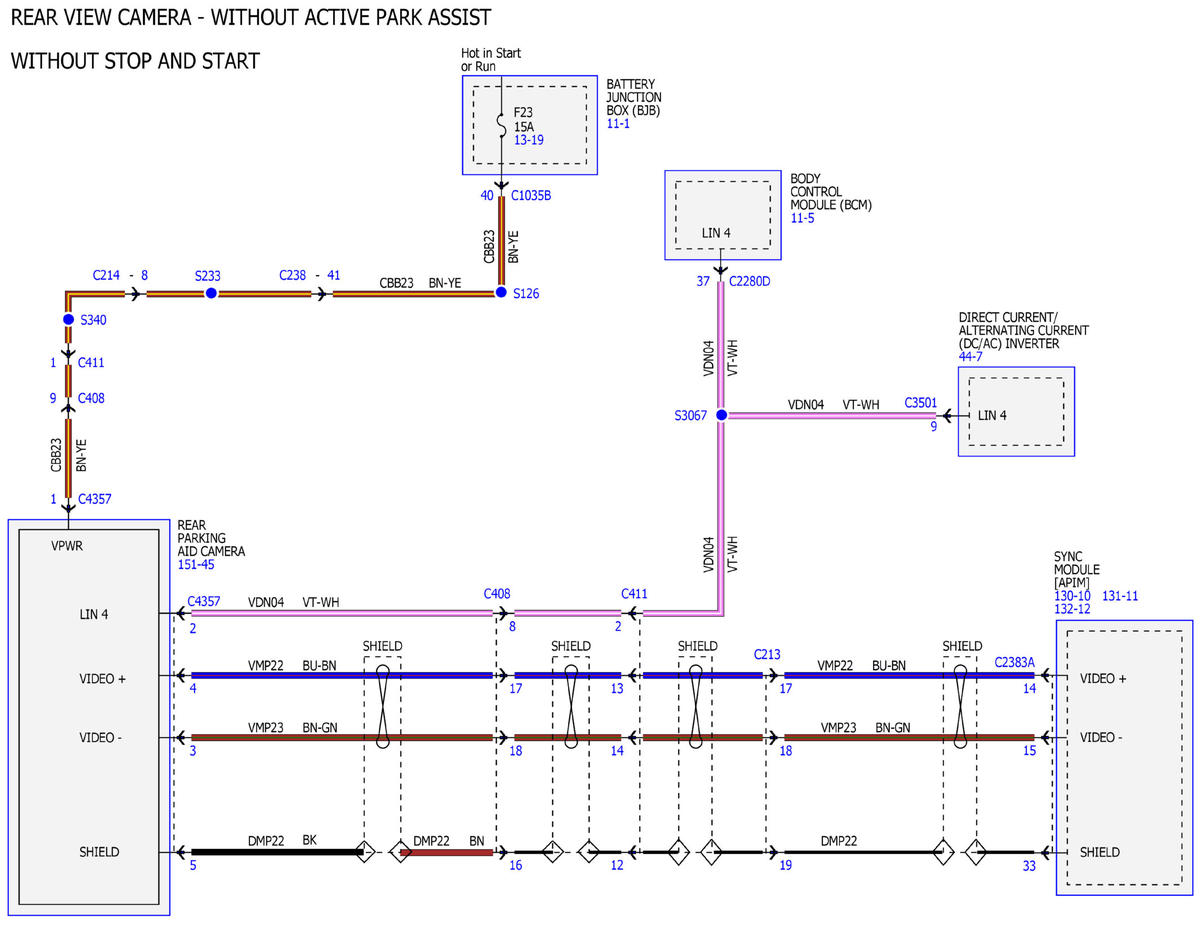

Fig 3: Parking Aid Wiring Diagram (3 of 13)

Courtesy of FORD MOTOR COMPANY

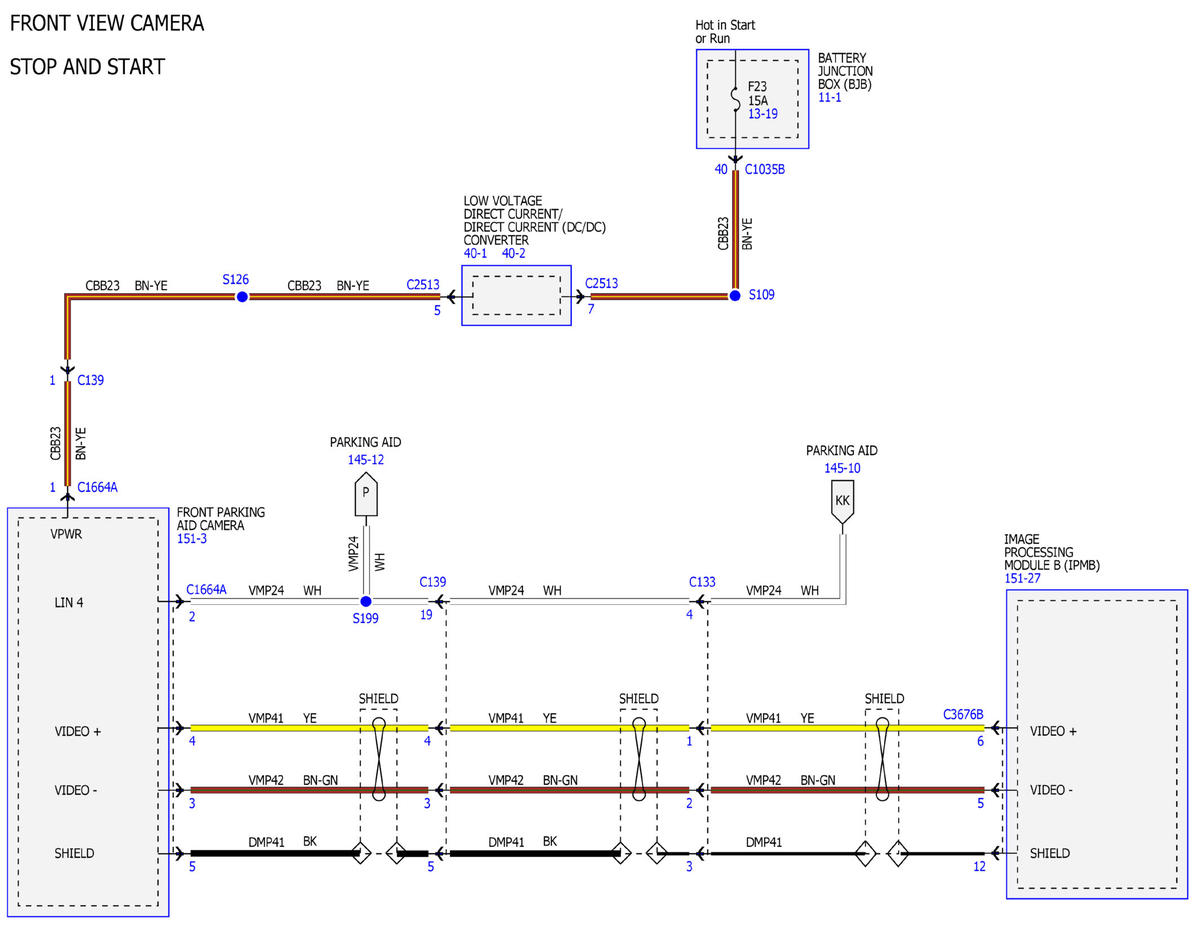

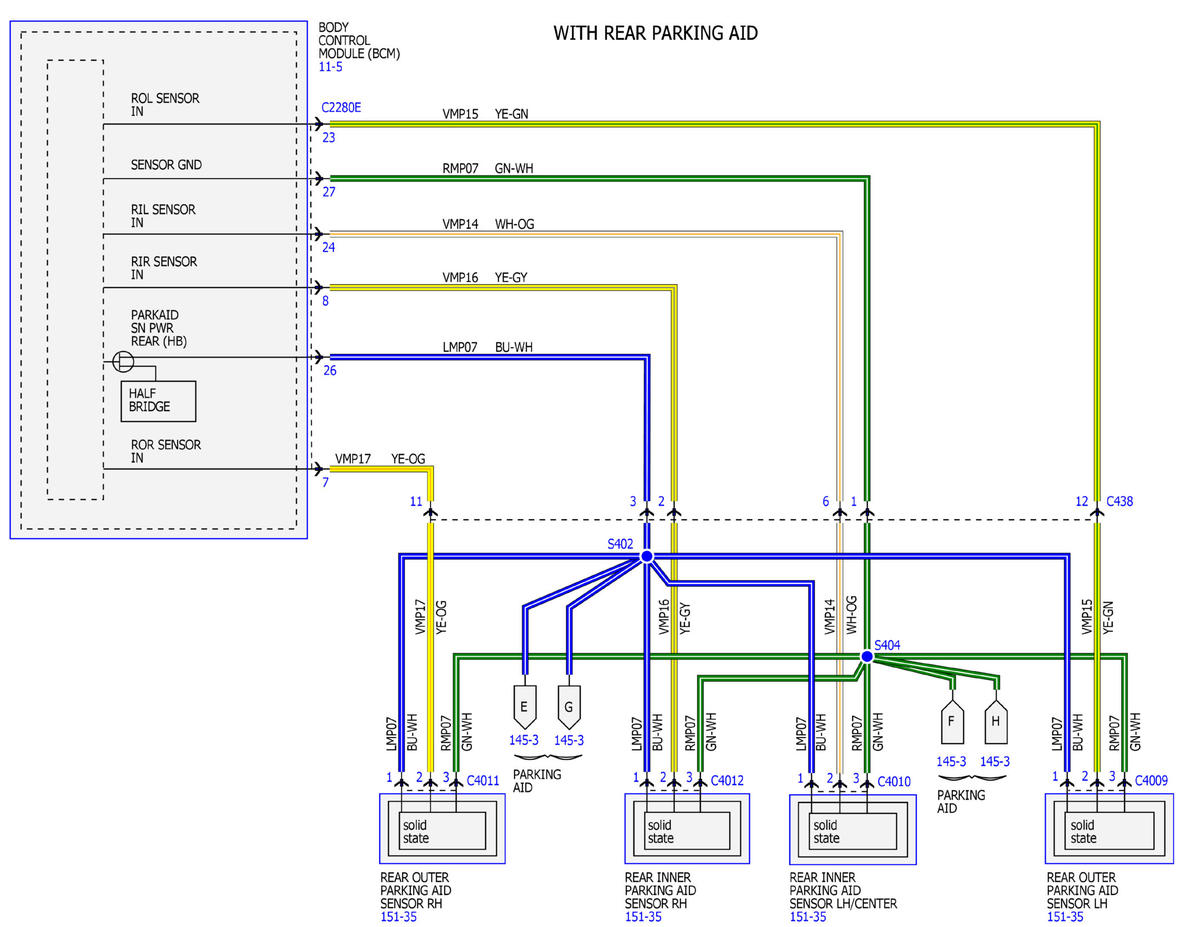

Fig 4: Parking Aid Wiring Diagram (4 of 13)

Courtesy of FORD MOTOR COMPANY

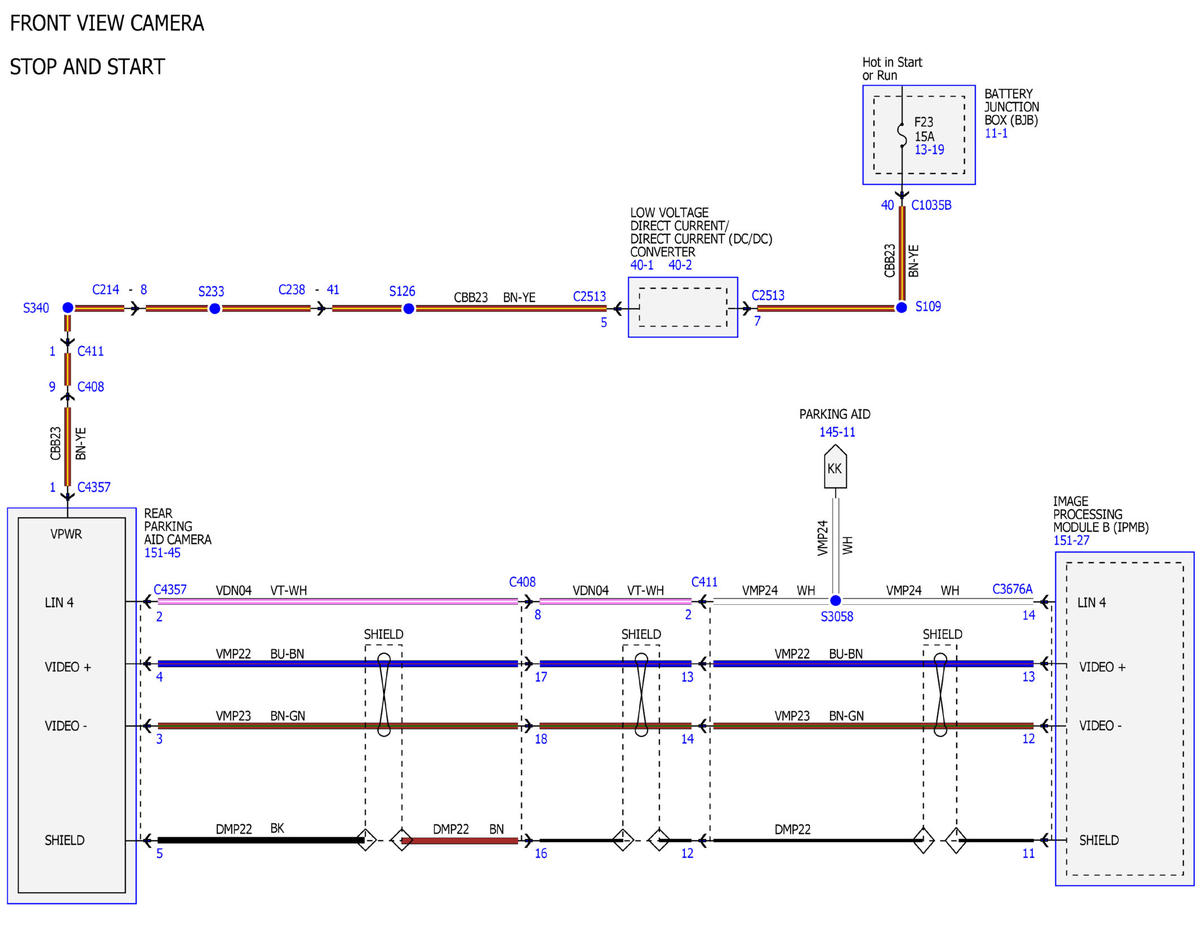

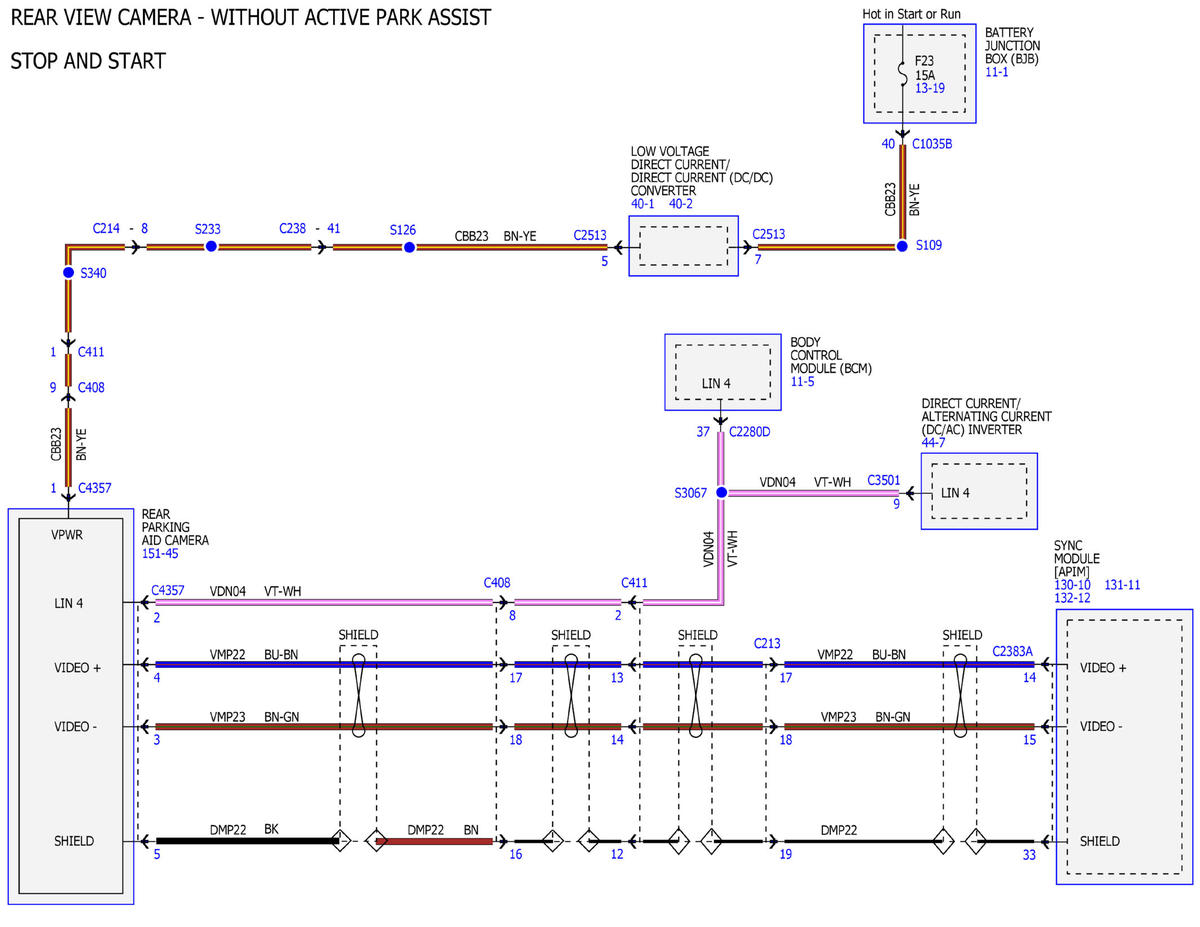

Fig 5: Parking Aid Wiring Diagram (5 of 13)

Courtesy of FORD MOTOR COMPANY

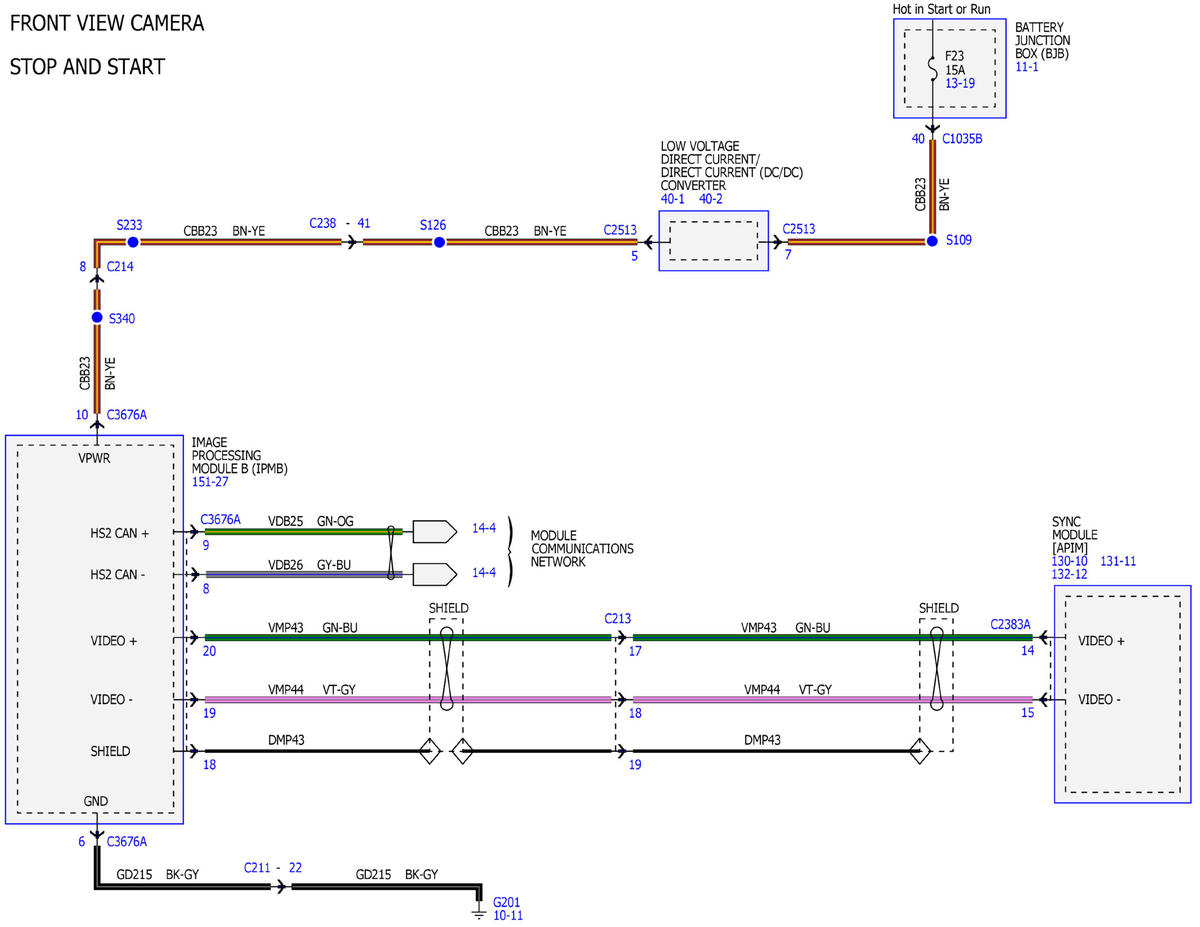

Fig 6: Parking Aid Wiring Diagram (6 of 13)

Courtesy of FORD MOTOR COMPANY

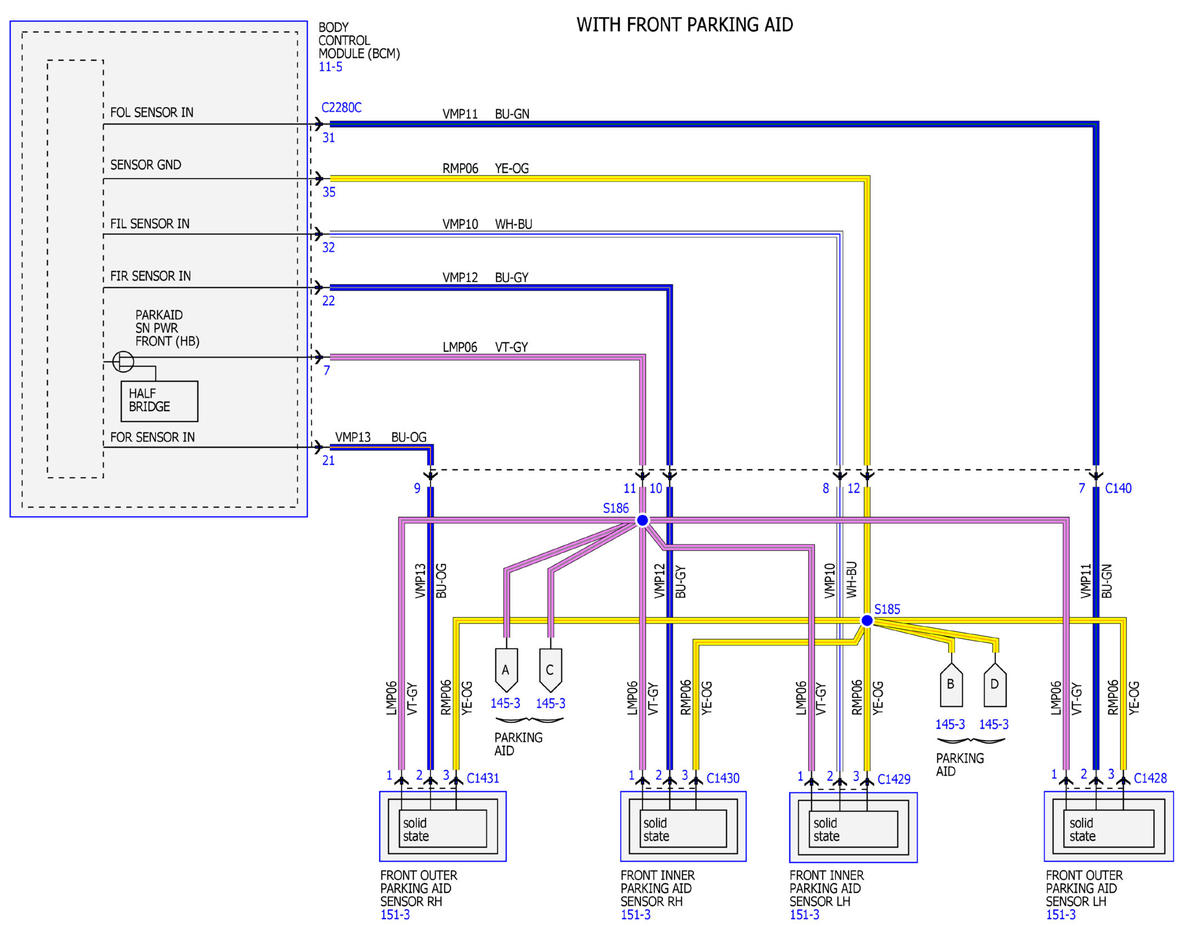

Fig 7: Parking Aid Wiring Diagram (7 of 13)

Courtesy of FORD MOTOR COMPANY

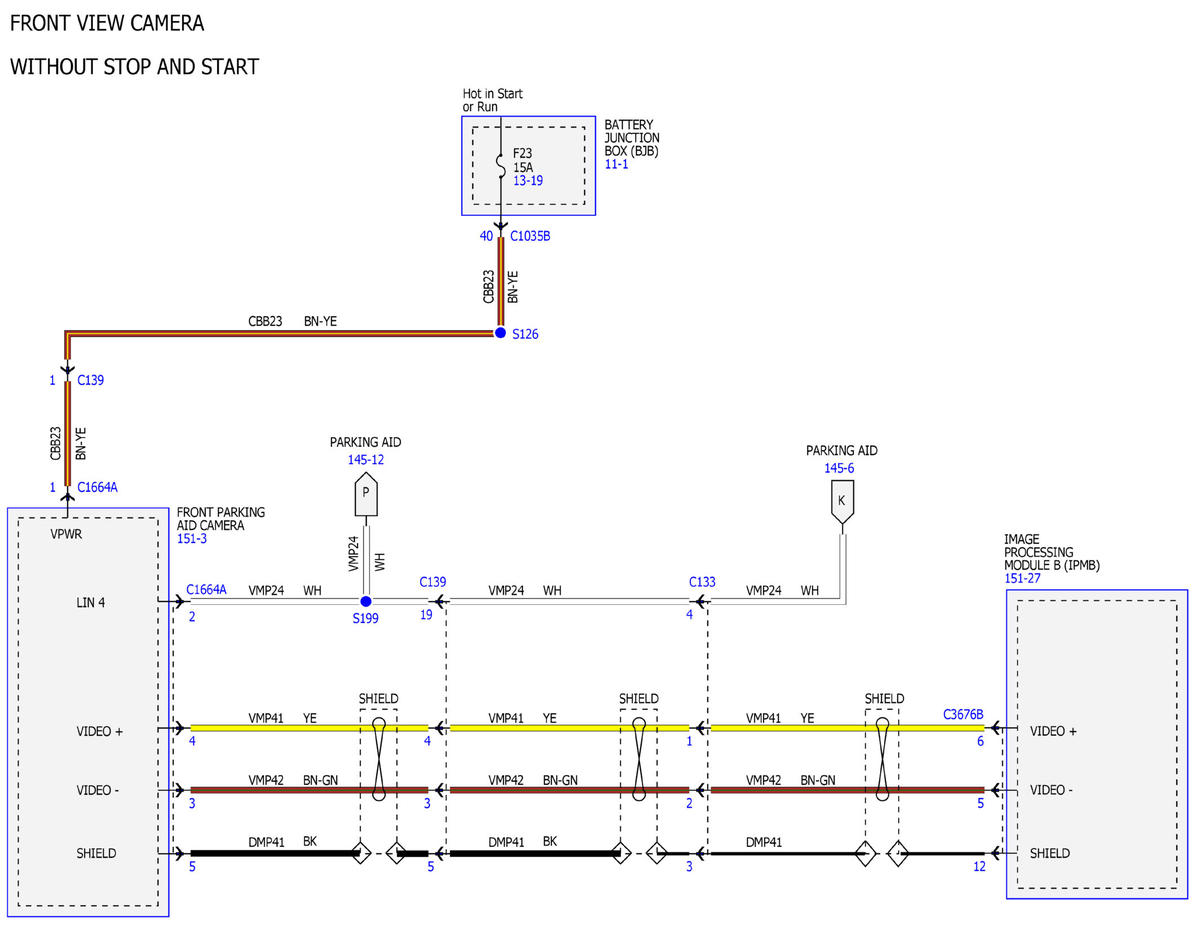

Fig 8: Parking Aid Wiring Diagram (8 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 9: Parking Aid Wiring Diagram (9 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 10: Parking Aid Wiring Diagram (10 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 11: Parking Aid Wiring Diagram (11 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 12: Parking Aid Wiring Diagram (12 of 13)

Courtesy of FORD MOTOR COMPANY

Fig 13: Parking Aid Wiring Diagram (13 of 13)

Courtesy of FORD MOTOR COMPANY
