Memory Seats

WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

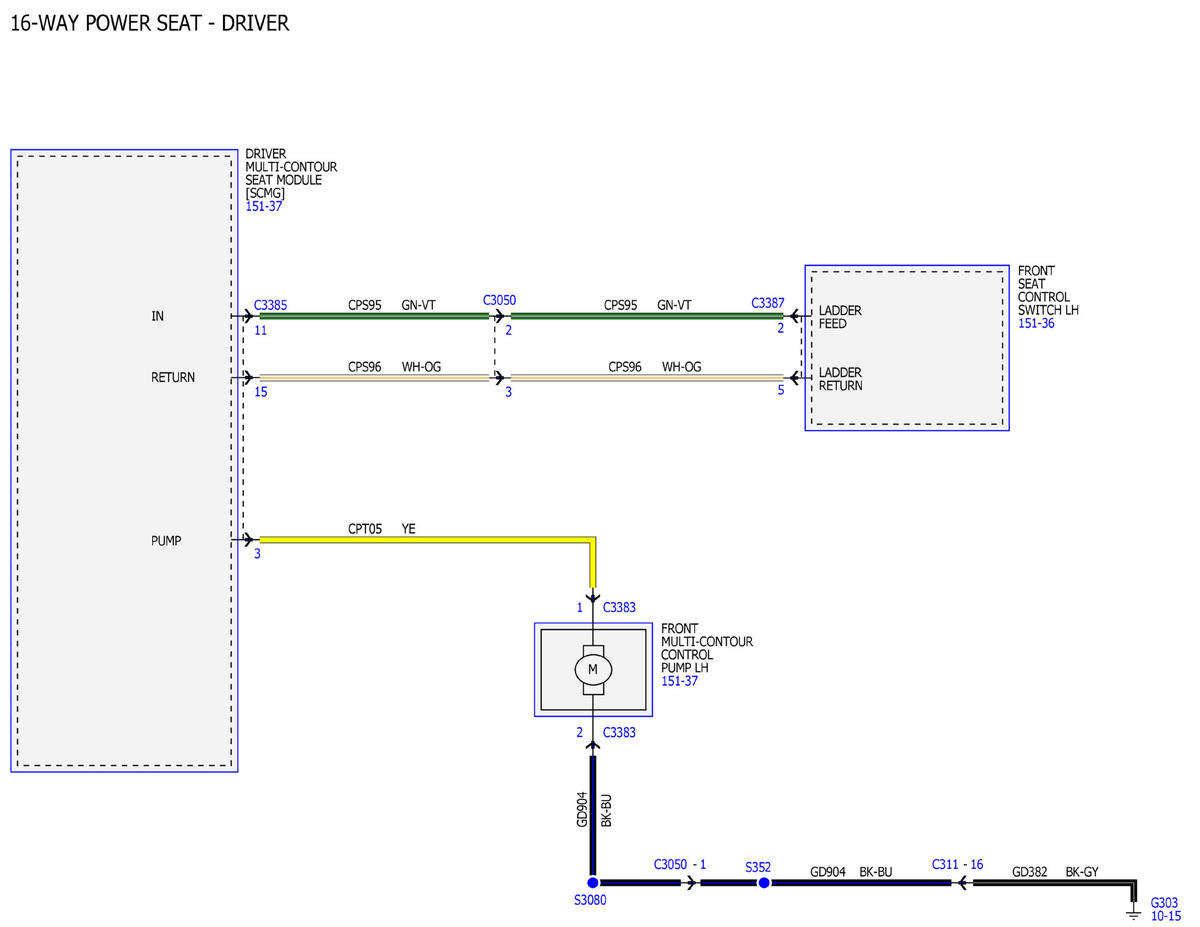

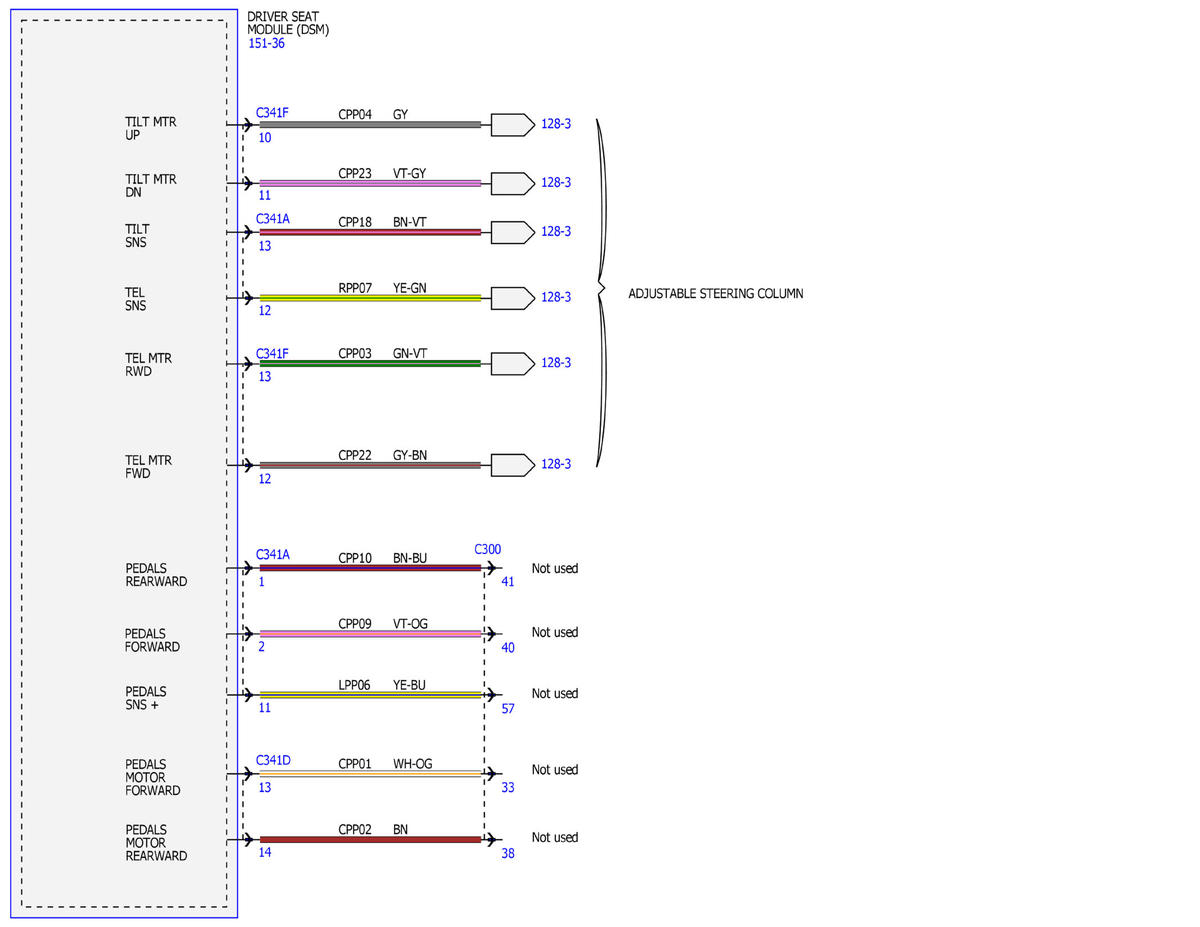

Fig 1: Memory Seats Wiring Diagram (1 of 11)

Courtesy of FORD MOTOR COMPANY

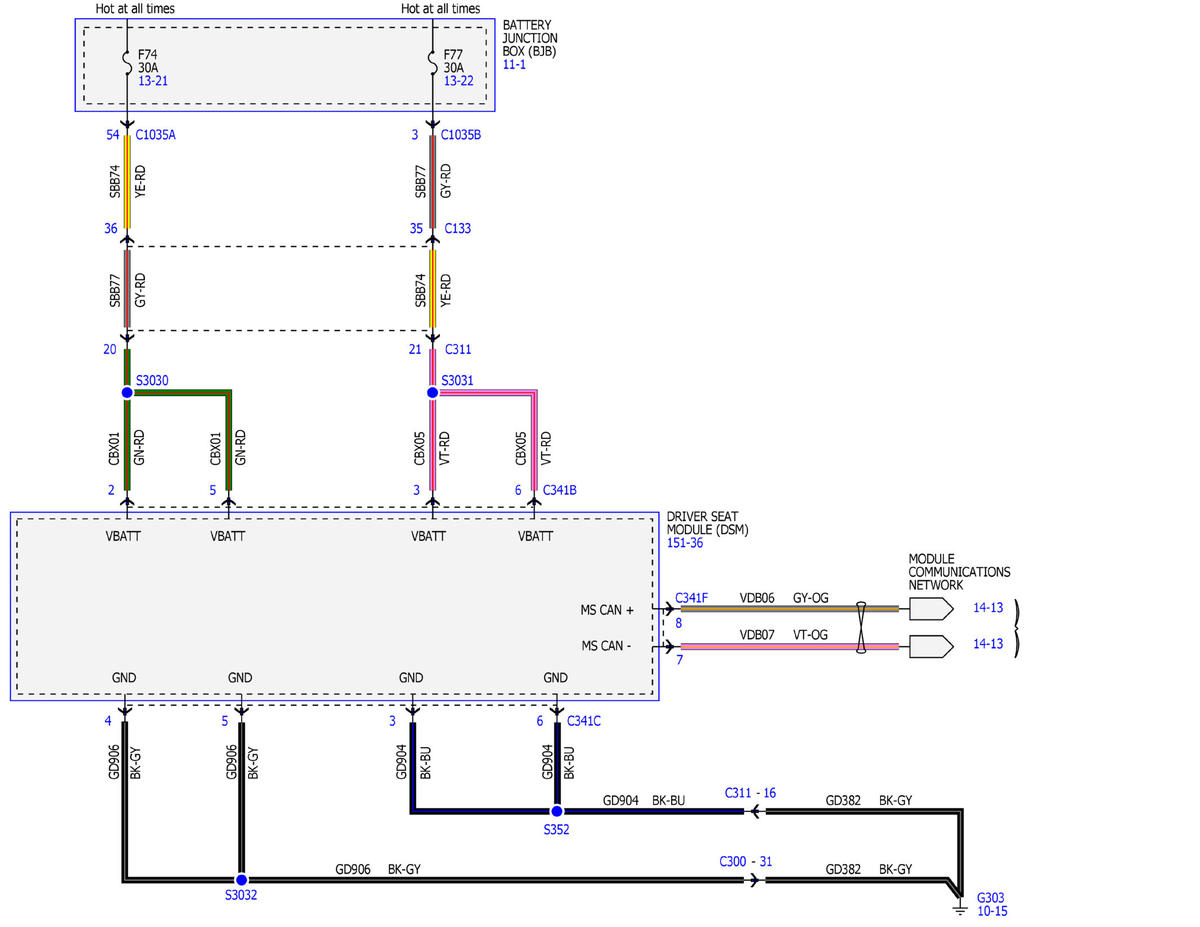

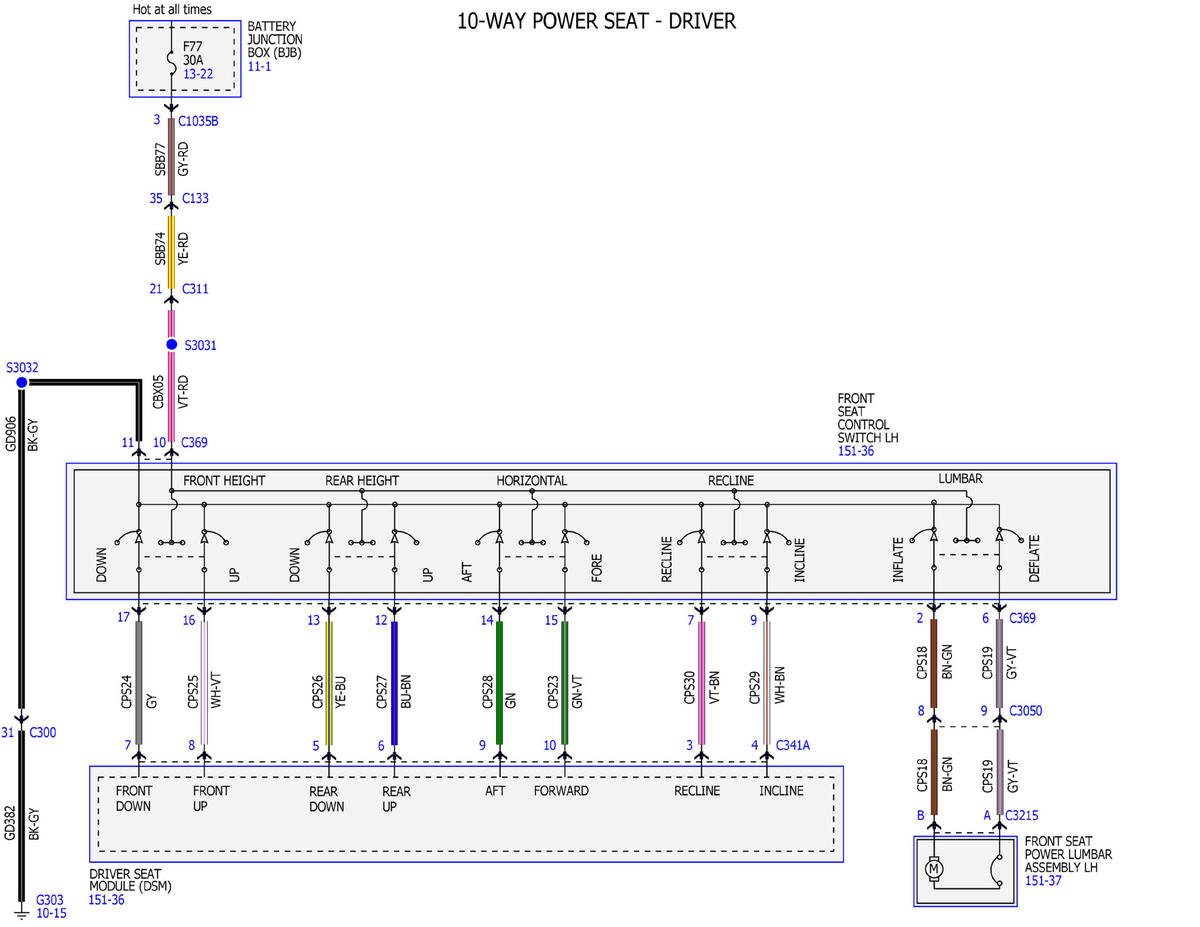

Fig 2: Memory Seats Wiring Diagram (2 of 11)

Courtesy of FORD MOTOR COMPANY

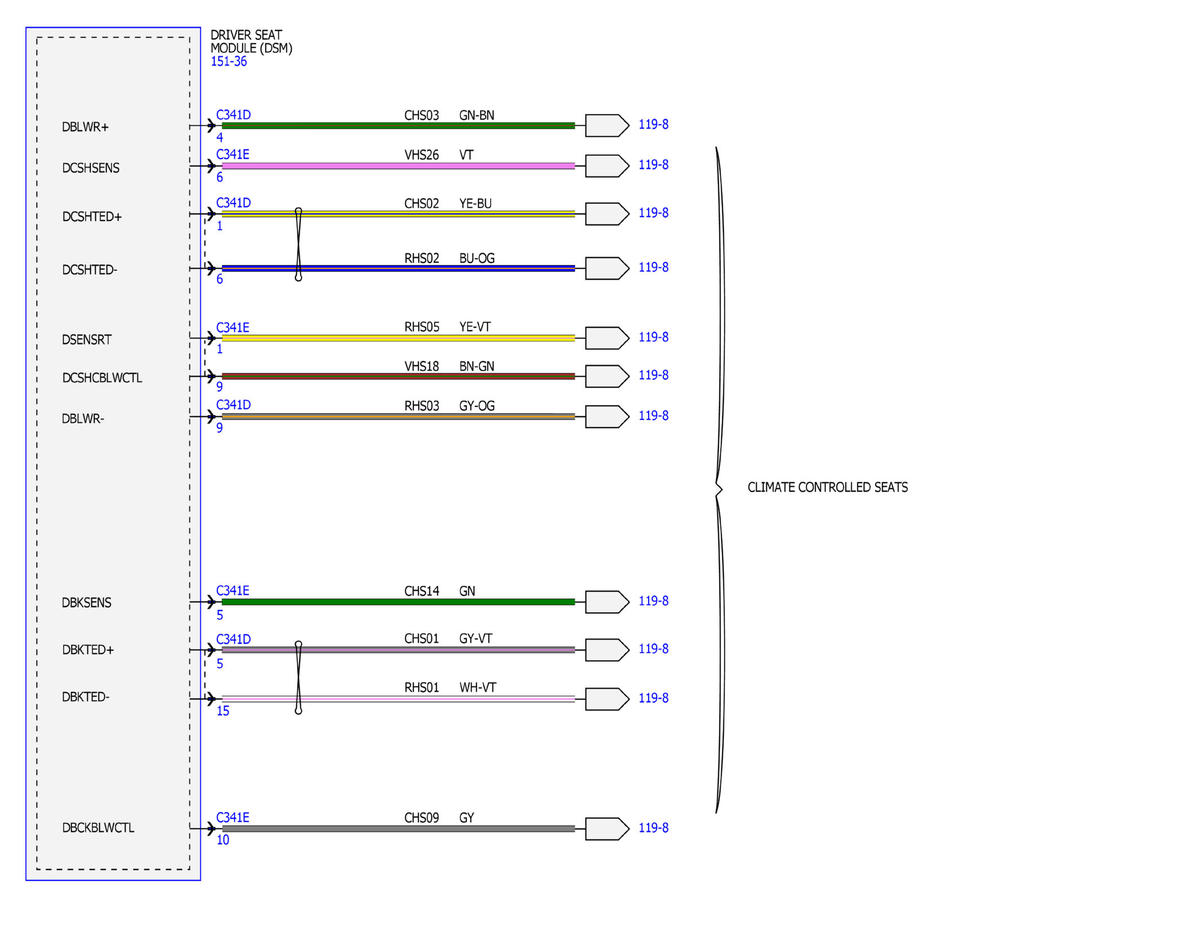

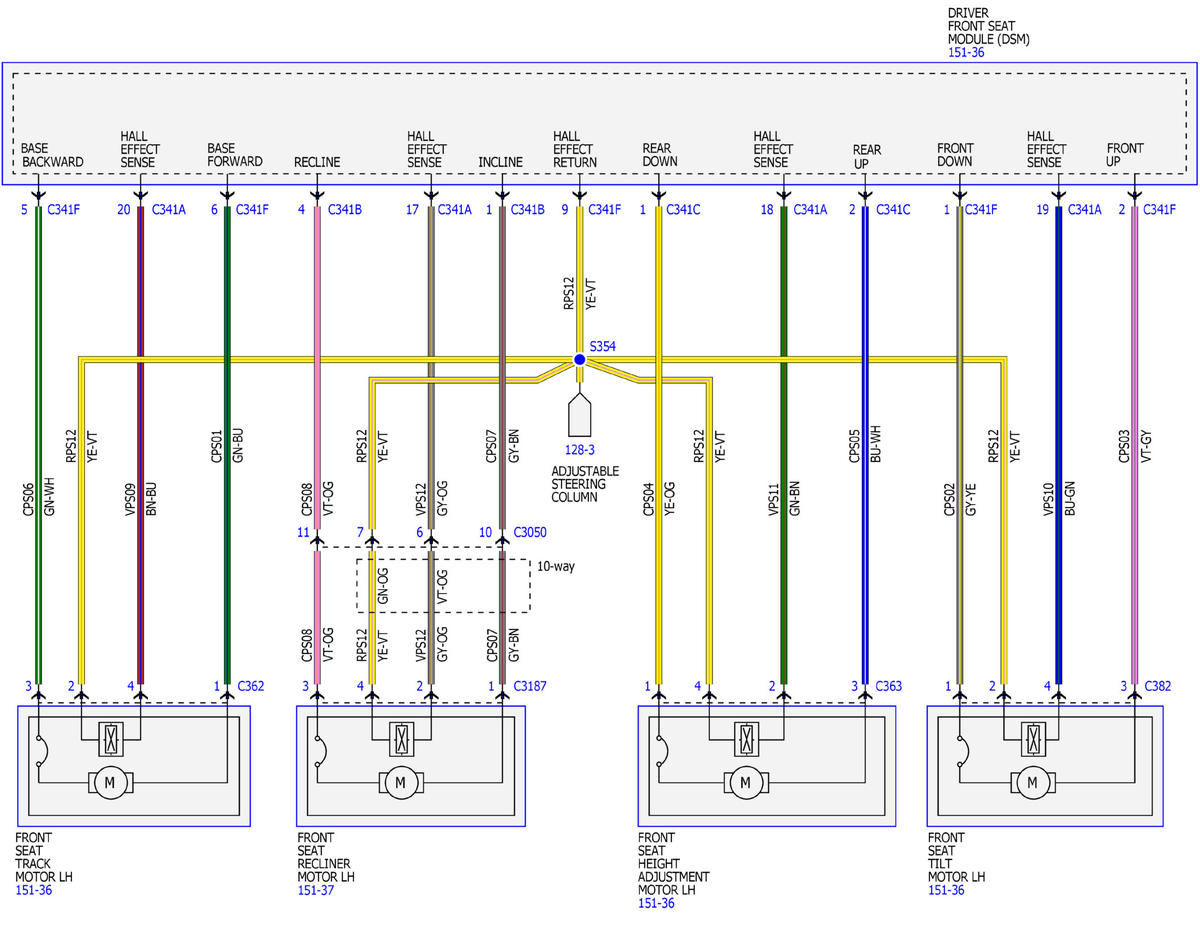

Fig 3: Memory Seats Wiring Diagram (3 of 11)

Courtesy of FORD MOTOR COMPANY

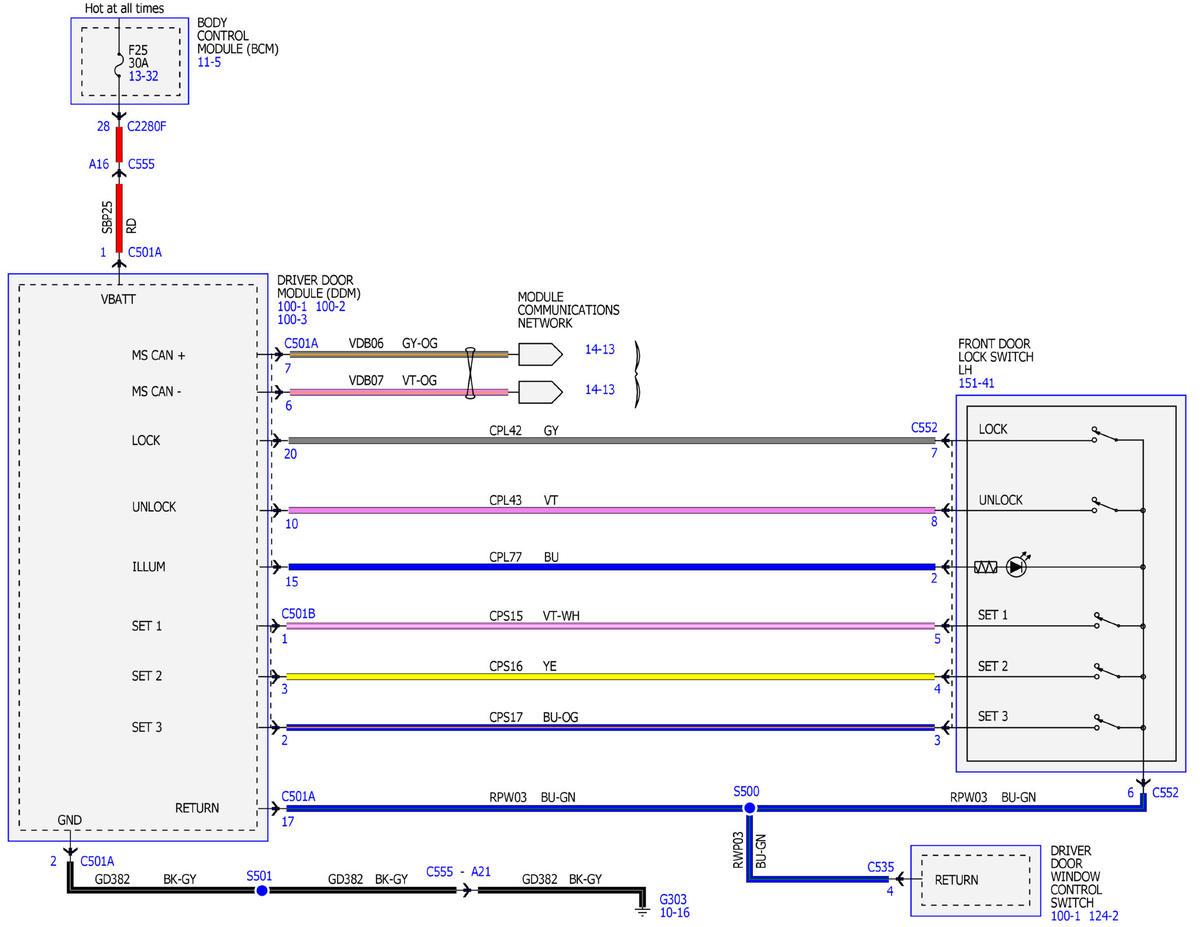

Fig 4: Memory Seats Wiring Diagram (4 of 11)

Courtesy of FORD MOTOR COMPANY

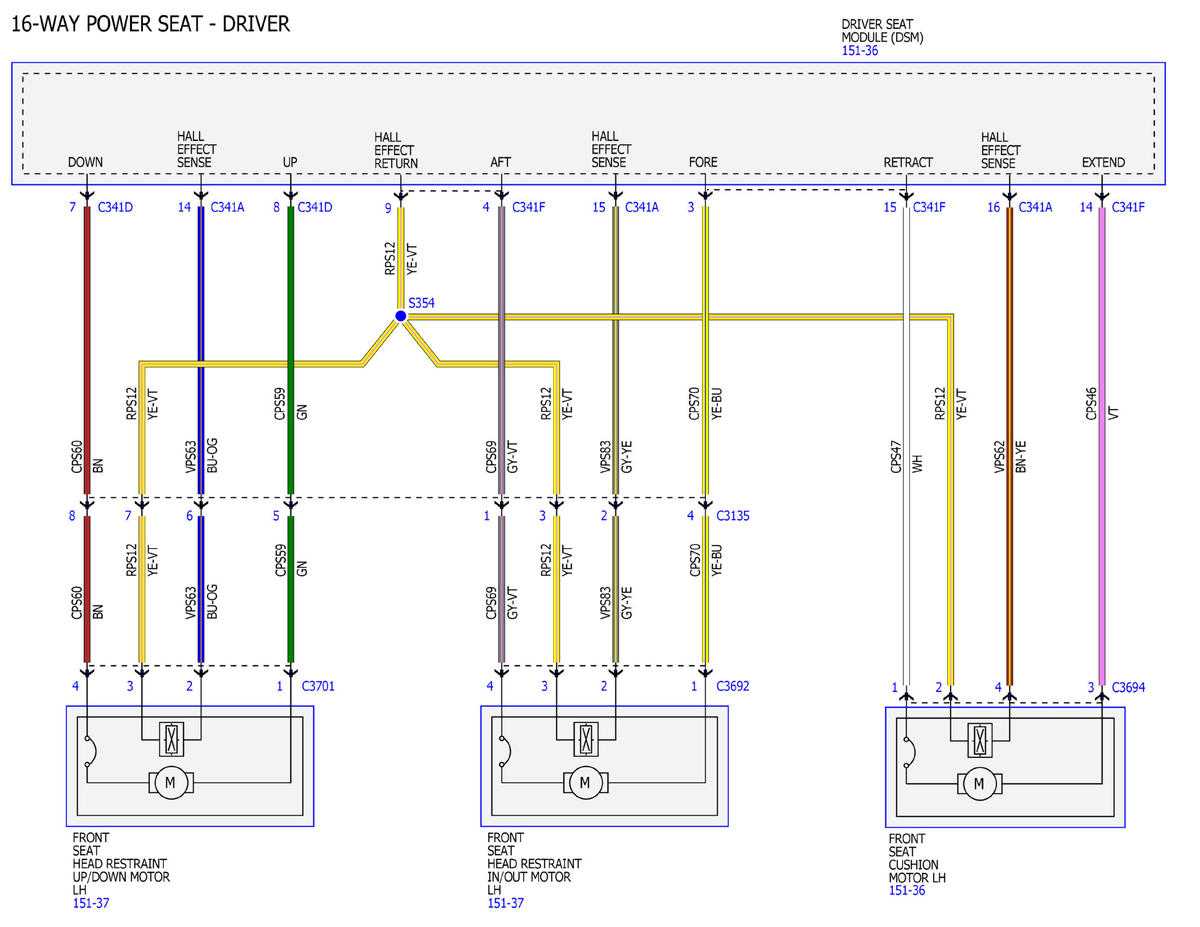

Fig 5: Memory Seats Wiring Diagram (5 of 11)

Courtesy of FORD MOTOR COMPANY

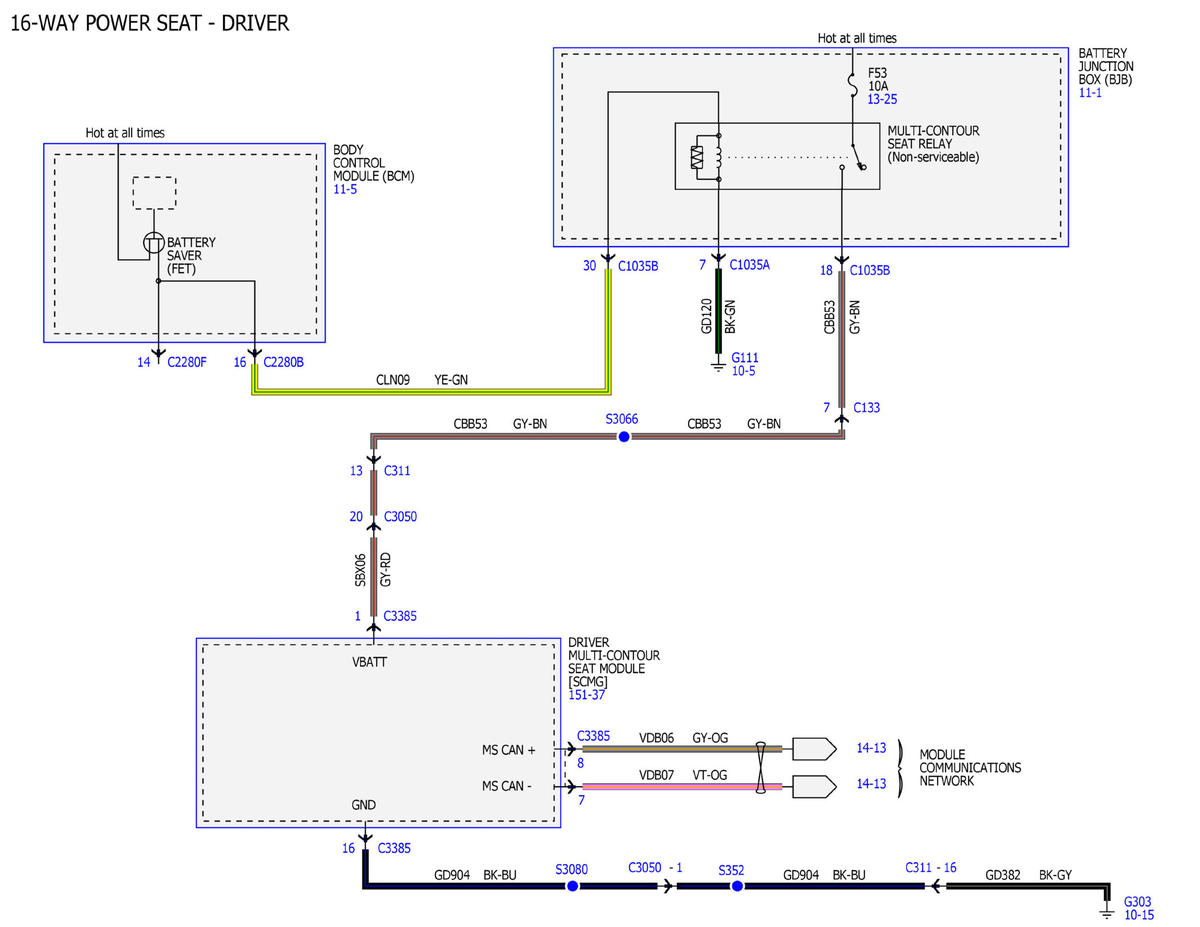

Fig 6: Memory Seats Wiring Diagram (6 of 11)

Courtesy of FORD MOTOR COMPANY

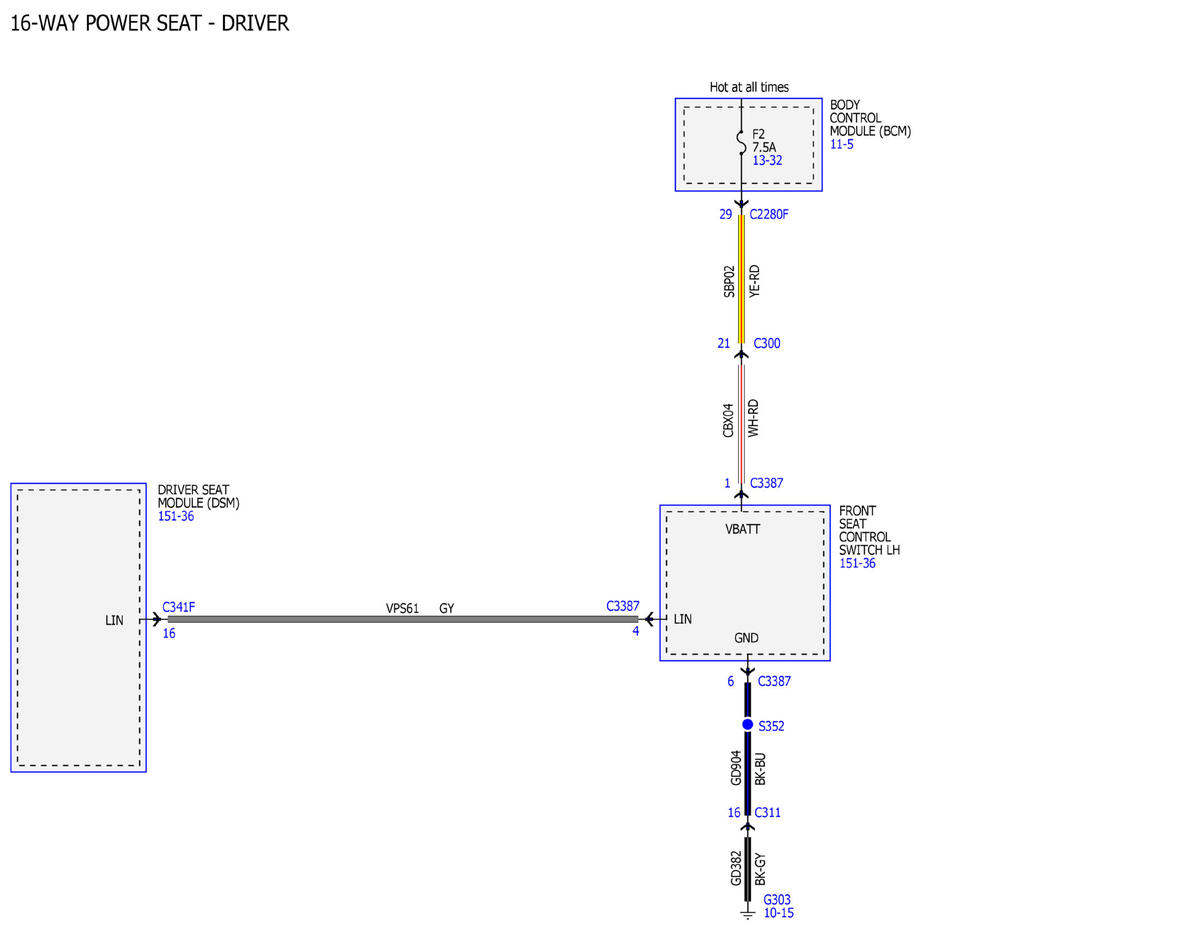

Fig 7: Memory Seats Wiring Diagram (7 of 11)

Courtesy of FORD MOTOR COMPANY

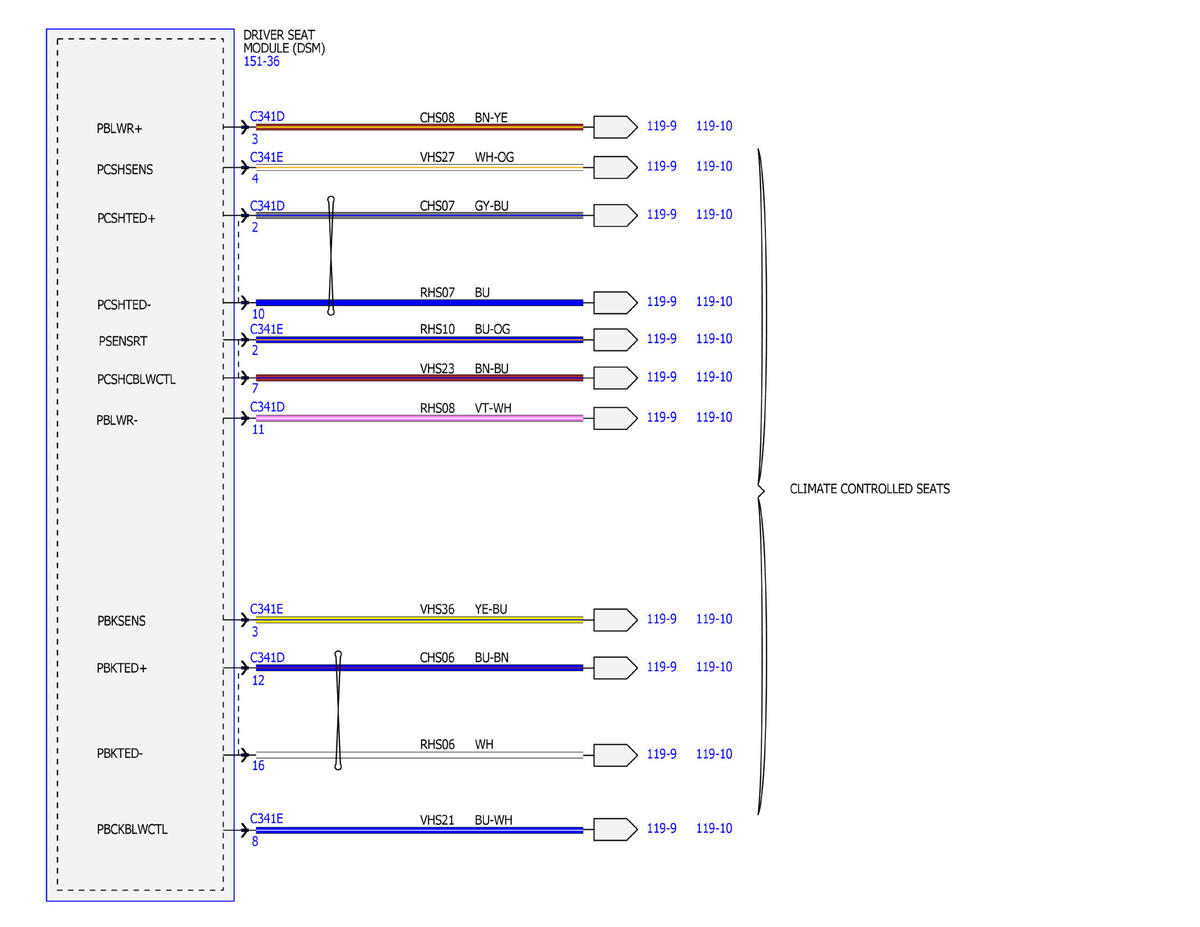

Fig 8: Memory Seats Wiring Diagram (8 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Memory Seats Wiring Diagram (9 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Memory Seats Wiring Diagram (10 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Memory Seats Wiring Diagram (11 of 11)

Courtesy of FORD MOTOR COMPANY
