Heated Window

WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

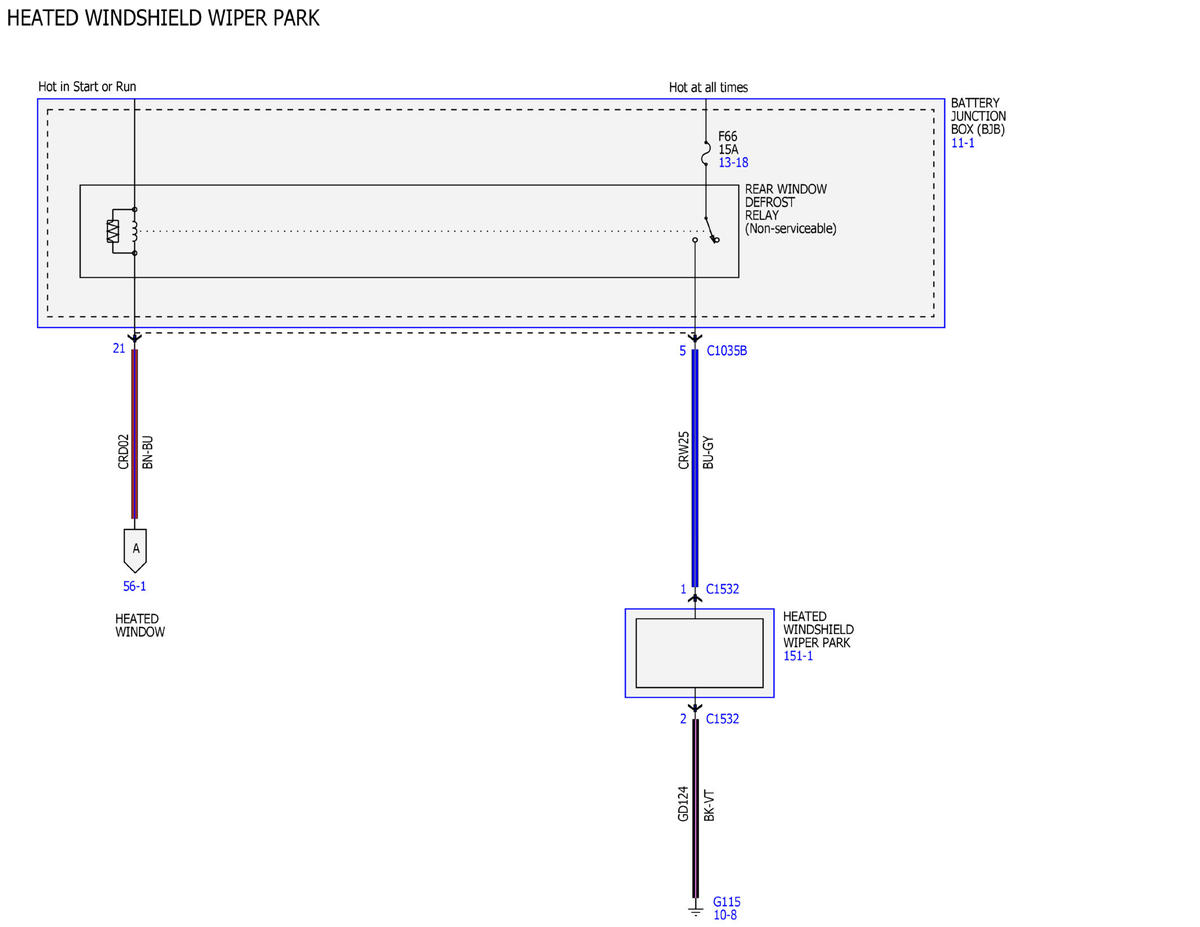

Fig 1: Heated Window Wiring Diagram (1 of 3)

Courtesy of FORD MOTOR COMPANY

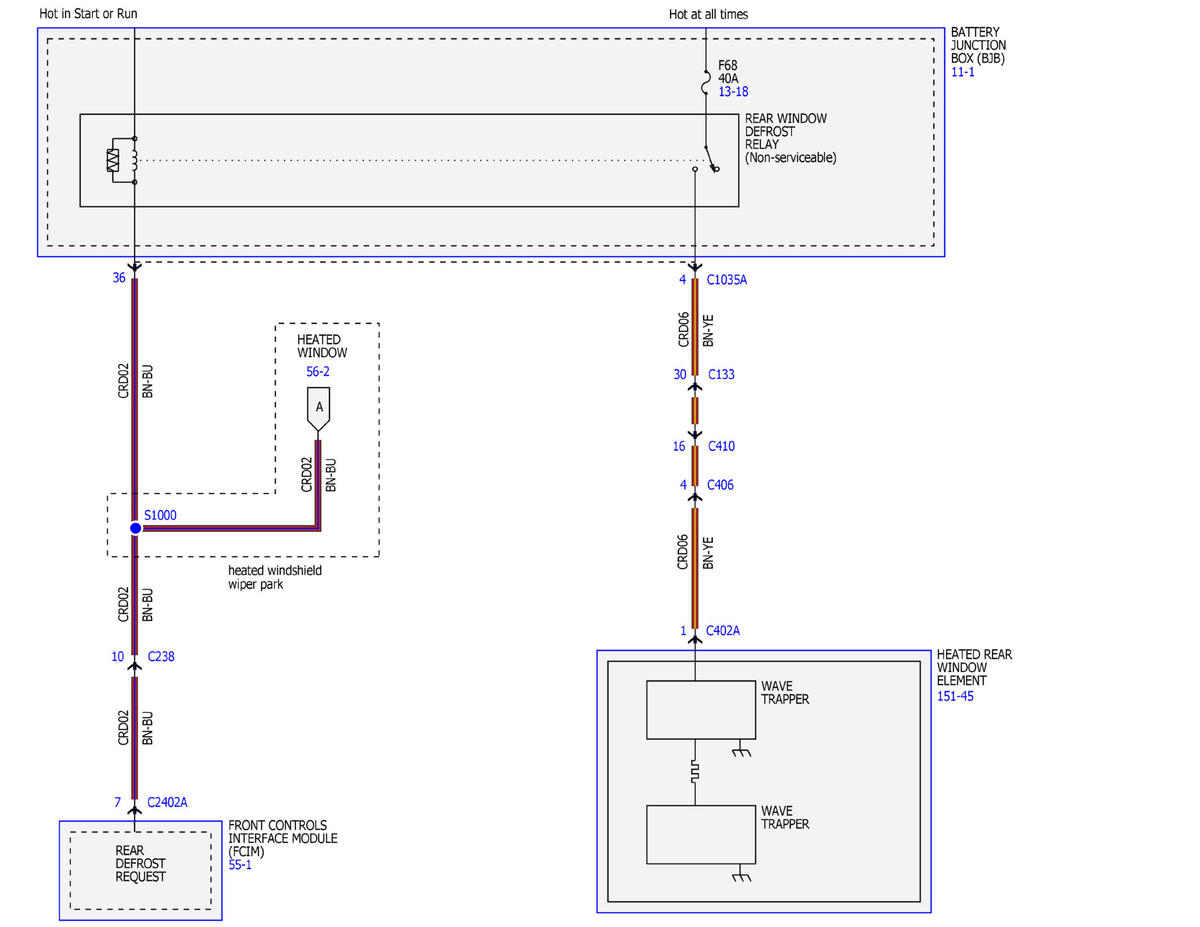

Fig 2: Heated Window Wiring Diagram (2 of 3)

Courtesy of FORD MOTOR COMPANY

Fig 3: Heated Window Wiring Diagram (3 of 3)

Courtesy of FORD MOTOR COMPANY
