WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

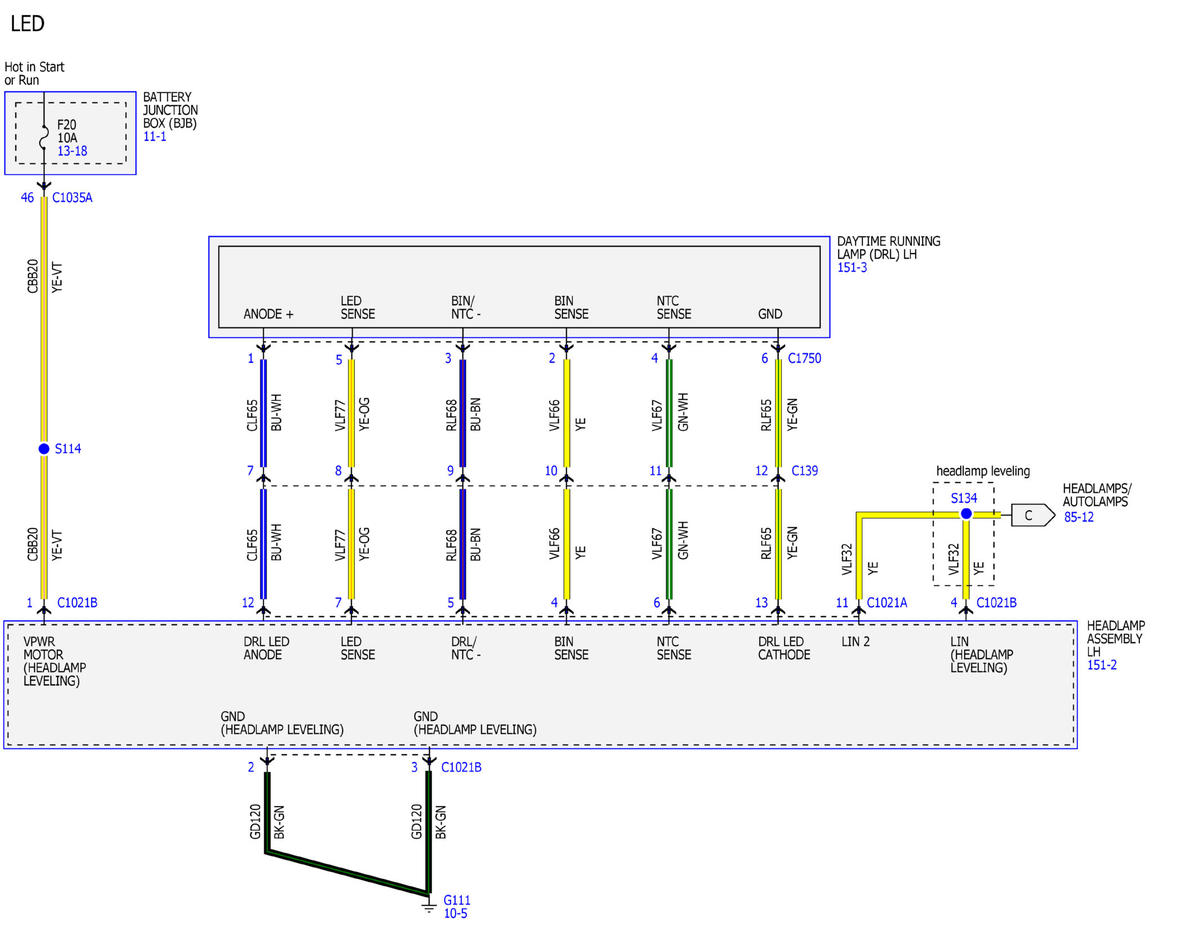

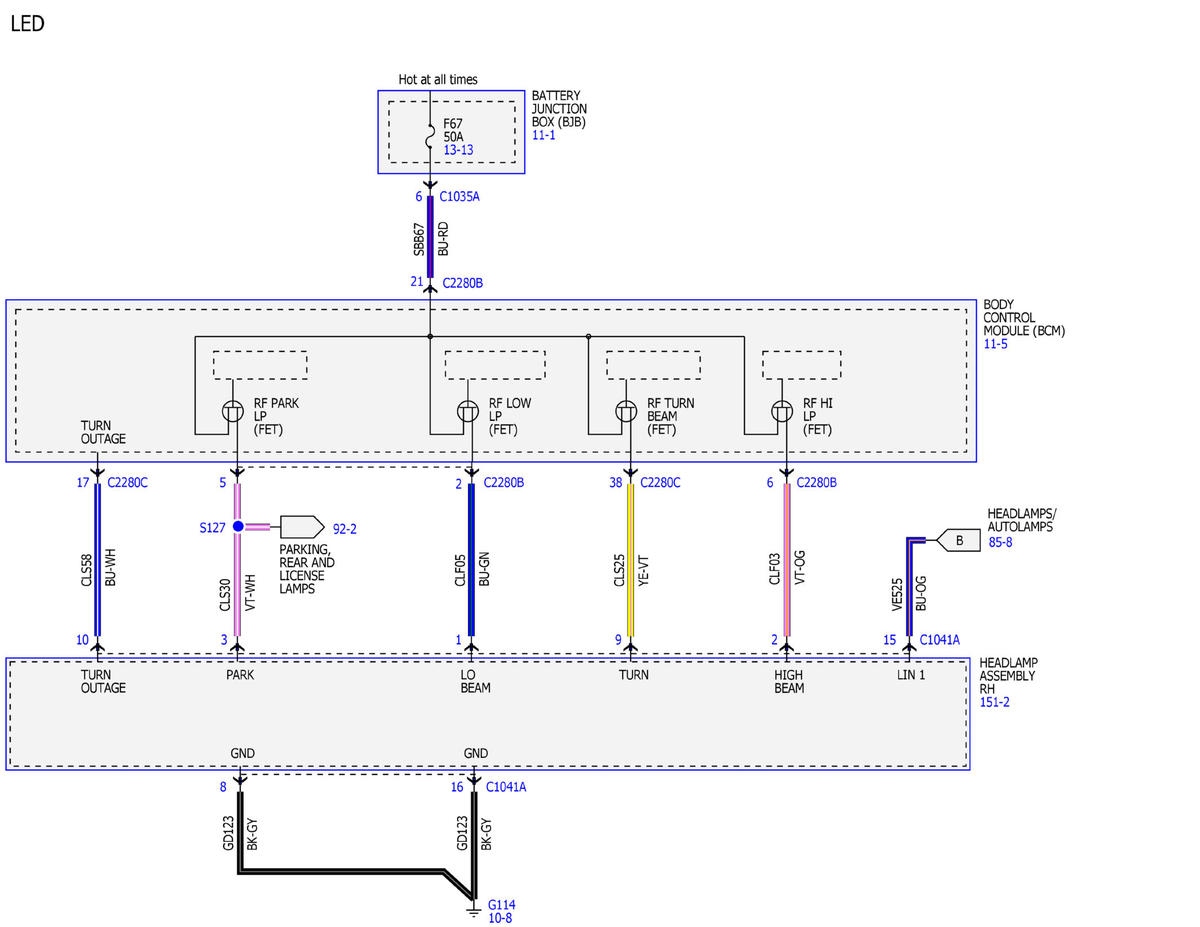

Fig 1: Headlamps/Autolamps Wiring Diagram (1 of 12)
Courtesy of FORD MOTOR COMPANY

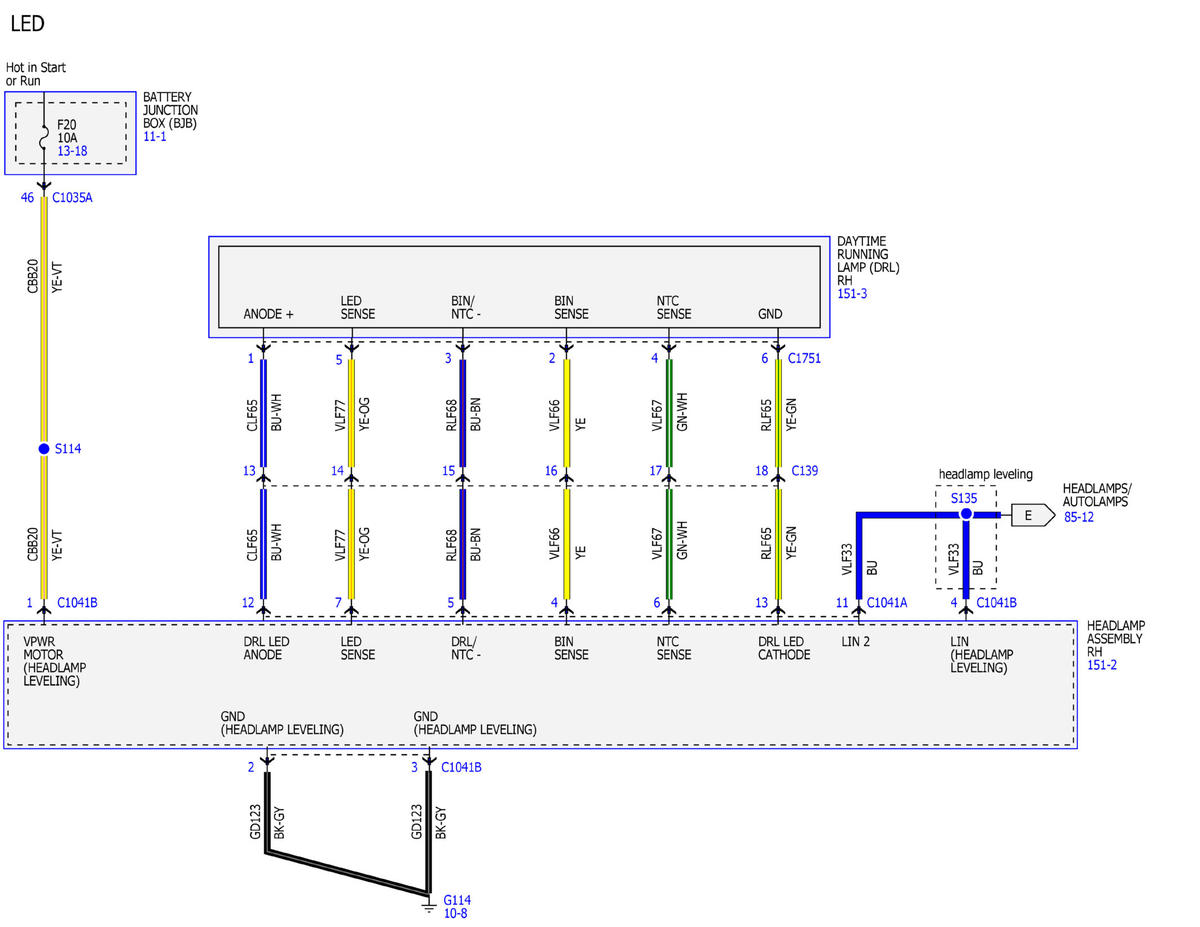

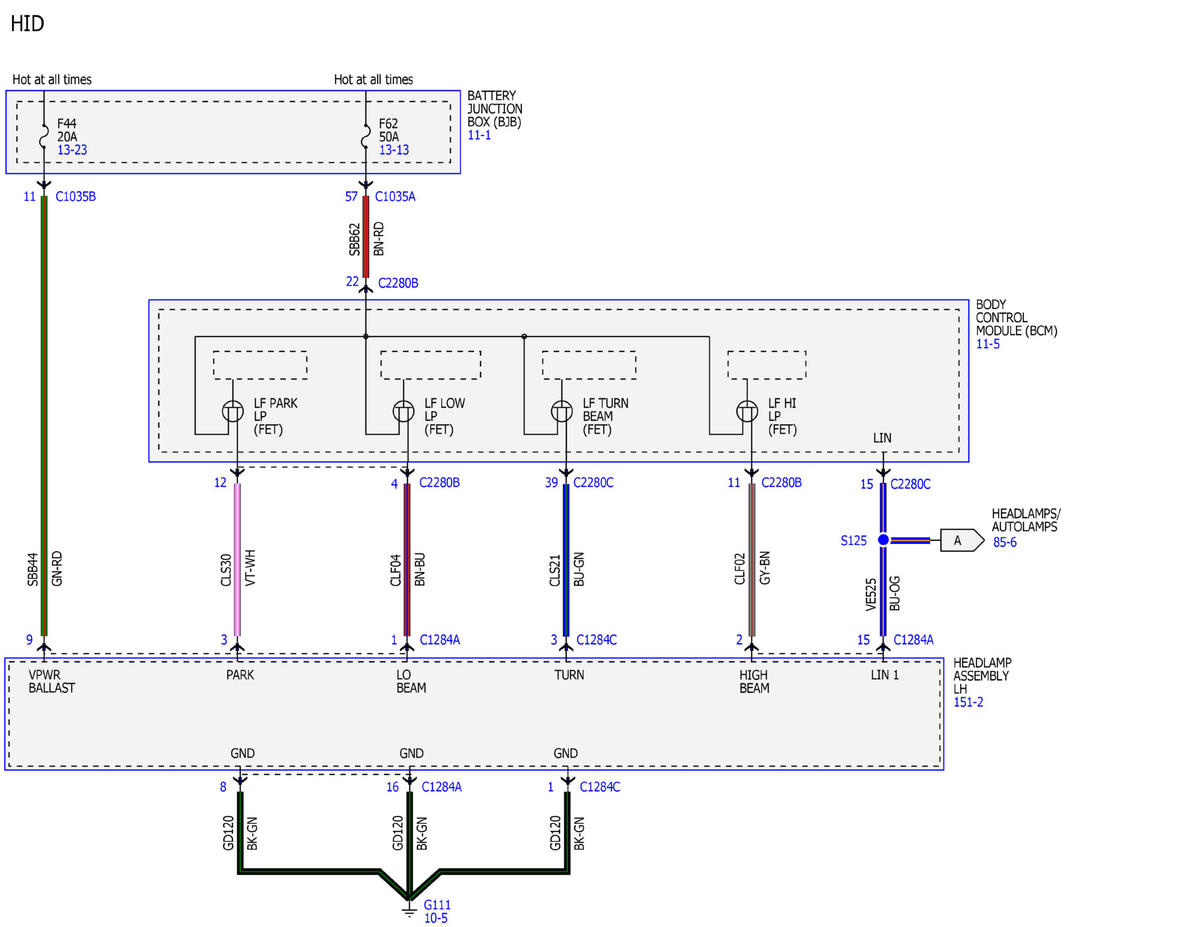

Fig 2: Headlamps/Autolamps Wiring Diagram (2 of 12)
Courtesy of FORD MOTOR COMPANY

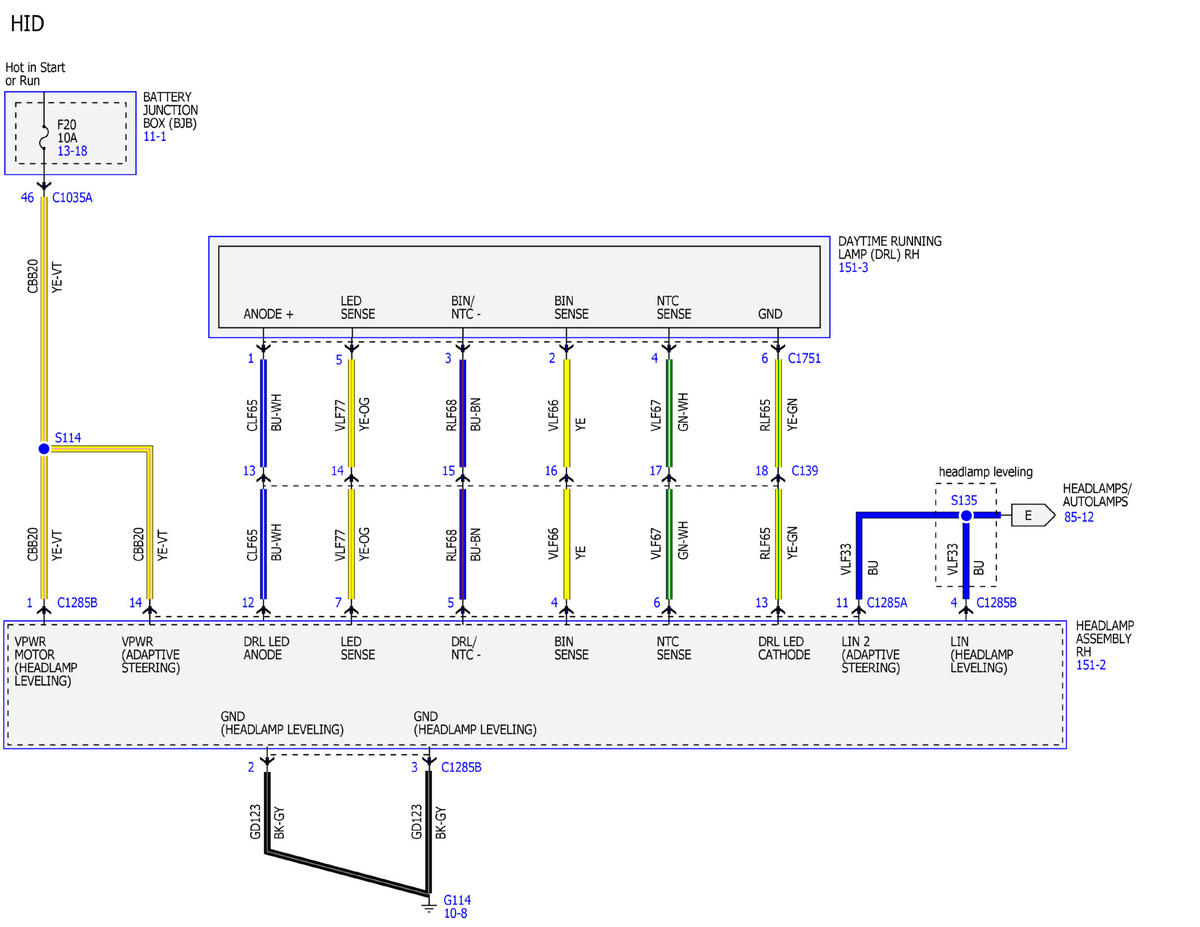

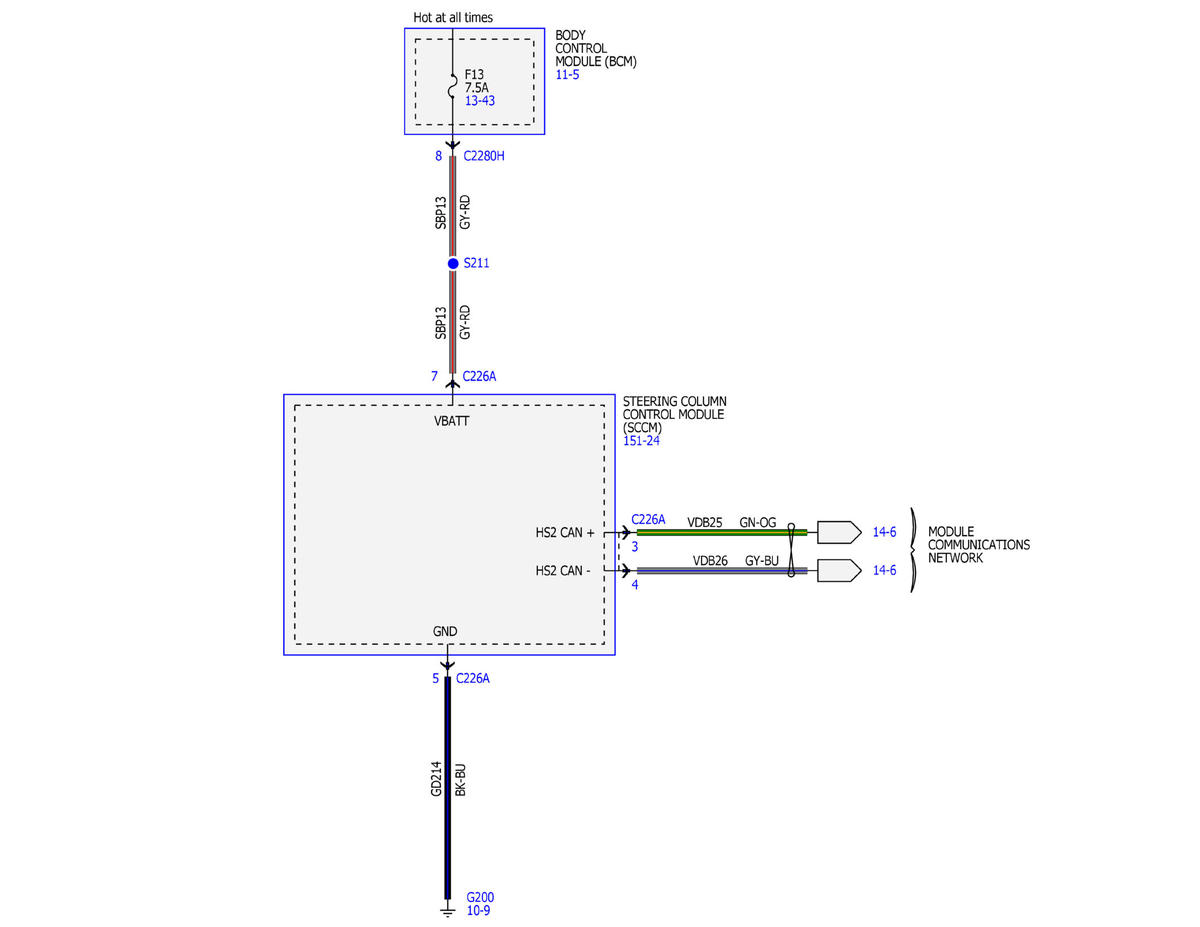

Fig 3: Headlamps/Autolamps Wiring Diagram (3 of 12)
Courtesy of FORD MOTOR COMPANY

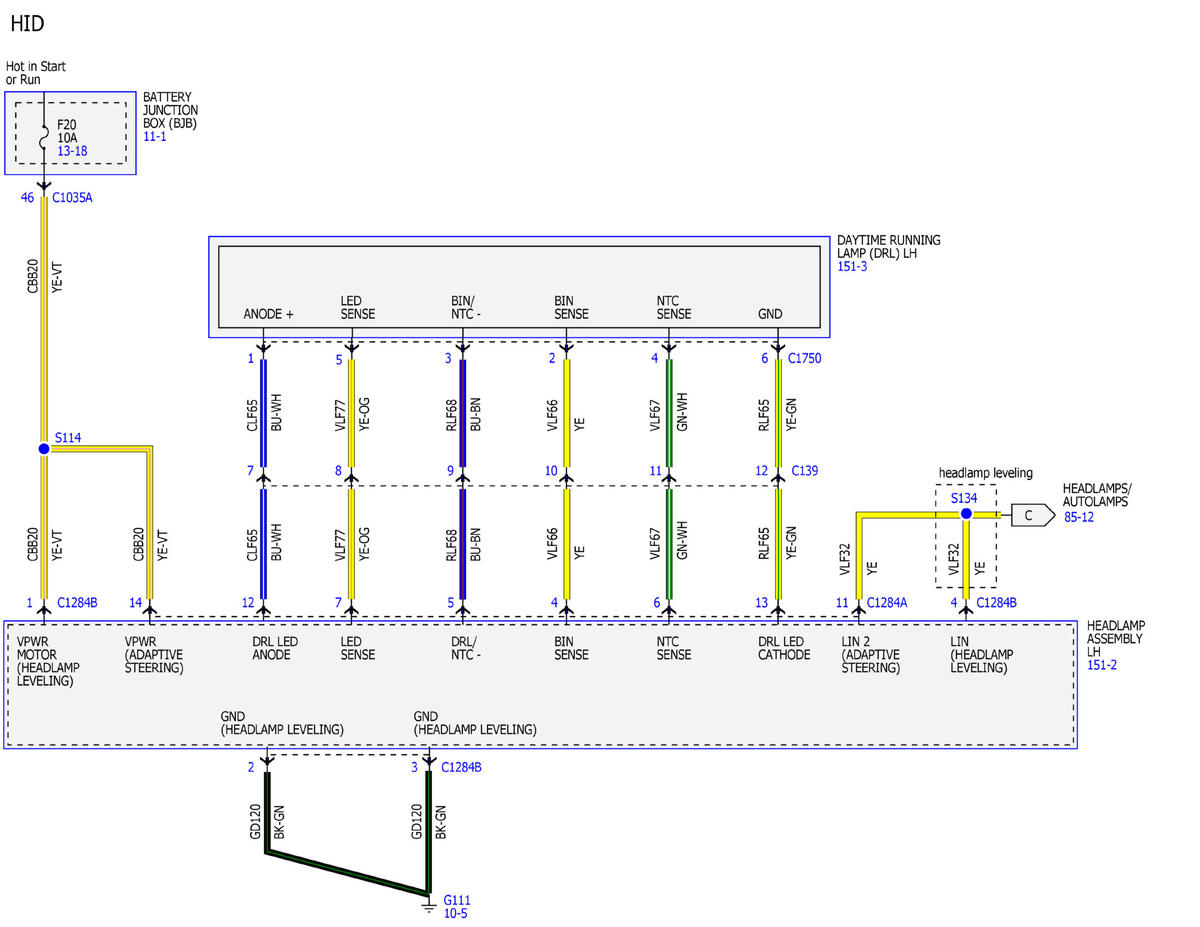

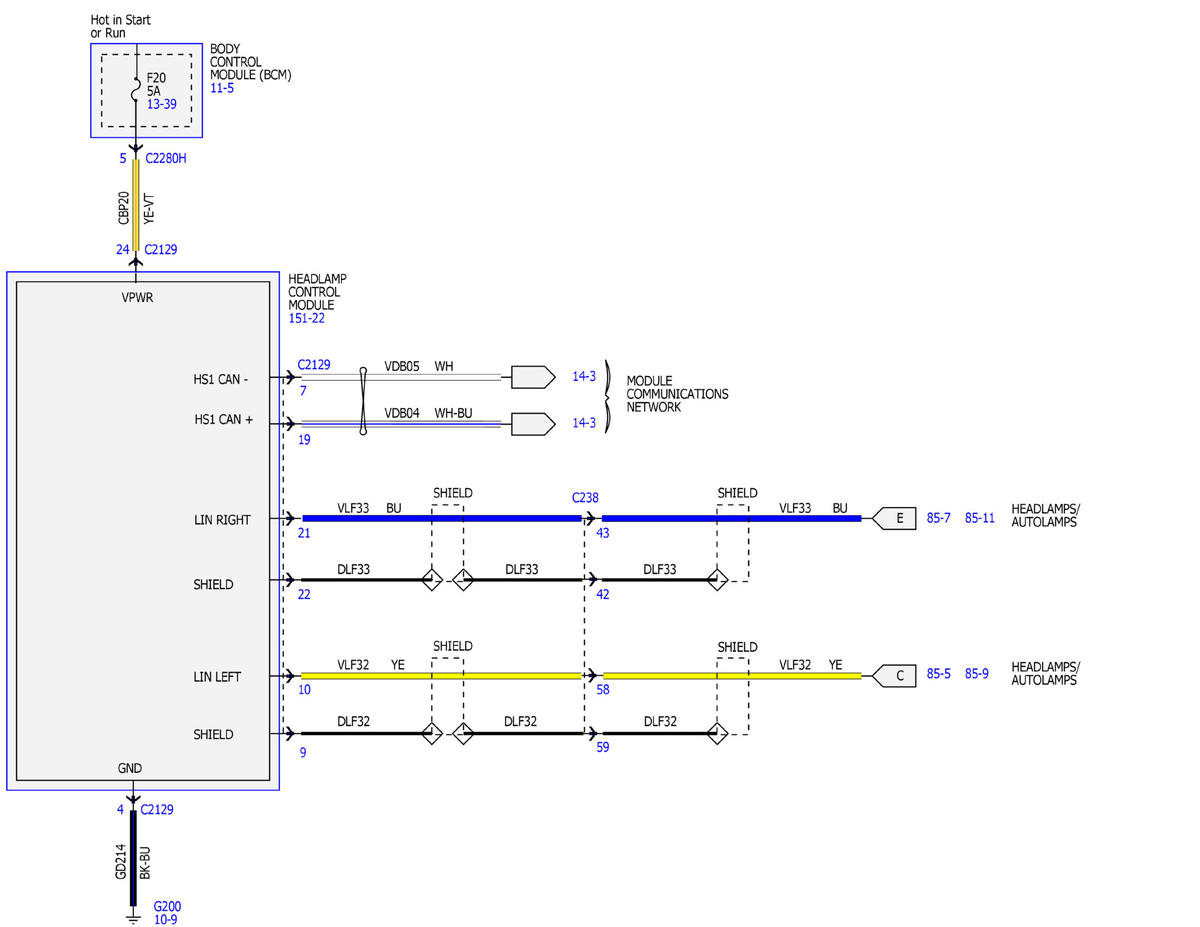

Fig 4: Headlamps/Autolamps Wiring Diagram (4 of 12)
Courtesy of FORD MOTOR COMPANY

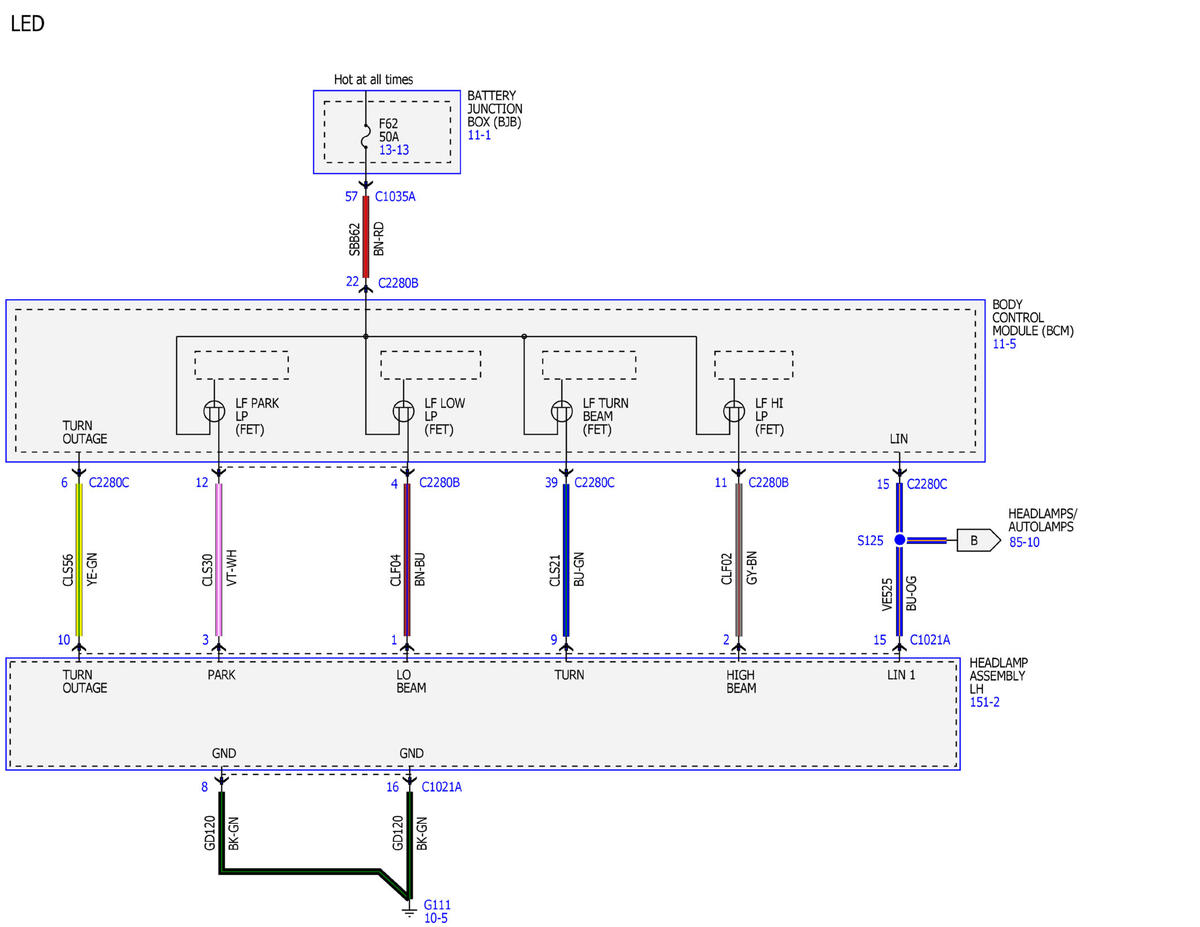

Fig 5: Headlamps/Autolamps Wiring Diagram (5 of 12)
Courtesy of FORD MOTOR COMPANY

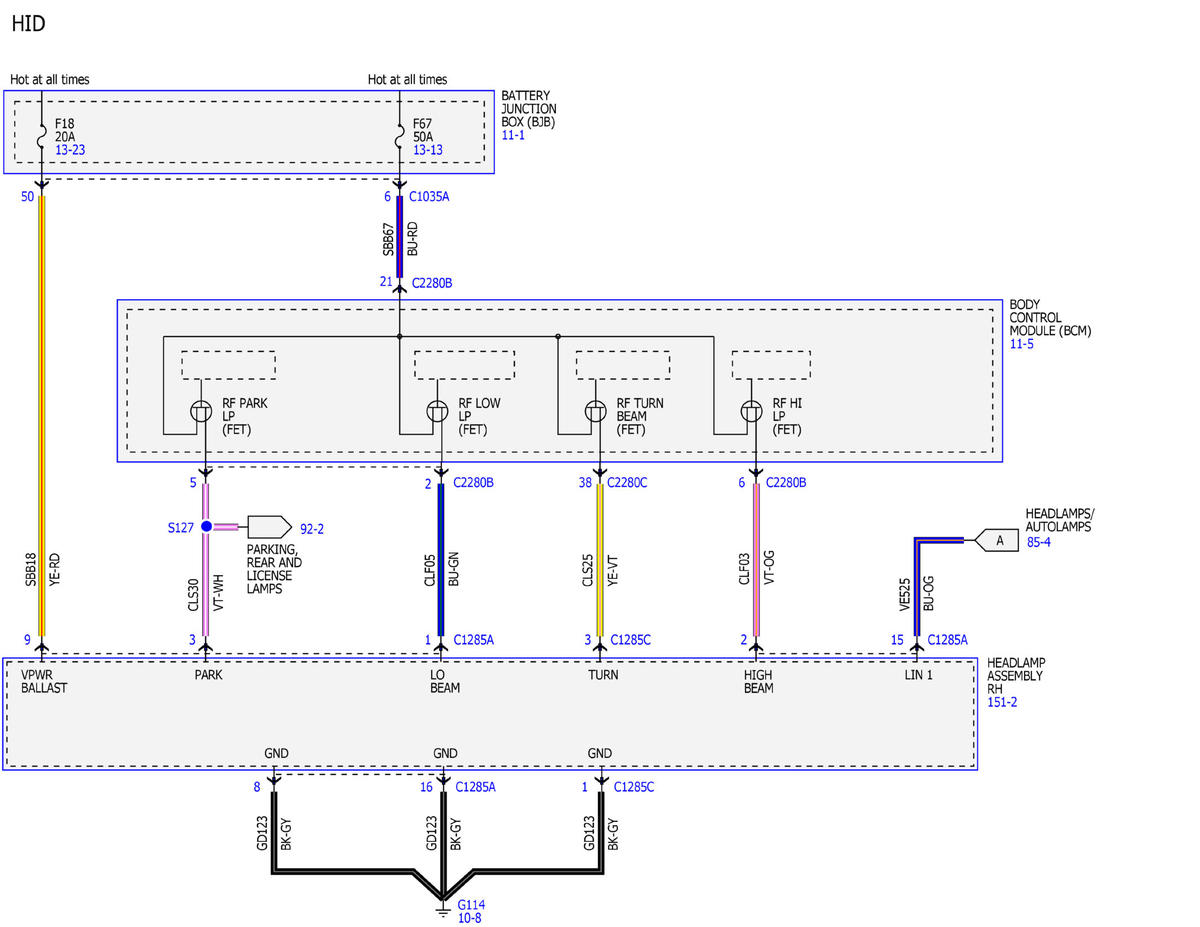

Fig 6: Headlamps/Autolamps Wiring Diagram (6 of 12)
Courtesy of FORD MOTOR COMPANY

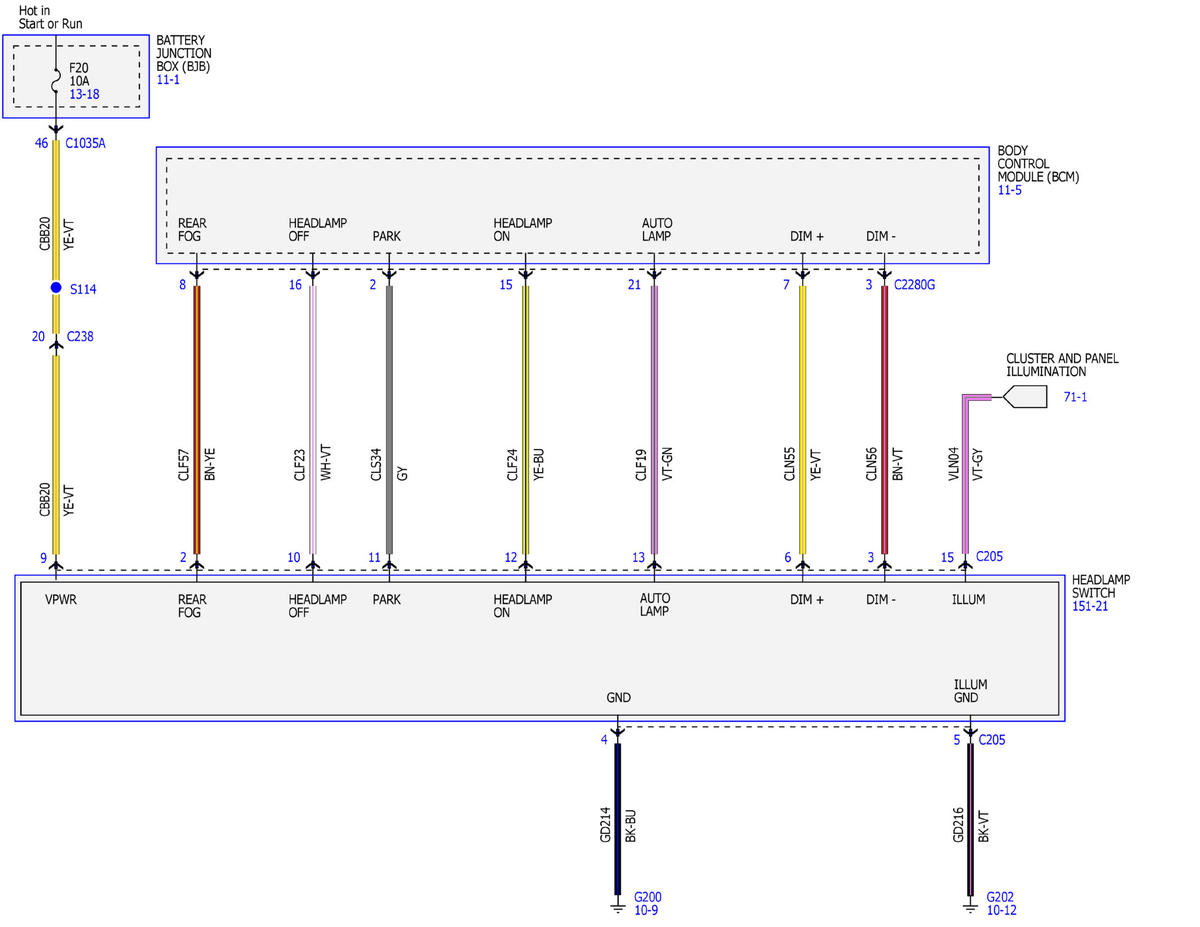

Fig 7: Headlamps/Autolamps Wiring Diagram (7 of 12)
Courtesy of FORD MOTOR COMPANY

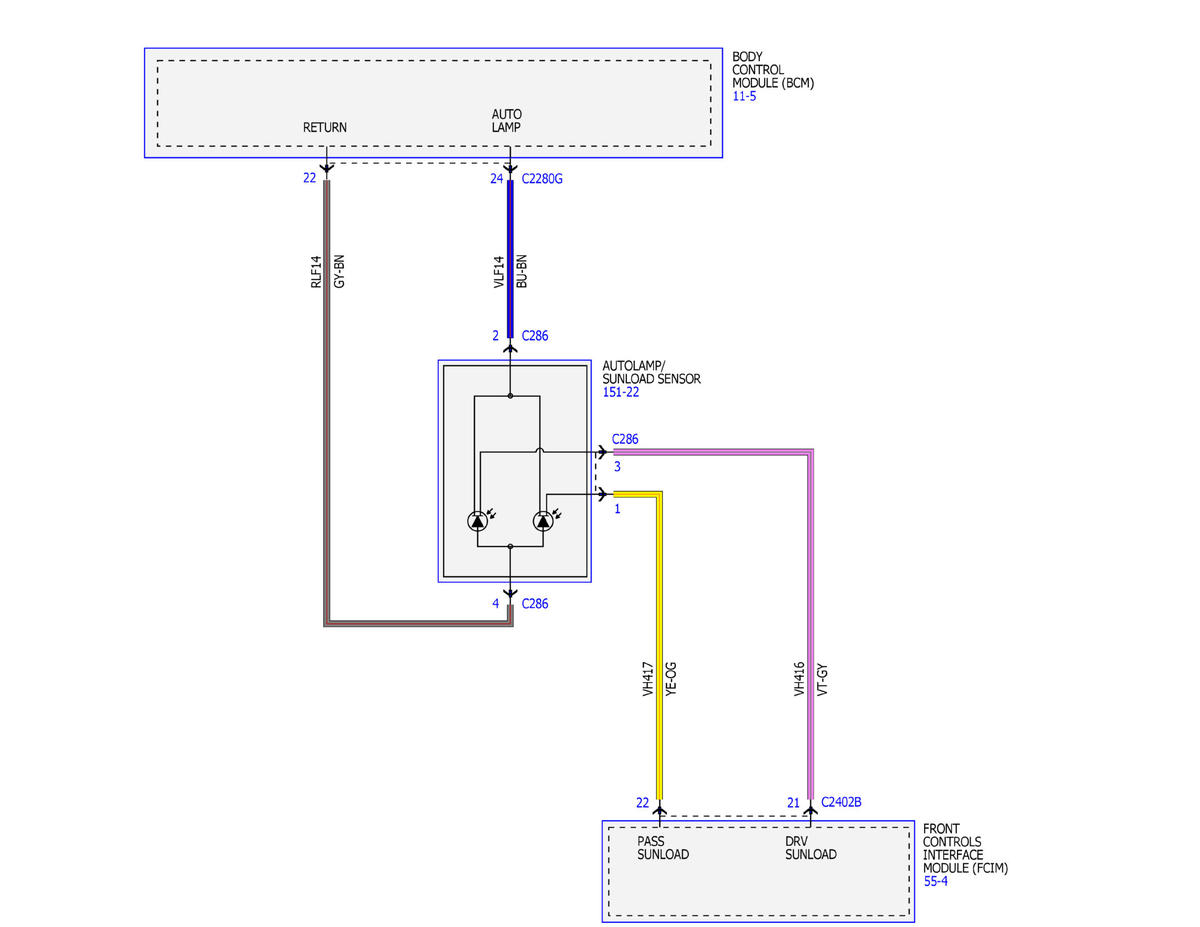

Fig 8: Headlamps/Autolamps Wiring Diagram (8 of 12)
Courtesy of FORD MOTOR COMPANY
Fig 9: Headlamps/Autolamps Wiring Diagram (9 of 12)
Courtesy of FORD MOTOR COMPANY
Fig 10: Headlamps/Autolamps Wiring Diagram (10 of 12)
Courtesy of FORD MOTOR COMPANY
Fig 11: Headlamps/Autolamps Wiring Diagram (11 of 12)
Courtesy of FORD MOTOR COMPANY
Fig 12: Headlamps/Autolamps Wiring Diagram (12 of 12)
