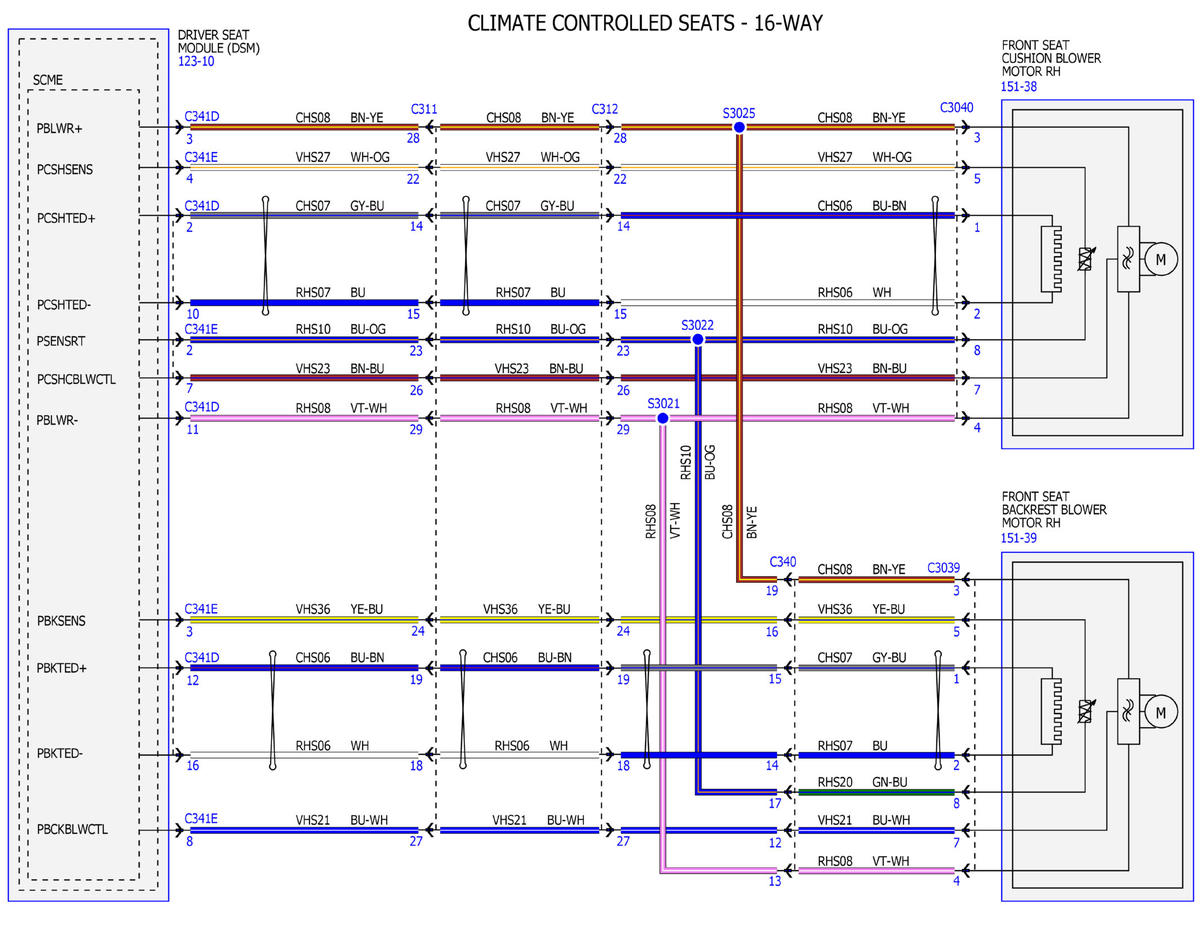

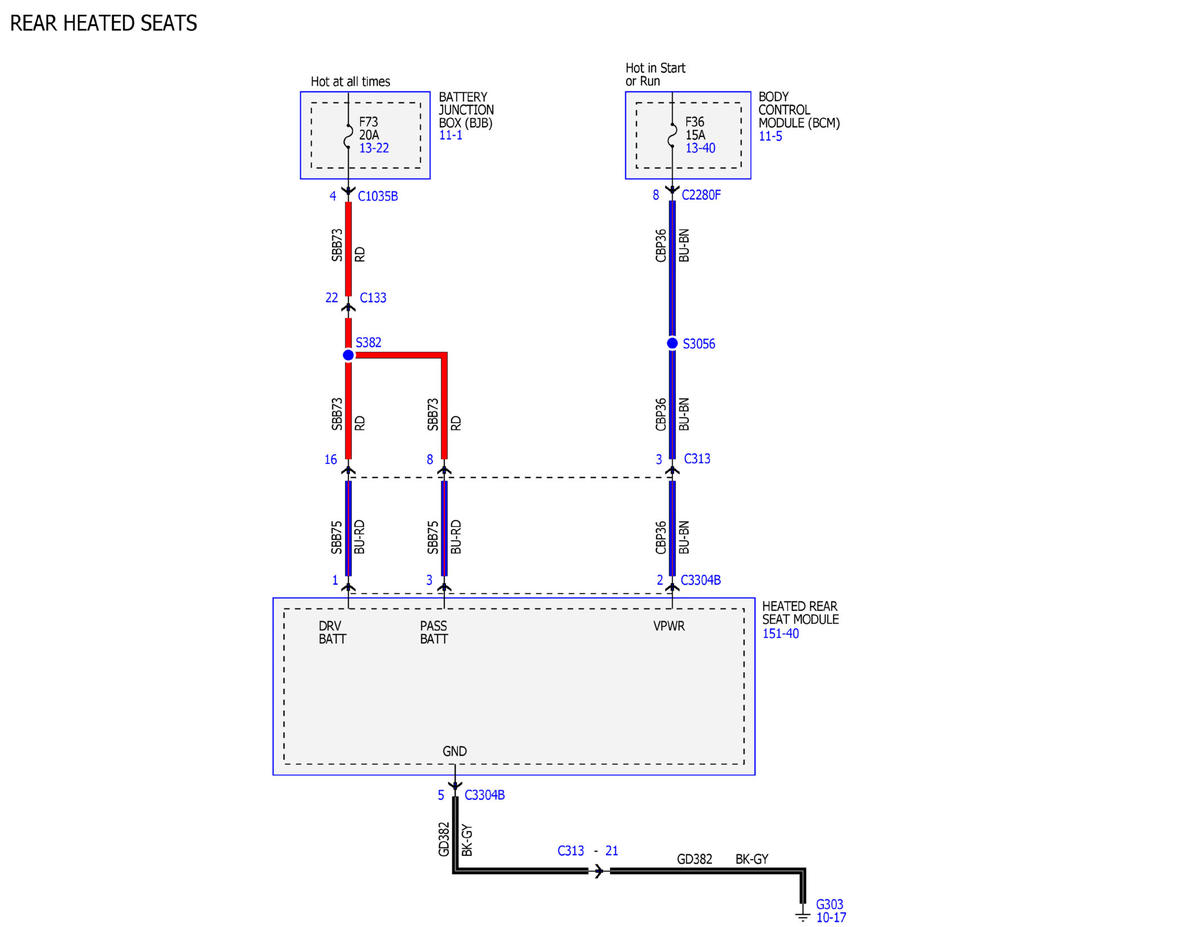

Fig 1: Climate Controlled Seats Wiring Diagram (1 of 10)
Courtesy of FORD MOTOR COMPANY

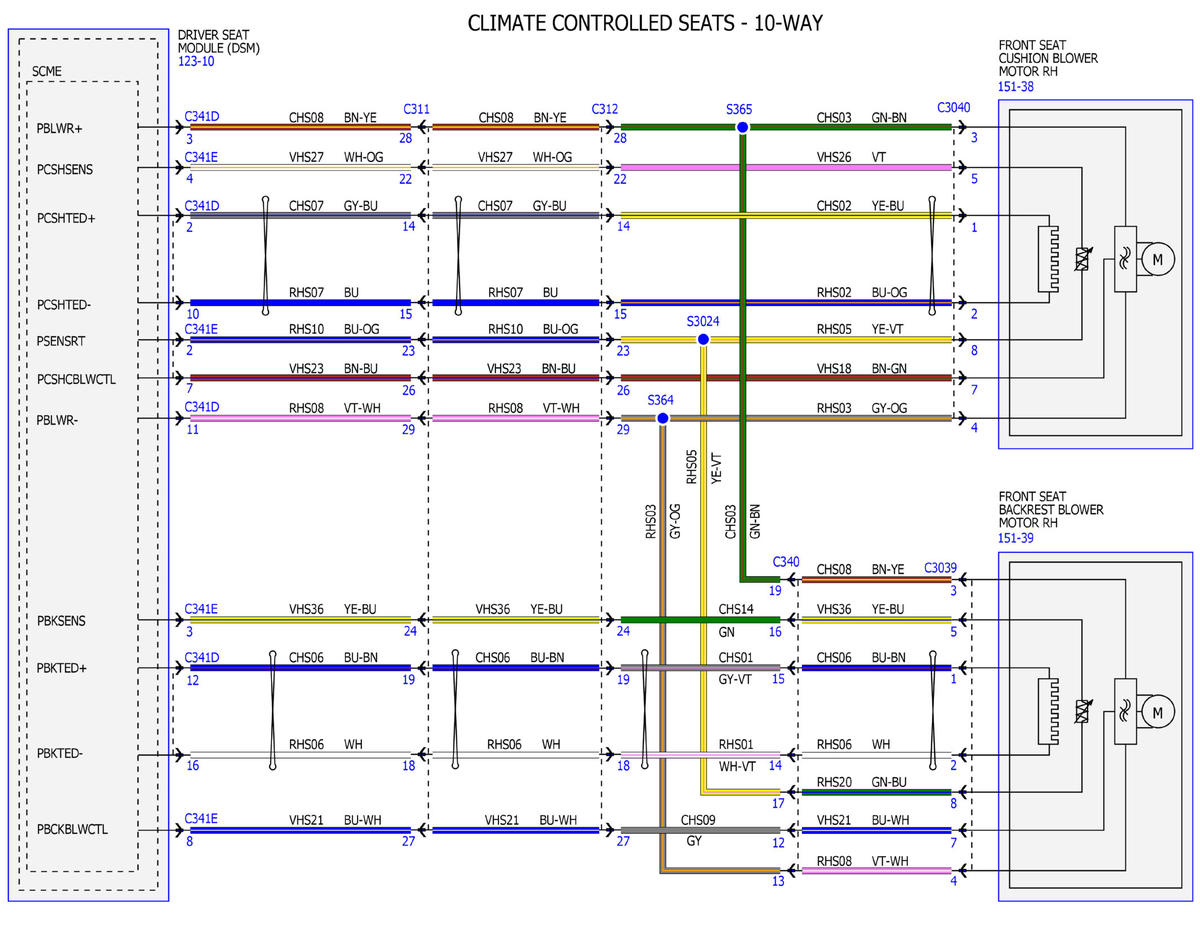

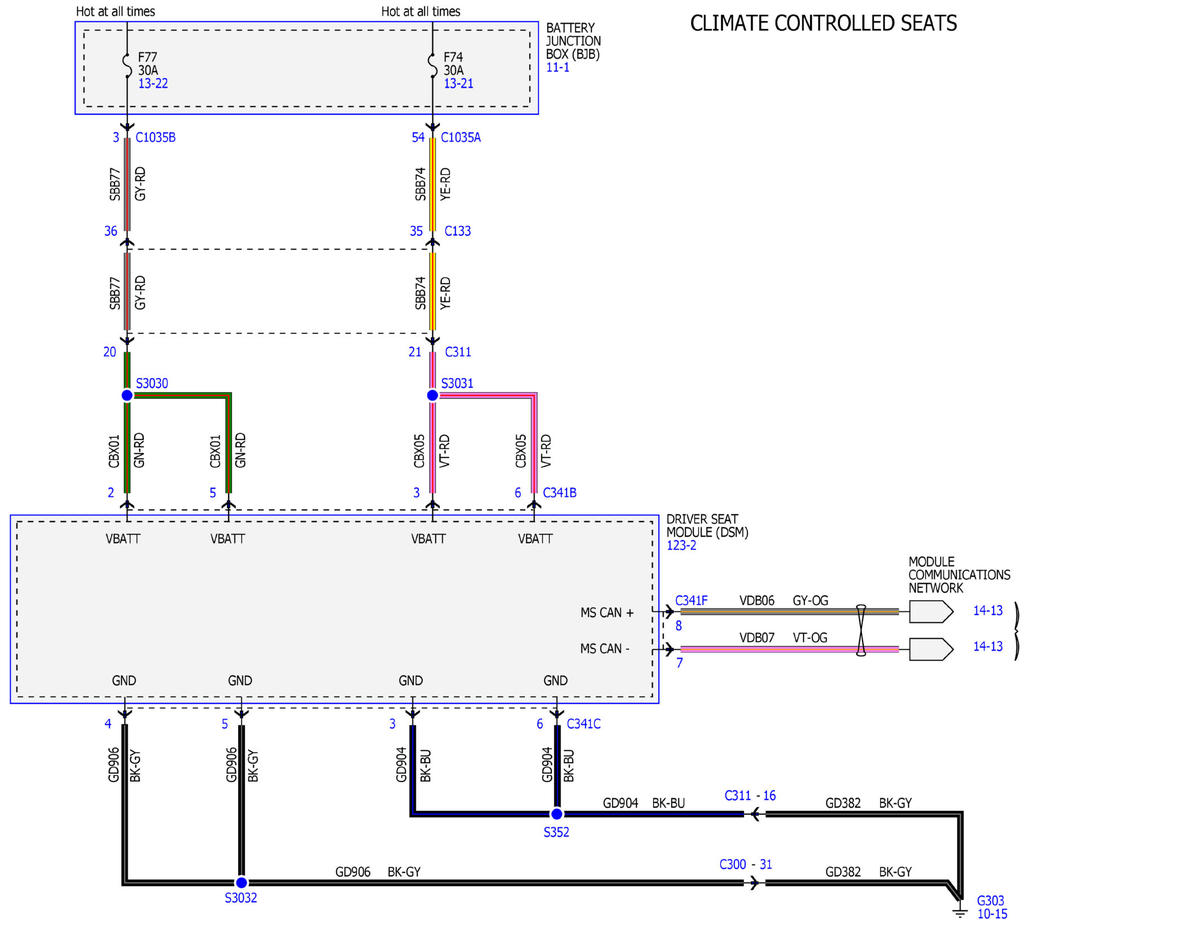

Fig 2: Climate Controlled Seats Wiring Diagram (2 of 10)
Courtesy of FORD MOTOR COMPANY

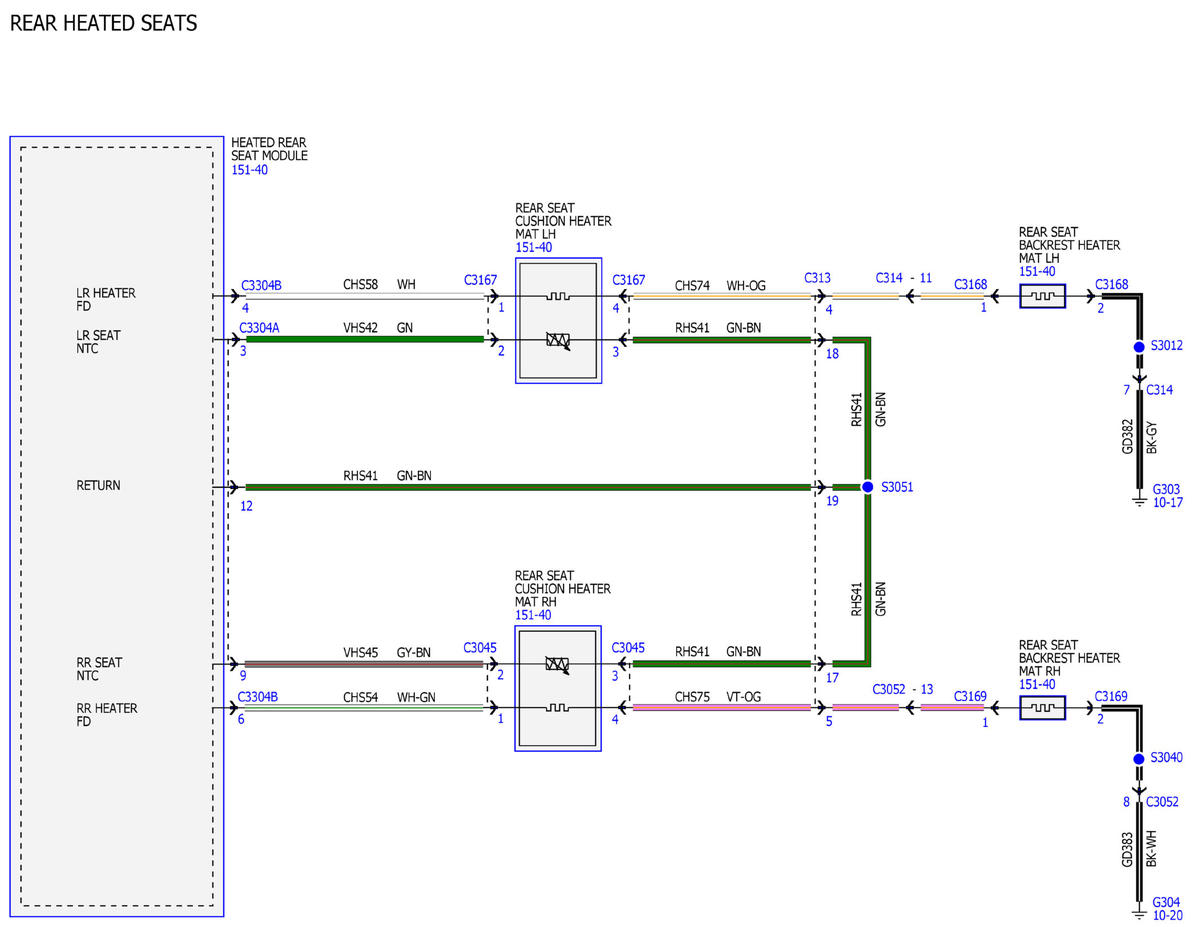

Fig 3: Climate Controlled Seats Wiring Diagram (3 of 10)
Courtesy of FORD MOTOR COMPANY

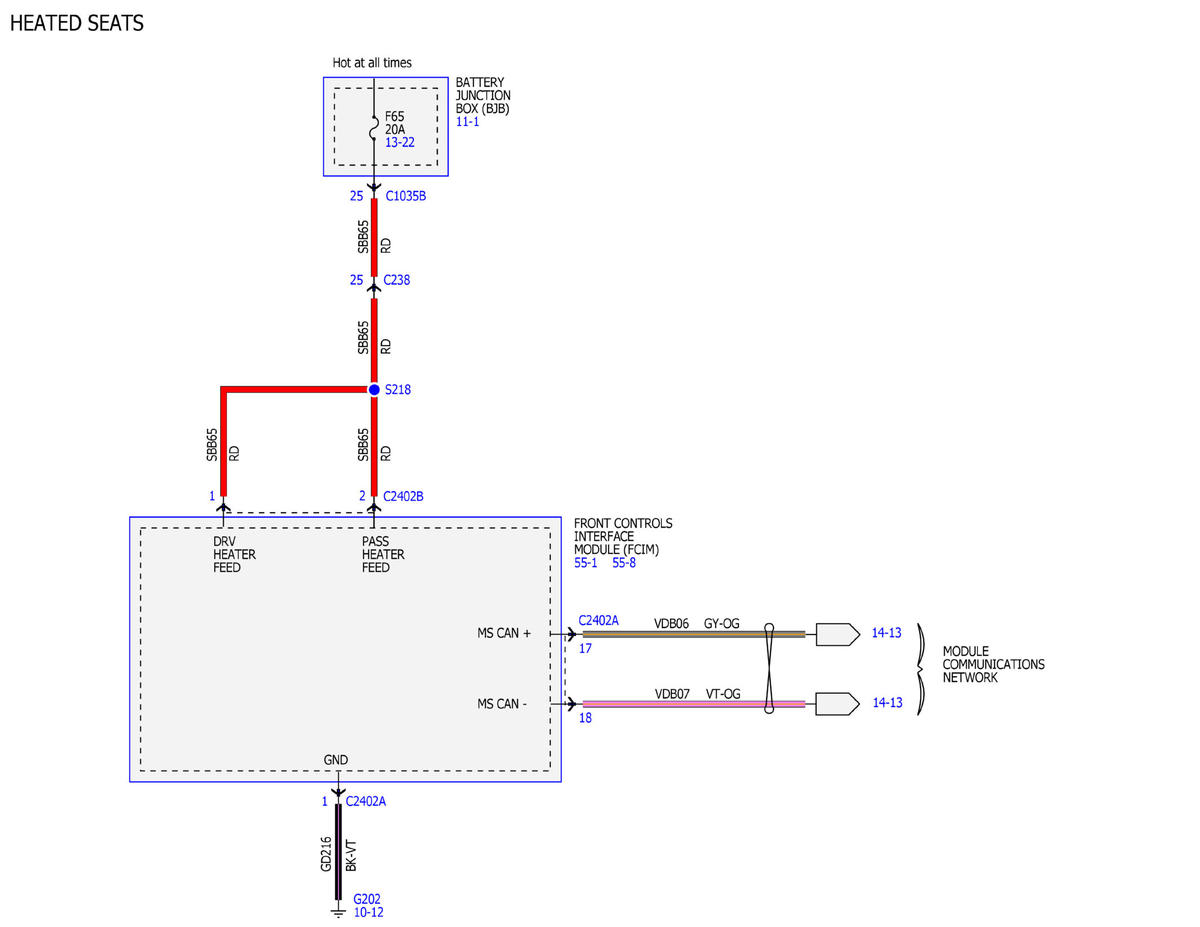

Fig 4: Climate Controlled Seats Wiring Diagram (4 of 10)
Courtesy of FORD MOTOR COMPANY

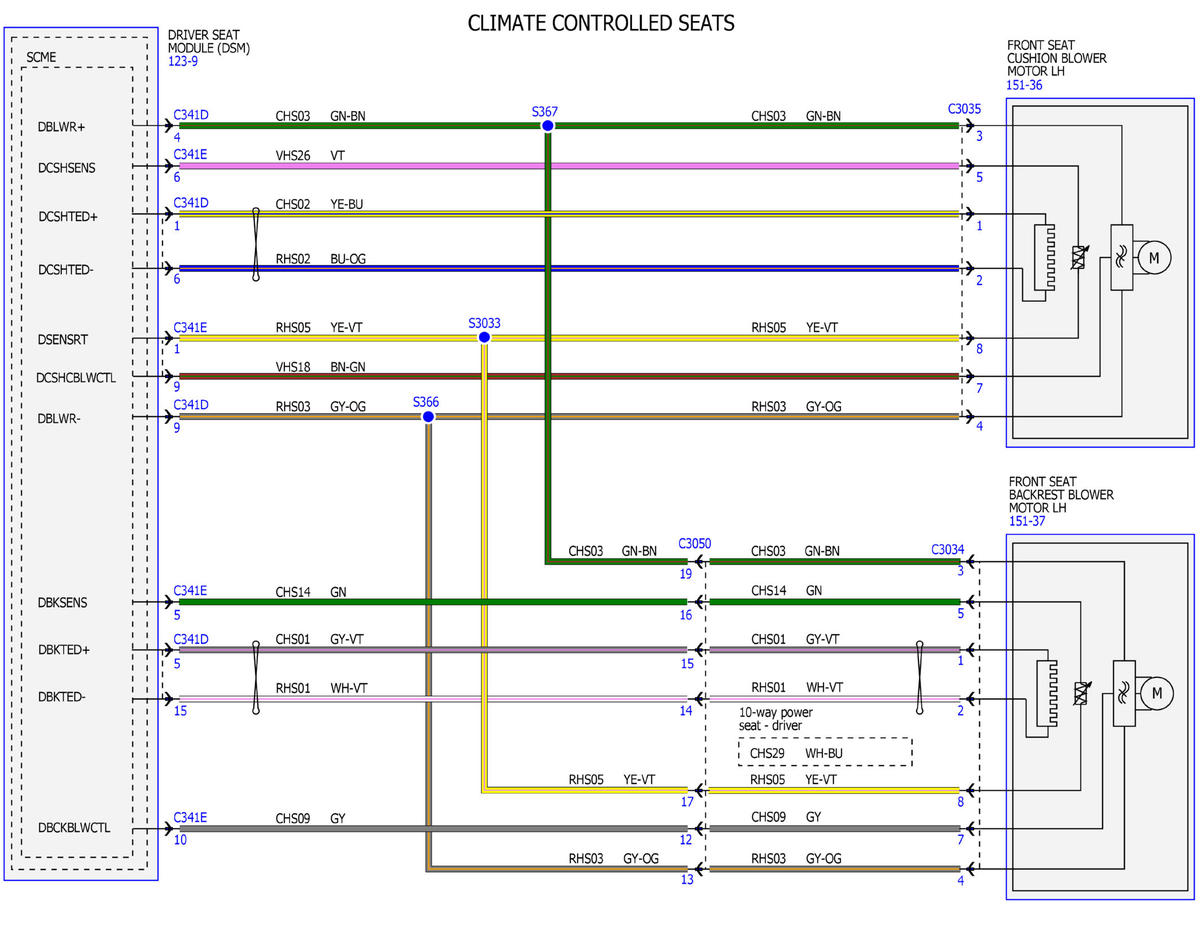

Fig 5: Climate Controlled Seats Wiring Diagram (5 of 10)
Courtesy of FORD MOTOR COMPANY

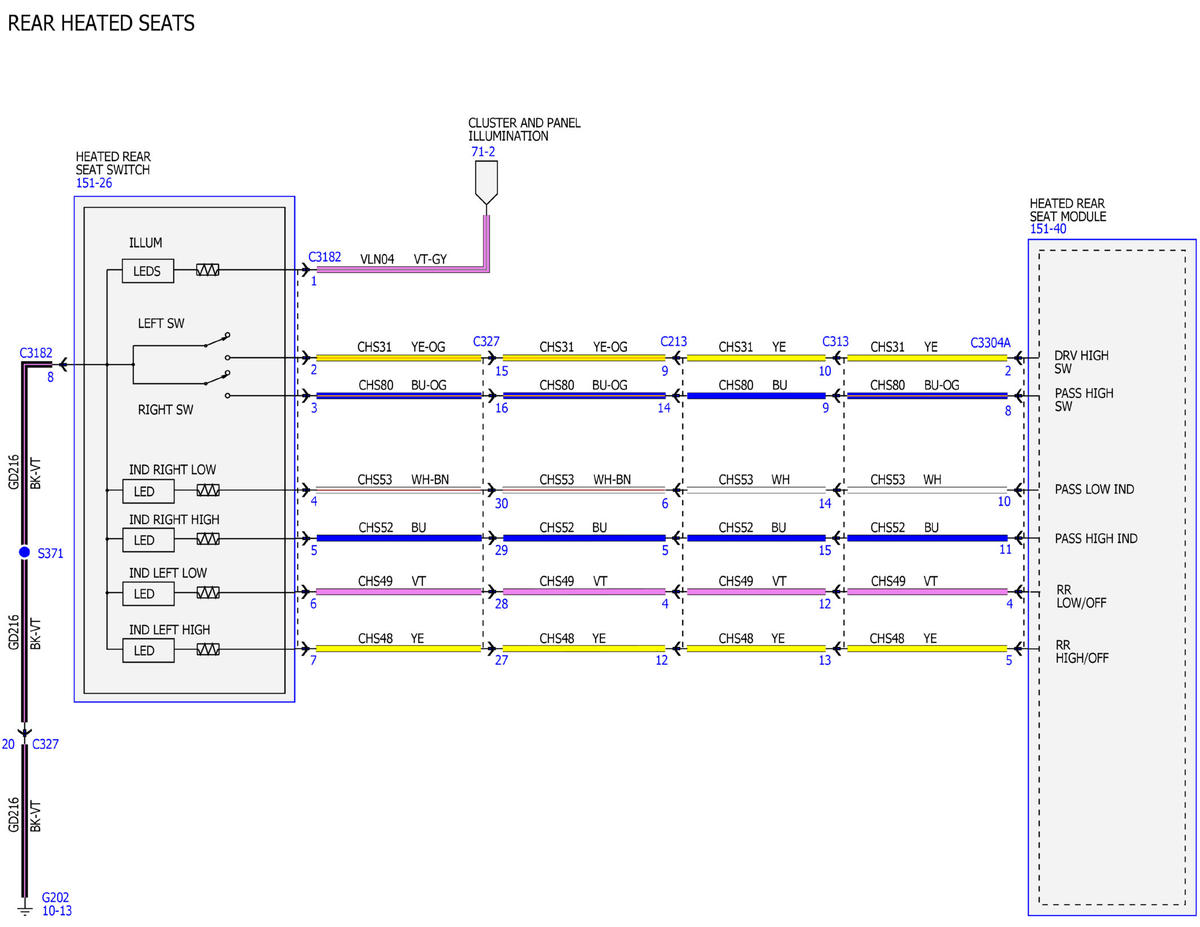

Fig 6: Climate Controlled Seats Wiring Diagram (6 of 10)
Courtesy of FORD MOTOR COMPANY

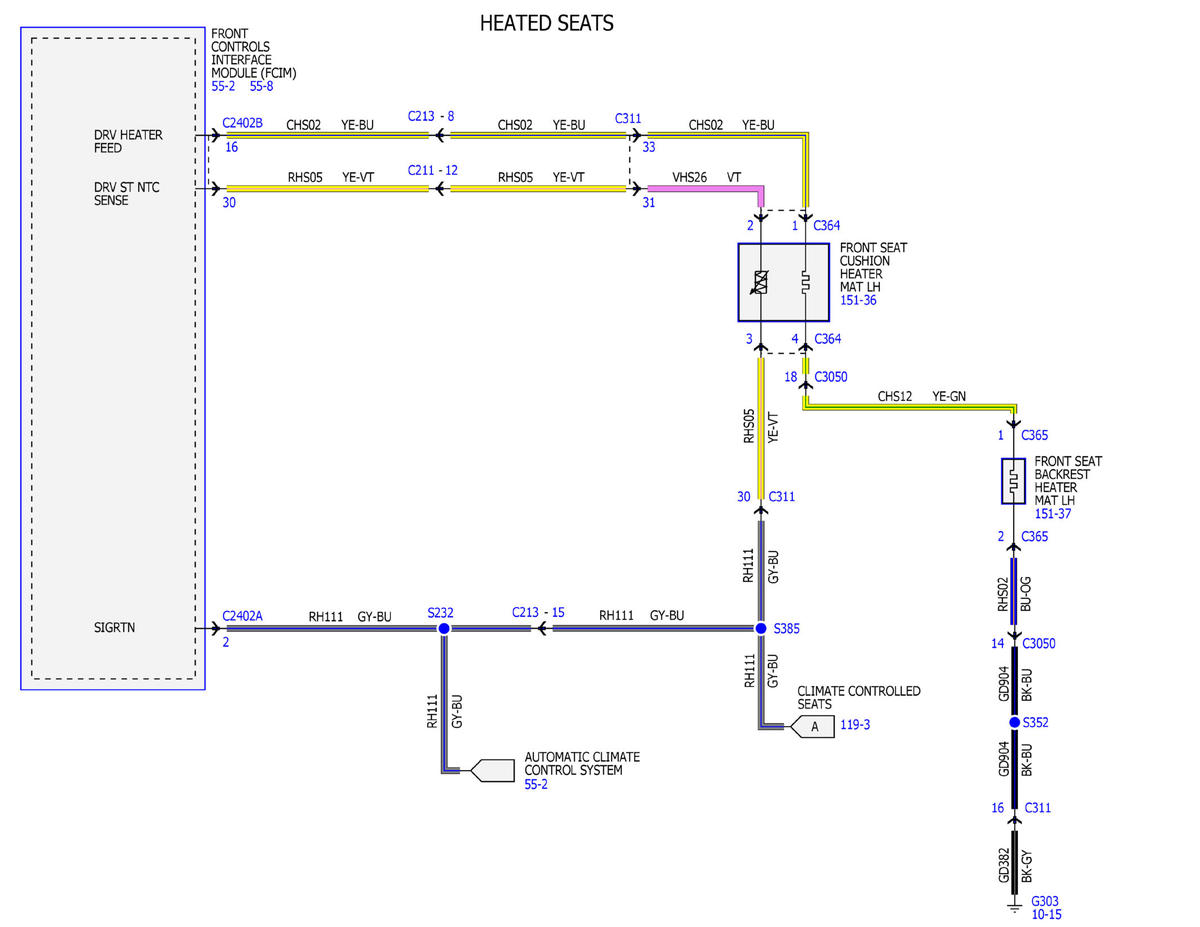

Fig 7: Climate Controlled Seats Wiring Diagram (7 of 10)
Courtesy of FORD MOTOR COMPANY

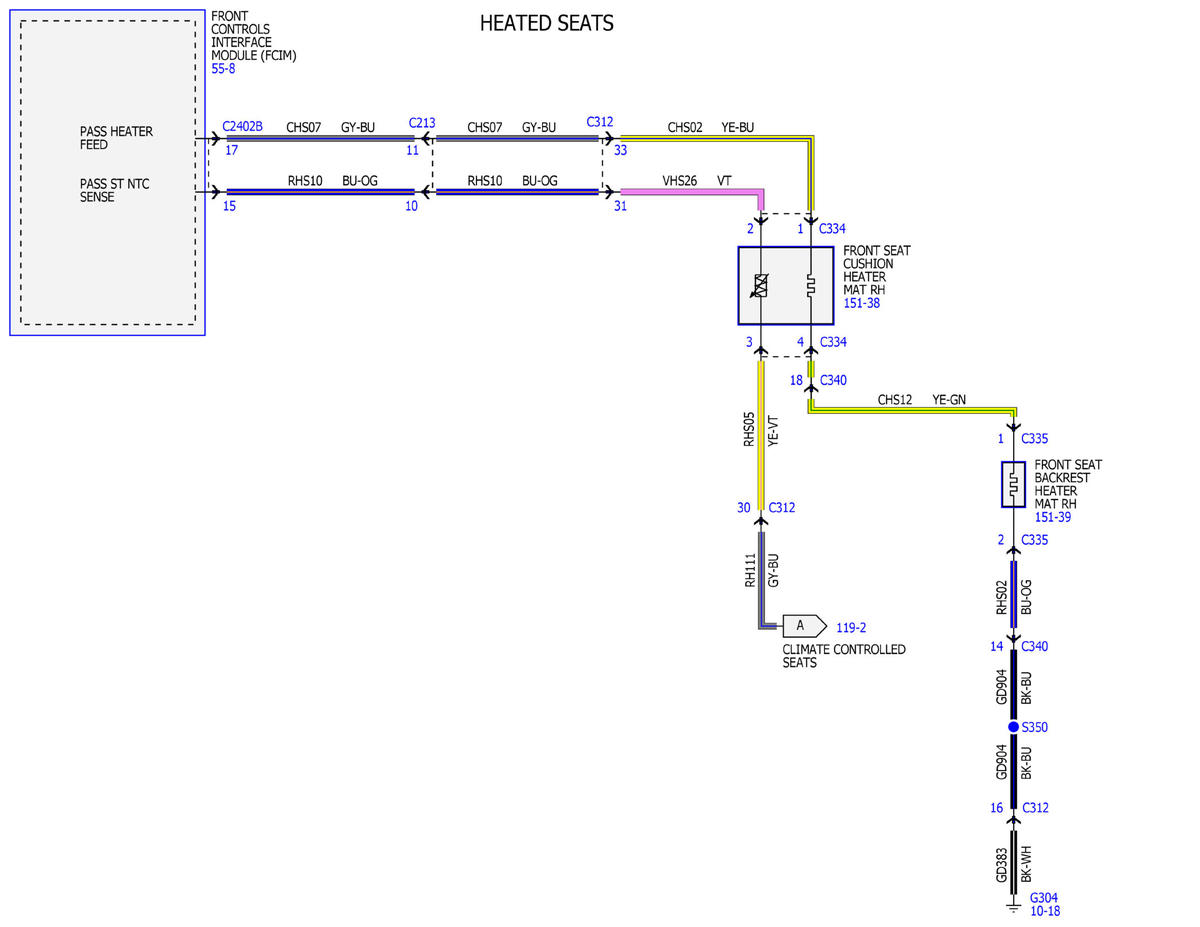

Fig 8: Climate Controlled Seats Wiring Diagram (8 of 10)
Courtesy of FORD MOTOR COMPANY
Fig 9: Climate Controlled Seats Wiring Diagram (9 of 10)
Courtesy of FORD MOTOR COMPANY
Fig 10: Climate Controlled Seats Wiring Diagram (10 of 10)
