Audio System/Navigation - HARMAN Revel Audio System
WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

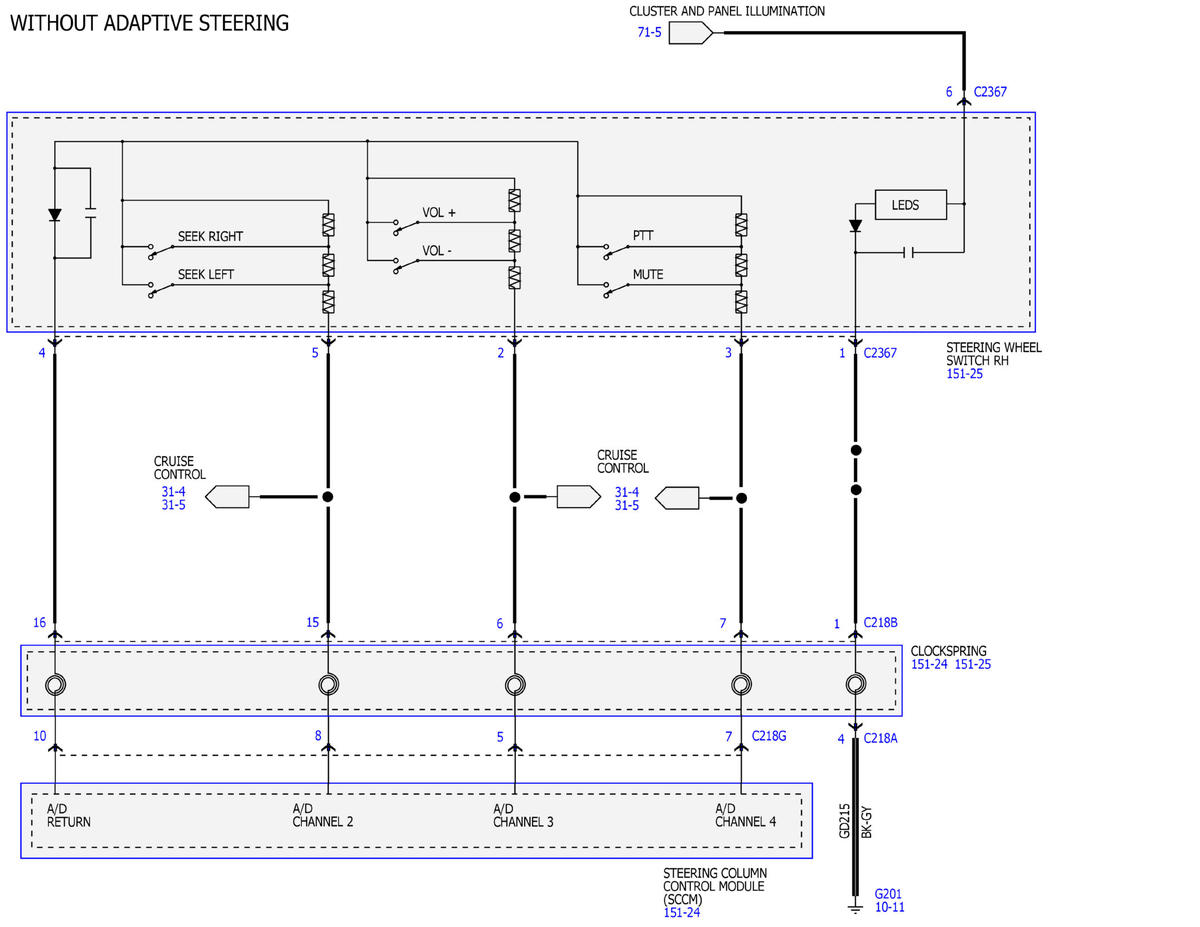

Fig 1: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (1 of 18)
Courtesy of FORD MOTOR COMPANY

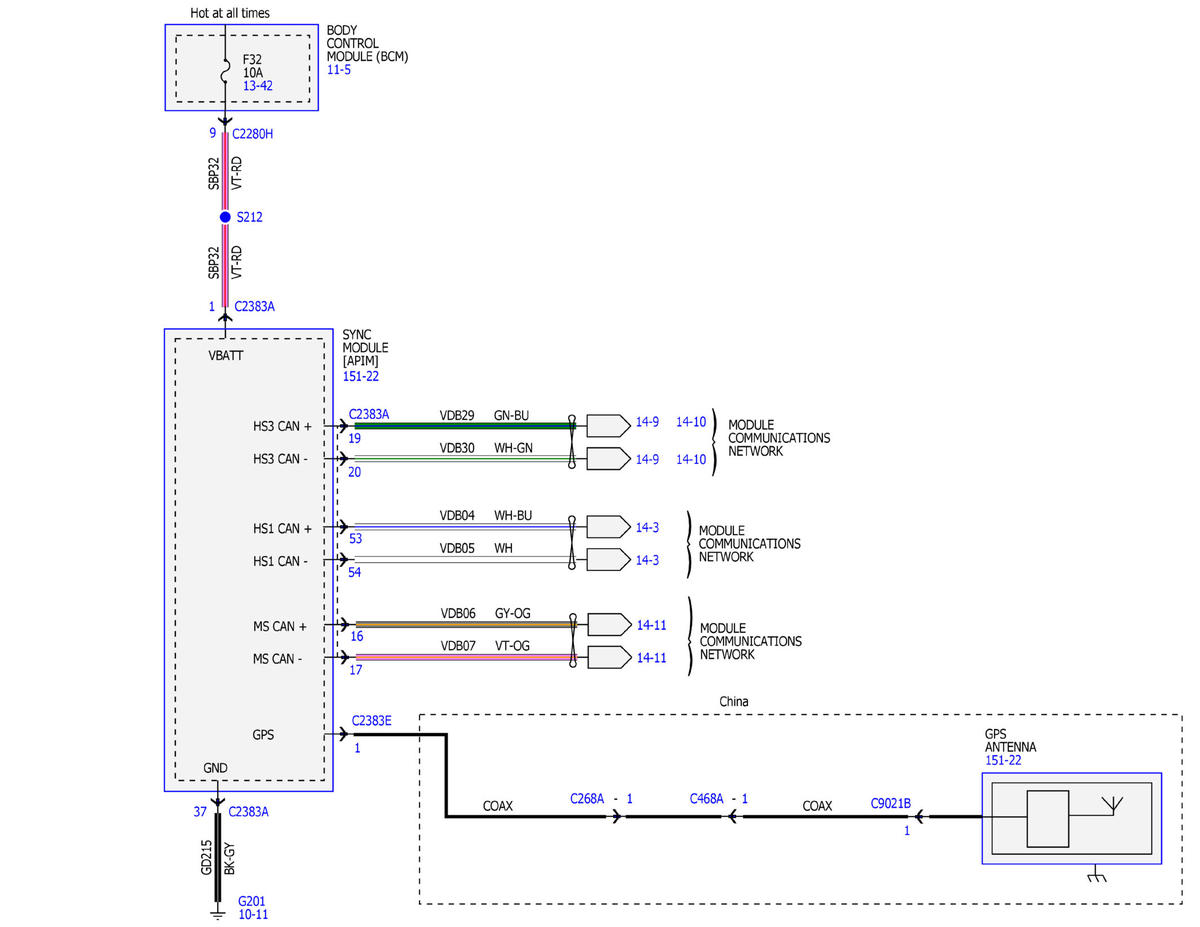

Fig 2: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (2 of 18)
Courtesy of FORD MOTOR COMPANY

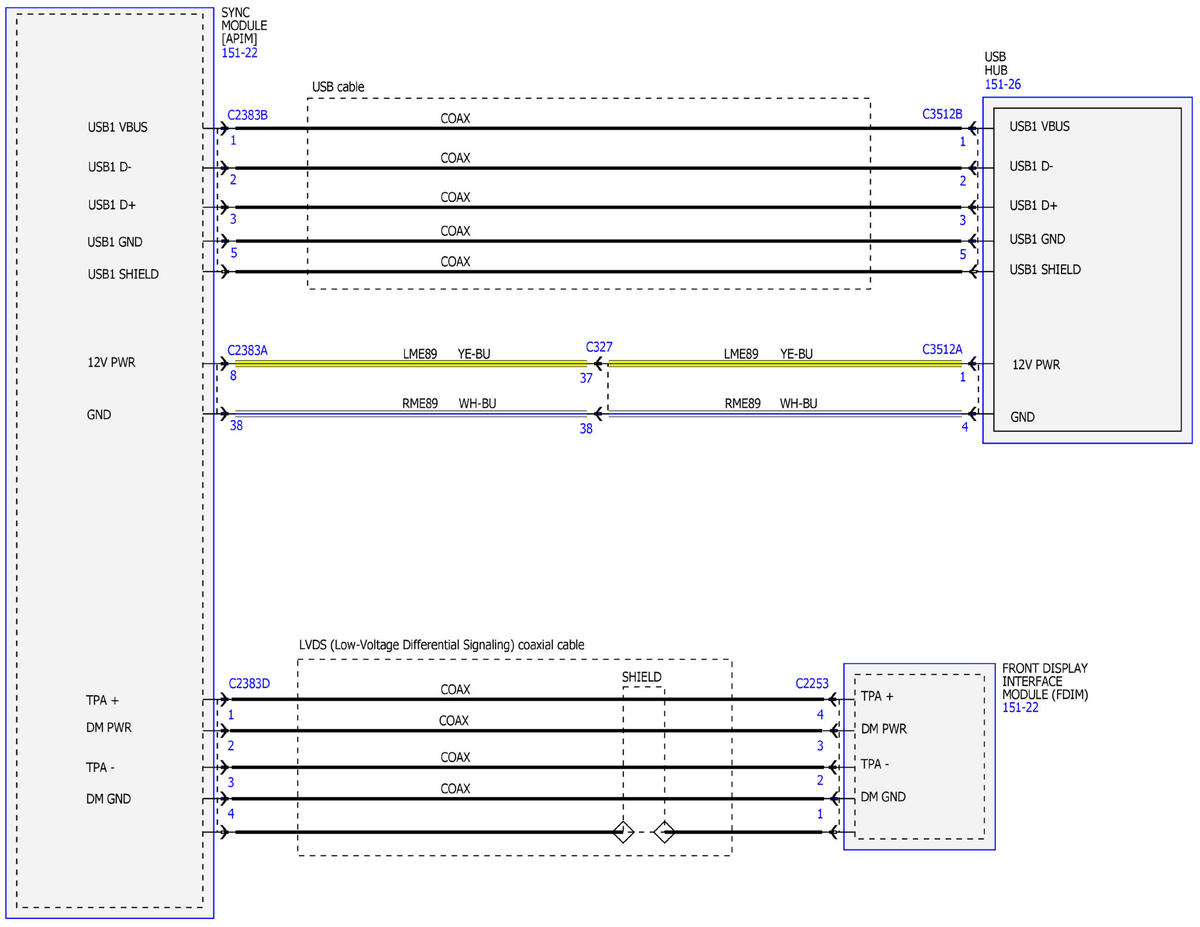

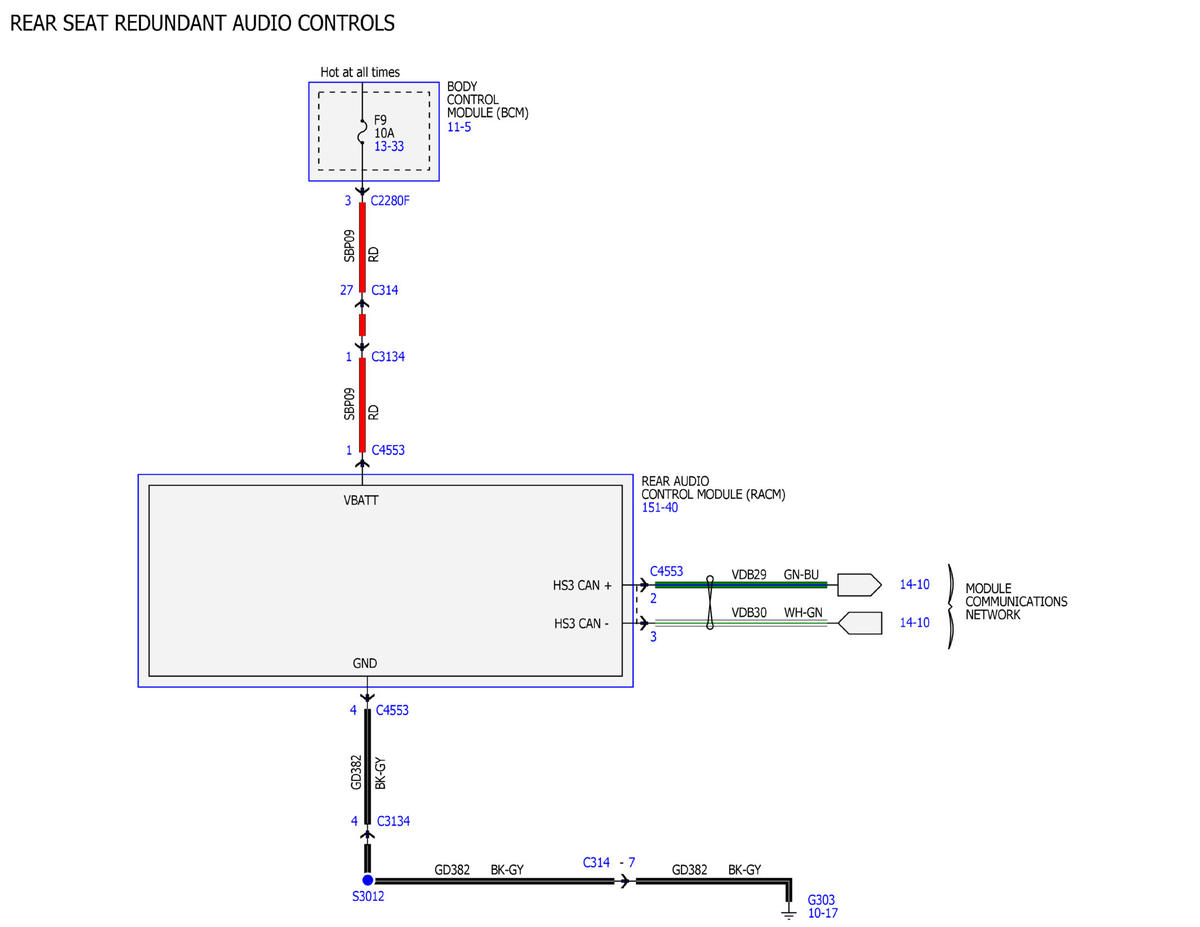

Fig 3: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (3 of 18)
Courtesy of FORD MOTOR COMPANY

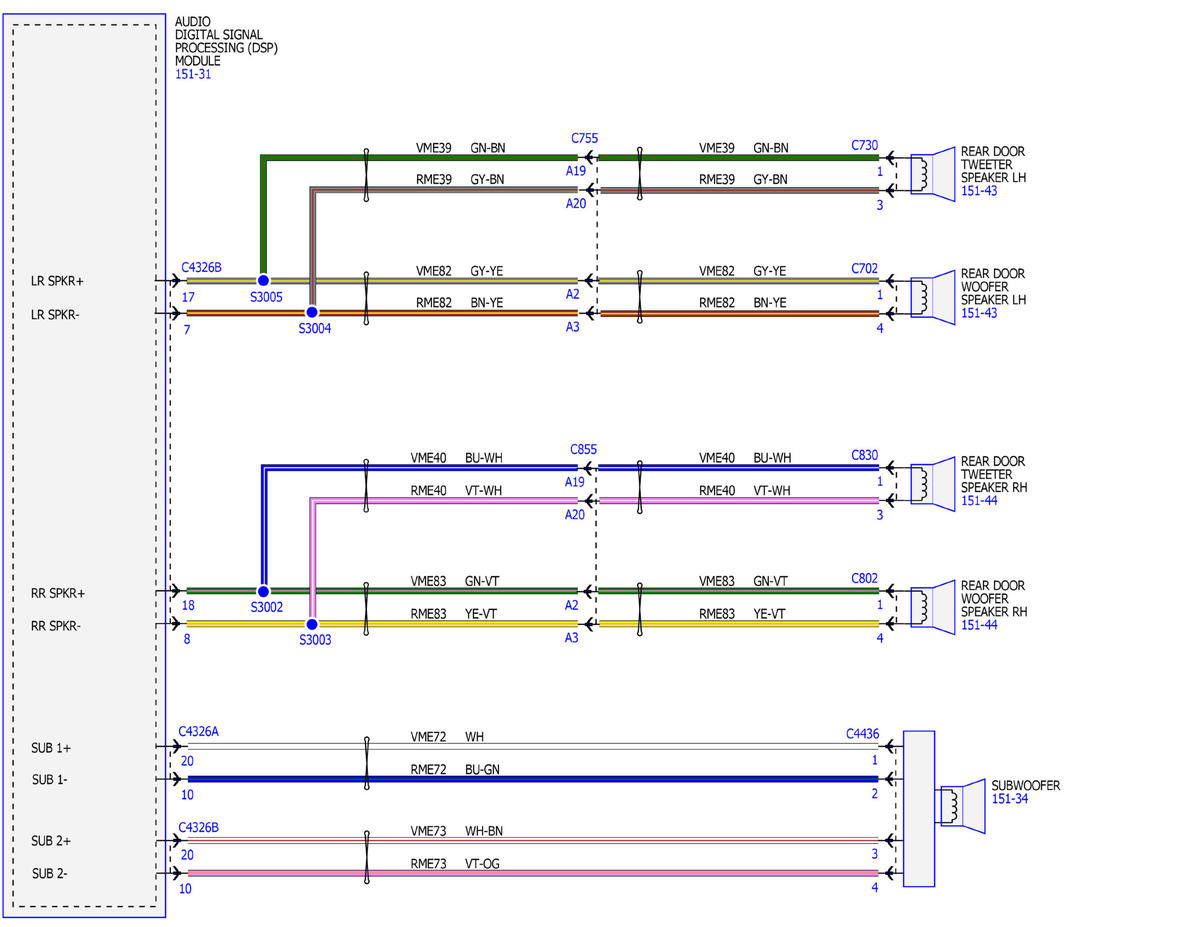

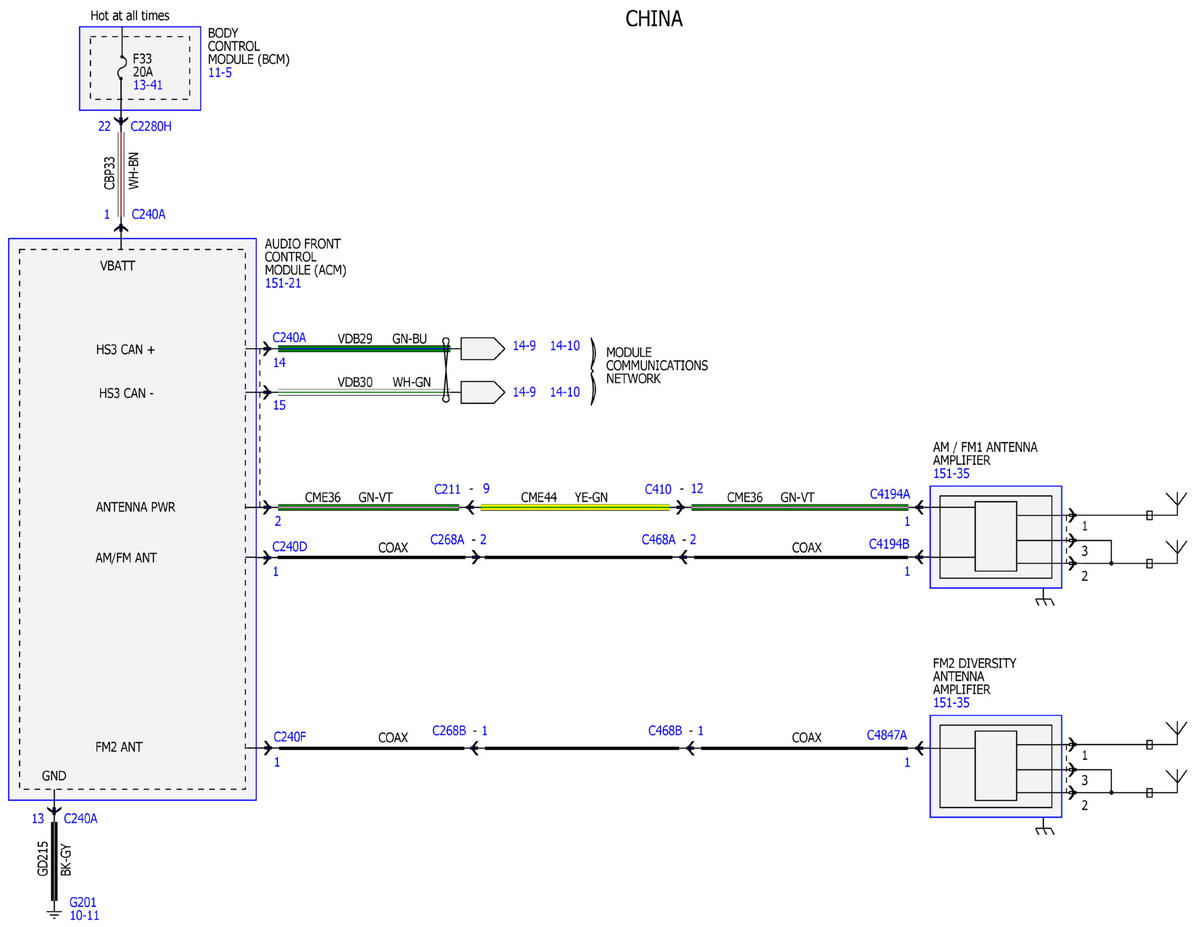

Fig 4: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (4 of 18)
Courtesy of FORD MOTOR COMPANY

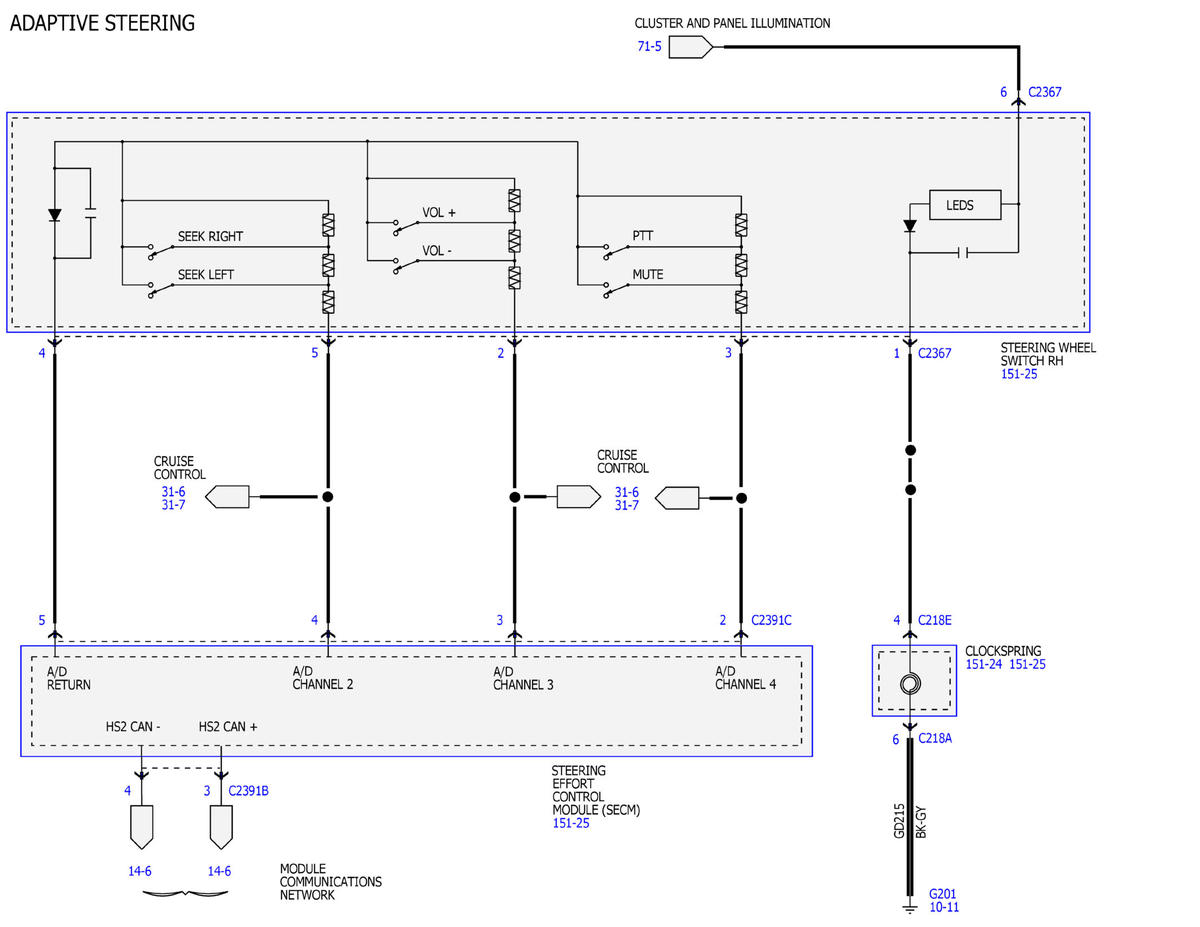

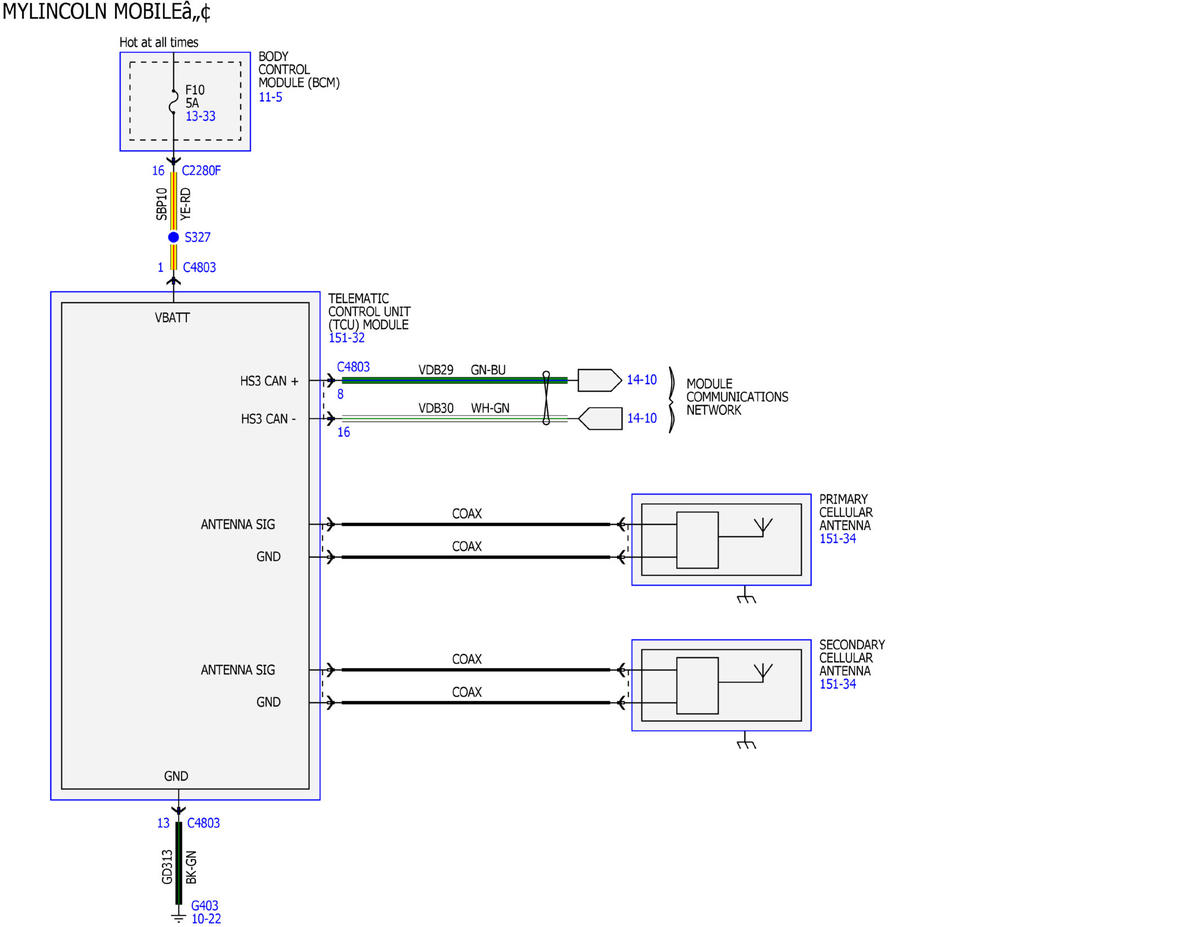

Fig 5: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (5 of 18)
Courtesy of FORD MOTOR COMPANY

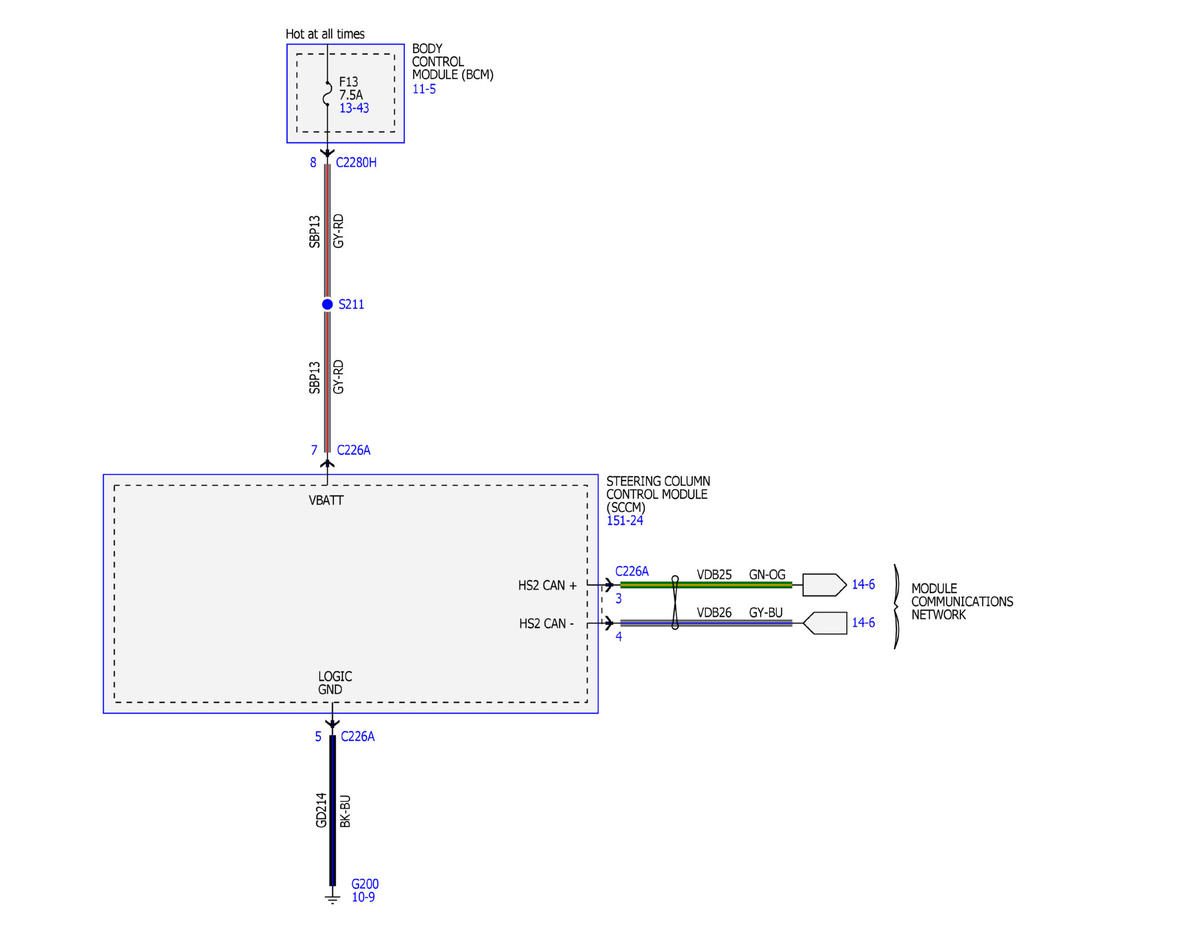

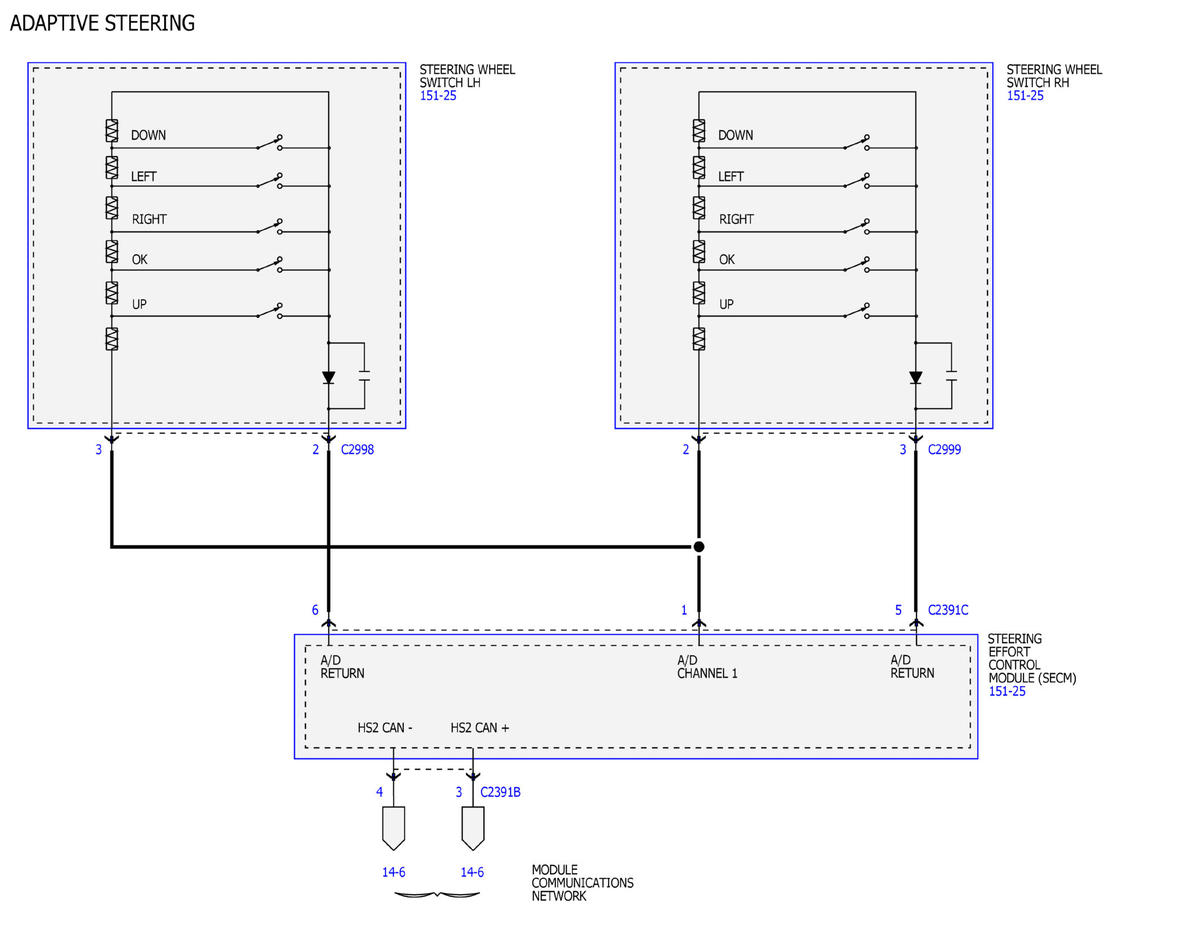

Fig 6: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (6 of 18)
Courtesy of FORD MOTOR COMPANY

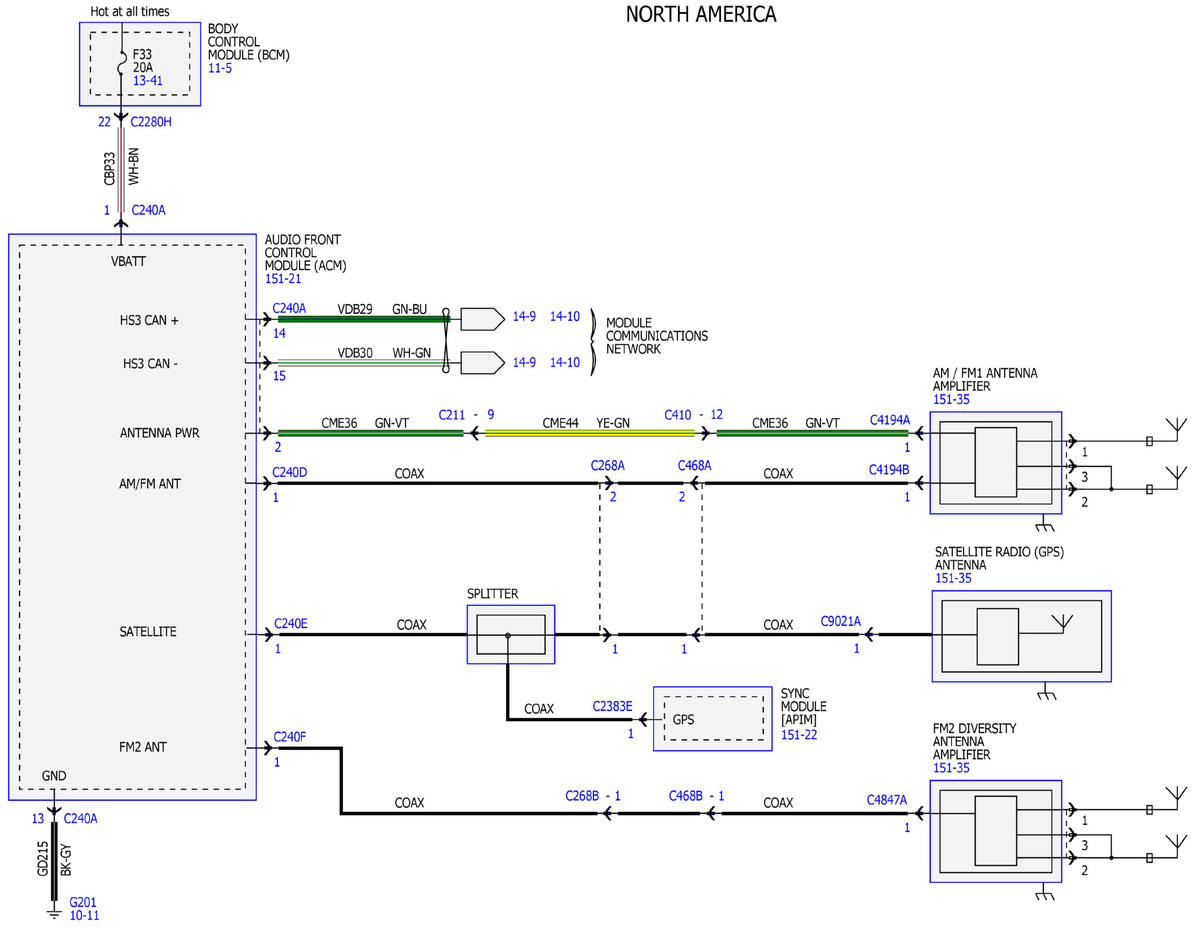

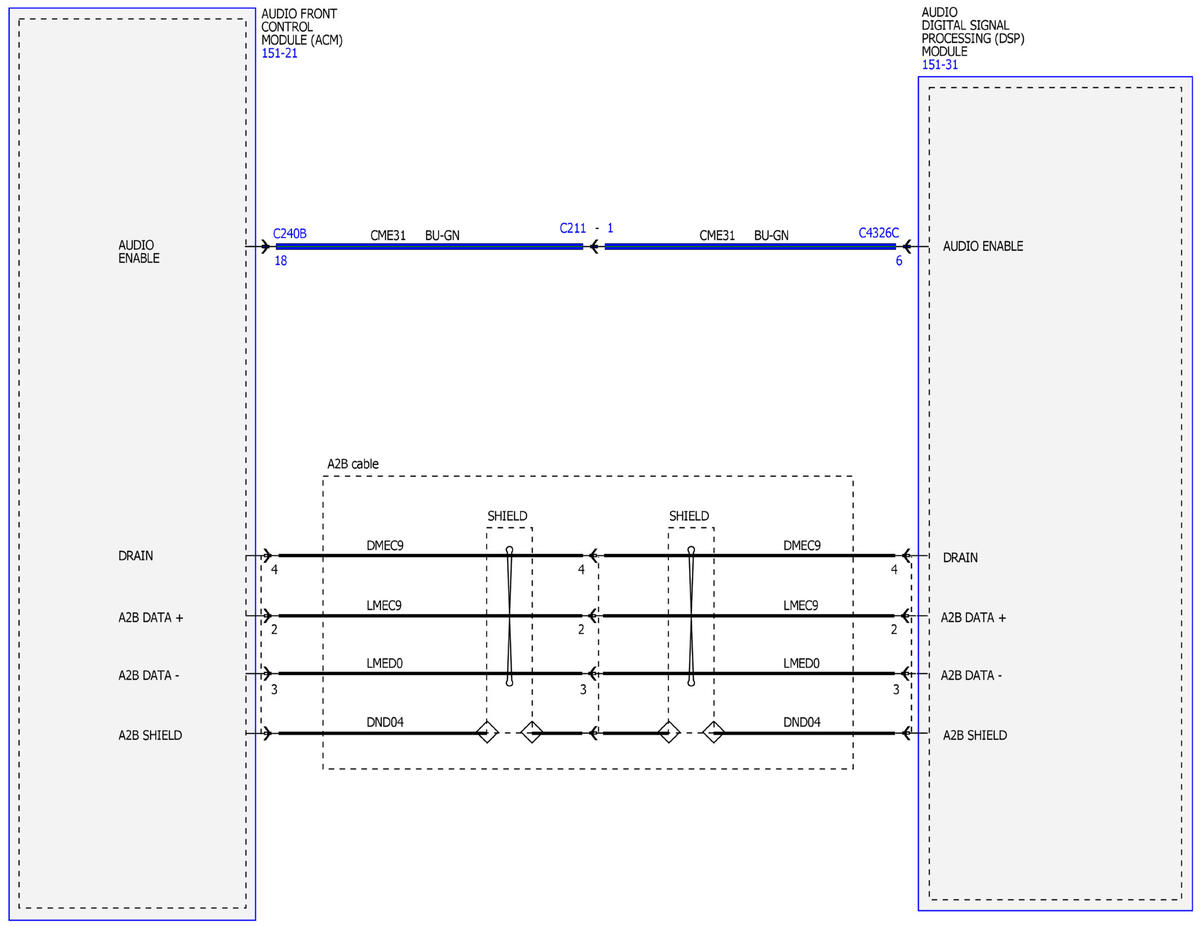

Fig 7: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (7 of 18)
Courtesy of FORD MOTOR COMPANY

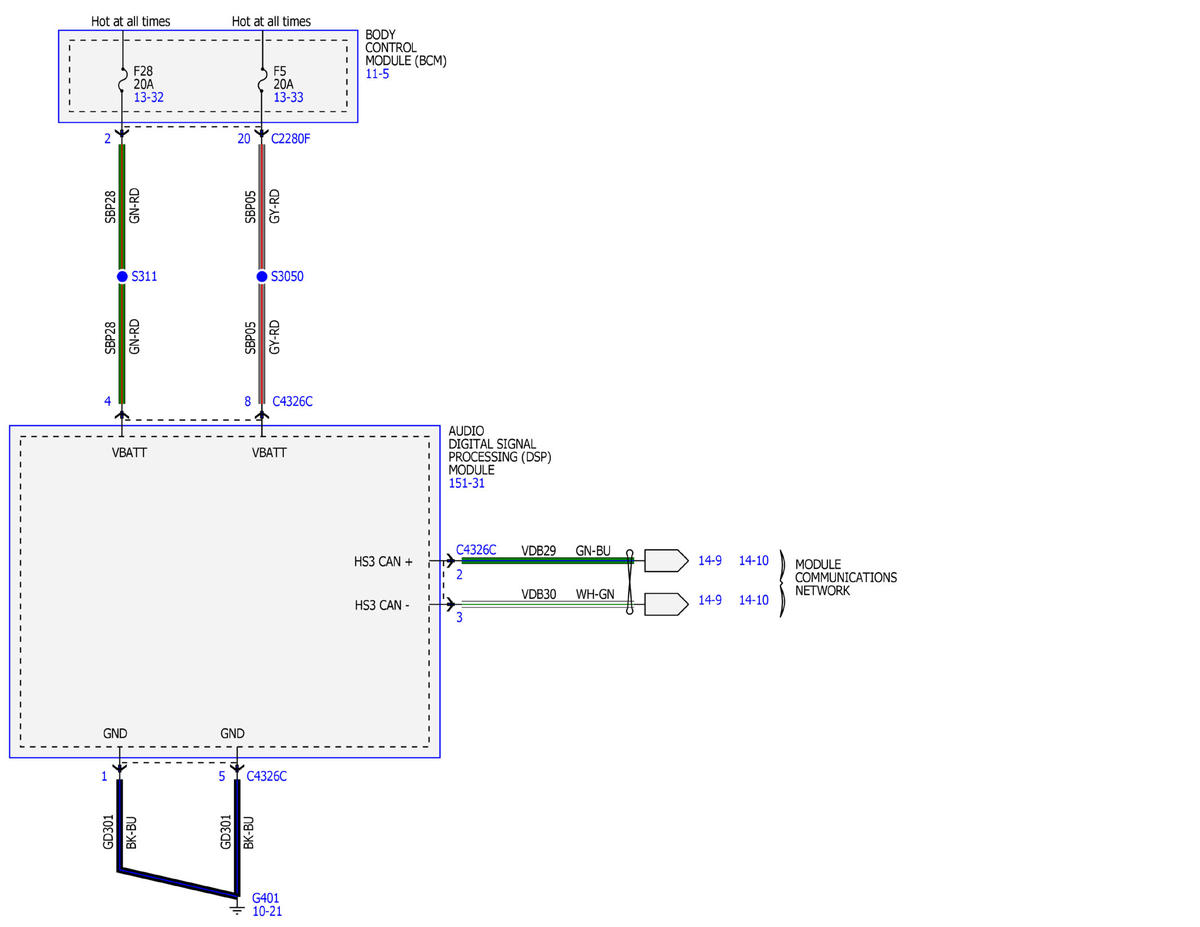

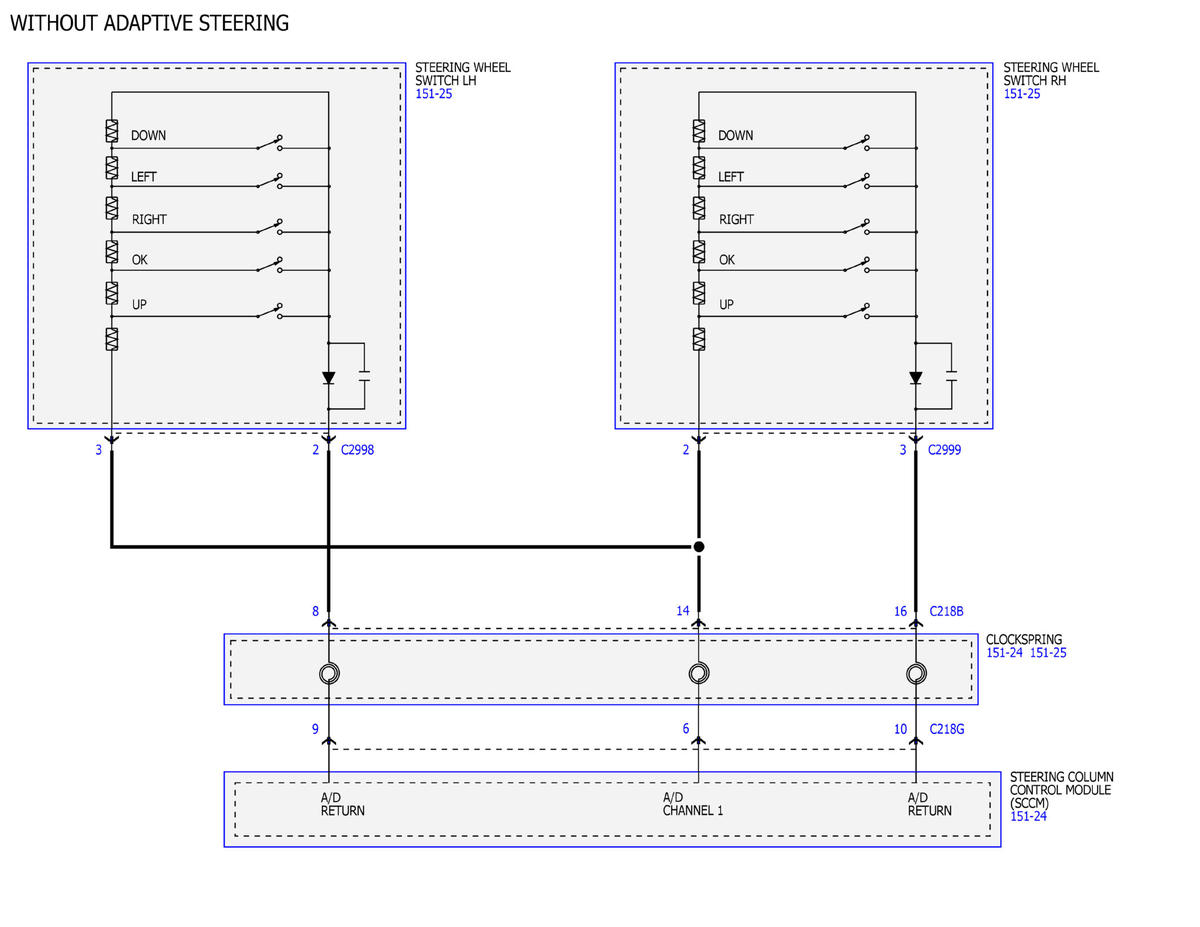

Fig 8: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (8 of 18)
Courtesy of FORD MOTOR COMPANY

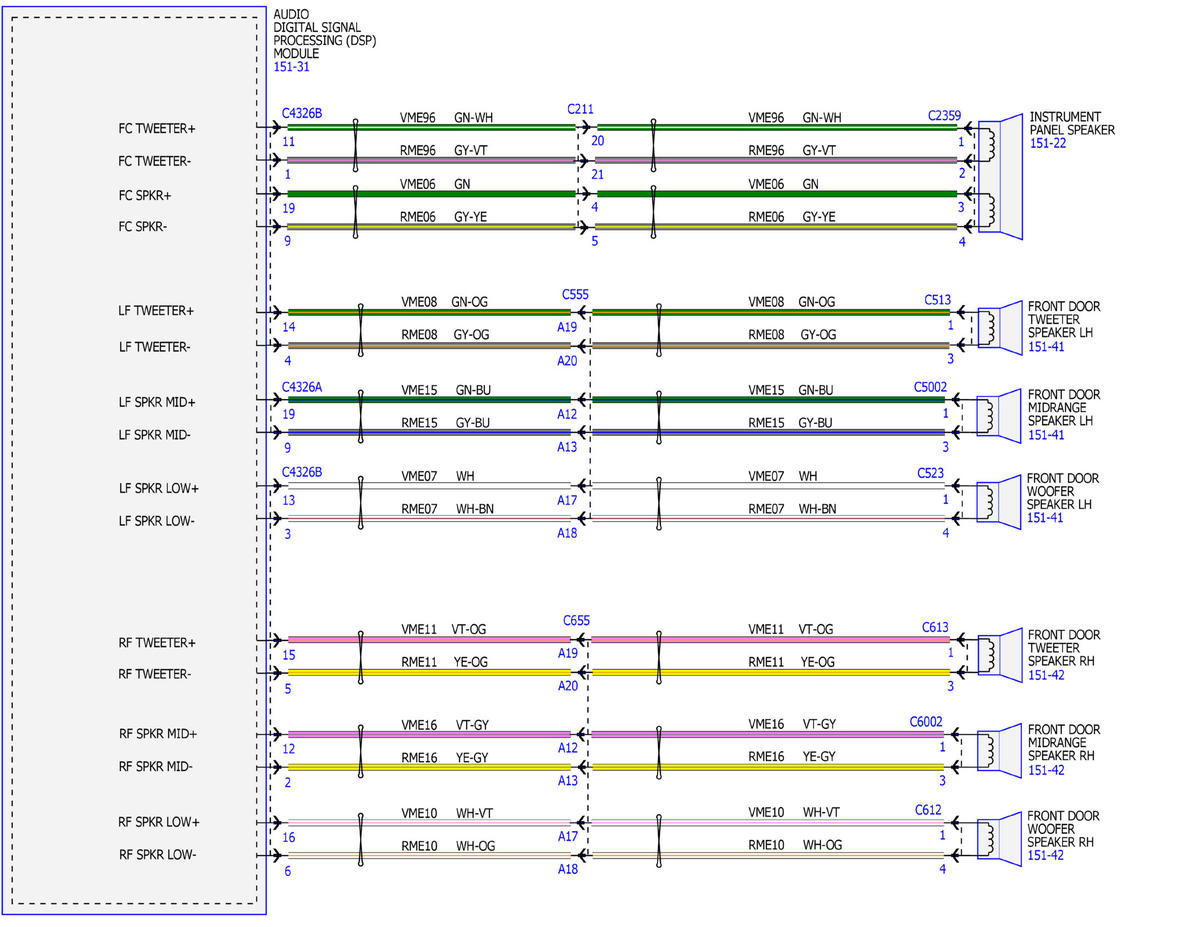

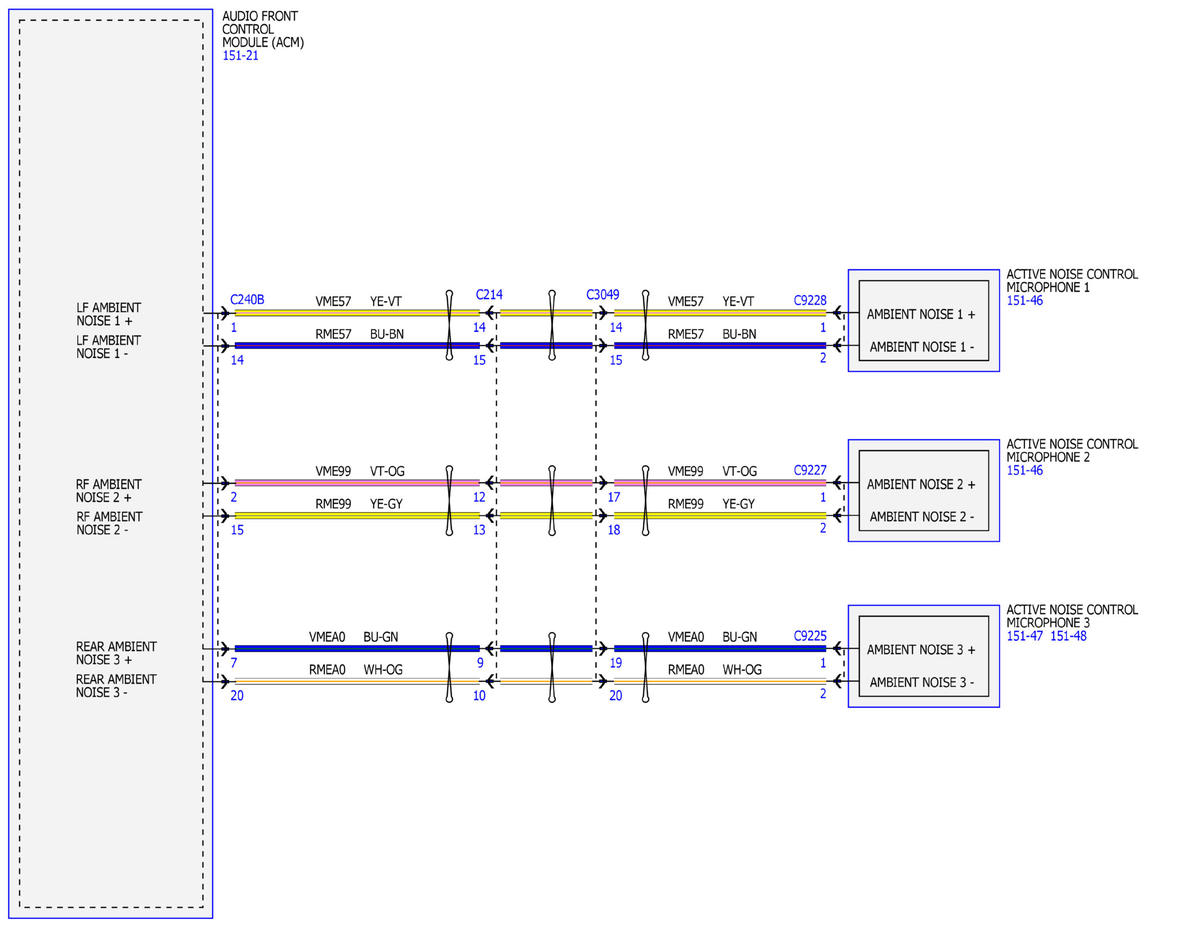

Fig 9: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (9 of 18)
Courtesy of FORD MOTOR COMPANY

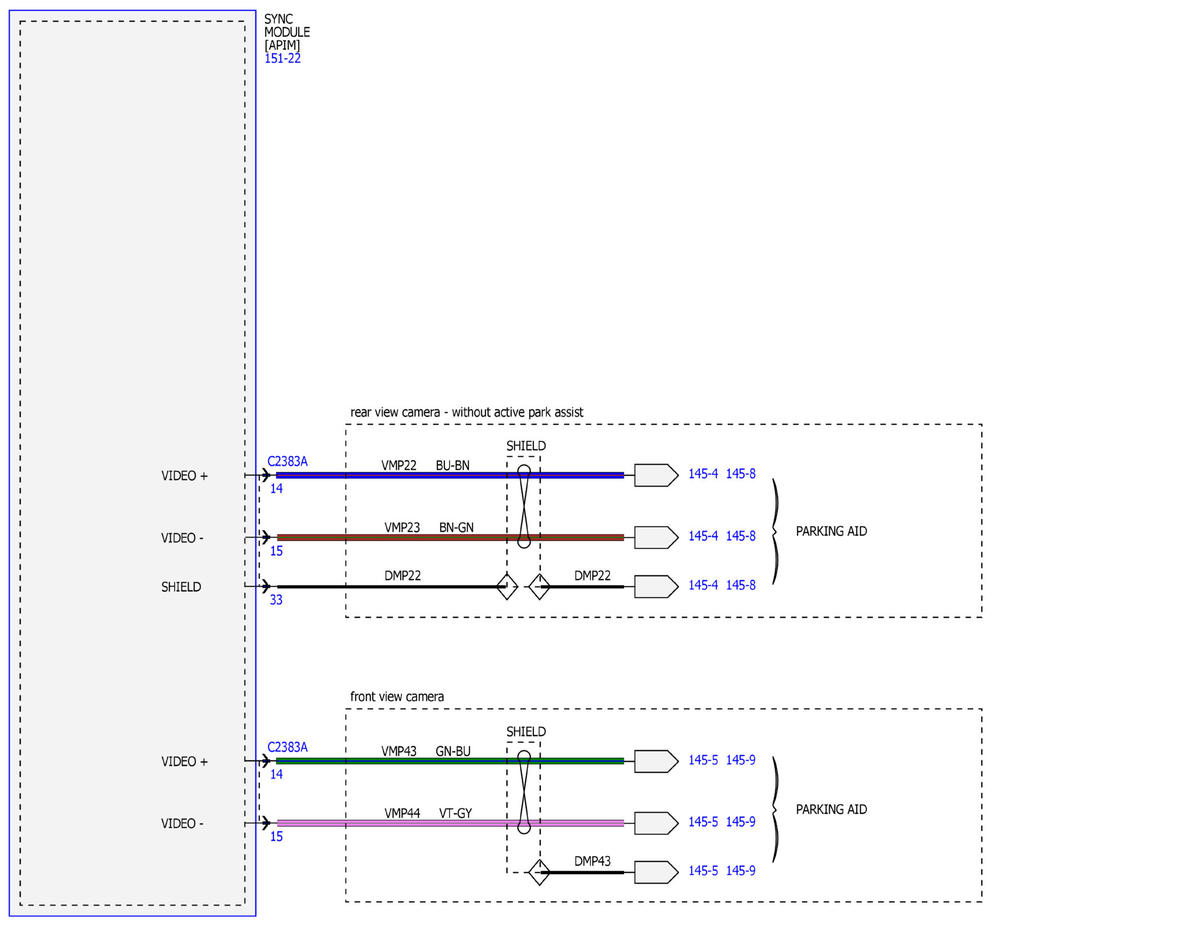

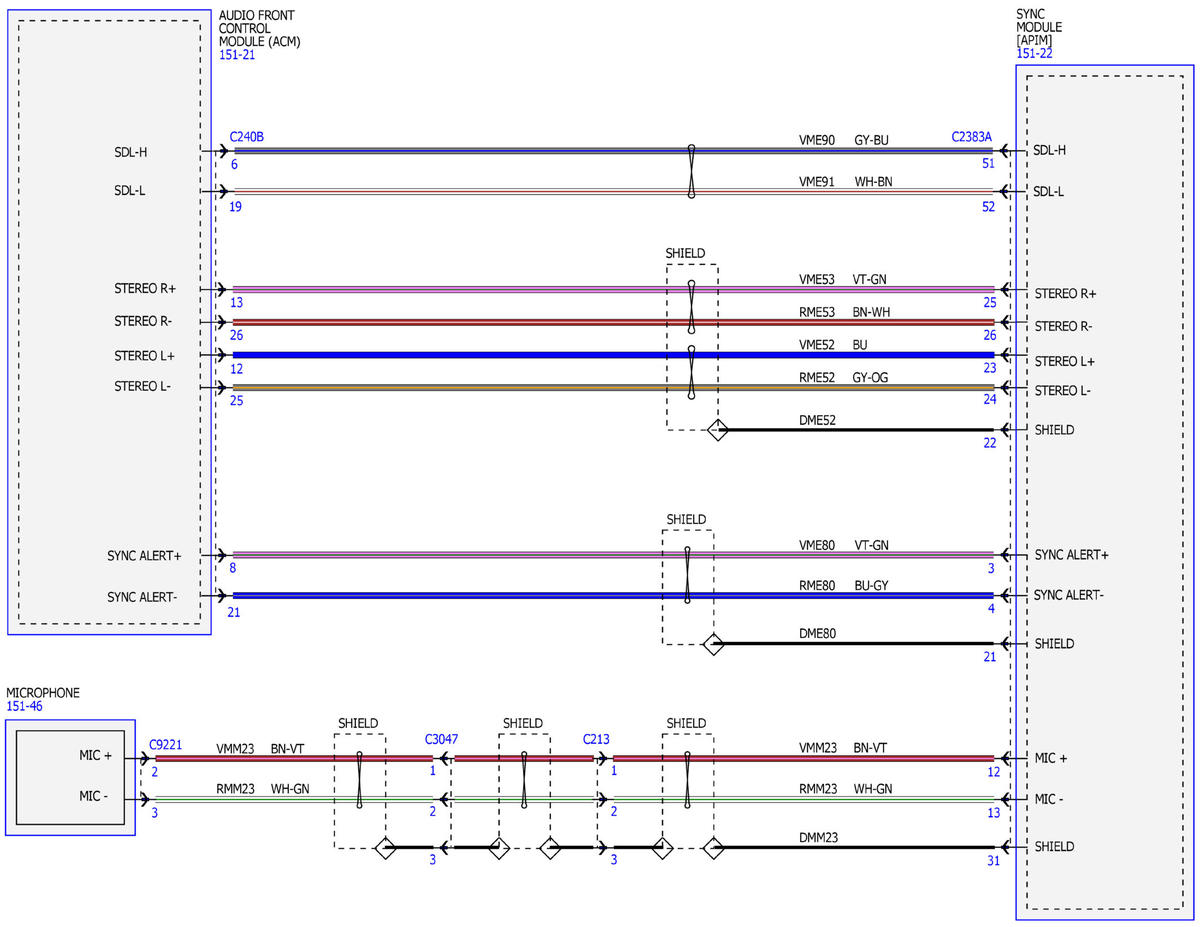

Fig 10: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (10 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (11 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (12 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (13 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (14 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 15: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (15 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 16: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (16 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 17: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (17 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 18: Audio System/Navigation - Harman Revel Audio System Wiring Diagram (18 of 18)
