WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

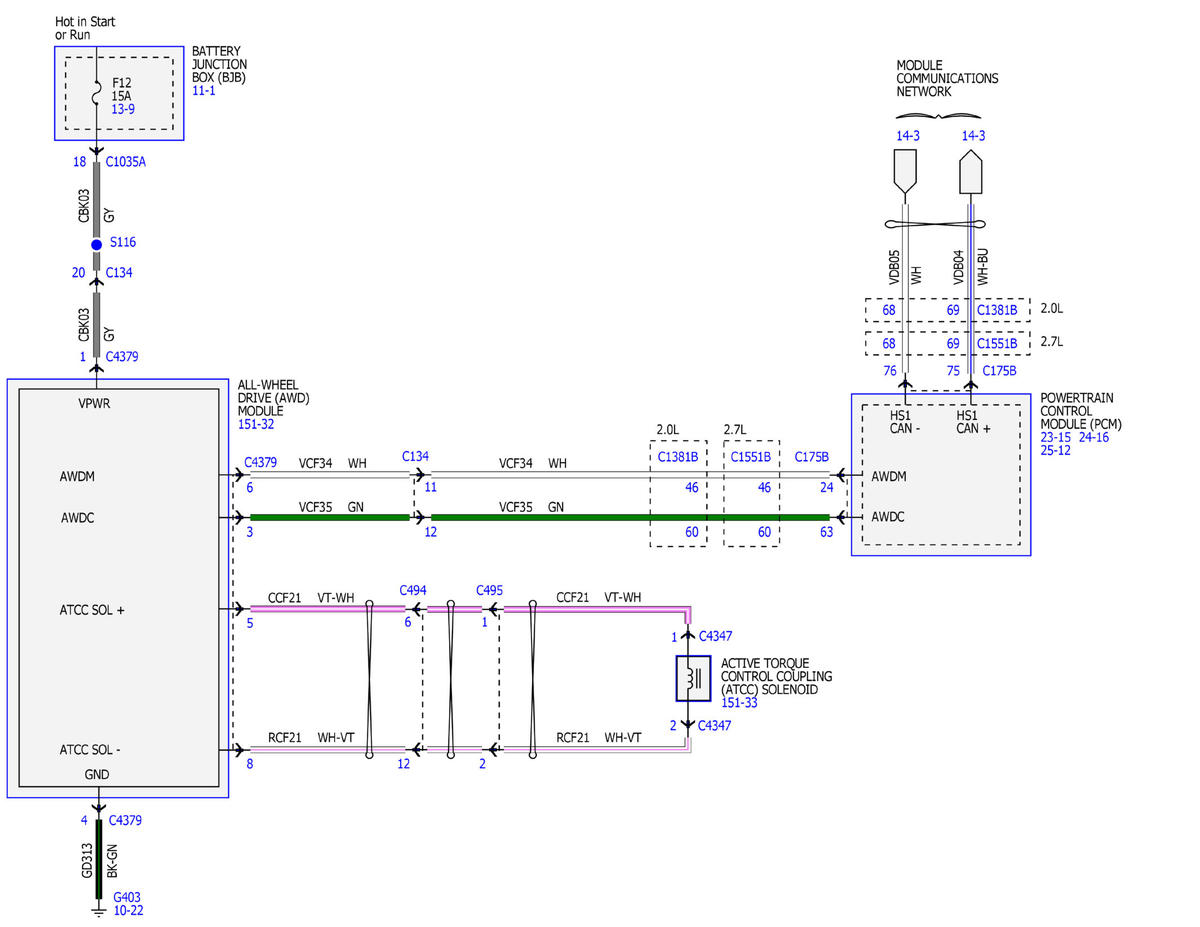

Fig 1: All Wheel Drive (AWD) Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY

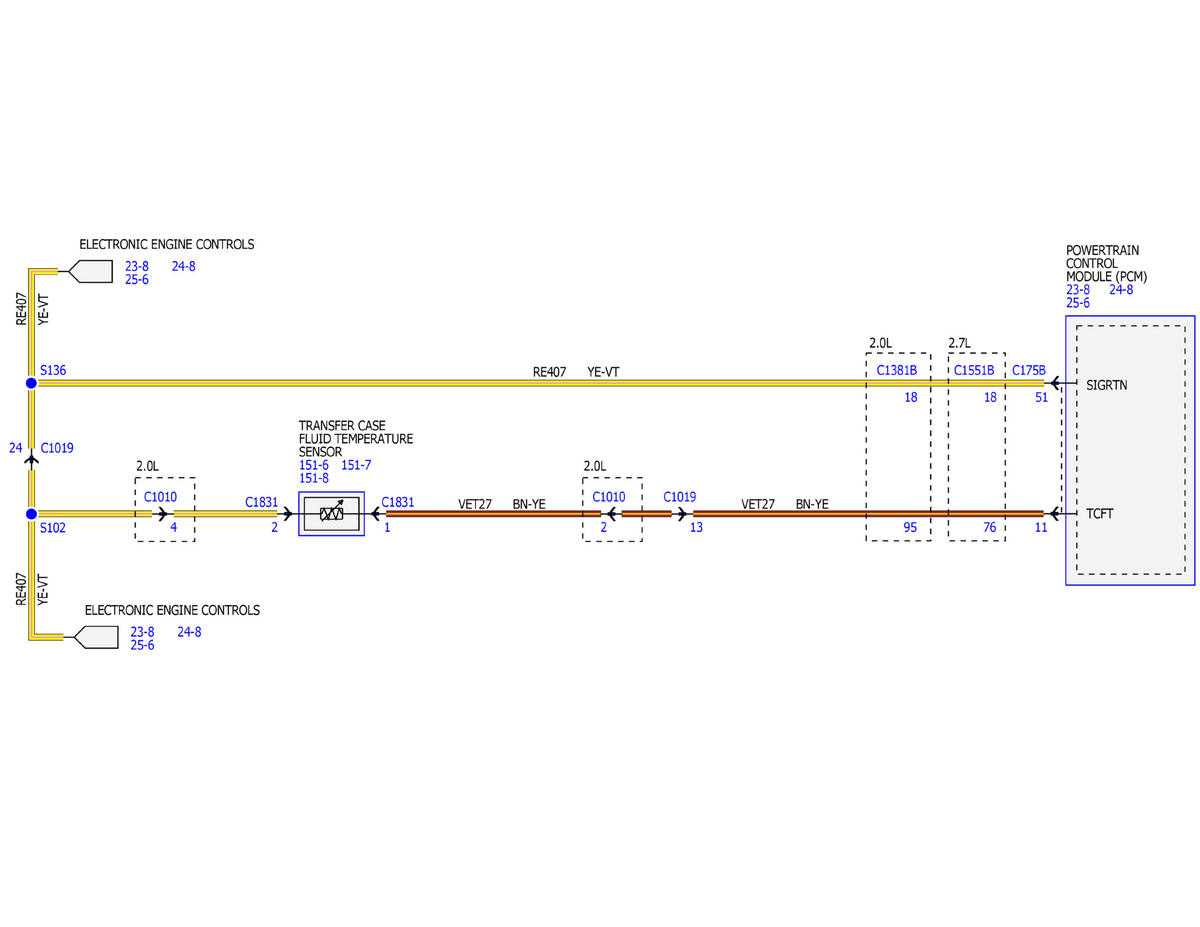

Fig 2: All Wheel Drive (AWD) Wiring Diagram (2 of 2)
