Adjustable Steering Column

WARNING: This page is about a different car, the 2018 Lincoln MKX. However, it is still accessible from the selected car via links, so may be relevant.

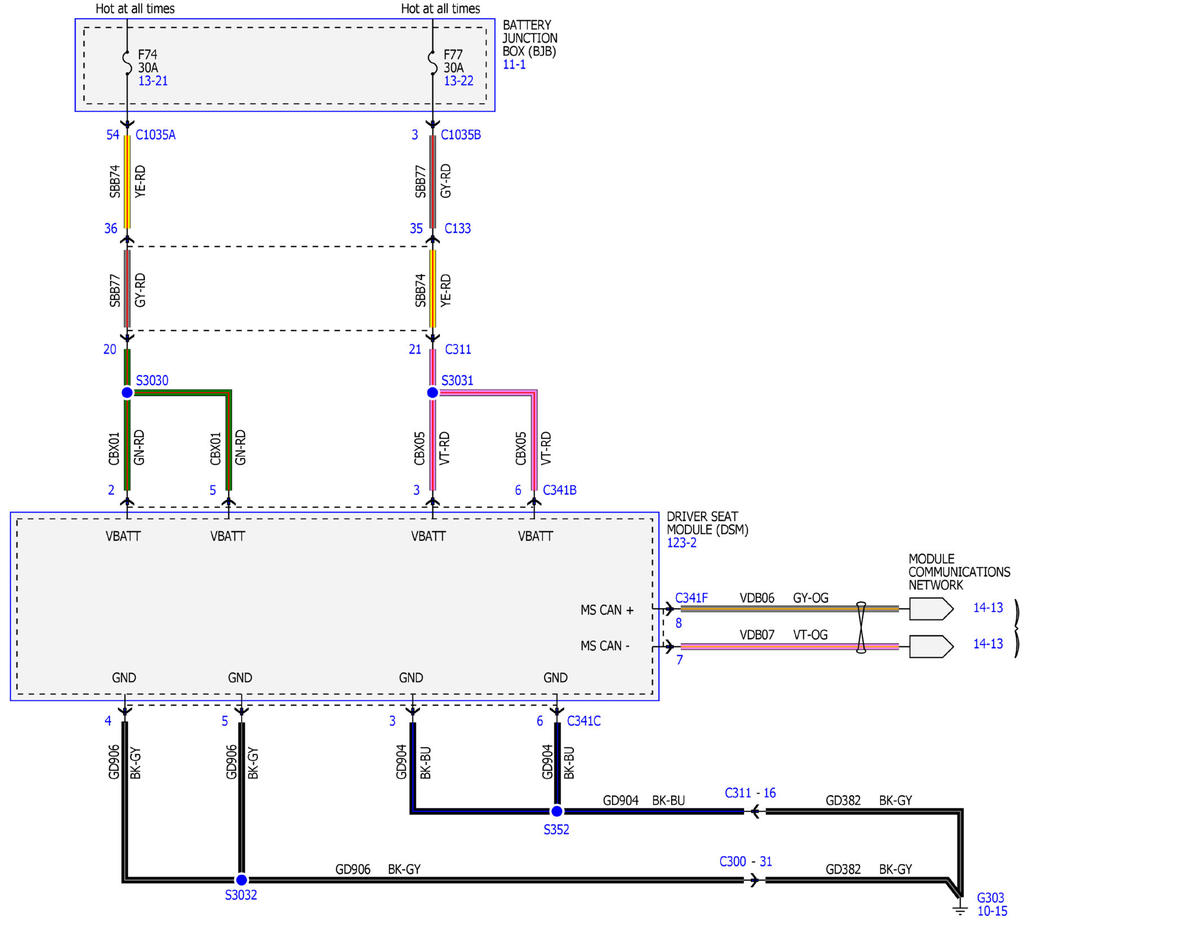

Fig 1: Adjustable Steering Column Wiring Diagram (1 of 4)
GFDWR23827Courtesy of FORD MOTOR COMPANY

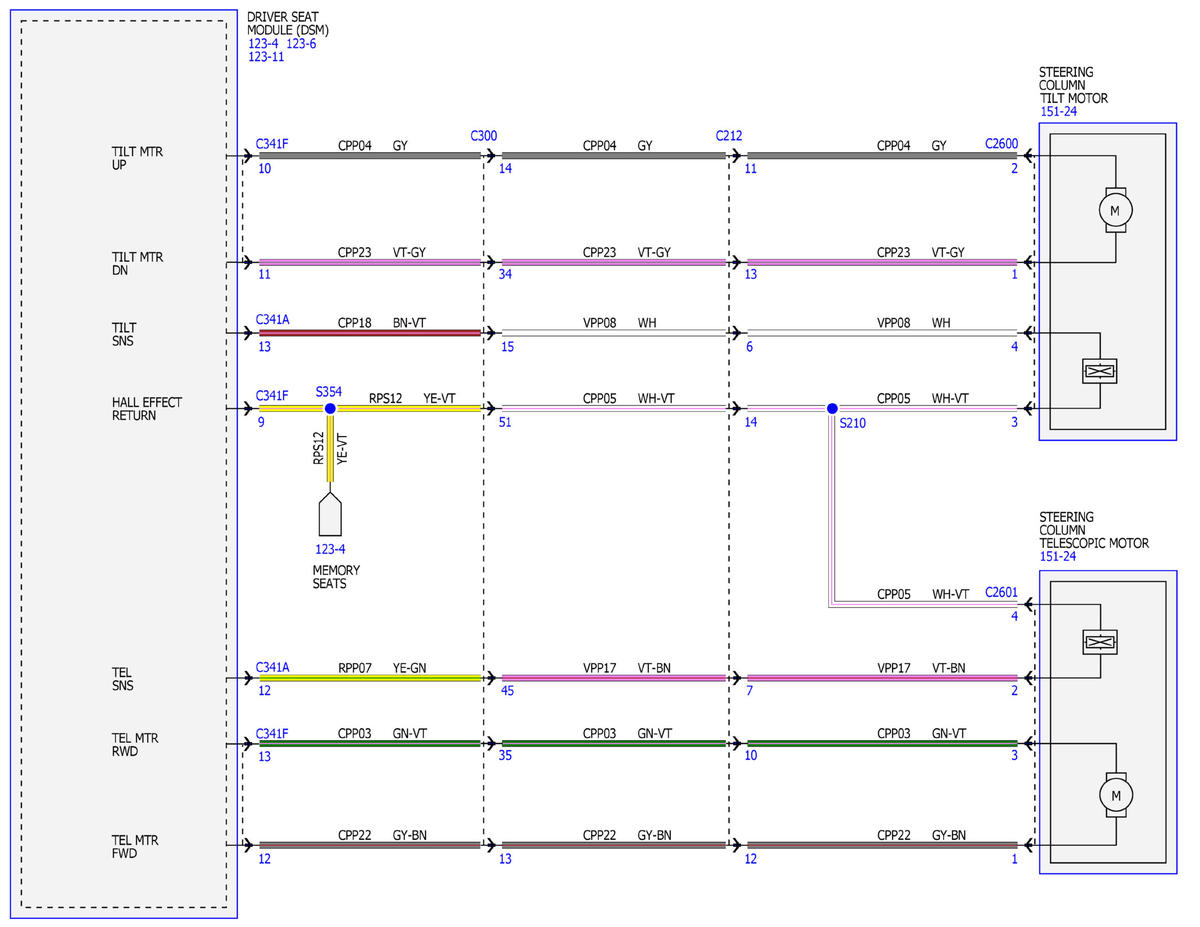

Fig 2: Adjustable Steering Column Wiring Diagram (2 of 4)
GFDWR23828Courtesy of FORD MOTOR COMPANY
Fig 3: Adjustable Steering Column Wiring Diagram (3 of 4)
GFDWR23829Courtesy of FORD MOTOR COMPANY
Fig 4: Adjustable Steering Column Wiring Diagram (4 of 4)
GFDWR23830Courtesy of FORD MOTOR COMPANY
