Rear Seat Latch: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat backrest. Refer to: Rear Seat Backrest .
Remove the rear seat backrest release bezel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

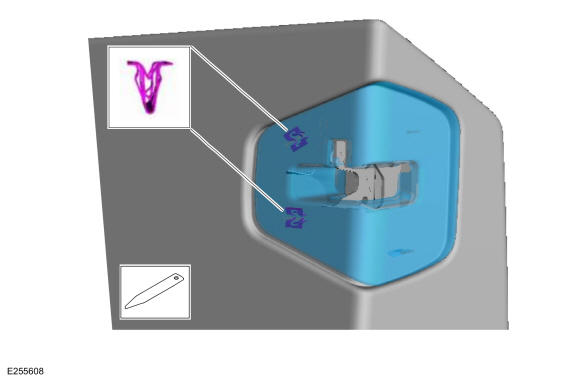

Remove the rear seat latch bezel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

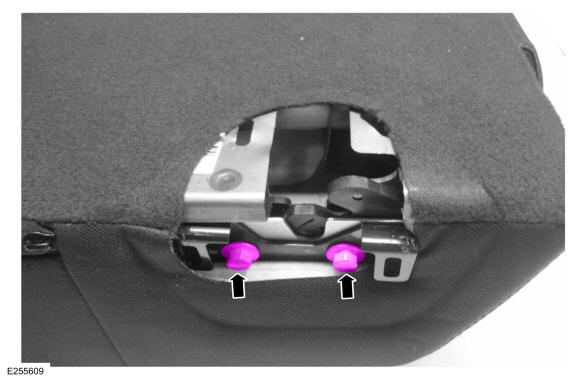

Remove the rear seat latch bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the rear seat latch.

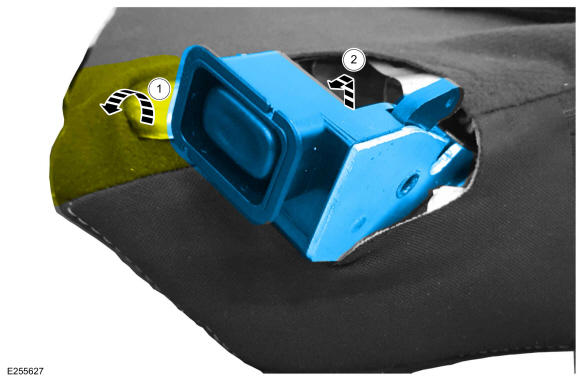

1. Position the rear seat backrest cover behind the backrest frame.
2. Remove the rear seat latch.

Courtesy of FORD MOTOR COMPANY
