Rear Seat Cushion: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: 40 percent rear seat cushion shown, 60 percent similar.

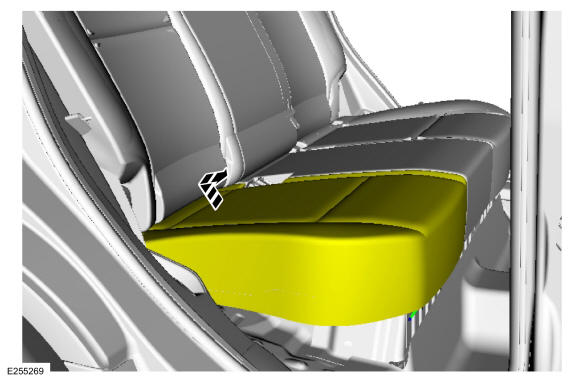

Position the rear seat cushion to the full forward position.

Courtesy of FORD MOTOR COMPANY

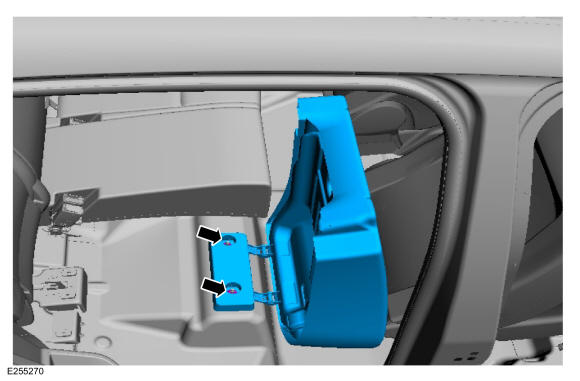

Remove the nuts and the rear seat cushion.
Torque: 35 lb.ft (47 Nm)

Courtesy of FORD MOTOR COMPANY
