Rear Seat Backrest Cover: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: 60 percent rear seat backrest shown, 40 percent similar.
  1. If equipped. Remove the rear seat armrest. Refer to: Rear Seat Armrest .
  2. Remove the rear seat backrest. Refer to: Rear Seat Backrest .

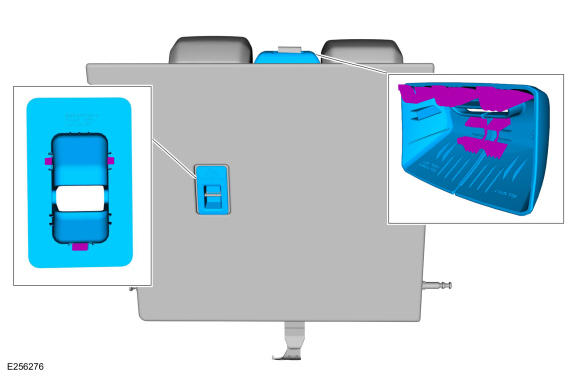

    • Remove the child safety seat tether anchor bezel.

    • Remove the center seatbelt guide bezel.

    GFD328994Courtesy of FORD MOTOR COMPANY
  4. Remove the rear head restraint guide sleeves. Refer to: Rear Head Restraint Guide Sleeve .

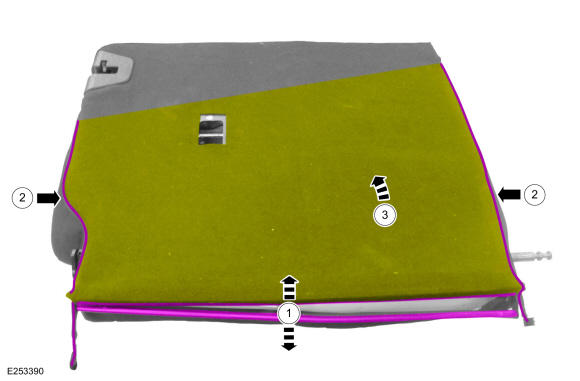

    1. Release the J-clip.
    2. Unzip the backrest cover.
    3. Position the rear seat backrest cover up.
    GFD328995Courtesy of FORD MOTOR COMPANY

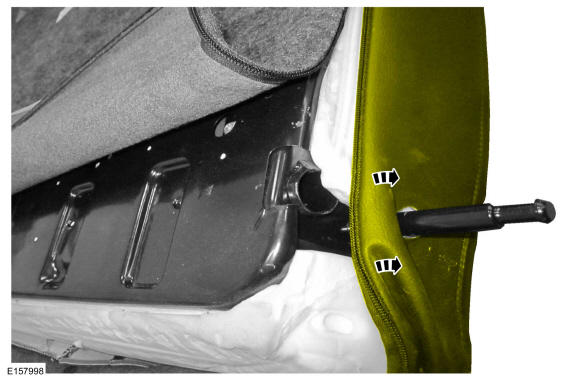

  6. On both sides. Position the rear seat backrest cover over the frame guide.
    GFD328996Courtesy of FORD MOTOR COMPANY
  7. Remove the second row seat side airbag. Refer to: Second Row Seat Side Airbag .
  8. Remove the rear seat backrest latch bezel.
    GFD328997Courtesy of FORD MOTOR COMPANY
  9. Remove the rear seat backrest release trim bezel.
    GFD328998Courtesy of FORD MOTOR COMPANY
  10. NOTE: Follow the unique instructions or graphics for this step in installation.

    Remove the rear seat backrest cover.

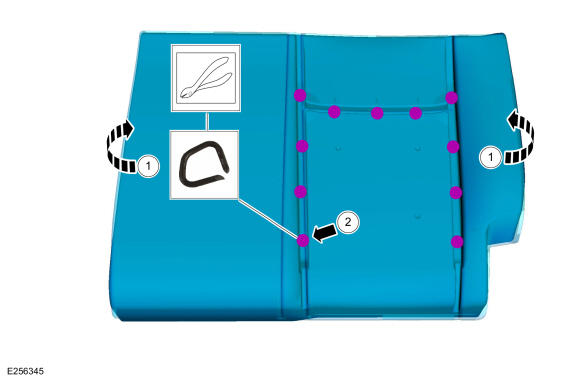

    1. Invert the rear seat backrest cover.
    2. Remove the hog rings.

GFD328999Courtesy of FORD MOTOR COMPANY
