Rear Seat Armrest: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Rear Seat Backrest .
-

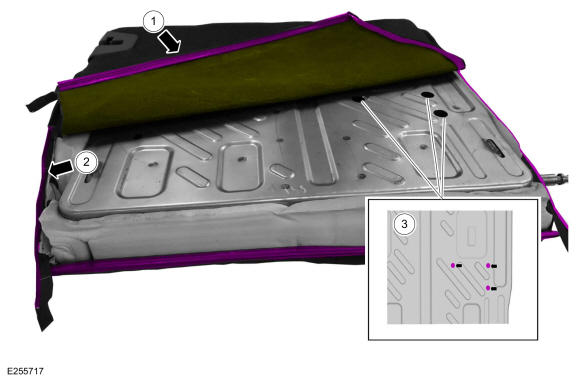

- Release the seat backrest lower J-clip.
- On both sides. Unzip the backrest cover and fold upward.
- Remove the armrest bolts.
Torque: 89 lb.in (10 Nm)

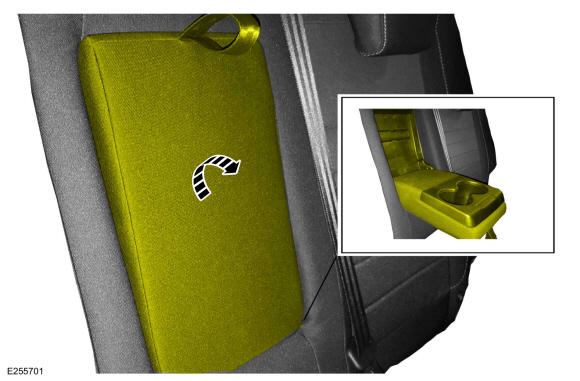

- Lower the armrest.

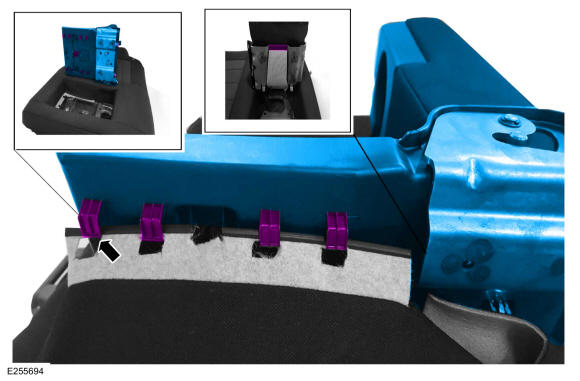

- Detach the rear seat backrest cover retainers and remove the rear seat armrest.
