Rear Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 40 percent rear seat backrest shown, 60 percent similar.

Raise the rear seat head restraint.

Courtesy of FORD MOTOR COMPANY

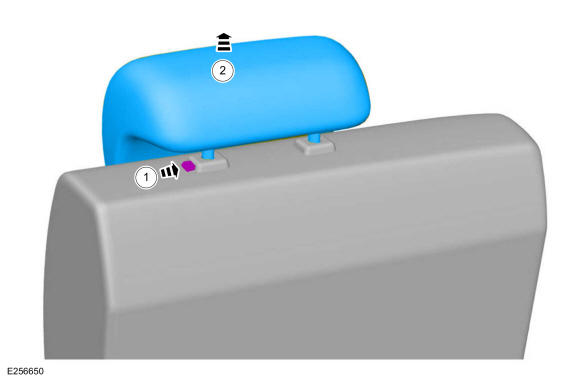

Remove the rear seat head restraint.
1. Depress the rear seat head restraint release button.
2. Remove the rear seat head restraint.
Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphics for this step in installation.

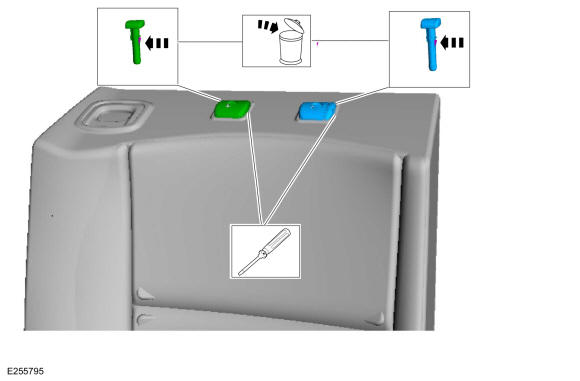

Release the locking tab, remove the rear seat head restraint guide sleeve(s). Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
