Seatbelt Shoulder Height Adjuster: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown in illustration, RH similar.

Remove the upper B-pillar trim panel. Refer to: B-Pillar Trim Panel .

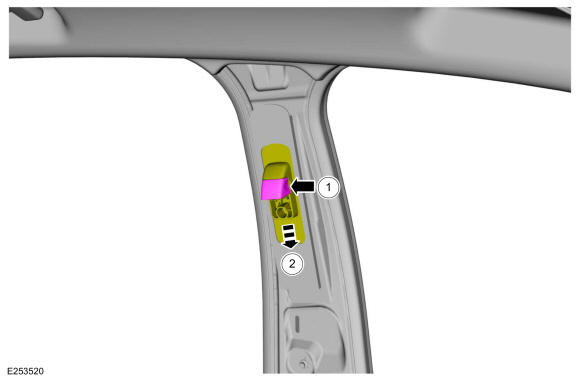

1. Pull the release handle.
2. Slide the seatbelt shoulder height adjuster down.
Courtesy of FORD MOTOR COMPANY

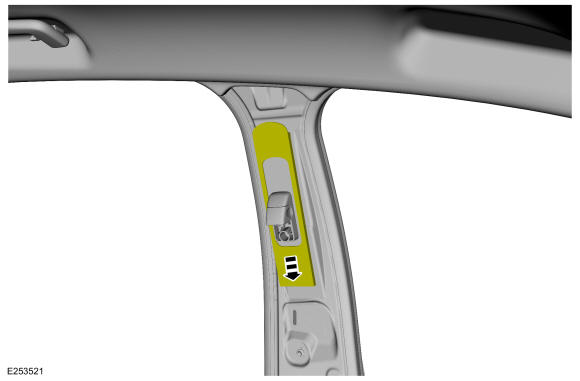

Slide the seatbelt shoulder height adjuster cover down.

Courtesy of FORD MOTOR COMPANY

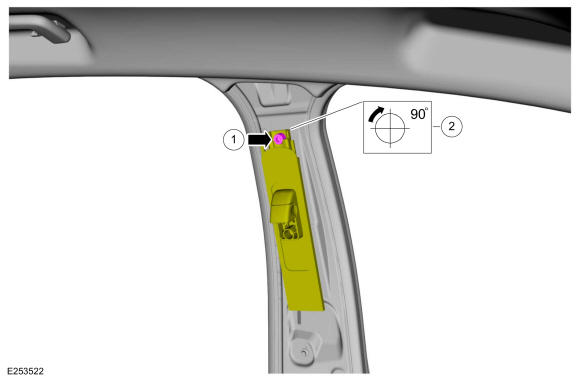

1. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
2. Rotate the seatbelt shoulder height adjuster 90 degrees clockwise.
Courtesy of FORD MOTOR COMPANY

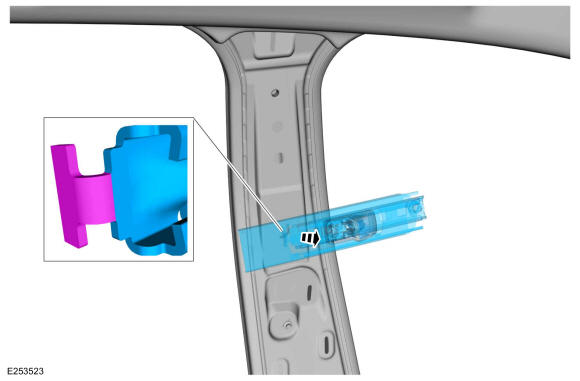

Release the locking tab and remove the seatbelt shoulder height adjuster.

Courtesy of FORD MOTOR COMPANY
