Rear Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown in illustration, RH similar.

Position the rear seat cushion to the full forward position.

Courtesy of FORD MOTOR COMPANY

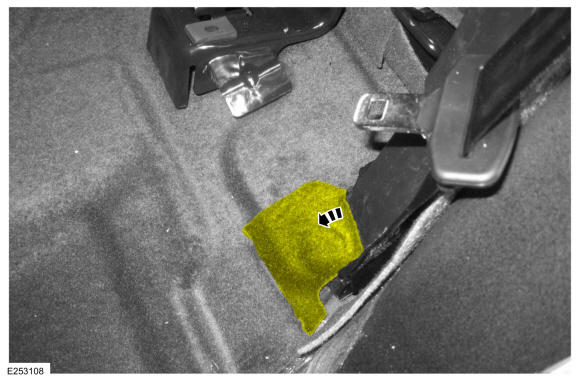

Position the carpet aside to access the seatbelt anchor.

Courtesy of FORD MOTOR COMPANY

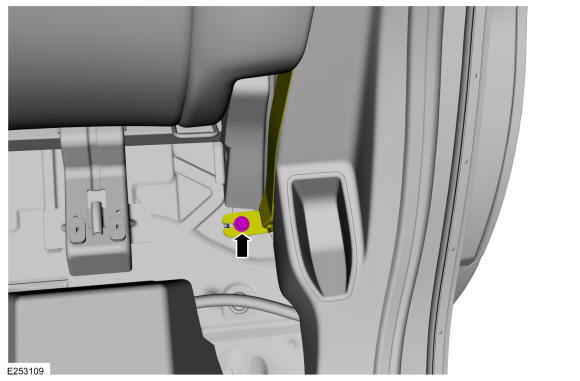

Remove the bolt and position the seatbelt anchor aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the D-pillar trim panel. Refer to: D-Pillar Trim Panel .

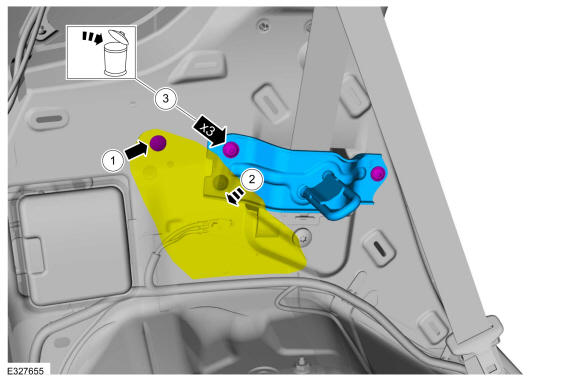

Remove the rear seat striker.
1. Remove the pin-type retainer.
2. Position the loadspace trim panel to access the bolt.
3. Remove the bolts.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

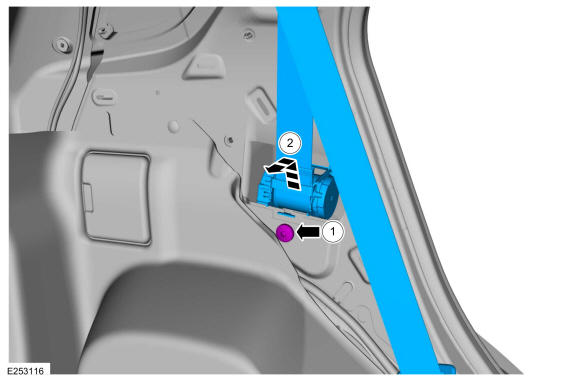

Remove the rear seatbelt retractor.
1. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
2. Remove the rear seatbelt retractor.

Courtesy of FORD MOTOR COMPANY
