Rear Seatbelt Buckle RH and Center: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

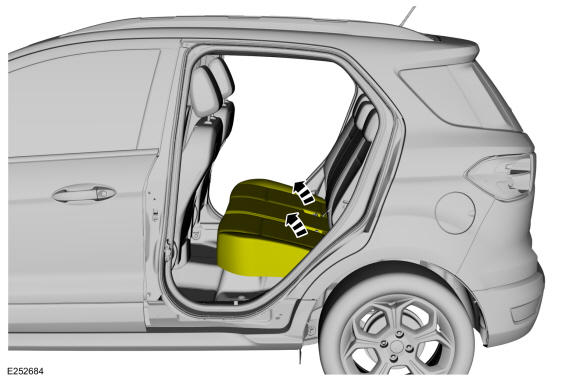

Position the rear seat cushions to the full forward position.

Courtesy of FORD MOTOR COMPANY

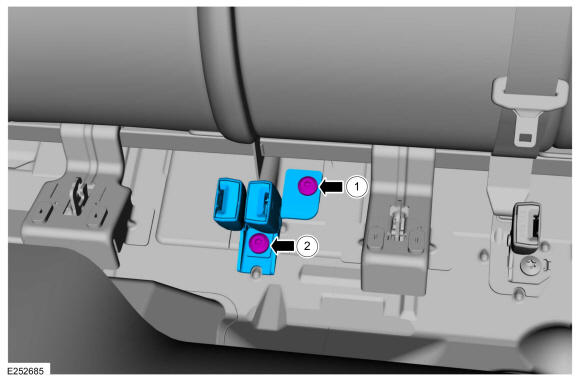

Remove the rear RH and center seatbelt buckle assembly.
1. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
2. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
