Rear Center Seatbelt Retractor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the LH rear seat backrest. Refer to: Rear Seat Backrest .

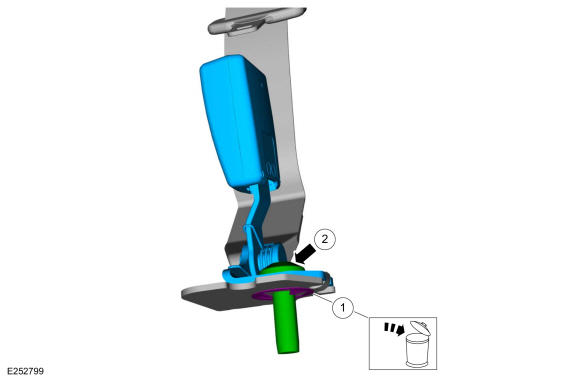

Remove the rear LH seatbelt buckle.
1. Remove and discard the bolt retainer.
2. Remove the bolt.
Courtesy of FORD MOTOR COMPANY

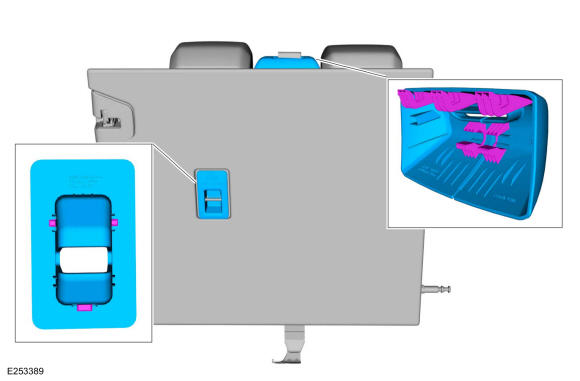

Remove the child safety seat tether anchor bezel and the rear center seatbelt guide bezel.

Courtesy of FORD MOTOR COMPANY

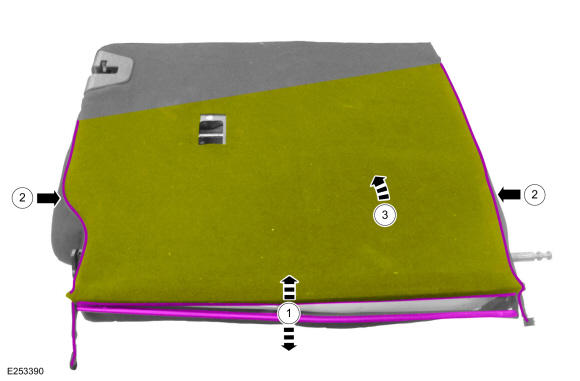

1. Release the J-clip.
2. Unzip the backrest cover.
3. Position the backrest cover to access the rear center seatbelt retractor bolt.
Courtesy of FORD MOTOR COMPANY
NOTE: The rear seat backrest cover is shown in illustration, removed for clarity.

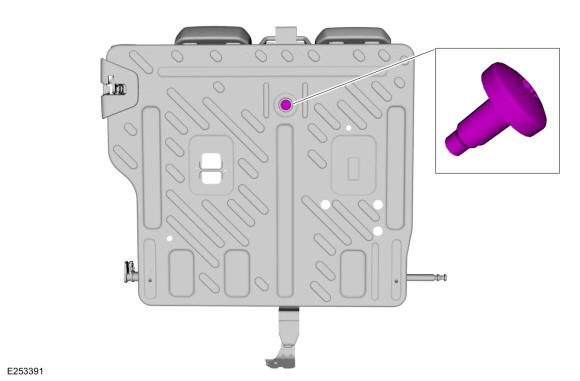

Remove the rear center seatbelt retractor bolt.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

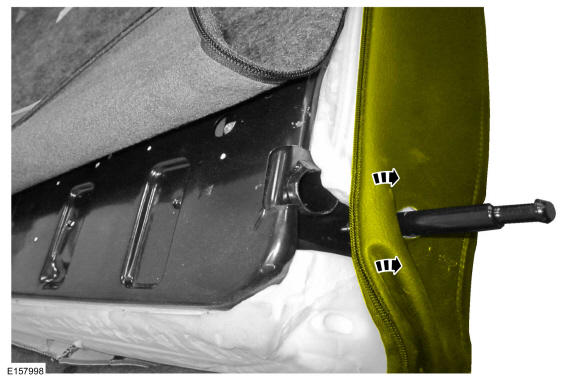

On both sides. Position the backrest cover to access the rear center seatbelt retractor.

Courtesy of FORD MOTOR COMPANY

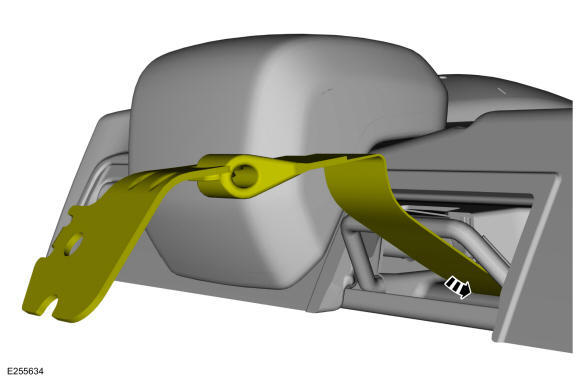

Route the seatbelt through the guide.

Courtesy of FORD MOTOR COMPANY

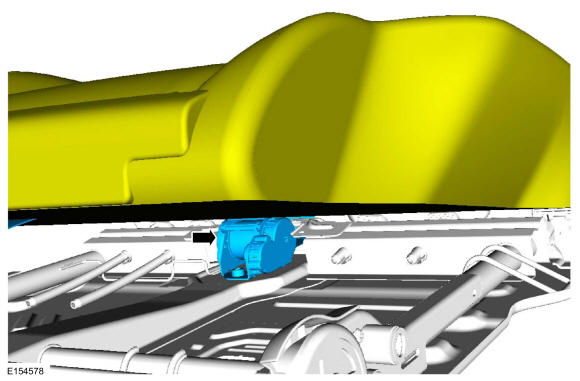

Remove the rear center seatbelt retractor.

Courtesy of FORD MOTOR COMPANY
