Front Seatbelt Retractor and Pretensioner: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown in illustration, RH similar.

WARNING: Before beginning any service procedure in this service information, refer to health and safety warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Remove the lower B-pillar trim panel. Refer to: B-PILLAR TRIM PANEL .

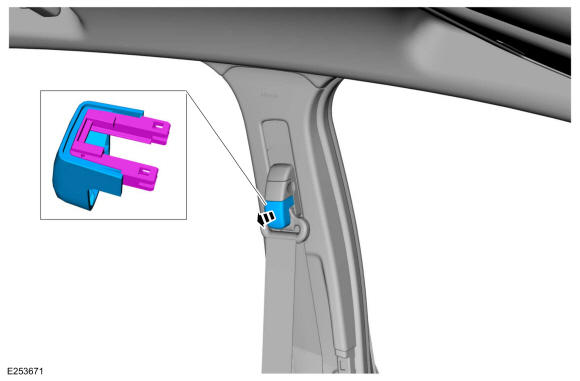

Pull straight off to release the retainers and remove the D-ring bolt cover.

Courtesy of FORD MOTOR COMPANY

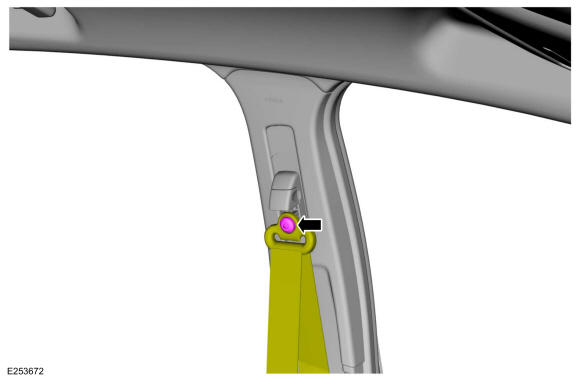

Remove the D-ring bolt and position the front seatbelt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

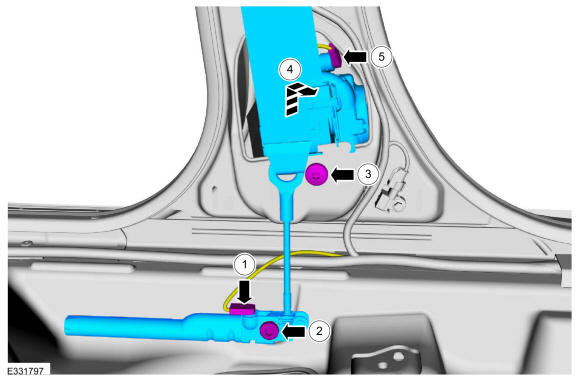

Remove the front seatbelt retractor and pretensioner.
1. Disconnect the front seatbelt anchor pretensioner electrical connector.
2. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
3. Remove the bolt.
  Torque: 30 lb.ft (40 Nm)
4. Lift the front seatbelt retractor and pretensioner up and out.
5. Disconnect the front seatbelt retractor pretensioner electrical connector.

Courtesy of FORD MOTOR COMPANY
