Front Seatbelt Buckle: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown in illustration, passenger seat similar.

Remove the front seat. Refer to: FRONT SEAT .

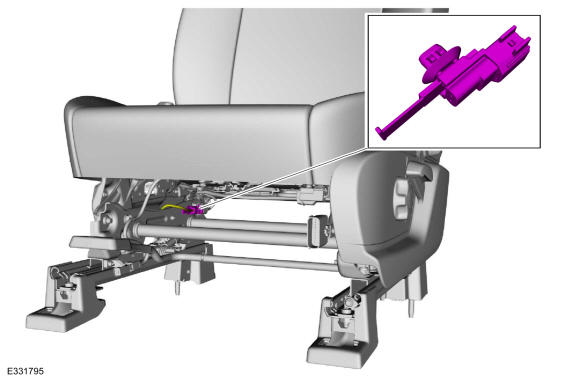

Detach and disconnect the front seatbelt buckle and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

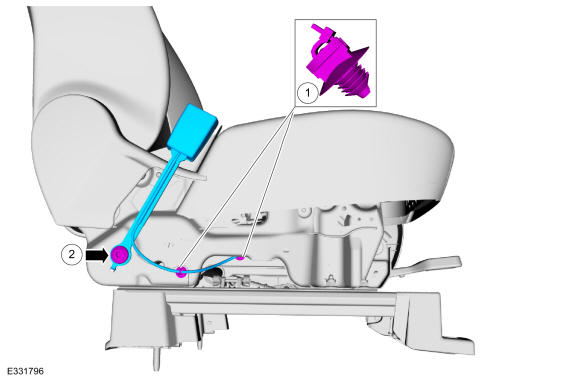

Remove the front seatbelt buckle.
1. Detach the pin-type retainers.
2. Remove the bolt.
  Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
