Seatbelt Twisted at the Seatbelt Guide
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Adjustment
NOTE:

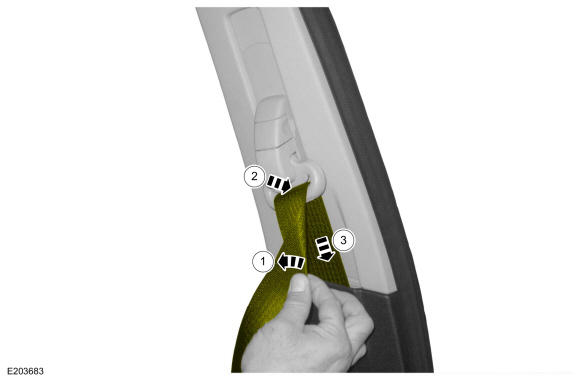

Typical D-ring shown in illustration, others similar.
- If required, remove the necessary trim panel(s).
-
- Fold the seatbelt as indicated.
- Feed the folded portion of the seatbelt into the D-ring.
- Pull the seatbelt through the D-ring to remove the twist in the seatbelt.
