FM2 Diversity Antenna Coaxial Cable Routing - Center (if equipped)

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

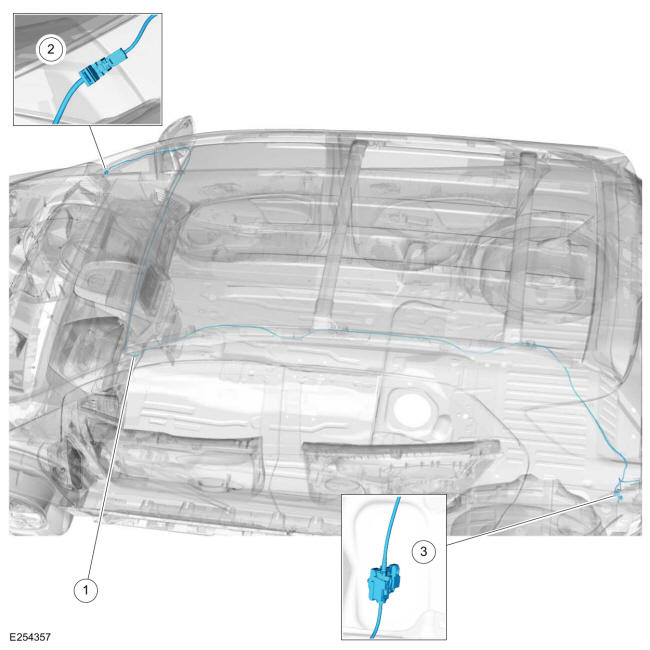

GFD328339Courtesy of FORD MOTOR COMPANY
Item Description
1 Center FM2 diversity antenna coaxial cable
2 Front diversity antenna coaxial in-line connection
3 Rear diversity antenna coaxial in-line connection
