Audio/SYNC System Main Components

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

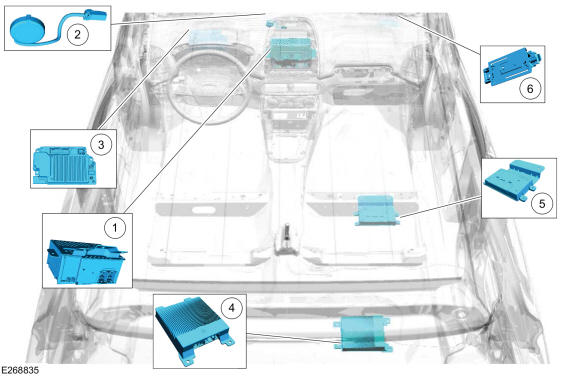

GFD328333Courtesy of FORD MOTOR COMPANY
Item Description
1 ACM
2 Microphone
3 APIM
4 DSP
5 TCU
6 TCU antenna
