AM/ FM1/ GPS/Satellite Antenna Coaxial Cable Routing - Front

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

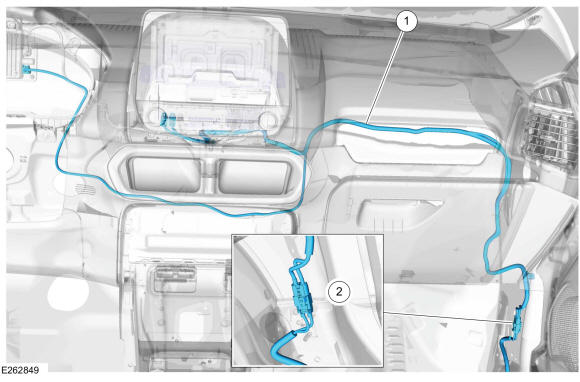

GFD328336Courtesy of FORD MOTOR COMPANY
Item Description
1 Front AM/ FM1/ GPS/satellite antenna coaxial cable
2 Front antenna coaxial cable in-line connection
