Roof Rail: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
- If equipped.

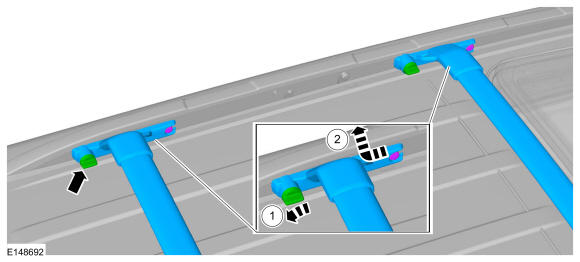

- Rotate the cross member retainer nut counter clockwise and remove the retainer nut.
- Remove the roof luggage carriers.

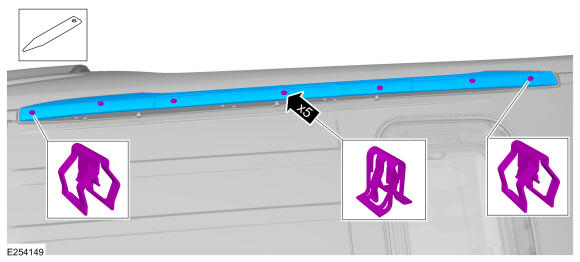

- Using a non-marring trim tool, disengage retainer clips on the roof rail cover and remove the roof rail cover. Use the General Equipment: Interior Trim Remover

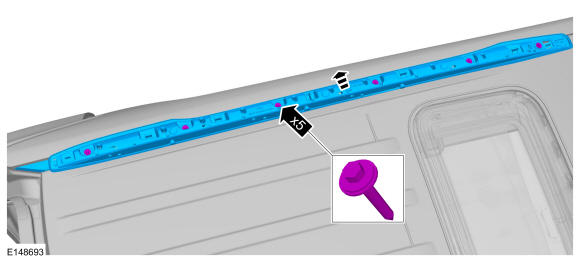

- Remove the roof rail bolts and remove the roof rail.
Torque: 53 lb.in (6 Nm)

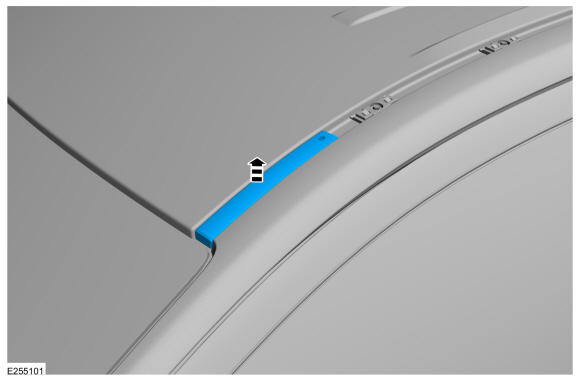

- Using a non-marring trim removal tool, remove the roof rail moulding.
