Rocker Panel Moulding: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
- Remove the front fender moulding. Refer to: Front Fender Moulding .

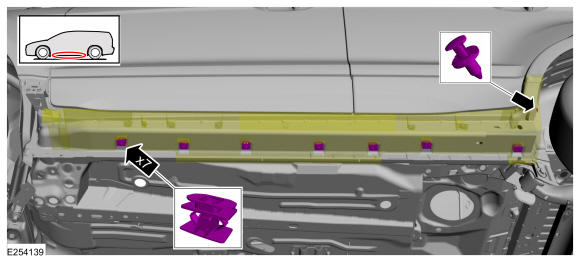

- Remove the pushpin retainer and release the clips on the underside of the rocker panel.
-
NOTE: Only use moderate force.

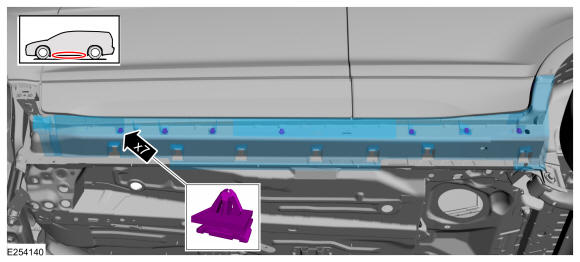

Using a non-marring trim removal tool, disengage the retainer clips and remove the rocker panel moulding.
