Rear Fender Splash Shield: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

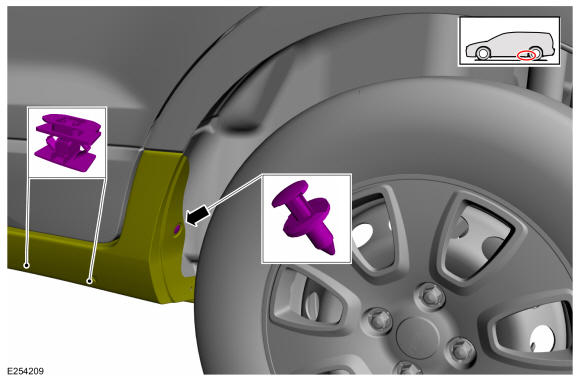

Disengage the pushpin and the clips, position aside the rocker panel moulding.

Courtesy of FORD MOTOR COMPANY

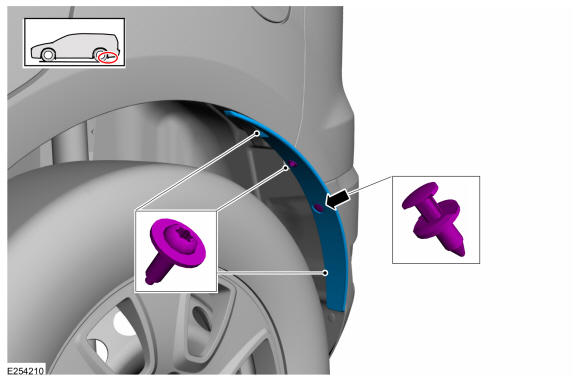

Remove the pushpin and the retainers. Remove the rear bumper end cap.
Torque: 10 lb.in (1.1 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the LH side rear wheel. Refer to: Wheel and Tire .

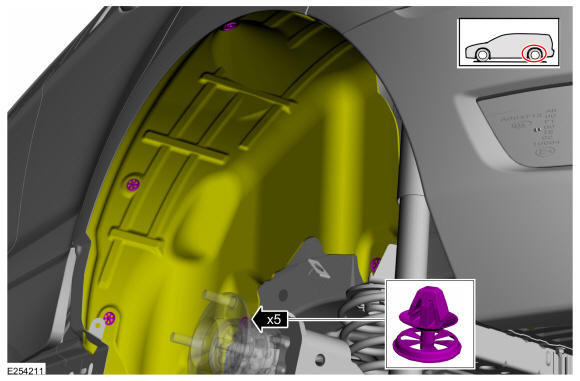

Remove the pin-type retainers.

Courtesy of FORD MOTOR COMPANY

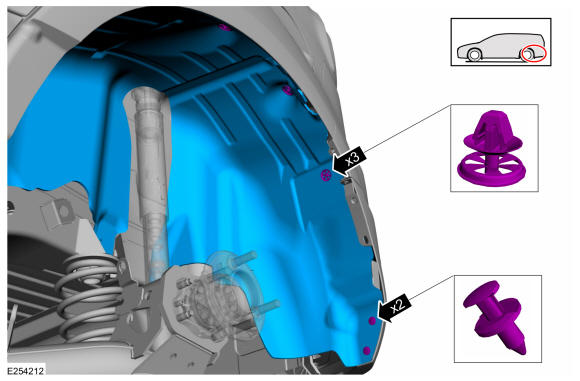

Remove the pushpins and the pin-type retainers. Remove the rear fender splash shield.

Courtesy of FORD MOTOR COMPANY
