Liftgate Moulding: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .
-

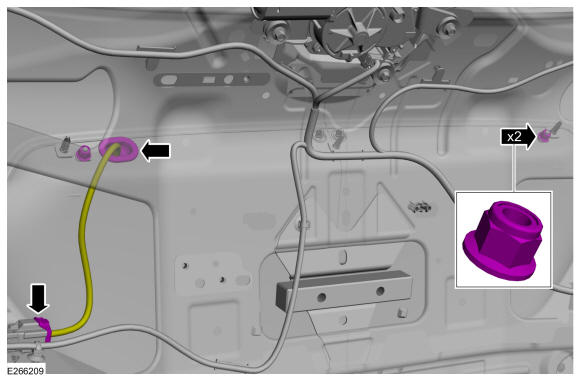

- Disconnect the electrical connector and remove the grommet.
- Remove the nuts.
Torque: 35 lb.in (4 Nm)
-

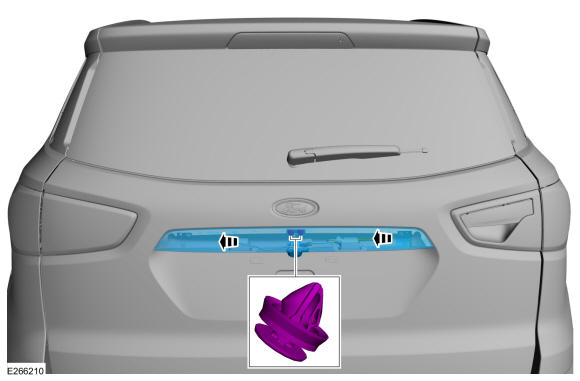

- Using a non-marring trim tool, disengage the retainers.
- Remove the liftgate moulding.
